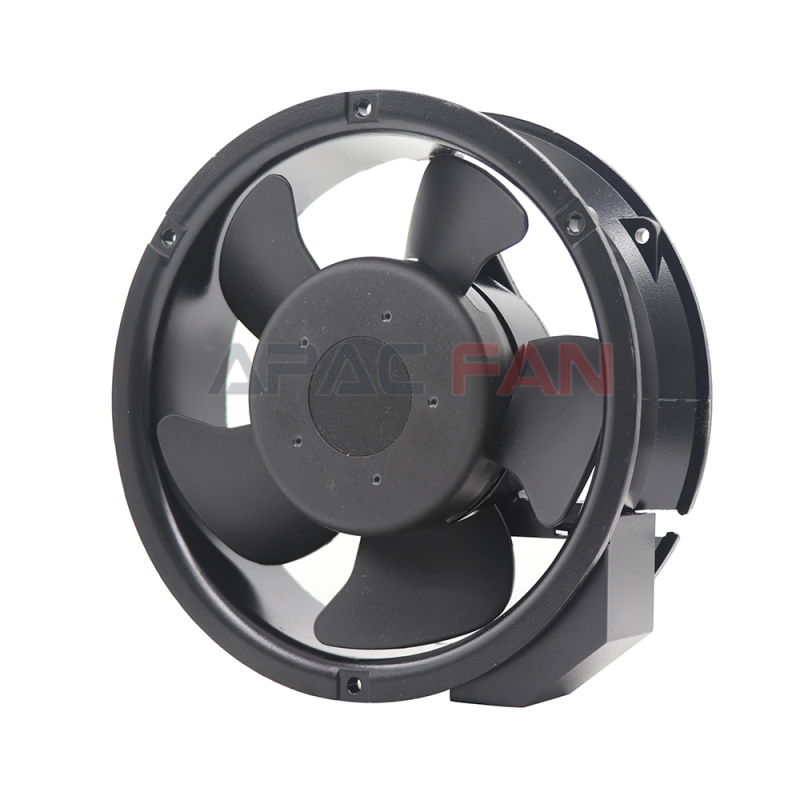

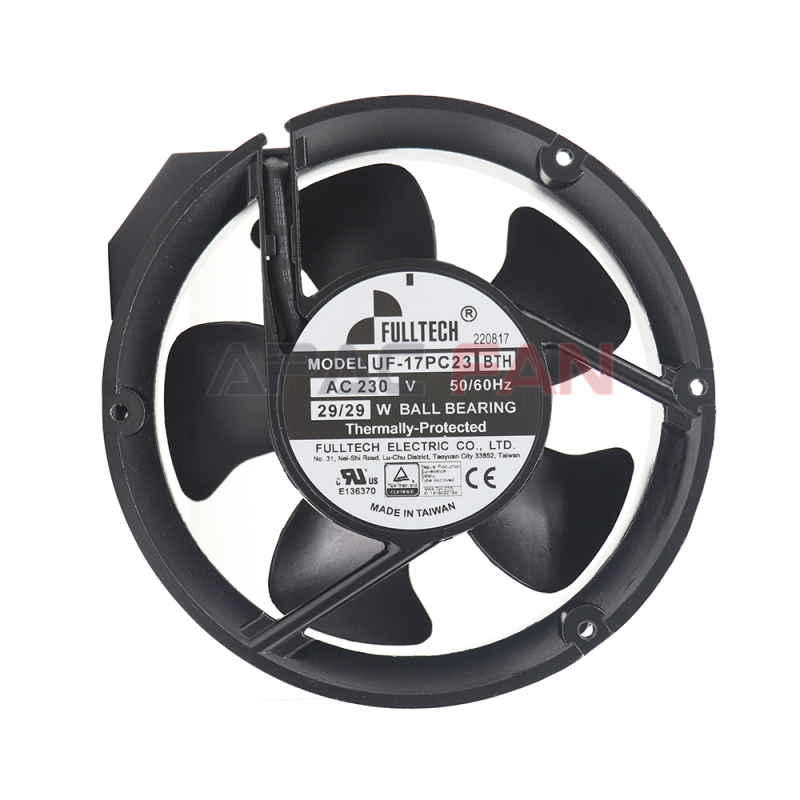

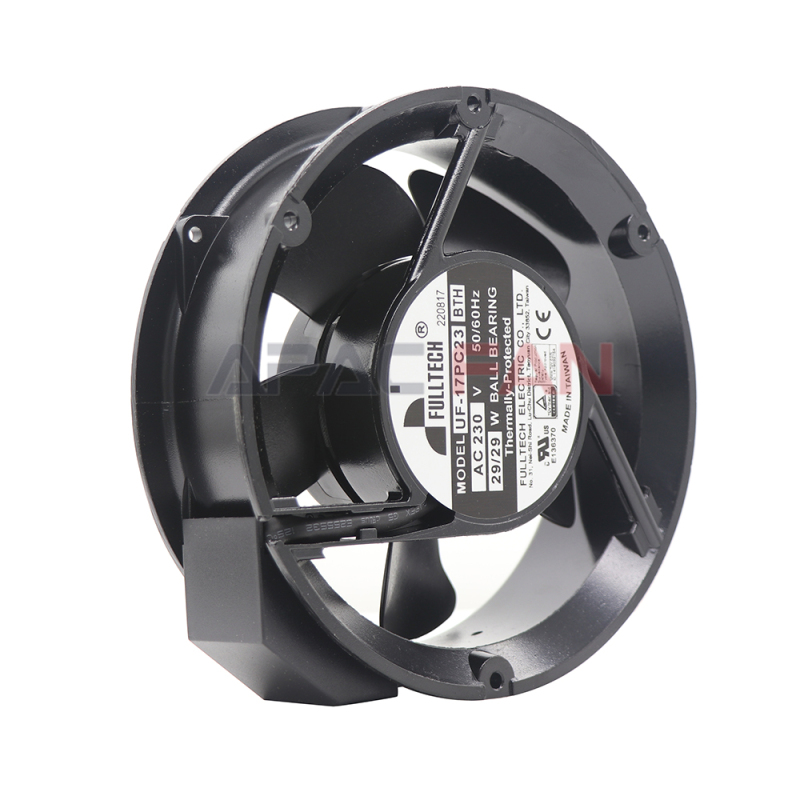

UF-17PC23BTH FULLTECH

Q1: What are the typical applications for the FULLTECH UF-17PC23BTH axial fan?
A1: The FULLTECH UF-17PC23BTH is suitable for compact industrial and commercial ventilation applications that require dependable airflow within limited space. With its 172 mm diameter and 51 mm depth, it is commonly used in electrical cabinets, control panels, power distribution units, and small machinery enclosures. Its axial airflow design supports direct air movement across heat-generating components, helping maintain stable internal temperatures and protect sensitive electrical equipment.

Q2: How does the airflow performance of the UF-17PC23BTH support cooling efficiency?
A2: Delivering a maximum airflow of 384 m³/h at a speed of 3,400 RPM, the UF-17PC23BTH provides effective heat dissipation for moderate thermal loads. This level of airflow is well suited for systems that need continuous ventilation rather than extremely high pressure. The fan helps prevent localized heat buildup, improving overall thermal balance and supporting reliable operation of electronic and electrical components.

Q3: What are the electrical characteristics of the UF-17PC23BTH?
A3: The UF-17PC23BTH operates on a 230 V AC power supply with an input power of 29 W, making it compatible with standard industrial and commercial electrical systems. Its relatively low power consumption compared to larger axial fans allows for efficient continuous operation while still delivering sufficient airflow. This balance is beneficial for systems where energy efficiency and reliable cooling are both important.

Q4: Is the FULLTECH UF-17PC23BTH suitable for continuous-duty operation?
A4: Yes, this fan is designed for continuous operation in controlled industrial environments. Its motor and blade design support stable performance at 3,400 RPM, enabling long operating hours when installed correctly. Proper ventilation layout and routine inspection can help ensure consistent airflow and long service life in applications such as control cabinets and equipment cooling systems.

Q5: How should noise and installation factors be considered for this fan?
A5: With a noise level of 55 dB, the UF-17PC23BTH offers a balance between airflow performance and acoustic comfort. It is suitable for environments where moderate noise levels are acceptable, such as industrial rooms or equipment enclosures. During installation, ensuring correct airflow direction, sufficient clearance, and secure mounting will help reduce vibration and optimize cooling effectiveness.
