W1G300-EC24-03 ebm-papst

1. Brand and product positioning

As a world-renowned fan manufacturer, ebm-papst has always adhered to the concept of innovation and high quality. The W1G300-EC24-03 fan is a representative product in the field of axial fans, designed to provide efficient and reliable solutions for various equipment with high requirements for ventilation and heat dissipation.

2. Interpretation of key parameters

Rated voltage: The rated voltage of 26V has lower safety risks than some common high-voltage fans, and is particularly suitable for environments that are sensitive to electrical safety. At the same time, this voltage setting can also perfectly adapt to many low-voltage equipment systems, without the need for additional complex voltage conversion devices, reducing the cost and complexity of system integration.

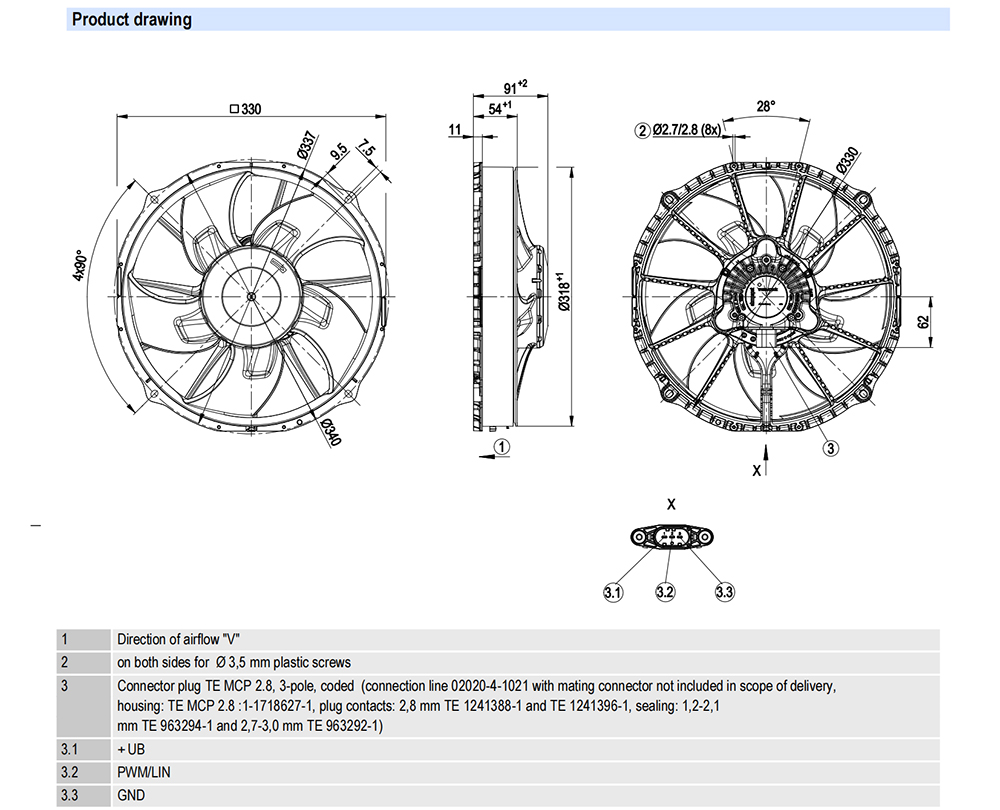

Size: The 300 mm size design provides the fan with a relatively considerable air circulation area. The larger size allows the fan to deliver more air per unit time, meeting the needs of large equipment or space for large air volume. This moderate size also takes into account the limitations of the installation space, and can find a suitable installation location in many industrial and commercial application scenarios.

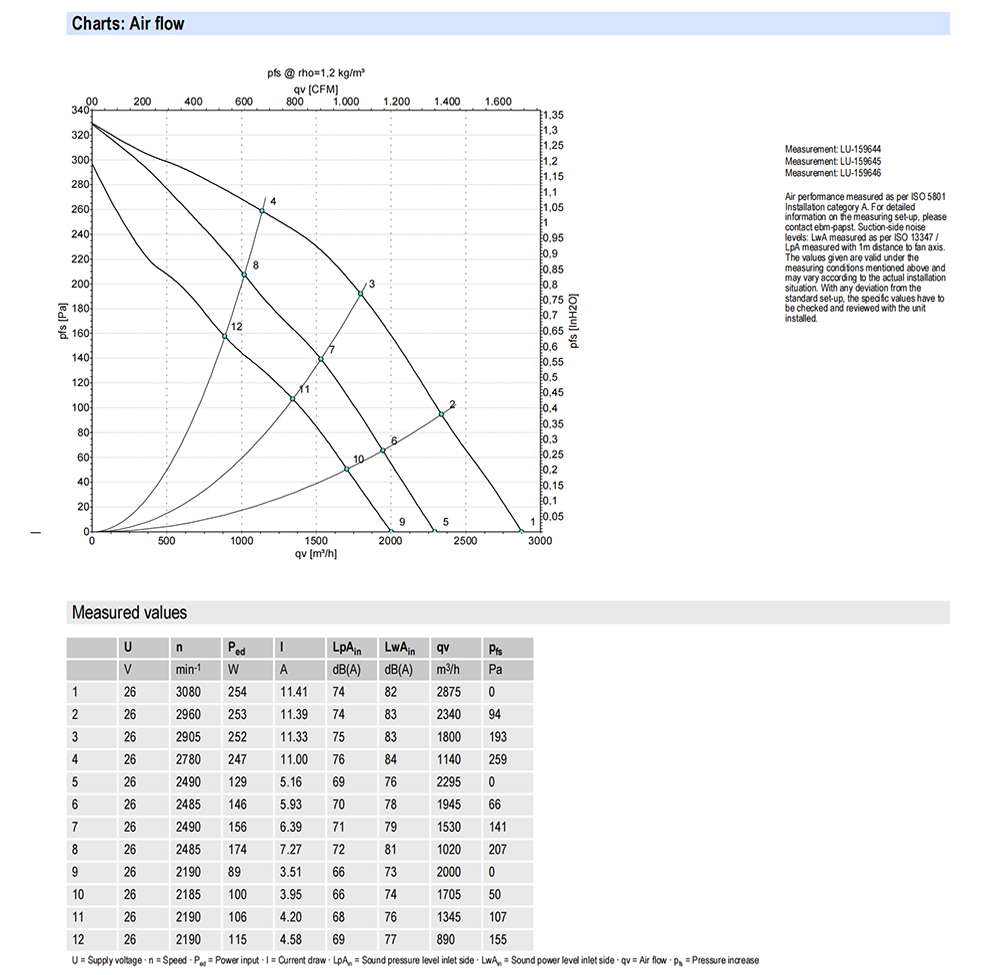

Maximum air volume: The maximum air volume of up to 2875m³/h fully demonstrates the powerful ventilation capacity of the fan. Such a large air volume can quickly discharge heat or dirty air and create a good operating environment for the equipment. For example, in large data centers, a large amount of heat generated by many servers needs to be dissipated in time. With its large air volume characteristics, the W1G300-EC24-03 fan can quickly and effectively dissipate heat for the server and ensure the stable operation of the data center.

Maximum pressure: The maximum pressure of 259Pa means that the fan has a strong ability to overcome the resistance of the ventilation duct. Even when the ventilation path is more complex and there is a certain resistance, the fan can still ensure the normal circulation of air and transport the air to the designated location. This feature makes it perform well in some applications that require long-distance air supply or long ventilation ducts.

Input power: The input power of 245W achieves a good energy efficiency ratio while ensuring powerful performance. Compared with high-power fans of the same type, it provides considerable air volume and pressure while consuming relatively less electricity, saving energy costs for users. This has important economic significance for some equipment or places that run for a long time and are sensitive to energy consumption.

Speed: The high speed of 3040rpm is one of the key factors for the fan to achieve large air volume and high pressure. The high-speed rotating impeller can quickly promote the air flow and form a strong airflow. The stable high speed also ensures the stability of the fan output airflow, providing reliable protection for equipment that requires a stable ventilation environment.

Noise: The noise level of 66dB is in a relatively reasonable range among fans of the same type. Although the fan will generate some noise during operation, the noise is controlled to a level that does not affect the normal work and life of the surrounding environment through the carefully designed impeller shape and motor noise reduction technology. In some places with high noise requirements, such as hospitals and offices, reasonable installation location selection and sound insulation measures can also meet the use requirements.

3. Unique design features

Axial flow fan structure: As an axial flow fan, its working principle is to drive the impeller to rotate through the motor to make the air flow in the axial direction. This structural design has the advantages of large air volume, simple structure and high operating efficiency. The impeller is usually designed with a special blade shape and angle, which can effectively convert electrical energy into kinetic energy of air and improve the overall performance of the fan.

High-efficiency motor technology: The W1G300-EC24-03 fan is equipped with a high-efficiency motor independently developed by ebm-papst. The motor adopts advanced electromagnetic design and high-quality materials, with high power factor and efficiency. The stability and reliability of the motor have also been rigorously tested, and it can maintain good performance during long-term continuous operation, reducing the fan downtime caused by motor failure and improving the overall operation stability of the equipment.

Optimized aerodynamic design: The fan housing and impeller have been carefully aerodynamically optimized. The shape design of the housing can guide the air in and out of the fan smoothly, reducing resistance and turbulence during the air flow process. The shape and number of the impeller blades have been precisely calculated and tested to ensure that a uniform and stable airflow can be generated when rotating at high speed, further improving the air volume and pressure performance of the fan while reducing noise and energy consumption.

In summary, the W1G300-EC24-03 fan has shown strong competitiveness in many application fields with its excellent parameter performance and unique design features. Whether in industrial production, data centers, or commercial and civil fields, it can provide reliable solutions for the ventilation and heat dissipation needs of equipment. In subsequent articles, we will explore its application in different scenarios and its operation and maintenance.
