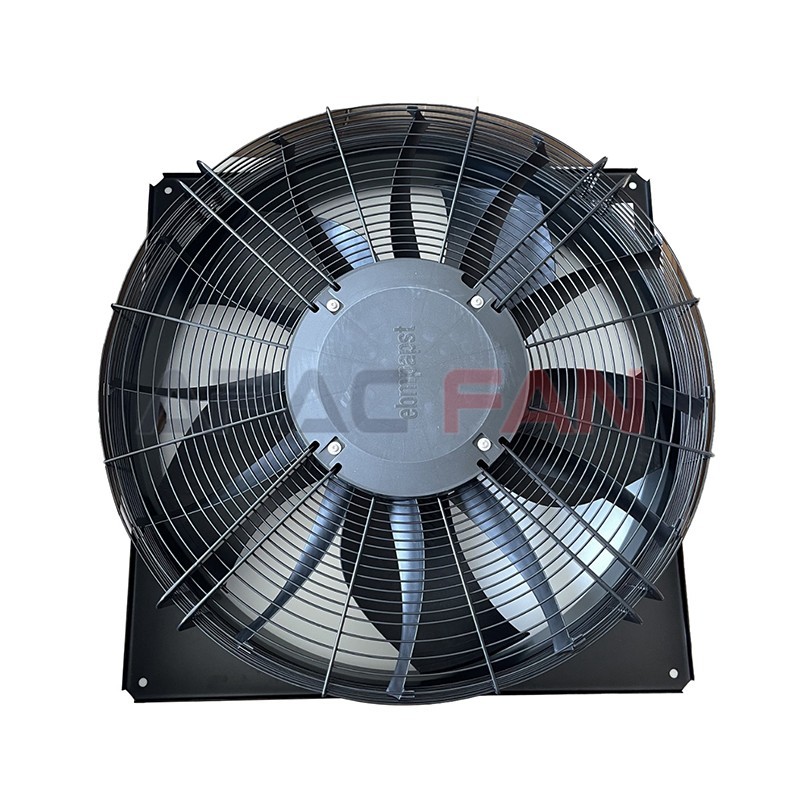

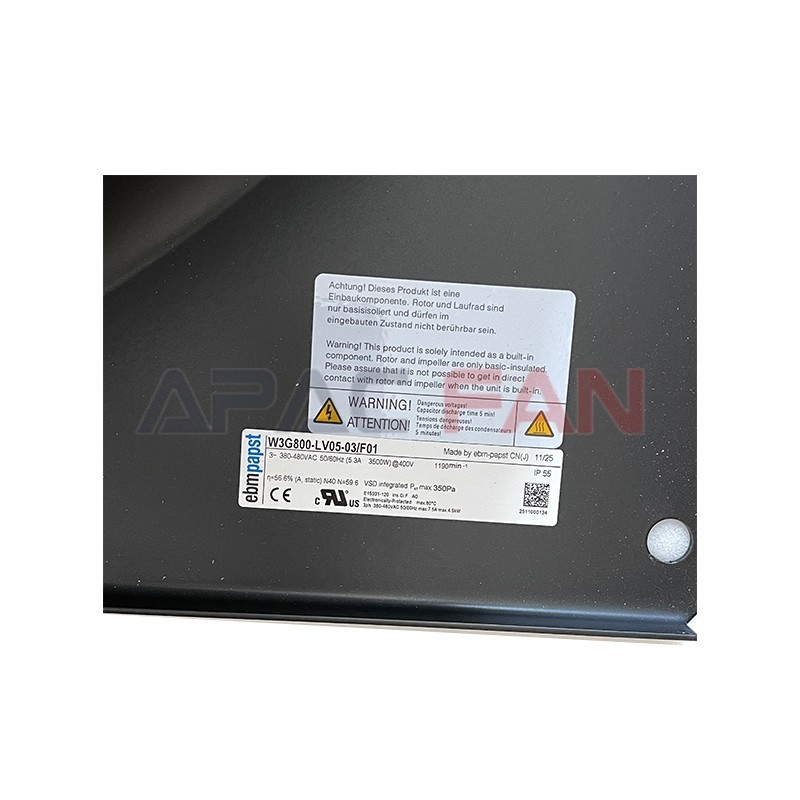

EC axial fan - AxiBlade, sickle-shaped blades (S series), Fan housing with guide vanes

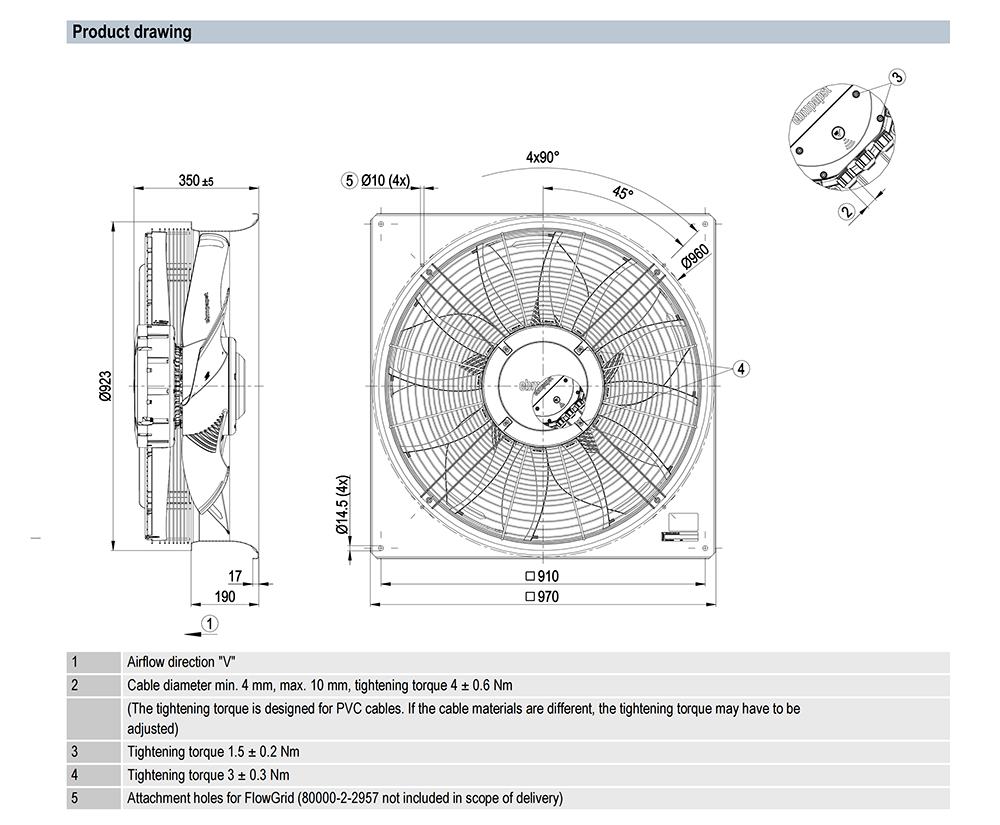

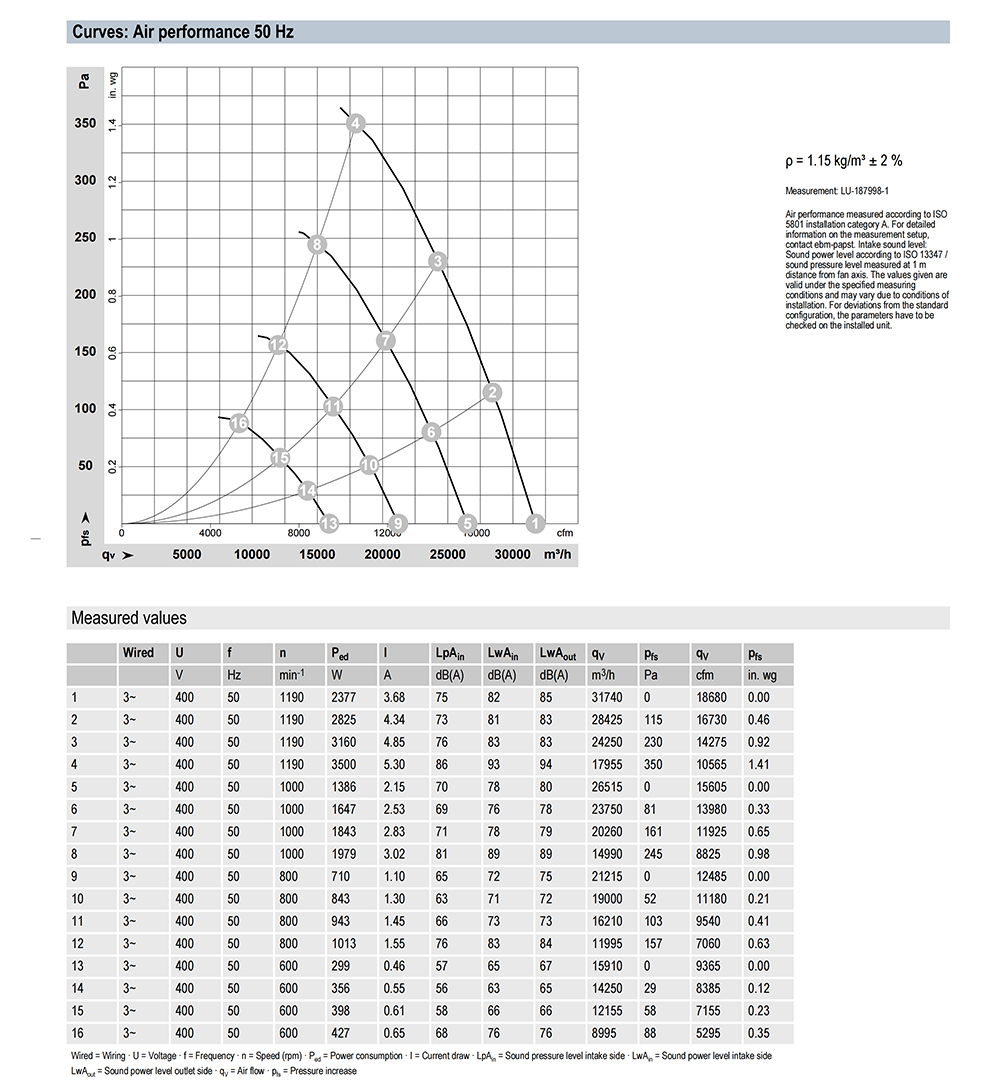

| Brand: | ebm-papst |
| Part No: | W3G800-LV05-03/F01 |
| Fan Type: | Axial Fan |
| Rated Voltage(V): | 400 |
| Size(mm): | 800 |
| Max.Air Flow(m³/h): | 31740 |
| Max.Pressure(Pa): | 350 |
| Input Power(W): | 3500 |
| Speed(RPM): | 1190 |
| Noise(dB): | 86 |
| Weight: | 51.4 kg |
| Motor Size: | 150 |
| Rotor Surface: | Painted black |
| Electronics Housing Material: | Die-cast aluminum, painted gray |
| Impeller Material: | PP plastic |
| Fan Housing Material: | Sheet steel, galvanized and coated with black plastic (RAL 9005) |
| Material Guide Vanes: | PP plastic |
| Guard Grille Material: | Steel, coated with black plastic (RAL 9005) |
| Internal Diffuser Material Including Cover: | PP plastic |
| Number Of Blades: | 5 |
| Blade Pitch: | 0° |
| Airflow Direction: | V |
| Direction Of Rotation: | Clockwise, viewed toward rotor |
| Degree Of Protection: | IP55 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H2 |
| Ambient Temperature Note: | Occasional start-up at temperatures between -40°C and -25°C is permitted. For continuous operation at ambient temperatures below -25°C (such as refrigeration applications), use must be made of a fan design with special low-temperature bearings. |
| Max. Permitted Ambient Temp. For Motor (Transport/Storage): | +80 °C |
| Min. Permitted Ambient Temp. For Motor (Transport/Storage): | -40 °C |
| Installation Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | Operation and alarm display with LED; External 15-50 VDC input (parameterization); Alarm relay; Integrated PI controller; Configurable inputs/outputs (I/O); MODBUS V6.3; Motor current limitation; RS-485 MODBUS-RTU; Soft start; Voltage output 3.3-24 VDC, Pmax = 800 mW; Control interface with SELV potential safely disconnected from the mains; Thermal overload protection for electronics/motor; Line undervoltage / phase failure detection |
| EMC Immunity To Interference: | According to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | According to EN 61000-6-3 (household environment), except EN 61000-3-2 for professionally used equipment with a total rated power greater than 1 kW |
| Touch Current According To IEC 60990 (Measuring Circuit Fig. 4, TN System): | <= 3.5 mA |

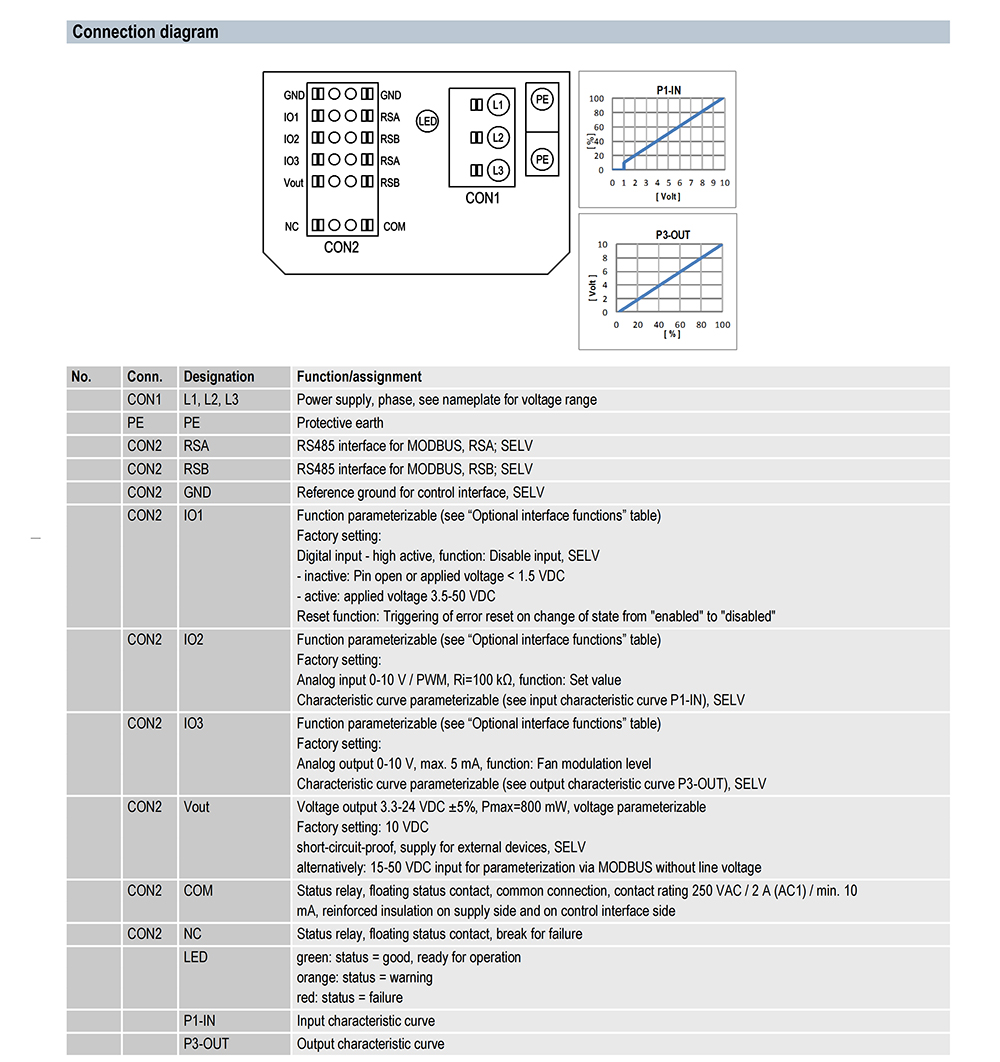

| Electrical Hookup: | Terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity With Standards: | EN 61800-5-1; CE |
| Approval: | CSA C22.2 No. 77 + CAN/CSA-E60730-1; EAC; UL 1004-7 + 60730-1 |
