| Brand: | ebm-papst |

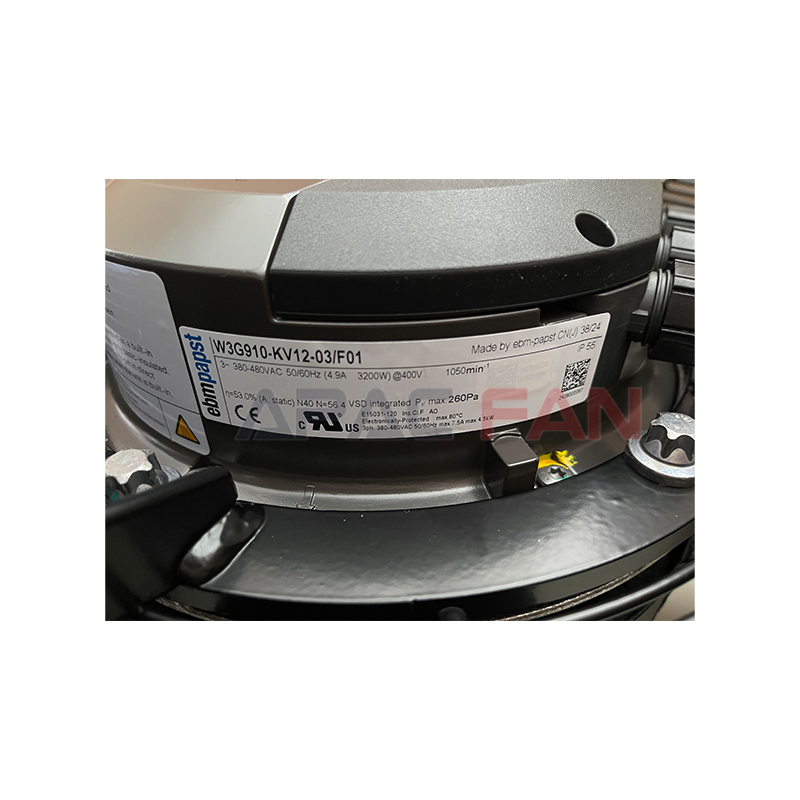

| Part No: | W3G910-KV12-03/F01 |
| Fan Type: | Axial Fan |
| Rated Voltage(V): | 400 |
| Size(mm): | 910 |

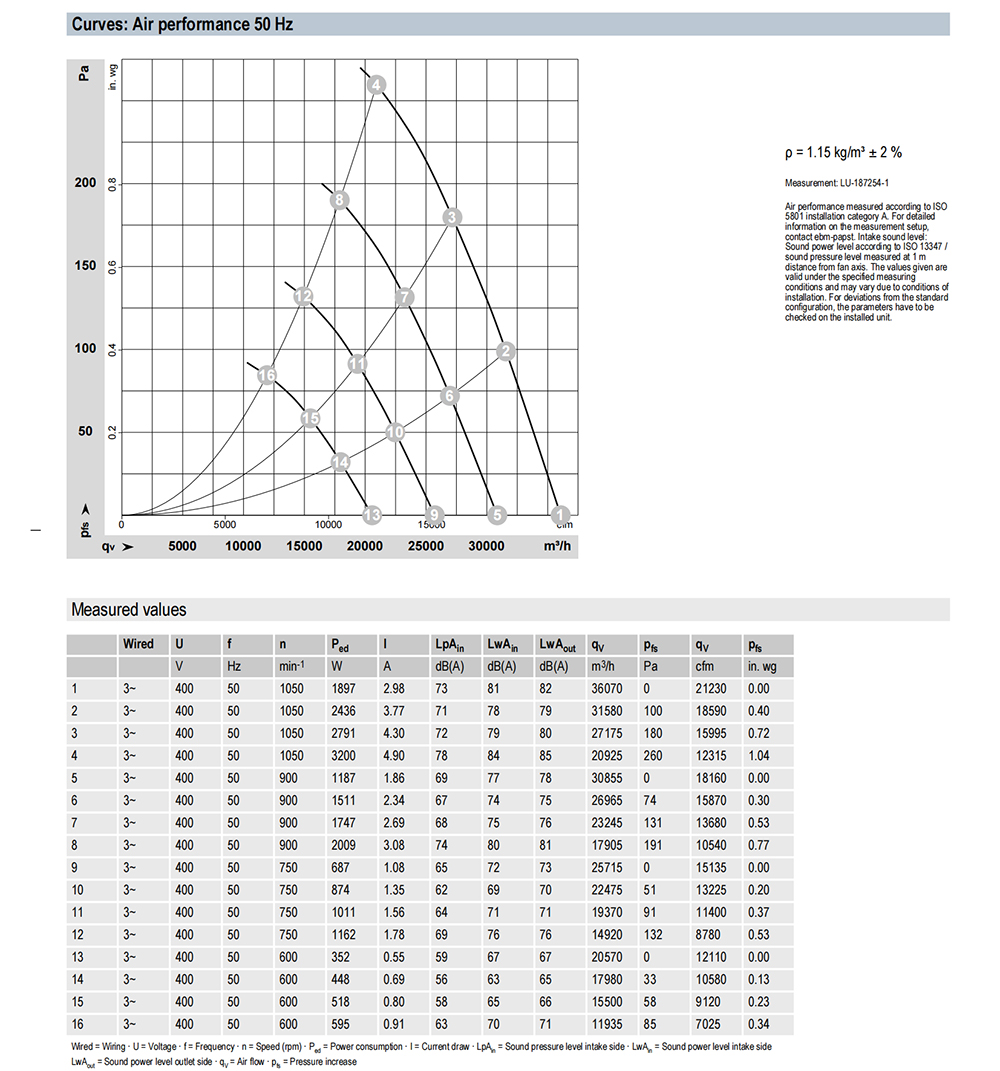

| Max.Air Flow(m³/h): | 36070 |
| Max.Pressure(Pa): | 260 |
| Input Power(W): | 3200 |
| Speed(RPM): | 1050 |
| Noise(dB): | 79 |
| Weight: | 54 kg |
| Motor Size: | 150 |
| Rotor Surface: | Painted black |
| Electronics Housing Material: | Die-cast aluminum, painted gray |
| Impeller Material: | PP plastic |
| Fan Housing Material: | Sheet steel, galvanized and coated with black plastic (RAL 9005) |
| Guard Grille Material: | Steel, coated with black plastic (RAL 9005) |
| Number of Blades: | 5 |
| Blade Pitch: | 0° |
| Airflow Direction: | V |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP55 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H2 |
| Ambient Temperature Note: | Occasional start-up at temperatures between -40°C and -25°C is permitted. For continuous operation at ambient temperatures below -25°C (such as refrigeration applications), use must be made of a fan design with special low-temperature bearings. |
| Installation Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | - Operation and alarm display with LED - External 15-50 VDC input (parameterization) - Alarm relay - Integrated PI controller - Configurable inputs/outputs (I/O) - MODBUS V6.3 - Motor current limitation - RS-485 MODBUS-RTU - Soft start - Voltage output 3.3-24 VDC, Pmax = 800 mW - Control interface with SELV potential safely disconnected from the mains - Thermal overload protection for electronics/motor - Line undervoltage / phase failure detection |
| Touch Current According to IEC 60990 (measuring circuit Fig. 4, TN system): | <= 3.5 mA |

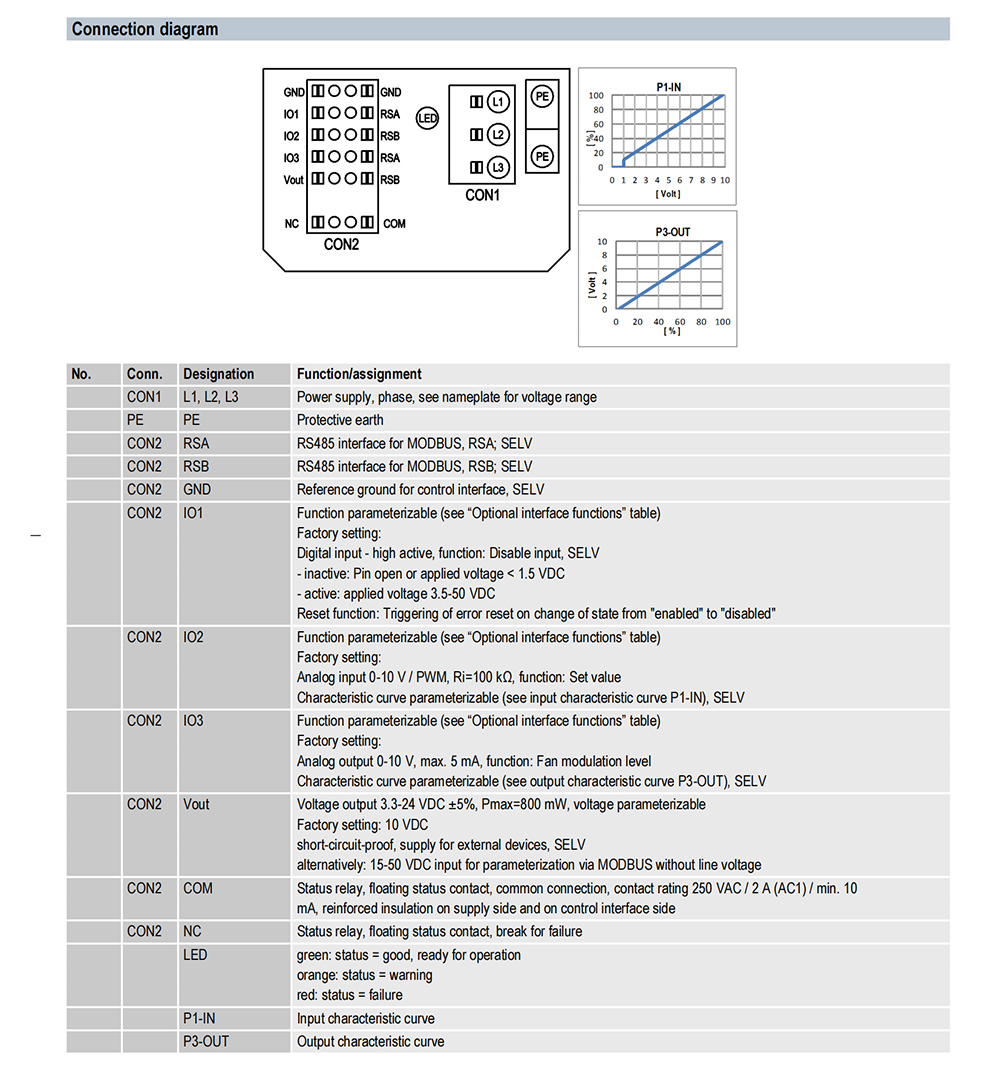

| Electrical Hookup: | Terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
