sickled blades (S series)with full square nozzle
| Brand： | ebm-papst |
| Part No： | W6D800-GD01-01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 800 |

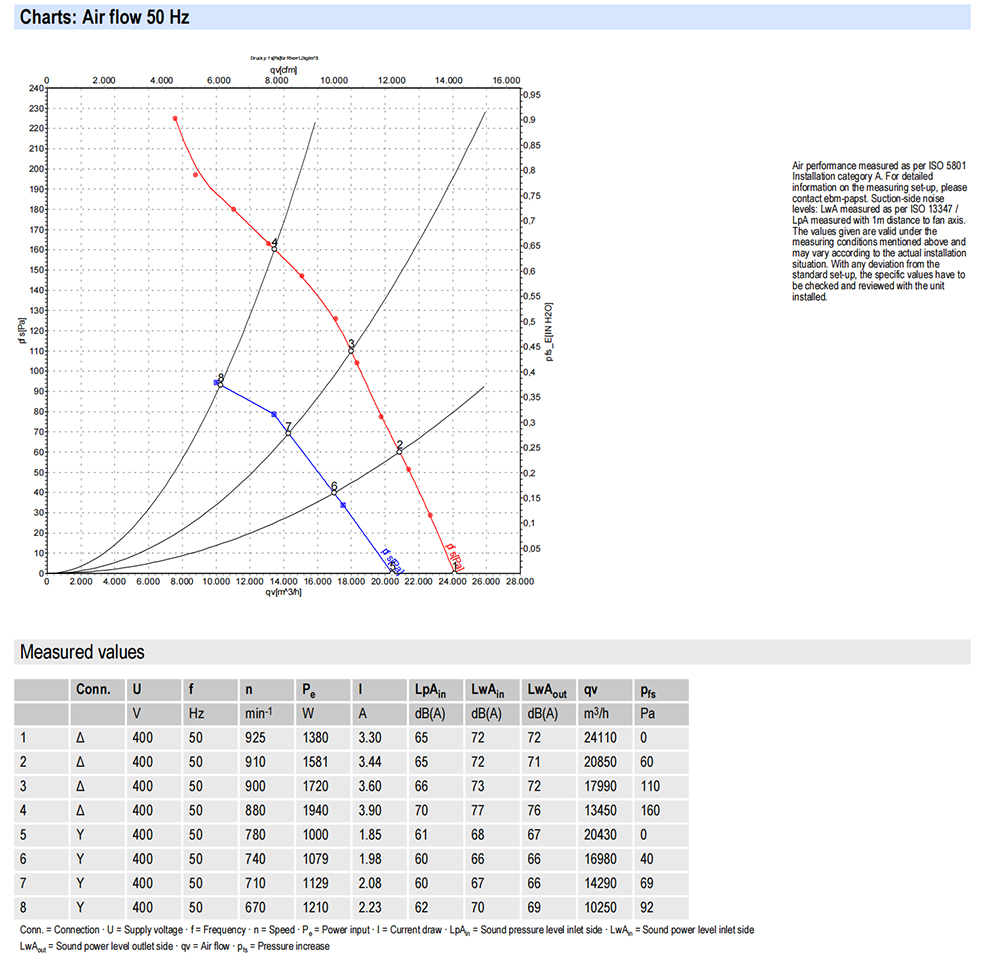

| Max.Air Flow(m³/h)： | 24110 |
| Max.Pressure(Pa)： | 160 |
| Input Power(W)： | 1940 |
| Speed(RPM)： | 880 |
| Noise(dB)： | 83 |
| Mass: | 44 kg |
| Surface of rotor: | Cast in aluminium |
| Material of terminal box: | PP plastic |
| Material of blades: | Aluminium sheet insert, sprayed with PP plastic |
| Material of wall ring: | Sheet steel, pre-galvanised and coated in black plastic (RAL 9005) |
| Material of guard grille: | Steel, coated in black plastic (RAL9005) |
| Number of blades: | 5 |
| Blade angle: | 0 |
| Direction of air flow: | "V" |
| Direction of rotation: | Clockwise, seen on rotor |
| Type of protection: | IP 54 |
| Insulation class: | "F" |
| Humidity class: | F3-1 |
| Max. permissible ambient motor temp. (transp./storage): | +80°C |
| Min. permissible ambient motor temp. (transp./storage): | -40°C |
| Mounting position: | Any |
| Condensate discharge holes: | On rotor and stator sides |
| Operation mode: | S1 |
| Motor bearing: | Ball bearing |
| Touch current acc. IEC 60990 (measuring network Fig. 4, TN system): | ≤3.5 mA |

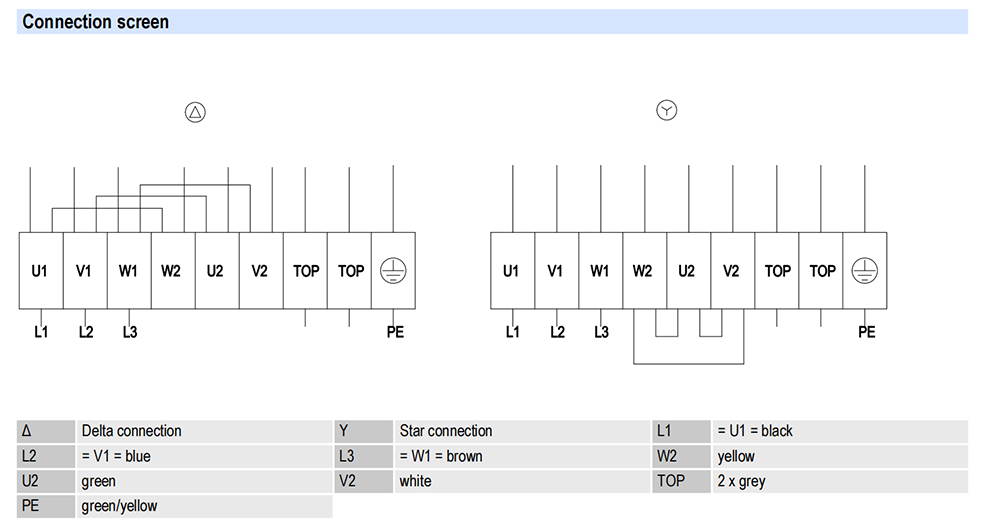

| Electrical leads: | Via terminal box |
| Motor protection: | Thermal overload protector (TOP) brought out |
| Cable exit: | Axial |
| Protection class: | I (if protective earth is connected by customer) |
| Product conforming to standard: | EN 60034; EN 61800-5-1; CE |
| Approval: | EAC; VDE |
In the industrial and commercial fields, ventilation systems play a crucial role in maintaining a good working environment and ensuring the normal operation of equipment. As one of the core devices in ventilation systems, the performance of axial flow fans directly affects the overall ventilation effect. The W6D800-GD01-01 axial fan produced by ebm-papst company occupies an important position in the market due to its excellent performance and reliable quality. This article will provide a detailed introduction to this axial flow fan, including its brand background, product parameters, features, and application scenarios.
ebm-papst is a leading global manufacturer of ventilation technology and drive systems with over a century of history. The company is renowned for its innovative technology, high-quality products, and comprehensive services. In the field of ventilation equipment, ebm-papst has always been at the forefront of the industry, constantly launching new products that meet market demand. The W6D800-GD01-01 axial fan, as an important product under its umbrella, fully embodies the technical strength and quality pursuit of ebm-papst.
Rated voltage
The rated voltage of the W6D800-GD01-01 axial fan is 400V, and this higher voltage design enables it to provide powerful power to meet the needs of large ventilation systems. In industrial and commercial places, there is usually a stable 400V power supply, so this fan can be easily connected to these power systems without the need for additional voltage conversion equipment, improving the convenience of use.
Size
The size of the fan is 800 millimeters, which allows the fan to generate a larger airflow. Large fan blades can drive more air flow when rotating, thereby achieving efficient ventilation. Meanwhile, a larger size also means that the fan can cover a larger ventilation area, making it suitable for some larger spaces.
Maximum air volume
The maximum air volume of this fan can reach 24110m ³/h, which enables it to quickly exchange and circulate air. In some places that require rapid ventilation, such as large factory workshops, warehouses, sports halls, etc., the W6D800-GD01-01 axial fan can quickly exhaust indoor polluted air and introduce fresh air, improving indoor air quality.
Maximum pressure
The maximum pressure is 160Pa, which indicates that the fan has a strong ability to overcome resistance. In ventilation systems, air flow is often hindered by factors such as pipes and obstacles, resulting in certain pressure losses. The high maximum pressure of this fan ensures smooth air flow in the ventilation system, even in the presence of certain resistance, ensuring sufficient airflow to the areas that require ventilation.
Input power
The input power is 1940W, although the power is relatively high, considering its huge air volume and pressure output, this power consumption is reasonable. In practical applications, the high efficiency of fans can bring significant ventilation effects and overall improve energy utilization efficiency. At the same time, ebm-papst company focuses on energy conservation in product design, optimizing the design of motors and blades to minimize the energy consumption of fans as much as possible.
Speed
The speed is 880rpm, a moderate speed can ensure that the fan generates sufficient air volume and pressure, while reducing the generation of noise and vibration. Lower speeds can also extend the lifespan of the fan and reduce maintenance costs. During the operation of the fan, a stable speed can ensure the stability of the ventilation effect and provide reliable ventilation guarantee for users.
Noise
The noise level is 83dB, which is acceptable under such high air volume and pressure output. ebm-papst company has adopted a series of noise reduction technologies in the design and manufacturing process of fans, such as optimizing the shape and angle of blades, using low-noise motors, etc., effectively reducing the noise generated during fan operation. Meanwhile, in some places with high noise requirements, measures such as installing soundproof covers can be taken to further reduce the impact of noise.
Efficient ventilation
The W6D800-GD01-01 axial fan, with its large-sized design and high-speed motor, can generate a huge amount of air and achieve efficient ventilation. In large industrial plants, it can quickly exhaust the hot air, dust, and harmful gases in the workshop, creating a comfortable and safe working environment for workers. At the same time, its high maximum pressure ensures smooth air flow in the ventilation ducts, ensuring the effectiveness of the ventilation system.
Energy saving design
Although the input power of the fan is relatively high, ebm-papst company has achieved energy-saving goals by optimizing the efficiency of the motor and the aerodynamic design of the blades. Efficient motors can convert more electrical energy into mechanical energy, reducing energy loss. Meanwhile, optimized blade shape and angle can improve air flow efficiency and reduce the power required for fan operation. In the long-term use process, energy-saving design can save users a lot of electricity expenses.
Durable
The fan is made of high-quality materials and advanced manufacturing processes, and has the characteristics of durability and sturdiness. The shell is made of high-strength metal material, which can withstand certain external impacts and harsh working environments. The key components such as the motor and blades have also undergone strict testing and quality control, ensuring the reliability and stability of the fan during long-term operation. In addition, the fan also has good protective performance, which can prevent impurities such as dust and moisture from entering the interior, extending the service life of the fan.
Easy to install
The W6D800-GD01-01 axial fan is designed with multiple installation methods, and users can choose the appropriate installation method according to their actual needs. It can be fixed to walls, ceilings, or ventilation ducts with bolts, or installed by lifting. The interface design of the fan is universal and convenient for connecting with various ventilation systems. This flexible installation method enables the fan to adapt to different application scenarios and installation requirements, reducing installation costs and difficulties.
Low maintenance cost
Due to the reasonable design and reliable quality of the fan, its maintenance cost is relatively low. Under normal use, regular cleaning and inspection, as well as replacement of some vulnerable parts, are all that is needed. The key components of the fan, such as the motor and blades, have a longer service life, reducing the frequency of component replacement. Meanwhile, ebm-papst company provides comprehensive after-sales service, allowing users to receive timely technical support and repair services, further reducing maintenance costs.
Industrial plant ventilation
In large industrial plants, due to the large amount of heat, dust, and harmful gases generated during the production process, a good ventilation system is needed to improve the indoor environment. The large size and high air volume characteristics of the W6D800-GD01-01 axial fan make it very suitable for ventilation in industrial plants. It can be installed on the walls or ceilings of the factory building, and the polluted indoor air is discharged through ventilation ducts, introducing fresh air to maintain the freshness and circulation of the air inside the factory building. Meanwhile, the efficient ventilation performance of the fan can effectively reduce indoor temperature and improve workers' work efficiency.
Warehouse ventilation
Warehouses usually store a large amount of goods, and the stacking of goods can affect the circulation of air, resulting in polluted and humid air inside the warehouse. The W6D800-GD01-01 axial fan can be used for ventilation and air exchange in warehouses, keeping the air inside dry and fresh. It can be installed on the top or side of the warehouse to remove moisture and odors from the warehouse through air circulation, preventing goods from getting damp and moldy. In addition, good ventilation can also lower the temperature inside the warehouse and reduce safety hazards such as fires.
Gymnasium ventilation
Sports centers are densely populated places that generate a large amount of heat and harmful gases such as carbon dioxide during events. The W6D800-GD01-01 axial fan can provide strong ventilation capacity for the sports arena, quickly expelling polluted indoor air and introducing fresh air, improving the air quality inside the sports arena. Its large size and high airflow characteristics can meet the needs of large-scale ventilation in sports venues, providing a comfortable and healthy environment for spectators and athletes.
Farm ventilation
In livestock farms, the respiration and excretion of animals produce large amounts of harmful gases such as ammonia and hydrogen sulfide, which affect the health and growth of animals. The W6D800-GD01-01 axial fan can be used for ventilation and air exchange in breeding farms, to expel harmful gases and maintain fresh air in the farm. It can be installed on the walls or roofs of the farm, introducing fresh air into the farm through a ventilation system, creating a good living environment for animals. At the same time, ventilation can also regulate the temperature and humidity in the breeding farm, improving the breeding efficiency of animals.
The ebm-papst W6D800-GD01-01 axial fan has become an excellent product in the field of ventilation due to its outstanding performance, reliable quality, and wide range of application scenarios. Its large size, high air volume, and high pressure characteristics enable it to meet the needs of large-scale ventilation systems. The efficient and energy-saving design saves users operating costs, while the sturdy, durable, and low maintenance costs ensure the long-term stable operation of the fan. In many fields such as industry, commerce, sports, and aquaculture, the W6D800-GD01-01 axial fan can play an important role in providing users with high-quality ventilation solutions.
In the axial fan market, ebm-papst's W6D800-GD01-01 axial fan stands out among many products due to its outstanding features. A deeper understanding of these characteristics will help us better understand the advantages and value of the fan, providing strong support for its application in different fields
