4114N/2H8P ebm-papst

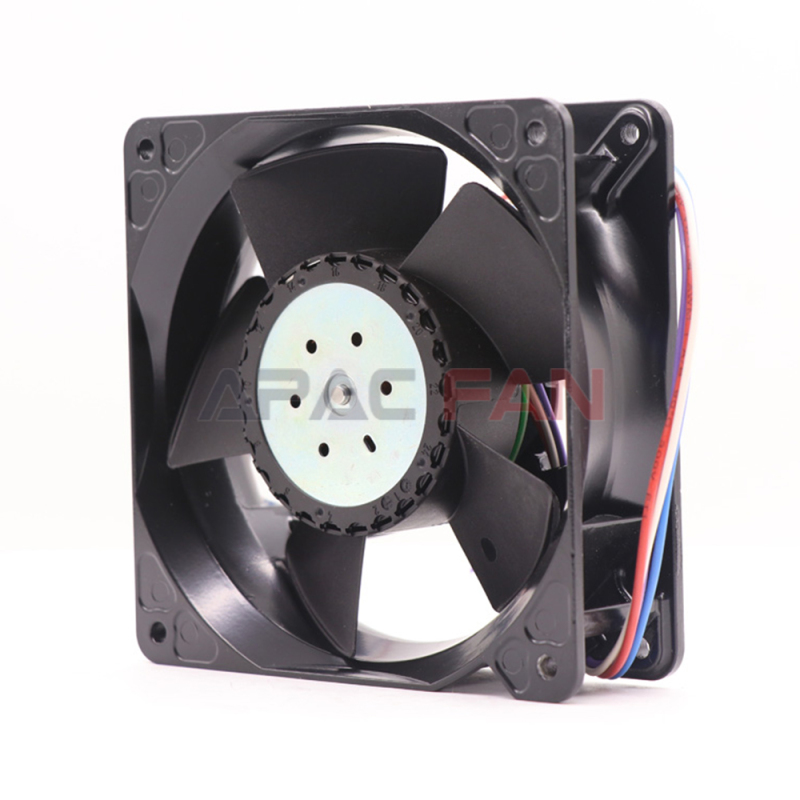

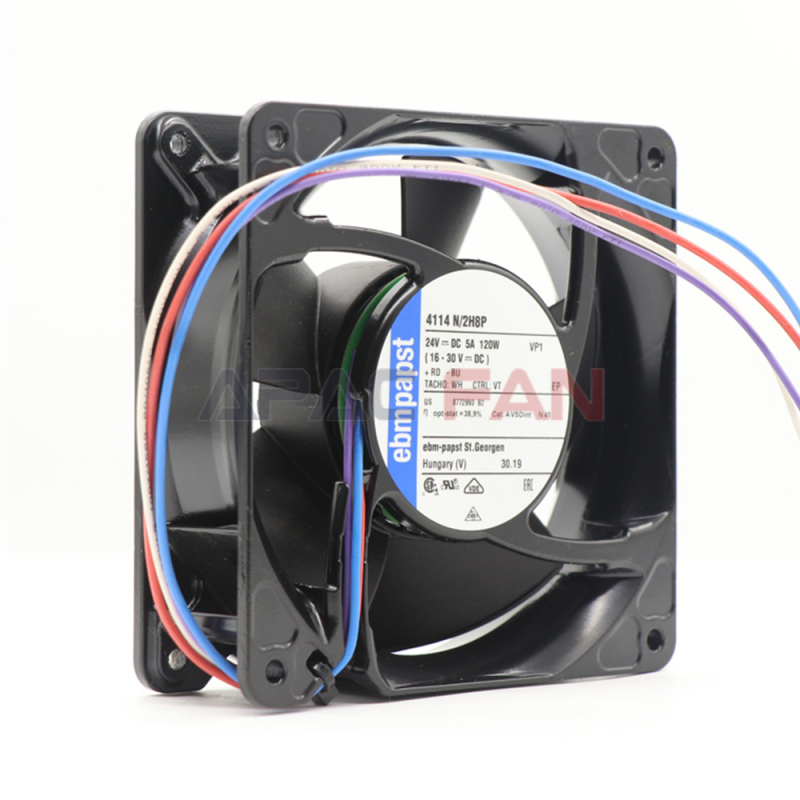

Efficient and compact industrial cooling solution - Analysis of ebm-papst 4114N/2H8P compact fan

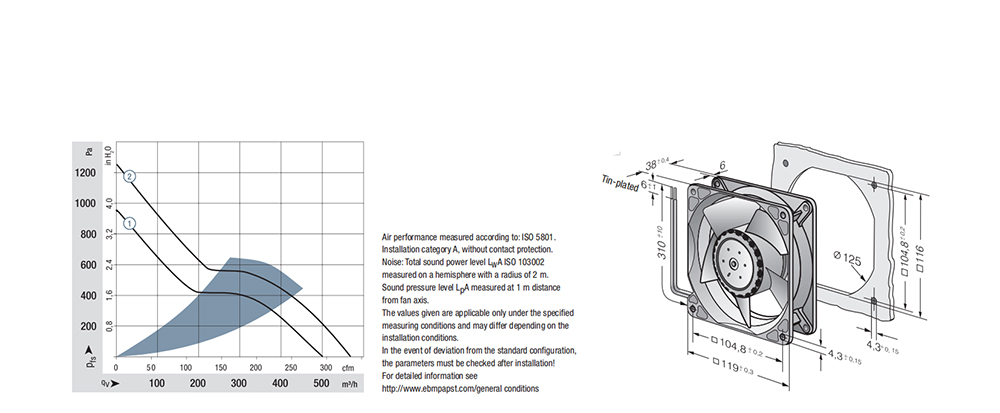

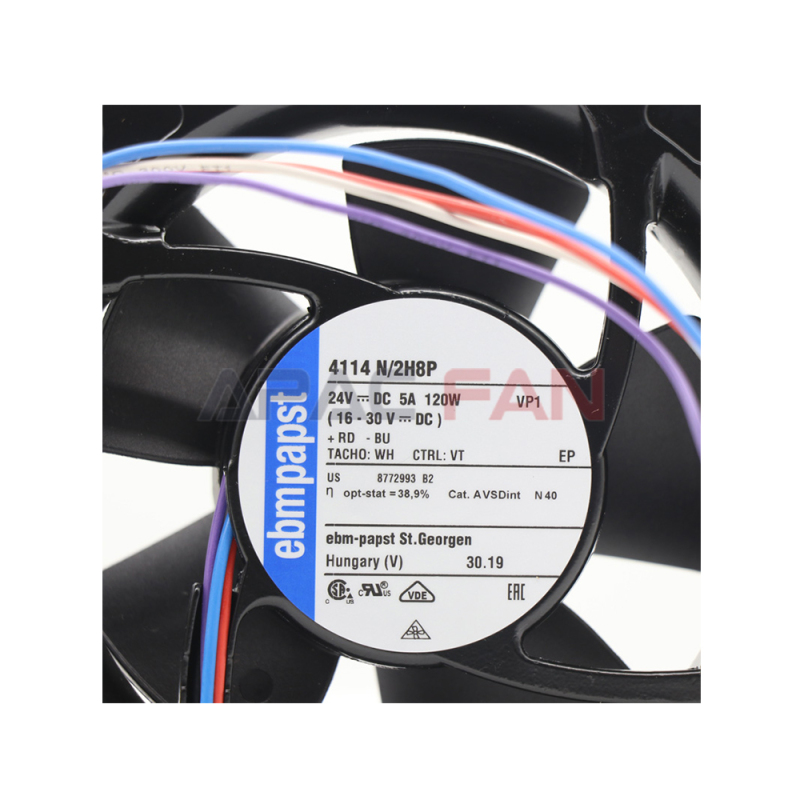

In the field of industrial cooling, compact fans have become the preferred choice in many scenarios due to their balance between size and performance. The 4114N/2H8P compact fan launched by ebm-papst provides a reliable solution for precision equipment cooling with its precise structural design and stable performance. The core parameters of this fan highlight its industrial-grade positioning: the 24V rated voltage is suitable for a variety of power supply environments, and the size is only 119×119×38mm. It achieves a maximum air flow of 570m³/h and a maximum wind pressure of 1250Pa in a limited space. With an input power of 120W and a speed of 11000rpm, it demonstrates efficient heat dissipation capabilities under high power density. Its design concept runs through the principle of "compact without compromise", and through multi-dimensional innovations in fluid mechanics, material engineering and acoustic technology, it achieves a deep integration of small size and high performance.

The compact body of ebm-papst 4114N/2H8P is its remarkable feature. The 38mm thickness design allows it to be easily embedded in scenes that are sensitive to installation space, such as control cabinets and communication equipment. This design does not simply compress the volume, but achieves uncompromised performance through aerodynamic optimization. The fan adopts a forward-inclined impeller structure to form a high-strength airflow path in a small size. With the precise design of the guide cover, it reduces the turbulent loss of the airflow and improves the heat dissipation efficiency per unit volume. Specifically, the impeller blades adopt an asymmetric curvature design, with a gentle blade angle at the inlet end to reduce the intake resistance (inlet angle 32°) and a steep angle at the outlet end to enhance the centrifugal force (outlet angle 118°). This design enables the impeller to maintain an orderly flow of airflow at a speed of 11000rpm, avoiding the phenomenon of airflow separation caused by excessively high speed. Computational fluid dynamics (CFD) simulation shows that the static pressure efficiency of the impeller can reach 78%, which is 5% higher than the traditional symmetrical blade design.

For equipment that requires multiple fans to be installed side by side, its compact size can reduce the overall installation space requirements. Taking the high-density servers in data centers as an example, the traditional 120mm×120mm×38mm fans need to reserve at least 10mm of spacing when installed to ensure airflow. However, with a side length of 119mm, the 4114N/2H8P can achieve a high-density layout of 4 fans per U space in a standard 19-inch cabinet (each U height is 44.45mm, the fan thickness is 38mm, and the spacing only needs 6.45mm), which increases the installation density by 30% compared with traditional solutions. This space advantage is particularly prominent in medical imaging instruments - such as portable ultrasound diagnostic equipment, where the internal space is highly occupied by components such as probe interfaces and image processing boards. The fan can be embedded in the narrow gap on the side of the equipment (only 40mm thick space), and the FPGA chip and power module on the motherboard are fixed-point cooled through directional airflow, avoiding the heat dissipation blind spot caused by insufficient space. The measured data shows that after the probe has been working continuously for 4 hours, the temperature of the key components of the mainboard can be controlled within 65°C, which is 20°C lower than the fanless solution.

In addition, the compact design also brings weight advantages. The weight of the whole machine is only about 0.5kg, which is 40% lighter than the non-compact fan of the same performance, which is crucial for airborne equipment in the aerospace field. For example, in the mission payload module of a drone, a lightweight fan can reduce overall power consumption, extend the flight time, and reduce the impact of vibration on the optical payload. After a certain type of reconnaissance drone replaced the traditional fan with 4114N/2H8P, the weight of the payload cabin was reduced by 1.2kg, the flight time was extended from 4 hours to 4.8 hours, and the vibration noise of the optical camera was reduced by 15%, and the image clarity was significantly improved.

The maximum wind pressure of 1250Pa makes 4114N/2H8P outstanding in dealing with high-resistance heat dissipation scenarios. In the field of industrial automation, air flow resistance is often generated inside the equipment due to pipeline layout, filtering devices, etc., and ordinary fans are prone to air volume attenuation. The high-pressure design of this fan can ensure that the airflow penetrates the multi-layer heat sink fins or long-distance air ducts to maintain a stable heat dissipation effect. Taking the laser cutting machine as an example, the reflectors and lenses in its optical system need to be kept in a constant temperature environment of 25℃±1℃. The fan needs to overcome the multi-layer dust screen (resistance of about 800Pa) and the serpentine air duct (length of 1.5 meters, local resistance coefficient of 0.8) in the optical cavity. The 1250Pa wind pressure of 4114N/2H8P can still maintain an effective air volume of more than 300m³/h after overcoming these resistances, ensuring the temperature stability of the optical components. Calculated by the Bernoulli equation, the static pressure of the fan at the end of the 1.5-meter air duct can still reach 450Pa, which is enough to drive the airflow to complete heat exchange.

In addition, its wind pressure curve is smooth and can maintain stable output under different working conditions. According to the measured data, when the system resistance increases from 500Pa to 1200Pa, the air volume attenuation is only 15% (from 570m³/h to 485m³/h). This linear response characteristic enables the fan to accurately match the system requirements when frequency conversion control is used. In food baking equipment, changes in material thickness in the drying tunnel will cause fluctuations in air flow resistance (resistance variation range 300-1000Pa). The fan's stable wind pressure output can ensure that food at different positions is evenly heated, avoiding baking quality differences caused by air volume fluctuations. After a bread production line introduced this fan, the color uniformity of the bread crust increased by 22%, and the standard deviation of moisture content decreased from 1.8% to 1.1%.

Despite its high speed (11000rpm), the noise of 4114N/2H8P is controlled at 78dB, thanks to ebm-papst's acoustic optimization technology. The impeller adopts an asymmetric blade design. By adjusting the blade spacing and angle (the difference between the maximum spacing and the minimum spacing is 0.8mm), the noise frequency generated when the airflow passes through the impeller is dispersed to avoid resonance. Specifically, the number of blades is designed with an odd number of 11, and the spacing error between adjacent blades is controlled within 0.1mm, so that the pressure pulses generated when the airflow passes through are distributed non-periodically, thereby dispersing the noise energy to a wider frequency range (2000-6000Hz) and reducing the noise value in the human ear sensitive frequency band (near 4000Hz). The measured spectrum shows that the sound pressure level of the fan's noise energy at 4000Hz is 4dB lower than that of the symmetrical blade design. At the same time, the fan casing uses damping material, and its internal honeycomb structure can absorb high-frequency noise of 2000-4000Hz, while the rubber vibration isolation pad (thickness 2mm, Shore hardness 60A) between the casing and the equipment mounting surface can isolate low-frequency vibration noise below 500Hz, reducing the efficiency of structural noise transmission by 60%.

In terms of long-term operation, it adopts a double ball bearing design, with an inner diameter of 10mm and ceramic-coated balls (surface roughness Ra≤0.2μm). It can withstand radial loads of up to 80N and axial loads of up to 30N, which is suitable for high-speed working conditions. The lithium-based grease filled in the bearing cavity has a wide temperature operating range of -40℃ to 150℃. Under continuous operation conditions, the deterioration cycle of the grease can be extended to 20,000 hours. With the motor overheat protection function (built-in PTC thermistor, operating temperature 130℃, reset temperature 100℃), it can maintain stability in 24-hour continuous operation scenarios and reduce maintenance frequency. For example, in the PLC control cabinet of a sewage treatment plant, the fan needs to run all year round. This design can ensure that it does not need to replace the bearings within its 5-year life cycle, significantly reducing operation and maintenance costs. According to statistics from a sewage treatment plant, after using this fan, the average annual maintenance hours are reduced by 80% and the spare parts procurement cost is reduced by 75%.

The comprehensive performance of ebm-papst 4114N/2H8P makes it widely used in multiple industries. In the field of communications, the AAU (active antenna unit) of a 5G base station integrates dozens of RF units. The heat generated by a single AAU can reach 2kW. The fan can be installed at the air inlet at the bottom of the device to dissipate heat for the power amplifier module and the power module through the vertical upward airflow path. Its 24V power supply can be directly connected to the DC power supply system of the base station (-48V to 24V module efficiency ≥92%), without the need for additional step-down modules, simplifying system design. After a communications operator deployed the fan in 2,000 5G base stations, the mean time between failures (MTBF) of the AAU was extended from 12,000 hours to 20,000 hours, and the service failure rate during the high temperature period in summer was reduced by 65%.

In the field of new energy, the battery management module of the energy storage system needs to dissipate heat efficiently. The compact-sized fan can be embedded in the gap between the battery packs to achieve fixed-point heat dissipation. Taking a 1MWh energy storage container as an example, 20 fans of this model can be installed inside. The "downward air inlet and upward air outlet" air duct design is adopted to control the temperature difference between the battery packs within 3°C, thereby improving the consistency life of the battery pack. The measured data of a certain energy storage project shows that after using this fan, the battery cycle life is increased from 3,000 times to 3,500 times (discharge depth 80%), and the full life cycle cost is reduced by 12%.

In the rail transit industry, on-board electronic equipment such as traction inverters and on-board air conditioning systems have strict requirements on the vibration resistance and dust resistance of fans. The metal frame of 4114N/2H8P is made of stainless steel (SUS304, tensile strength ≥520MPa), and has passed the ISO 16750-3 vibration test (vibration frequency 10-2000Hz, acceleration 20g, three-axis vibration for 2 hours each), and can adapt to the complex vibration environment in train operation. Its impeller surface is hard anodized (film thickness 25μm, hardness up to HV500), which can resist the erosion of dust particles in the air. In the high dust environment in the tunnel (dust concentration ≥50mg/m³), the service life is more than 2 times longer than that of ordinary aluminum alloy impellers. After the traction converter of a subway train adopted this fan, the average annual cleaning frequency was reduced from 4 times to 1 time, and the maintenance efficiency was greatly improved.

As an industrial-grade product, the manufacturing process of 4114N/2H8P reflects the precision level of ebm-papst. The impeller adopts injection molding technology, with a mold accuracy of ±0.02mm and a blade surface roughness of Ra≤0.8μm, ensuring the dynamic balance accuracy during rotation (residual imbalance ≤2g・mm/kg). The motor winding adopts a multi-strand enameled wire parallel winding process (6 strands of Φ0.5mm wire), with a wire cross-sectional area of ​​1.5mm², which can withstand a continuous current of 5A. The winding end is encapsulated with epoxy resin (dielectric strength ≥25kV/mm) to improve moisture resistance. The whole machine has passed the IP54 protection level test, which can prevent the intrusion of solid foreign objects with a diameter greater than 1mm, and resist water splashing from any direction (test pressure 80-100kPa, nozzle diameter 6.3mm, distance 2.5-3m, spray time at least 15s), suitable for outdoor distribution boxes, machine tool cooling systems and other humid and dusty environments.

During the production process, each fan undergoes rigorous performance testing: on the air volume test bench, a Pitot tube array (spacing 20mm) is used to measure the cross-sectional wind speed, and the air volume is calculated by integration to ensure that the air volume error is ≤±3%; in the noise laboratory (background noise ≤30dB), a sound level meter is used to sample at 5 measuring points on the hemispherical surface 1 meter away from the fan, the noise value is averaged and the background noise is corrected to ensure that the error between the measured value and the nominal value is ≤±2dB; in the durability test, the fan needs to run continuously for 1000 hours in a high temperature environment of 85℃, during which the speed, current and temperature rise are recorded once an hour to ensure that the speed fluctuation is ≤±2%, the current fluctuation is ≤±5%, and the temperature rise is ≤75K. These process control measures have enabled the fan to achieve a yield rate of 99.8%, becoming a benchmark for industrial reliability.

Conclusion

The ebm-papst 4114N/2H8P compact fan has become a typical solution in the field of industrial heat dissipation with its compact design, high-voltage performance, and low-noise operation. Its core value lies in achieving a balance between heat dissipation efficiency and environmental adaptability in a limited space through technological innovation, thus providing guarantee for the reliable operation of high-end equipment. For application scenarios that need to take into account both space utilization and heat dissipation efficiency, this fan has demonstrated significant competitiveness and is a trustworthy heat dissipation component in industrial equipment design. From communication base stations to energy storage systems, from medical equipment to rail transit, its wide applicability highlights the indispensability of compact fans in modern industry, and ebm-papst's ultimate pursuit of details has established a dual standard of performance and quality for the industry. Whether it is to cope with the heat dissipation challenges of high-density electronic equipment or to meet the reliability requirements in harsh industrial environments, the 4114N/2H8P has demonstrated its value as a "compact and efficient heat dissipation pioneer" with its outstanding performance, pushing industrial heat dissipation technology towards a more precise and reliable direction.
