A2D170-AA04-01 ebm-papst

 In the ever-evolving landscape of air movement and ventilation solutions, the ebm-papst A2D170-AA04-01 axial fan stands out as a remarkable product. ebm-papst, a globally recognized and respected brand in the field of fan and motor manufacturing, has a long-standing reputation for delivering high-quality, innovative, and reliable products. The A2D170-AA04-01 axial fan is a testament to the company's commitment to excellence and its ability to meet the diverse needs of various industries and applications.

The Distinguished Brand - ebm-papst

ebm-papst has been a key player in the fan and motor industry for many years. With a strong focus on research and development, the company continuously invests in cutting-edge technologies and engineering expertise. This dedication has enabled ebm-papst to introduce a wide range of products that not only meet but often exceed the expectations of customers. Their products are known for their efficiency, durability, and quiet operation, making them a preferred choice for applications where reliability and performance are crucial.

The brand's global presence is a significant advantage. With manufacturing facilities, research centers, and sales offices spread across different regions of the world, ebm-papst can quickly respond to the needs of customers and provide them with timely support. Their extensive network ensures that their products are accessible to a wide range of industries, from industrial manufacturing to commercial building management and even in some residential applications. Additionally, ebm-papst's commitment to environmental sustainability is evident in their product design and manufacturing processes. They strive to develop products that are energy-efficient and have a minimal impact on the environment, which is becoming increasingly important in today's world.

Introduction to the A2D170-AA04-01 Axial Fan

The A2D170-AA04-01 is an axial fan, which means that the air it moves travels parallel to the axis of the fan's rotation. This type of fan is particularly well-suited for applications where a large volume of air needs to be displaced with relatively low pressure requirements. Axial fans are commonly used in various ventilation systems, air circulation in large spaces, and cooling of equipment. The A2D170-AA04-01, with its specific design and performance characteristics, offers unique advantages in these applications.

Fan Design and Construction

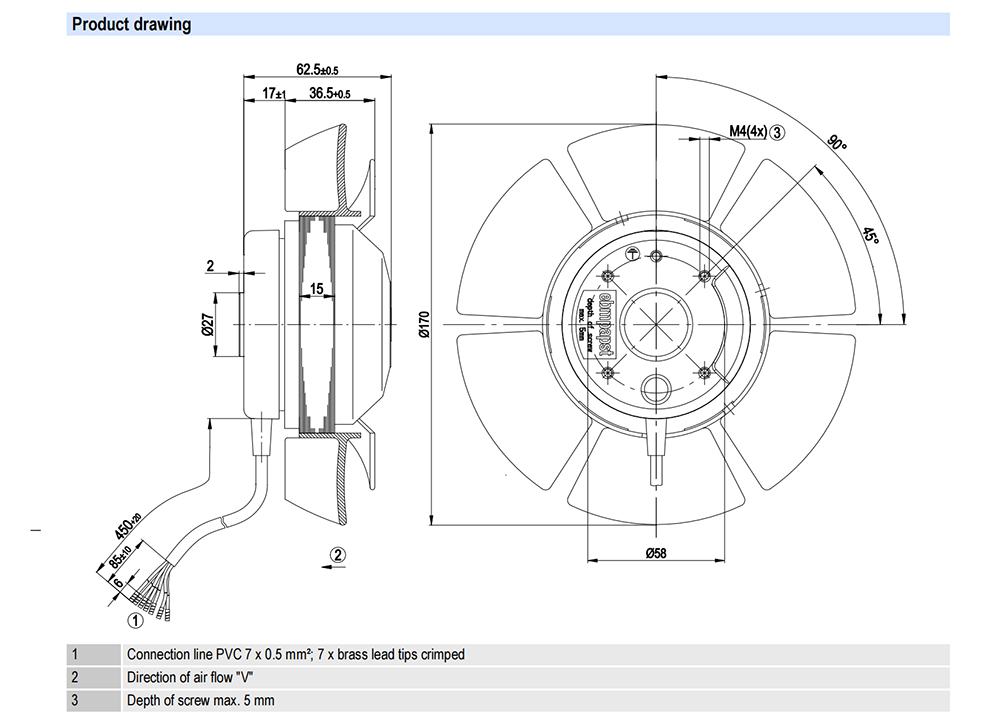

The physical design of the A2D170-AA04-01 is a result of careful engineering and attention to detail. With a size of 170 mm, the fan is compact yet powerful. This compact size makes it highly adaptable to different installation spaces, whether it's in a narrow ductwork of a commercial building or within the limited space of industrial machinery. The fan blades are designed to optimize air movement. Their shape and angle are precisely calculated to maximize the efficiency of air intake and discharge. This design not only ensures a high air flow rate but also helps in minimizing energy consumption.

The housing of the A2D170-AA04-01 is constructed from high-quality materials that offer excellent durability. These materials are chosen to withstand the rigors of continuous operation and exposure to various environmental conditions. The robust construction of the housing also helps in reducing noise and vibration, which is essential for maintaining a quiet operating environment. The overall design of the fan is not only functional but also aesthetically pleasing, making it a suitable choice for both industrial and commercial applications where appearance may also be a consideration.

Electrical Specifications

One of the important aspects of the A2D170-AA04-01 fan is its electrical specifications. The fan is rated for a voltage of 400 volts. This voltage rating is commonly used in industrial and some commercial electrical systems. It provides the fan with the necessary electrical power to operate at its optimal performance levels. The use of a 400-volt power supply simplifies the integration of the fan into existing electrical systems, as many industrial facilities and commercial buildings are already equipped with electrical infrastructure that can support this voltage.

The input power of the fan is 45 watts. This relatively low power consumption is a significant advantage, especially in applications where energy efficiency is a top priority. In today's energy-conscious world, businesses and organizations are constantly looking for ways to reduce their energy consumption and operating costs. The A2D170-AA04-01's ability to deliver substantial performance while consuming minimal power makes it an attractive option for such applications. It not only helps in reducing the overall energy bill but also contributes to a more sustainable approach to ventilation and air management.

Performance Characteristics

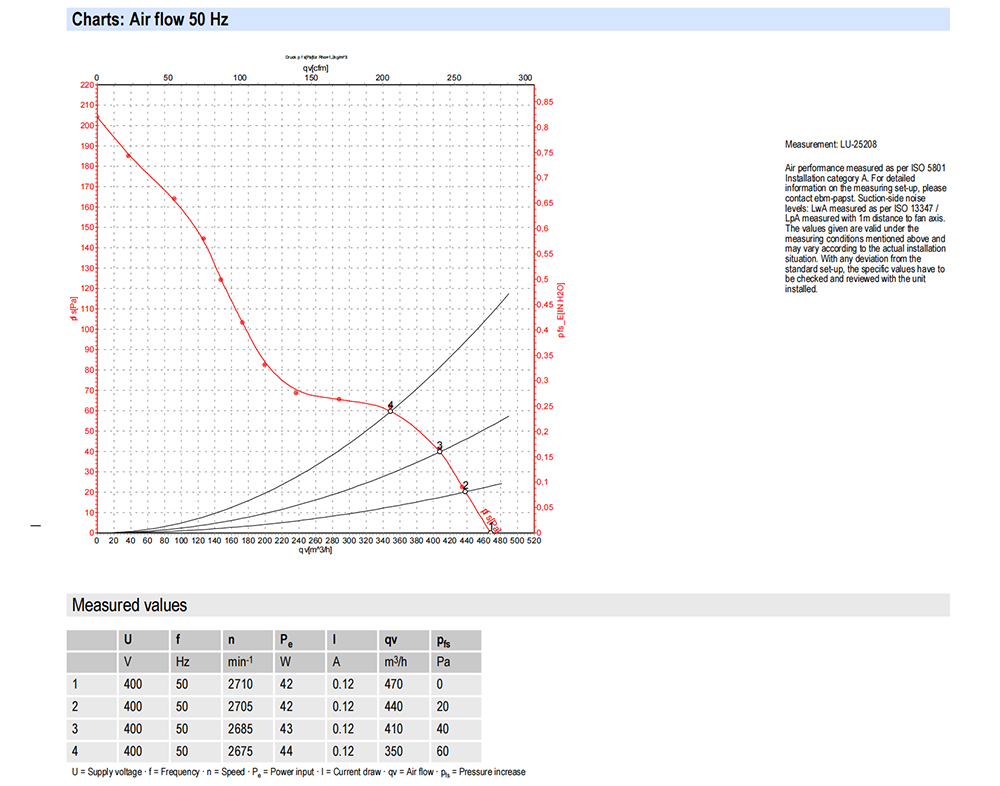

The performance of the A2D170-AA04-01 fan is defined by several key parameters. The maximum air flow rate of the fan is 470 cubic meters per hour. This indicates the fan's capacity to move a significant volume of air within a given time frame. Whether it's for replacing stale air in a large room, cooling a heat-generating component, or ensuring proper air circulation in a ventilation system, the 470 cubic meters per hour air flow rate makes the A2D170-AA04-01 a capable performer.

The maximum pressure generated by the fan is 60 pascals. While this pressure may seem relatively low compared to some other types of fans, it is important to note that axial fans, like the A2D170-AA04-01, are designed primarily for applications where the emphasis is on moving a large volume of air rather than generating high pressures. In its intended applications, such as general ventilation and air circulation in open spaces or through systems with relatively low resistance, the 60 pascal pressure is sufficient to ensure effective air movement.

The fan operates at a speed of 2750 revolutions per minute (rpm). This high rotational speed is a crucial factor in achieving the specified air flow rate. The precise control of the fan's speed allows it to maintain a consistent performance, even under varying operating conditions. The combination of the fan's speed, blade design, and housing construction ensures that it can deliver reliable and efficient air movement in different applications.

Applications of the A2D170-AA04-01 Axial Fan

The A2D170-AA04-01 axial fan has a wide range of applications across different industries and sectors.

Industrial Applications

In industrial settings, the fan can be used in various ventilation systems. For example, in manufacturing plants, it can be part of the exhaust system to remove fumes, dust, and other pollutants from the production area. The high air flow rate of the A2D170-AA04-01 allows it to quickly and efficiently clear the air of contaminants, ensuring a clean and safe working environment for employees. In addition, in large warehouses and storage facilities, the fan can be used for air circulation. This helps in maintaining a consistent temperature and humidity level throughout the space, which is crucial for the preservation of stored goods.

The fan can also be used in the cooling systems of industrial machinery. Many industrial processes generate a significant amount of heat, and effective cooling is essential to prevent overheating and damage to the equipment. The A2D170-AA04-01's ability to move a large volume of air at a relatively low power consumption makes it an ideal choice for cooling applications. It can be used to cool motors, transformers, and other heat-generating components, ensuring their optimal performance and longevity.

Commercial Applications

In commercial buildings, the A2D170-AA04-01 fan has several potential applications. In office buildings, it can be integrated into the heating, ventilation, and air conditioning (HVAC) system. It helps in distributing conditioned air throughout the building, ensuring a comfortable indoor environment for the occupants. The fan's compact size and low power consumption make it an attractive option for commercial HVAC systems, as it can be easily installed in existing ductwork without requiring major modifications.

In shopping malls, hotels, and other large commercial spaces, the fan can be used for air circulation and ventilation. These spaces often have a high footfall, and proper air management is essential to maintain a pleasant environment for customers and guests. The A2D170-AA04-01 can help in removing odors, smoke, and other pollutants, and it can also assist in the distribution of fresh air, improving the overall air quality in the building.

Other Applications

The A2D170-AA04-01 fan can also find applications in other areas. In agricultural settings, it can be used for ventilation in greenhouses and livestock barns. In greenhouses, proper air circulation is important for maintaining the right temperature, humidity, and carbon dioxide levels, which are essential for plant growth. In livestock barns, the fan can help in removing ammonia and other harmful gases, creating a healthier environment for the animals.

In some cases, the fan can also be used in DIY projects or in the modification of existing ventilation systems. Its ease of installation and reliable performance make it a popular choice for individuals who are looking to improve the air quality in their homes or small-scale facilities.

Installation and Maintenance

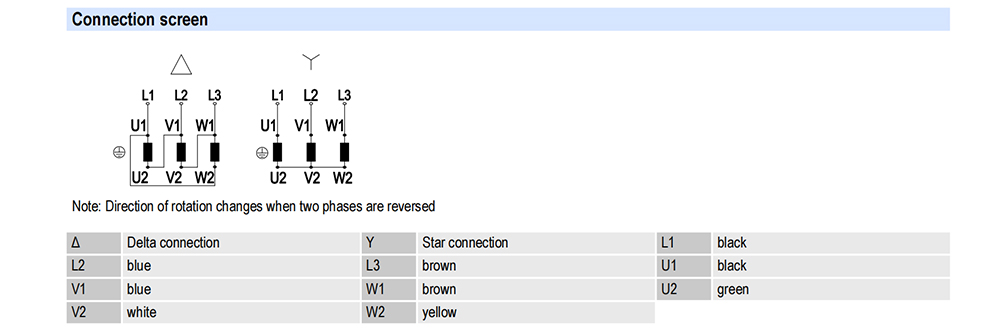

Installing the A2D170-AA04-01 fan is a straightforward process. The fan comes with all the necessary mounting hardware, and its design allows for easy installation in different locations. When installing the fan, it is important to ensure that it is properly aligned and securely fastened to prevent vibration and noise. The electrical connections should be made in accordance with the manufacturer's instructions to ensure safe and reliable operation.

Maintenance of the A2D170-AA04-01 fan is relatively simple. Regular cleaning of the fan blades and housing is recommended to remove dust, debris, and other contaminants that can accumulate over time. This helps in maintaining the fan's performance and efficiency. It is also advisable to check the electrical connections periodically to ensure that they are in good condition and free from any signs of damage or loose connections. With proper installation and regular maintenance, the A2D170-AA04-01 fan can provide reliable and efficient service for an extended period of time.

In conclusion, the ebm-papst A2D170-AA04-01 axial fan is a high-quality, versatile, and efficient product. Its combination of compact size, low power consumption, high air flow rate, and reliable performance makes it suitable for a wide range of applications in industrial, commercial, and other settings. The brand's reputation for excellence, along with the fan's robust construction and ease of installation and maintenance, further enhance its value. Whether it's for improving air quality, cooling equipment, or enhancing the overall ventilation system, the A2D170-AA04-01 is a fan that can be relied upon to deliver consistent and satisfactory results.
