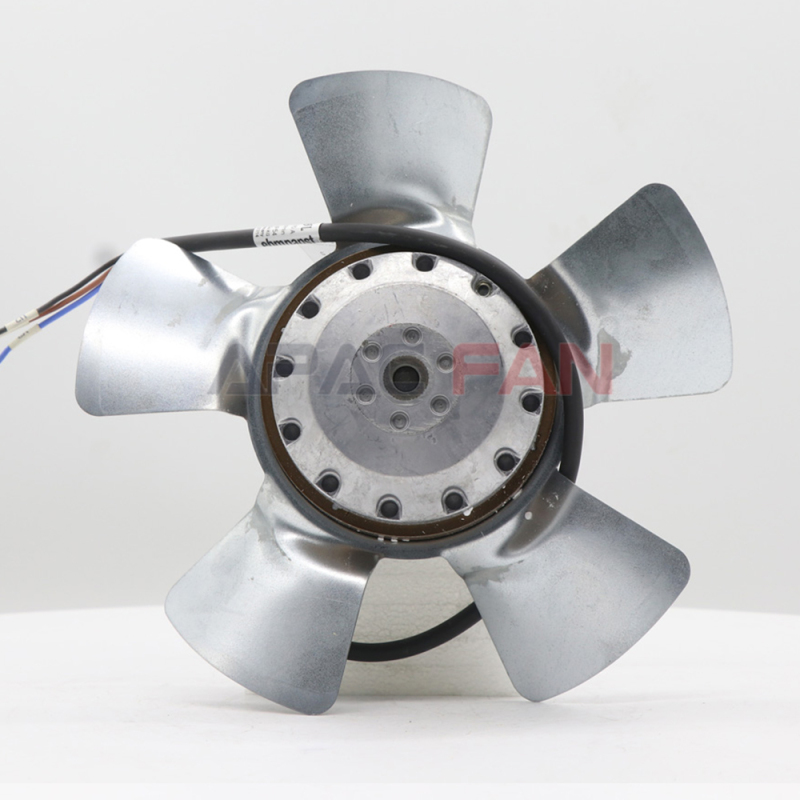

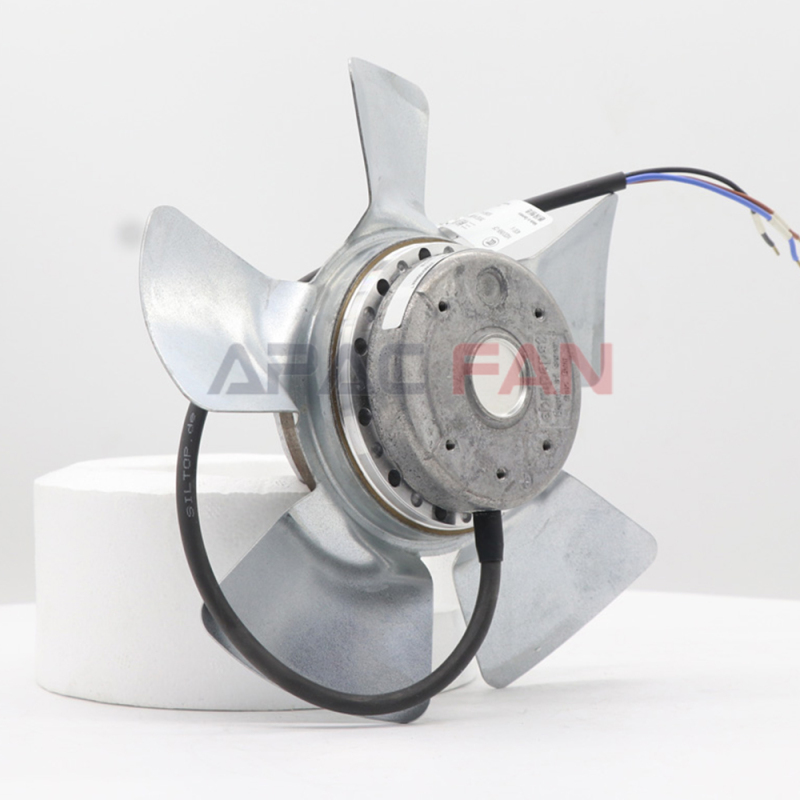

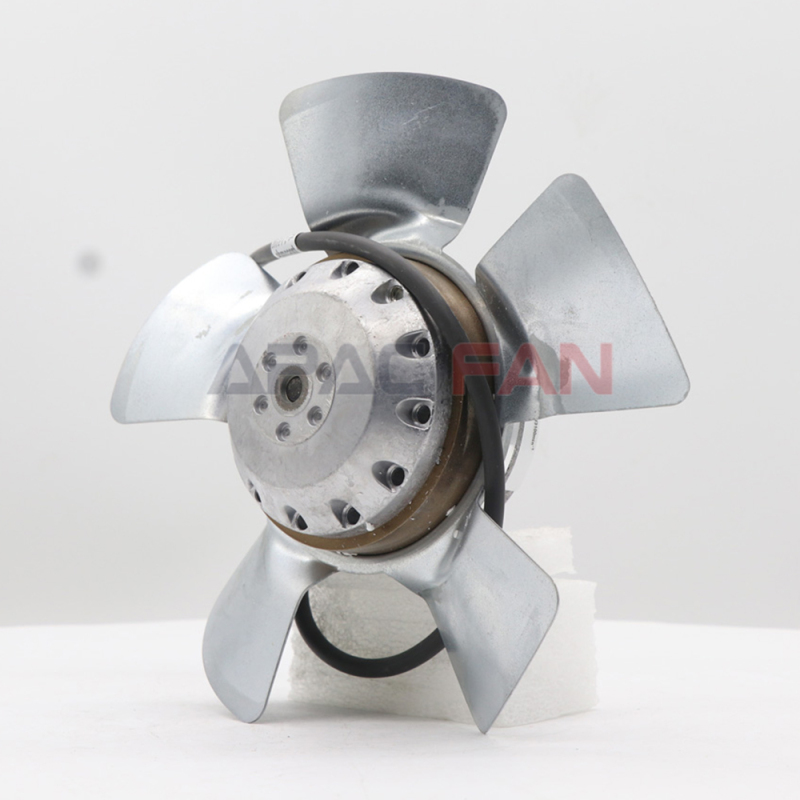

AC axial fan, straight blades (A series)
| Brand： | ebm-papst |
| Part No： | A2D210-AA02-11 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 400 |

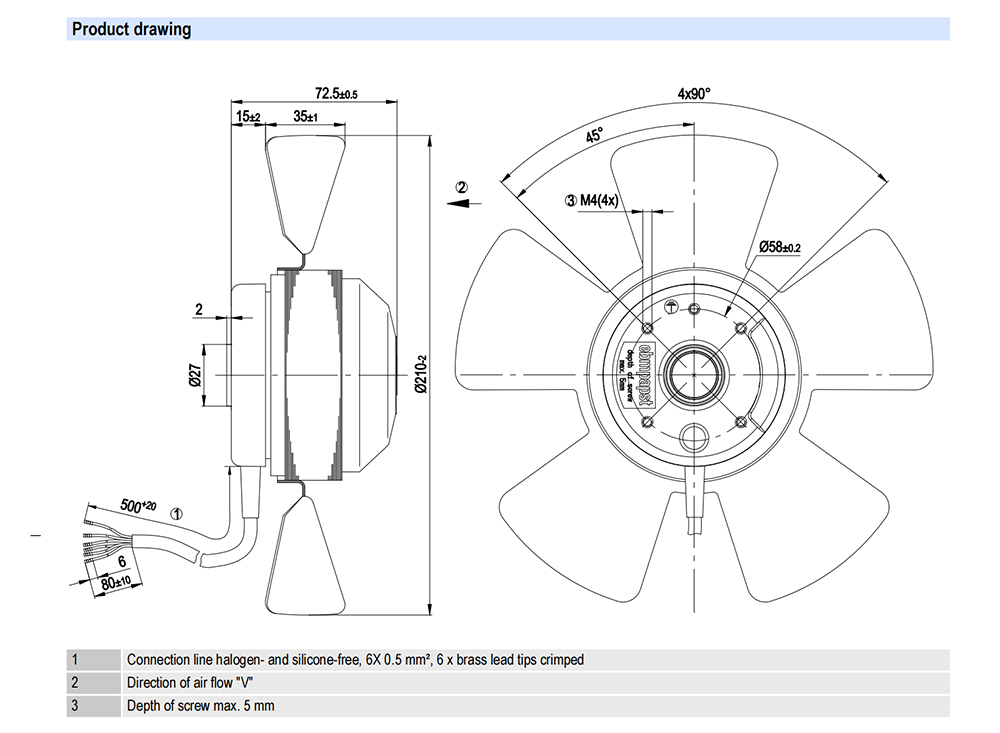

| Fan Size(mm)： | 210 |

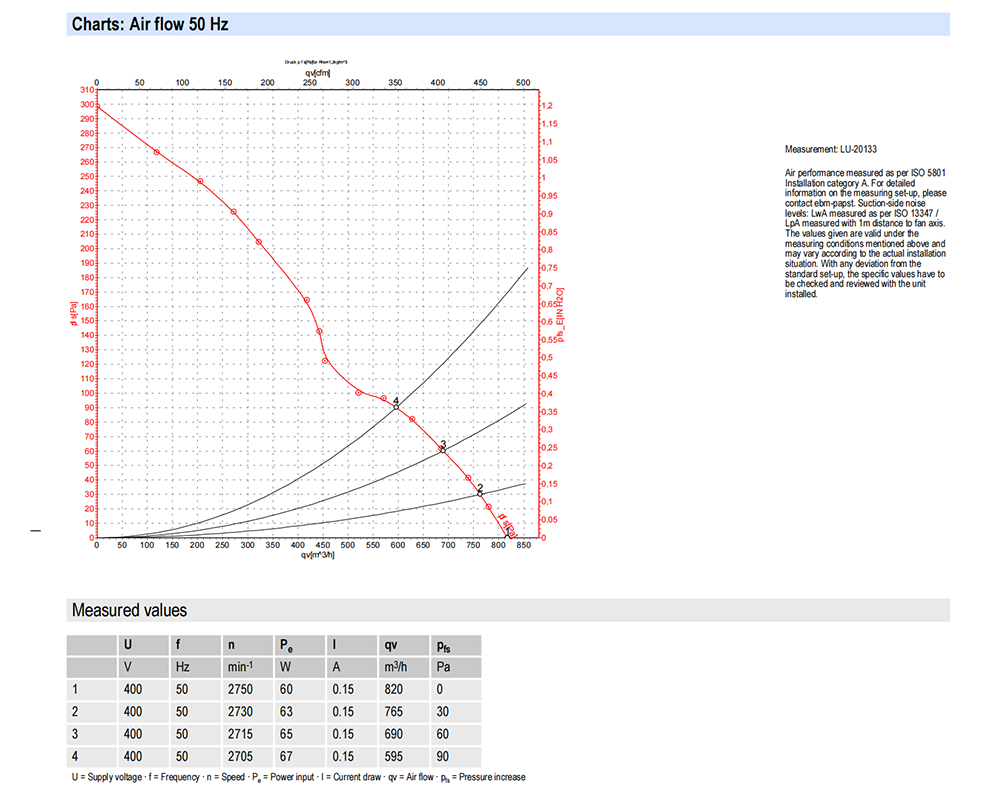

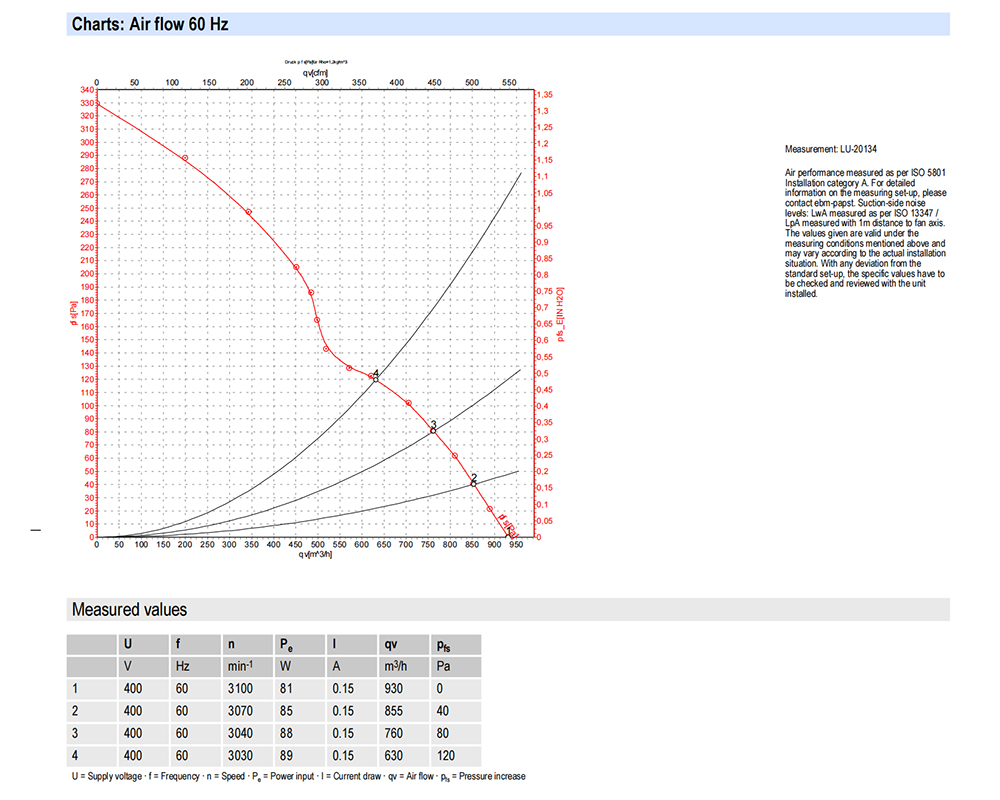

| Max.Air Flow(m³/h)： | 820 |
| Max.Pressure(Pa)： | 90 |
| Input Power(W)： | 80 |
| Speed(RPM)： | 2700 |
| Weight: | 1.6 kg |
| Rotor Surface: | Unpainted |
| Impeller Material: | Sheet steel, galvanized |
| Number of Blades: | 5 |
| Airflow Direction: | "V" |
| Direction of Rotation: | Counterclockwise, viewed toward rotor |
| Degree of Protection: | IP44; installation- and position-dependent as per EN 60034-5 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | F1-1 |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage): | + 80 °C |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage): | - 40 °C |
| Installation Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current According to IEC 60990 (Measuring Circuit Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) with basic insulation |

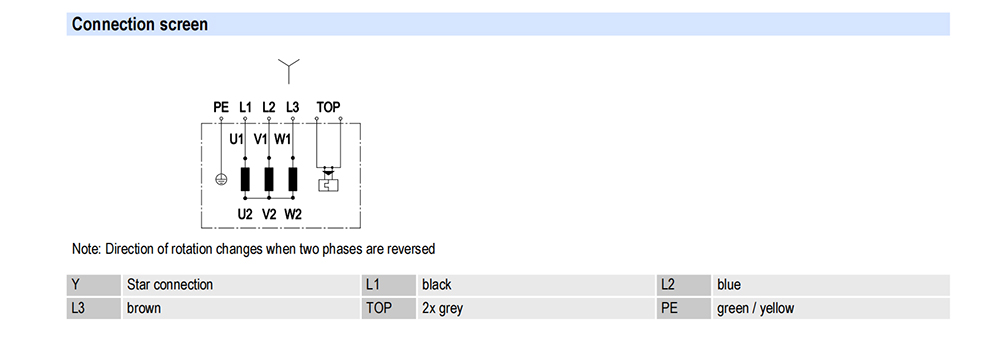

| Cable Exit: | Lateral |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity with Standards: | EN 60335-1; CE |
