| Brand： | ebmpapst |
| Part No： | A2E200-AF02-01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 200 |
| Max.Air Flow(m³/h)： | 740 |
| Max.Pressure(Pa)： | 88 |
| Input Power(W)： | 50 |
| Speed(rpm)： | 2740 |
| Noise(db)： | N/A |

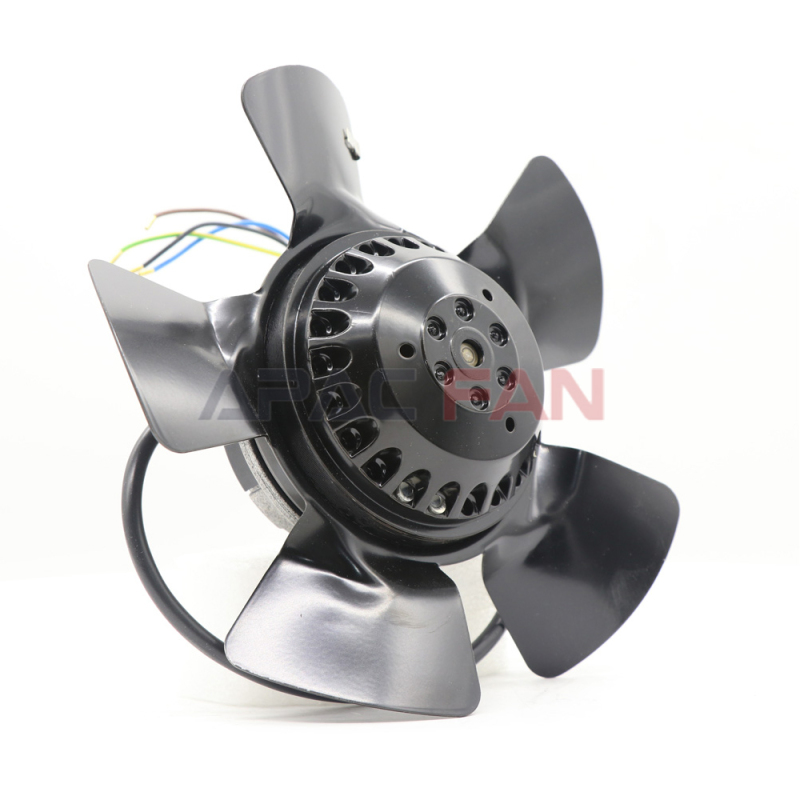

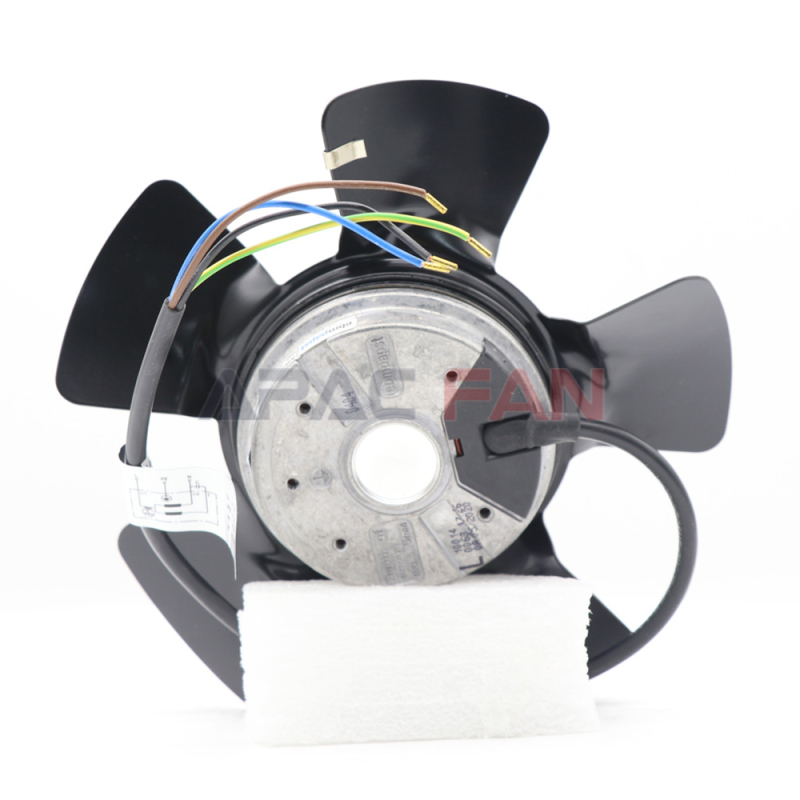

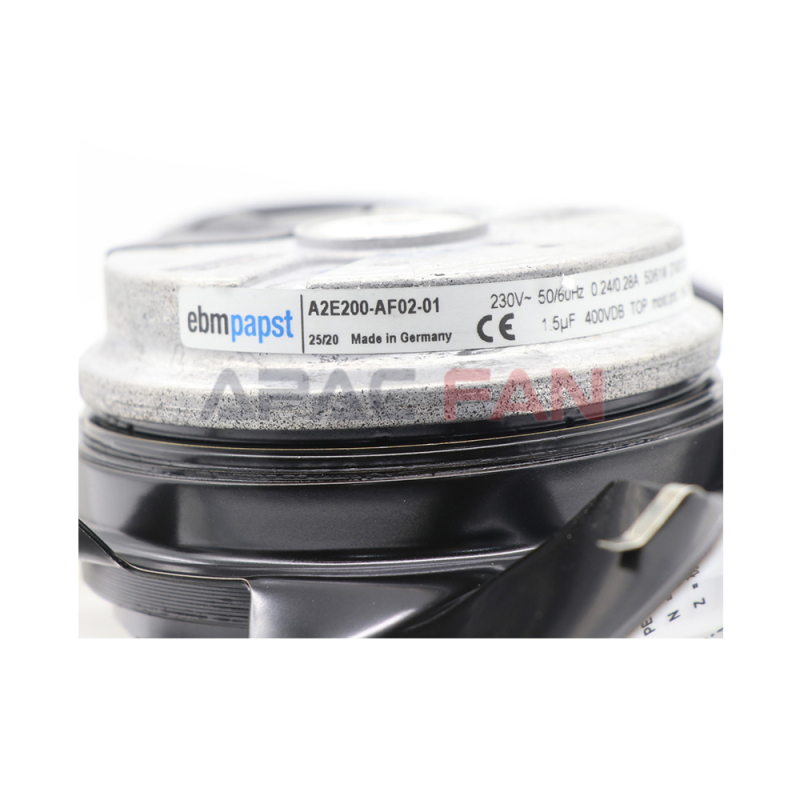

Axial fans are widely used in many fields, and their performance and characteristics are crucial for different usage scenarios. This article will conduct an in-depth analysis of the A2E200-AF02-01 axial fan of the ebm-papst brand.
Brand Background
As a world-leading fan and motor manufacturer, ebm-papst enjoys a high reputation in the industry for its excellent quality and innovative technology. The brand has been committed to providing customers with efficient and reliable fan products to meet various application requirements. Its rich experience and professional technology in the field of fan manufacturing provide a solid guarantee for the performance and quality of the A2E200-AF02-01 axial fan.
Product Parameter Detailed Explanation
Fan Type: Axial fan is a type of fan that allows air to flow along the axis of the fan through the rotation of the blades. This fan has the characteristics of simple structure, large air volume, and relatively low noise. As an axial fan, A2E200-AF02-01 is suitable for a variety of occasions where air circulation is required, such as ventilation systems, cooling equipment, etc.
Rated voltage (V): The rated voltage of this fan is 230V. The appropriate rated voltage ensures the stability and reliability of the fan under normal working conditions. In actual applications, users need to select a fan with an appropriate voltage level according to the power requirements and usage environment of the equipment. The rated voltage of 230V is common in many industrial and commercial applications and can meet the needs of most equipment.

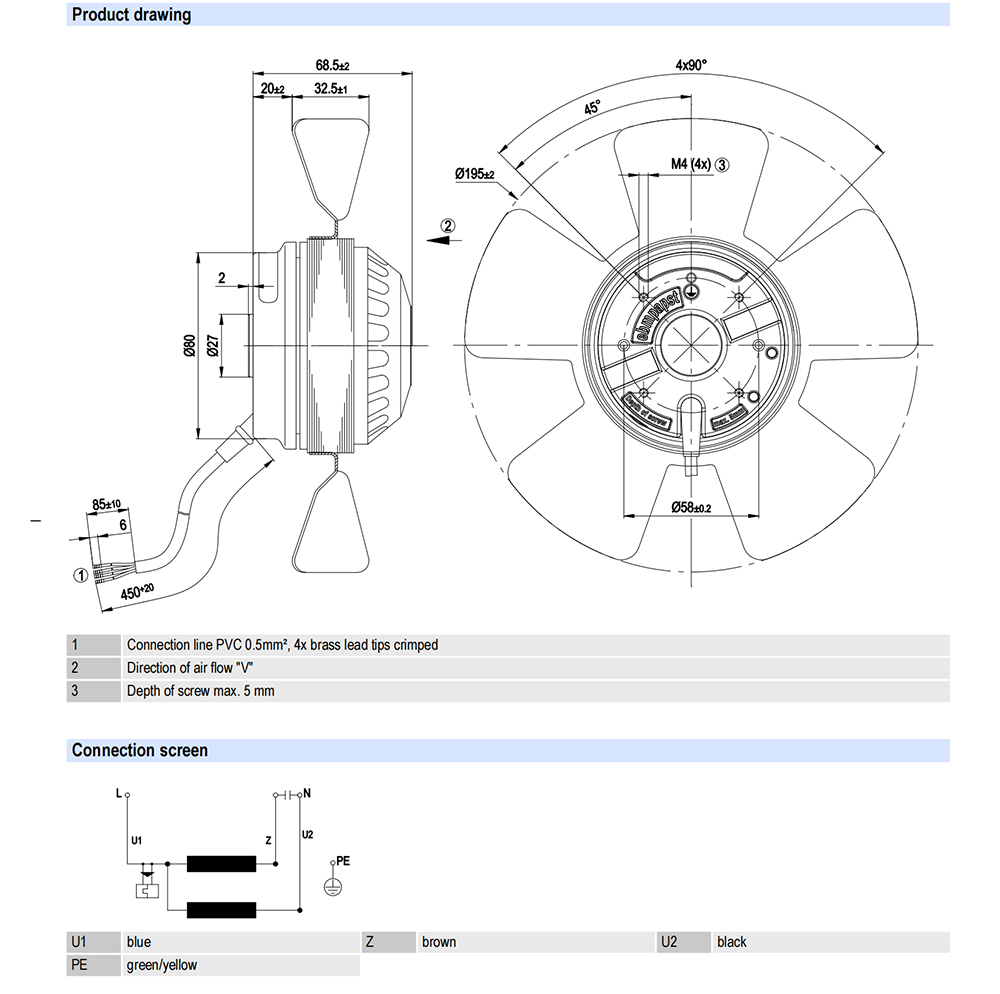

Size (mm): For fans with a size of 200 mm, space limitations need to be considered during installation and use. A larger size may require more installation space, but it may also mean a larger air volume and stronger heat dissipation capacity. When selecting a fan, users need to consider the size of the fan based on the spatial layout and heat dissipation requirements of the equipment. For some equipment with limited space, a smaller fan may be required; for equipment that requires a lot of heat dissipation, a larger fan may be more suitable.

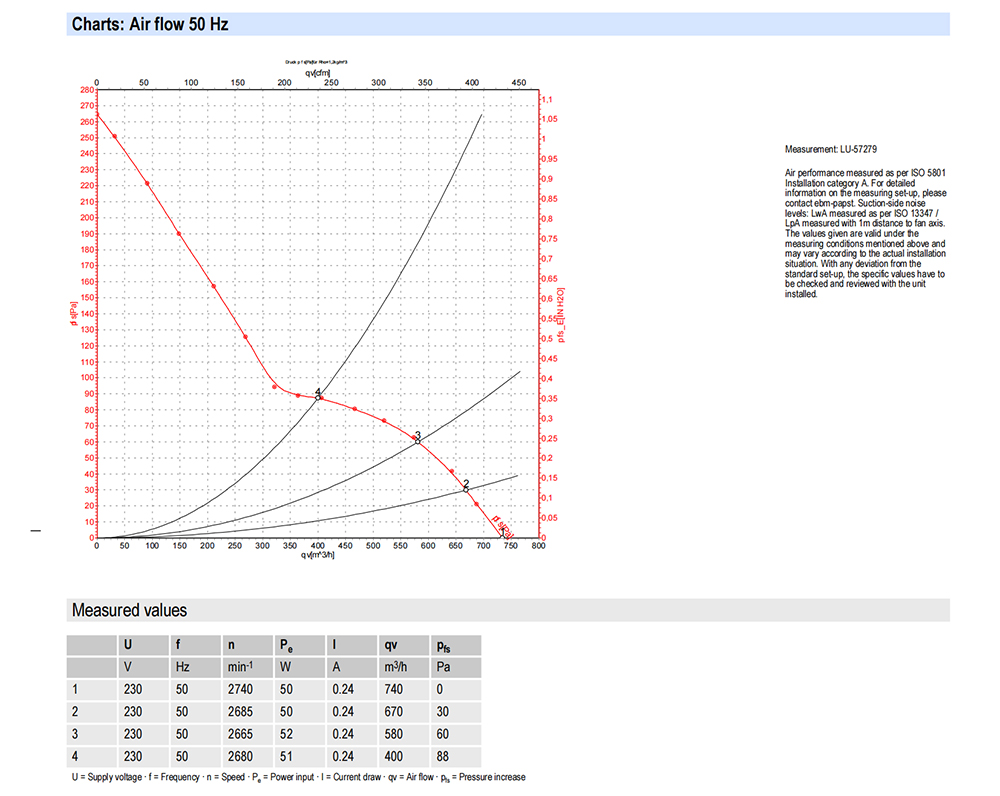

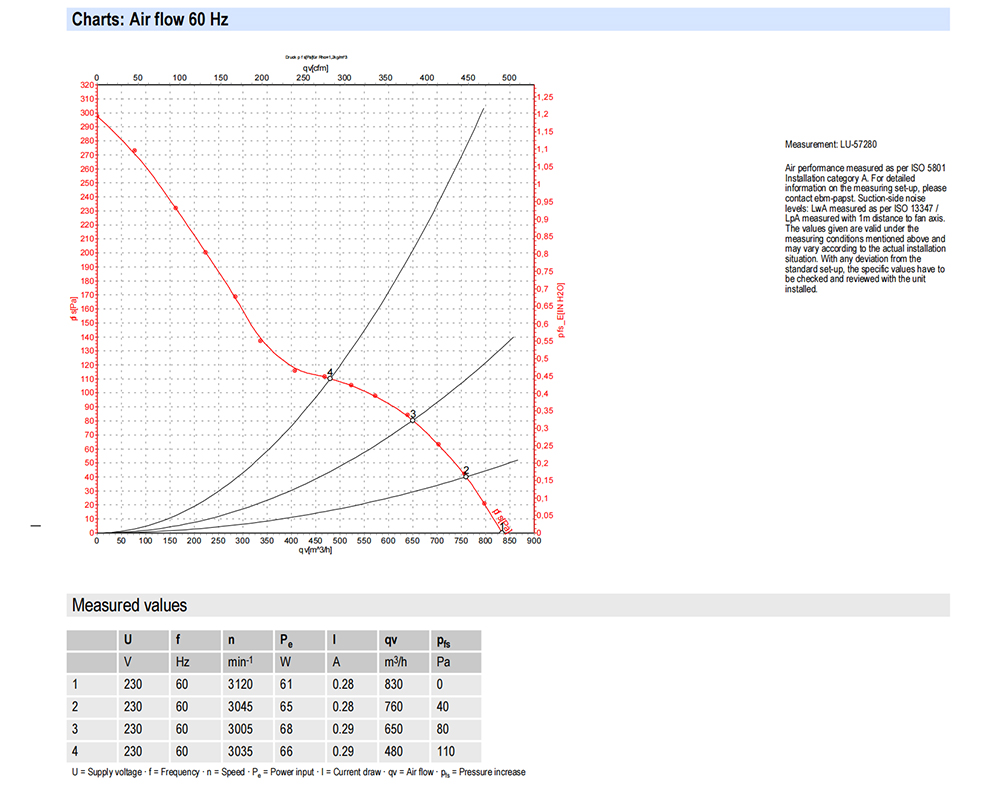

Maximum air volume (m³/h): The maximum air volume of the A2E200-AF02-01 axial fan is 740m³/h. Large air volume means that air can be circulated or discharged quickly and effectively, improving the heat dissipation efficiency of the equipment. In some occasions with high requirements for heat dissipation, such as electronic equipment and industrial equipment, fans with large air volume can effectively reduce the temperature of the equipment and ensure the normal operation of the equipment. At the same time, the size of the air volume is also affected by factors such as the fan speed, blade design, and air duct resistance.
Maximum pressure (Pa): The maximum pressure of 88Pa indicates that the fan has a certain ability to overcome the air duct resistance. In some occasions where long-distance air supply is required or the air duct resistance is large, higher pressure can ensure that the air can circulate smoothly. However, the increase in pressure may also cause the fan to increase noise and energy consumption. Therefore, when designing a ventilation system, it is necessary to reasonably select the fan's pressure parameters according to actual needs.
Input power (W): The input power of 50W is relatively low, which means that the fan consumes less energy when running. For some occasions with strict requirements on energy consumption, low-power fans can reduce the operating costs of the equipment. At the same time, low power may also mean that the fan's heat dissipation performance is relatively weak, and the heat dissipation problem needs to be fully considered during design.
Speed (rpm): The speed of 2740rpm is high, which enables the fan to generate a large air volume and pressure. However, high speed may also lead to increased noise and shortened fan life. In practical applications, it is necessary to reasonably select the fan speed according to the noise requirements and service life requirements of the equipment. The fan speed can be reduced by adjusting the fan control circuit or using a speed regulator to meet different needs.
Application Fields
Heat dissipation of electronic equipment: In electronic equipment, such as computers, servers, communication equipment, etc., heat dissipation is crucial. The large air volume and low power characteristics of the A2E200-AF02-01 axial flow fan make it very suitable for heat dissipation of electronic equipment. The fan can be installed on the heat dissipation port or radiator of the equipment, and the heat inside the equipment can be discharged through forced air convection to ensure the normal operation of the equipment.
Ventilation system: In the ventilation system, axial flow fans can be used for air circulation and exhaust. For example, in factories, workshops, warehouses and other places, it is necessary to maintain air circulation to remove harmful gases and dust and improve the quality of the working environment. The large air volume and high pressure characteristics of the A2E200-AF02-01 axial flow fan enable it to meet the ventilation needs of these places.
Cooling equipment: In some cooling equipment, such as air conditioners, refrigerators, cooling towers, etc., axial fans can be used for the circulation and heat dissipation of coolants. The high efficiency and low power characteristics of the A2E200-AF02-01 axial flow fan enable it to play an important role in these equipment, improve the cooling efficiency of the equipment, and reduce energy consumption.
Technical advantages
High efficiency performance: ebm-papst has been committed to improving the efficiency of fans. The A2E200-AF02-01 axial flow fan uses advanced blade design and motor technology, which enables it to achieve higher efficiency during operation. Efficient fans can reduce energy consumption, reduce operating costs, and also reduce the impact on the environment.
Low noise: Although the noise parameters of the fan are not given in the question, the ebm-papst brand usually pays attention to the noise control of the fan. During the design and manufacturing process, a variety of noise reduction technologies are used, such as optimizing the blade shape and reducing motor noise, to ensure that the noise of the fan is as low as possible during operation. Low-noise fans can improve the comfort of the working environment and reduce interference with the surrounding environment.
High reliability: As the world's leading fan manufacturer, ebm-papst has very high requirements for product quality and reliability. The A2E200-AF02-01 axial flow fan has undergone rigorous quality inspection and reliability testing to ensure stable operation in various harsh environments. Highly reliable fans can reduce equipment maintenance costs and increase equipment life.
Market competitiveness
Brand advantage: As a well-known brand, ebm-papst has a high reputation and reputation in the market. Its product quality and performance have been recognized by the majority of users, which provides strong support for the competition of A2E200-AF02-01 axial flow fan in the market.
Technological innovation: ebm-papst continues to innovate technology and launch new products and technologies. The A2E200-AF02-01 axial flow fan uses advanced technology and design, which gives it certain advantages in performance and quality. Technological innovation can improve product competitiveness and meet the changing needs of users.
After-sales service: Good after-sales service is also an important factor in improving product competitiveness. ebm-papst provides comprehensive after-sales service, including product installation guidance, technical support, repair and maintenance, etc. This can provide users with a better user experience and enhance their trust and satisfaction with the product.
In summary, the ebm-papst A2E200-AF02-01 axial flow fan has market competitiveness such as brand advantages, technological innovation and good after-sales service. In actual applications, users can choose suitable axial flow fan products according to their needs and usage environment. At the same time, with the continuous advancement of technology and the continuous changes in the market, the performance and application areas of axial flow fans will continue to expand and innovate.
Although the A2E200-AF02-01 fan has high reliability and stability, some faults may still occur during long-term operation. Understanding the causes and treatment methods of common faults is crucial to timely solve the problem and ensure the normal operation of the fan.
