FAQ
Q1: What does the IP44 protection rating of the ebm-papst A4E400-AP02-14 axial fan mean, and how does its installation affect this rating?
A1: The IP44 rating of the ebm-papst A4E400-AP02-14 indicates it is protected against solid objects larger than 1mm (e.g., small tools) and water splashes from any direction. However, this rating is installation- and position-dependent as per EN 60034-5. To maintain IP44, ensure the fan is mounted securely with proper sealing around connections, especially for the variable cable exit. Avoid positions where water could pool or direct jets might reach the motor, even though it resists splashes. Its F1-2 humidity class further supports use in moderately humid environments, but installation orientation (shaft horizontal or rotor on bottom, rotor on top by request) must align with manufacturer guidelines to prevent moisture ingress that could compromise protection.

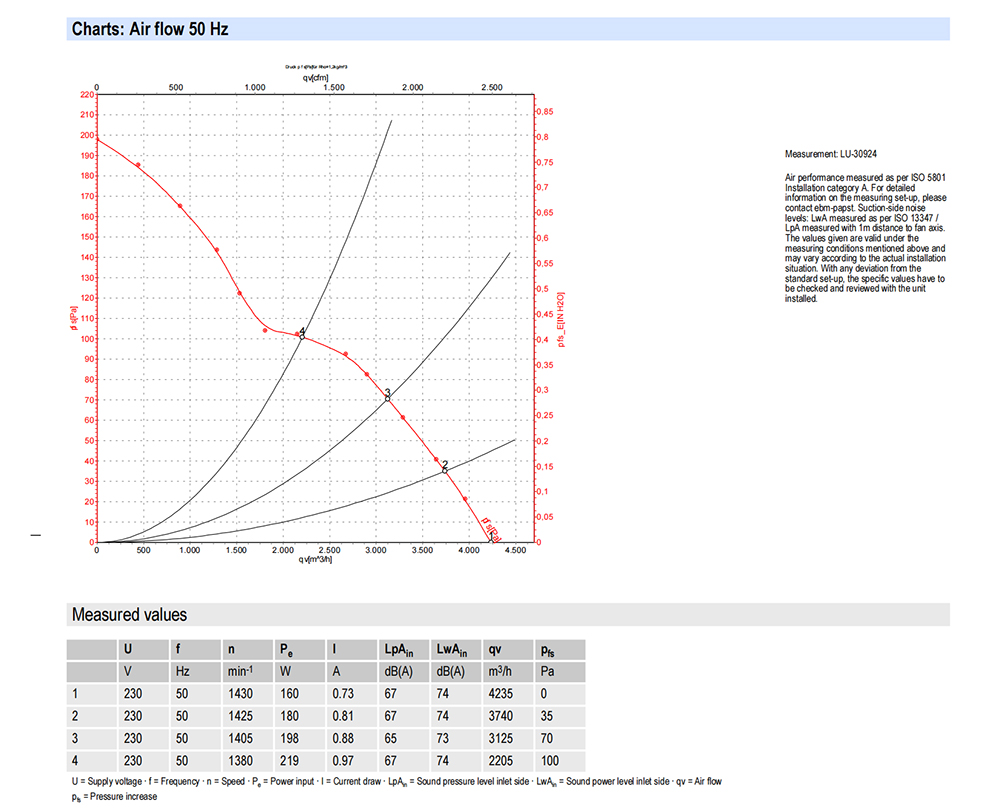

Q2: Given the ebm-papst A4E400-AP02-14’s large size (400mm) and high max air flow (4235 m³/h), what applications is it best suited for, and why?
A2: The ebm-papst A4E400-AP02-14, with its 400mm size and 4235 m³/h max air flow, is ideal for large-scale cooling applications requiring high-volume air movement. This includes industrial facilities, large HVAC systems, data centers, or warehouse ventilation, where dissipating significant heat or circulating air in spacious areas is critical. Its 100Pa max pressure allows it to push air through ducting or filters without losing efficiency, while the 1430 rpm speed balances airflow volume with noise (65dB)—manageable for industrial settings. The 5 black-coated steel blades and ball bearings ensure durability under continuous S1 mode operation, supporting its 160W input power demands, making it reliable for heavy-duty, high-airflow needs.
Q3: How does the thermal overload protector (TOP) in the ebm-papst A4E400-AP02-14 work with its "B" insulation class to prevent motor damage?
A3: The thermal overload protector (TOP) in the ebm-papst A4E400-AP02-14 is a safety feature that shuts off the motor if it overheats, while its "B" insulation class allows safe operation up to 130°C. The TOP activates before temperatures reach this threshold, cutting power to prevent insulation breakdown or motor burnout—critical given the fan’s 160W input power and continuous S1 operation. For example, if airflow is blocked, causing heat buildup, the TOP intervenes, restarting only when temperatures normalize. This synergy ensures protection beyond the insulation’s inherent heat resistance: the insulation handles routine high temps, while the TOP mitigates extreme cases. Combined with its wide ambient temp range (-40°C to +80°C for transport/storage), this makes it robust in fluctuating environments.

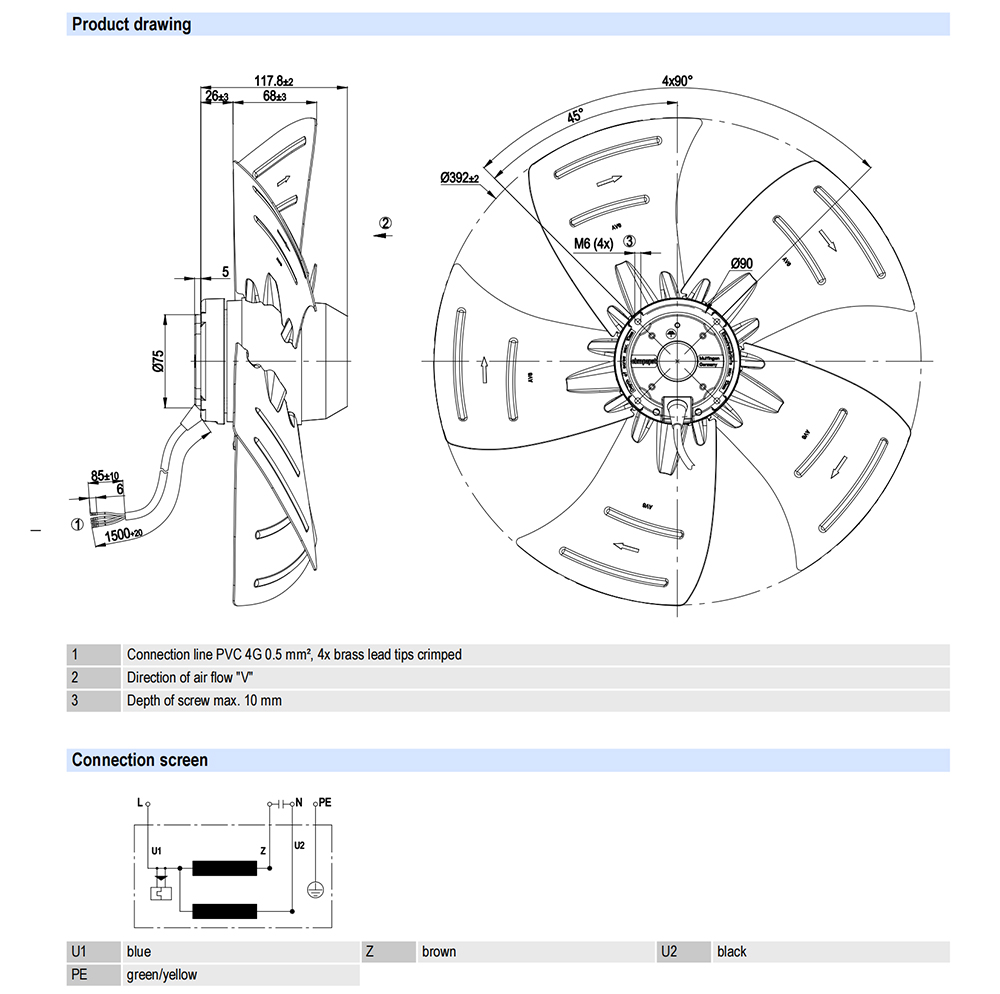

Q4: What mounting positions are allowed for the ebm-papst A4E400-AP02-14, and are there any restrictions to consider for optimal performance?
A4: The ebm-papst A4E400-AP02-14 is primarily designed for shaft horizontal mounting or with the rotor on the bottom; rotor-on-top mounting is allowed only by request. These restrictions ensure proper lubrication of the ball bearings and prevent moisture accumulation, as the fan has rotor-side condensate discharge holes. Mounting outside these guidelines could lead to uneven bearing wear, reduced lifespan, or impaired condensate drainage, especially in humid environments (supported by its F1-2 humidity class). Additionally, its "V" airflow direction (vertical) means alignment with the mounting position is key—horizontal shaft mounting should align vertical airflow with the system’s needs (e.g., upward/downward air movement) to maintain its 4235 m³/h max flow efficiency. Secure installation also helps manage vibration at 1430 rpm, preserving performance.
Q5: The ebm-papst A4E400-AP02-14 has a noise level of 65dB. How does this compare to typical axial fans, and what factors contribute to its noise output?
A5: A 65dB noise level for the ebm-papst A4E400-AP02-14 is moderate for a large (400mm) axial fan—comparable to busy office conversation or a dishwasher. Larger fans often generate more noise due to their size and airflow volume, but this model balances performance with manageability. Key contributors to its noise include its 1430 rpm speed, which causes blade turbulence as air moves through the 5 steel blades; the size and shape of the blades (sheet steel, coated black) affect air flow dynamics, with larger blades creating more noise than smaller ones. Additionally, motor operation and ball bearing friction play minor roles, though the fan’s design likely minimizes these. For context, smaller axial fans (e.g., 120mm) may operate at 40-50dB, but they lack the 4235 m³/h flow of this 400mm model, making its 65dB a reasonable trade-off for high-performance cooling in industrial or commercial settings.
