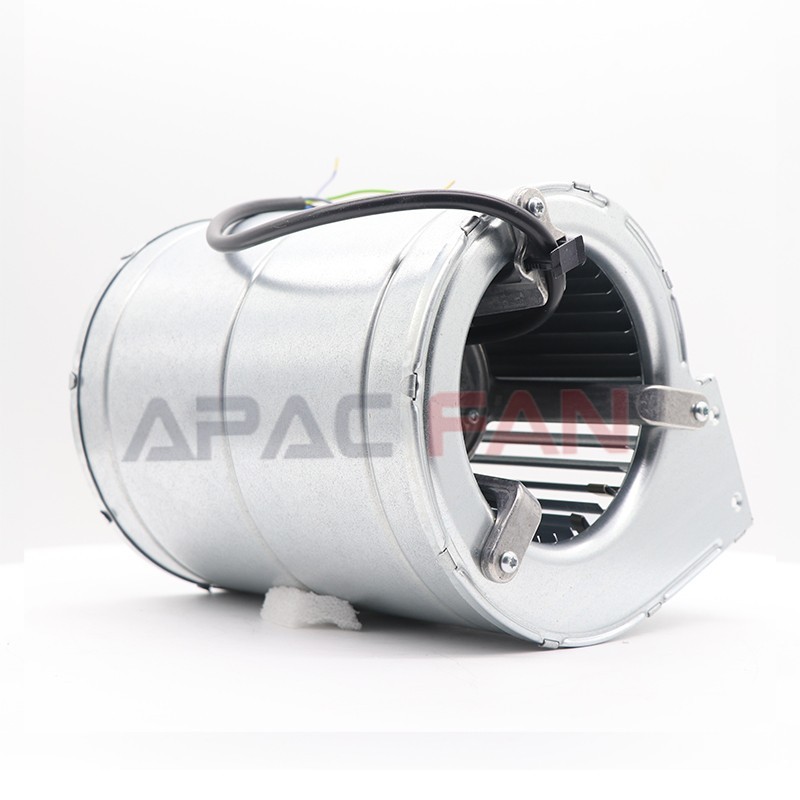

AC centrifugal fan, forward-curved, dual-intake with housing (without flange)
| Brand： | ebmpapst |
| Part No： | D2D133-AB06-08 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 440 |

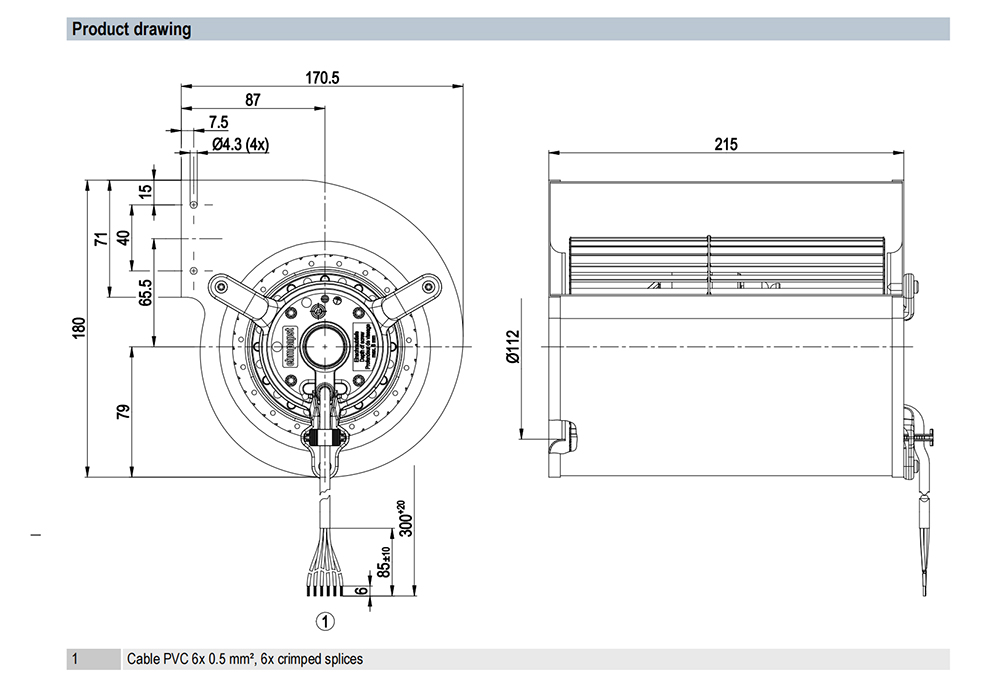

| Size(mm)： | 133 |

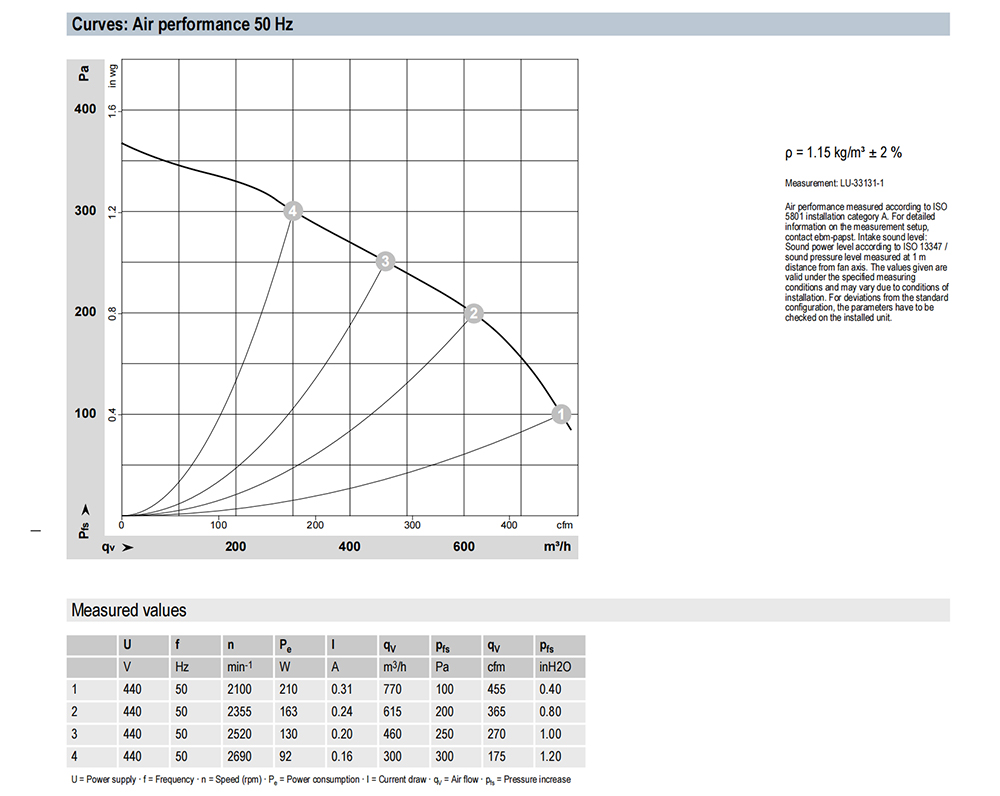

| Max.Air Flow(m³/h)： | 770 |
| Max.Pressure(Pa)： | 100 |
| Input Power(W)： | 210 |
| Speed(RPM)： | 2100 |
| Weight: | 3.4 kg |
| Rotor Surface: | Unpainted |
| Impeller Material: | Sheet steel, galvanized |
| Housing Material: | Sheet steel, galvanized |
| Motor Suspension: | Motor mounted with brackets on one side |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP44 |
| Insulation Class: | "B" |
| Moisture (F) / Environmental (H) Protection Class: | F1-1 |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage): | + 80 °C |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage): | - 40 °C |
| Installation Position: | Shaft horizontal or rotor on top; rotor on bottom on request |
| Condensation Drainage Holes: | None |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current According to IEC 60990 (Measuring Circuit Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) with basic insulation |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity with Standards: | EN 60335-1; CE |
| Approval: | CCC |
