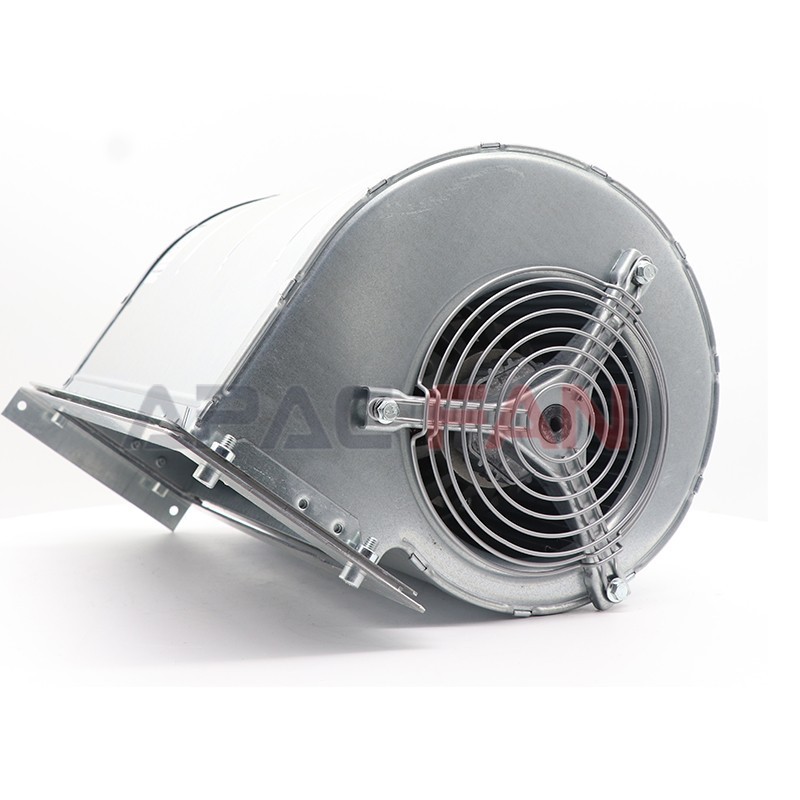

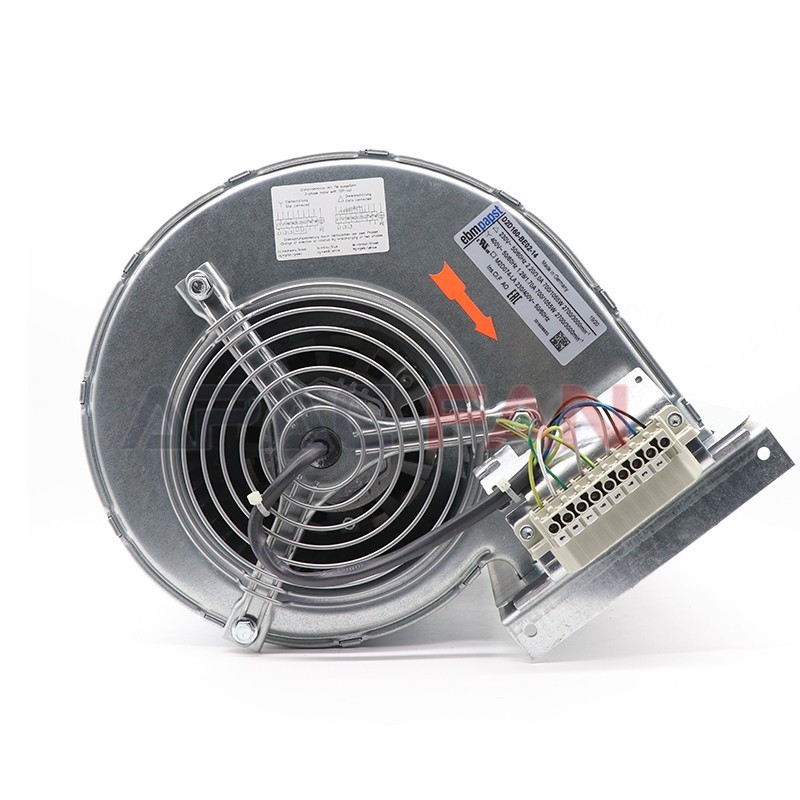

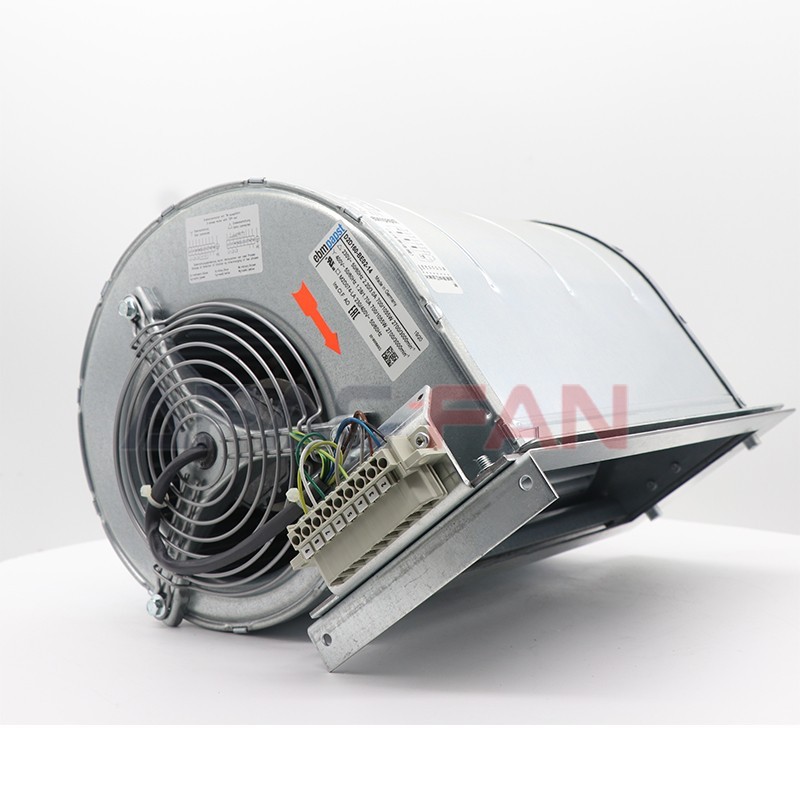

forward curved, dual inlet with housing (flange)
| Brand: | ebm-papst |
| Part No： | D2D160-BE02-14 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Input Power(W)： | 700 |
| Speed(RPM)： | 2700 |
| Mass: | 10.82 kg |
| Size: | 160 mm |
| Surface of rotor: | Coated in black |
| Material of impeller: | Sheet steel, galvanised |
| Housing material: | Sheet steel, galvanised |
| Material of guard grille: | Steel, galvanised and plastic-coated in white aluminium (RAL 9006) |
| Motor suspension: | Motor mounted anti-vibration on both sides |
| Direction of rotation: | Counter-clockwise, seen on rotor |
| Type of protection: | IP 00 |
| Insulation class: | "F" |
| Humidity class: | F2-1 |
| Max. permissible ambient motor temp. (transp./ storage): | + 80 °C |
| Min. permissible ambient motor temp. (transp./storage): | - 40 °C |
| Mounting position: | Any |
| Condensate discharge holes: | None, open rotor |
| Operation mode: | S1 |
| Motor bearing: | Ball bearing |
| Touch current acc. IEC 60990 (measuring network Fig. 4, TN system): | < 0.75 mA |

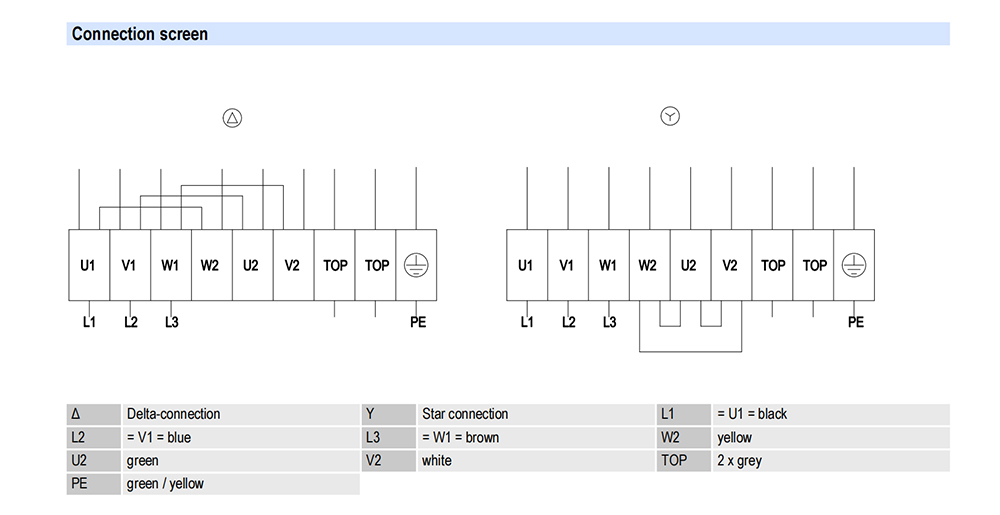

| Electrical leads: | With plug |
| Motor protection: | Thermal overload protector (TOP) brought out |
| Cable exit: | Axial |
| Protection class: | I (if protective earth is connected by customer) |
| Product conforming to standard: | EN 60335-1; CE |
| Approval: | CCC; UL 1004-1; CSA C22.2 Nr.100 |
