FAQ
Q1: What are the key specifications of the ebm-papst D2E097-BE01-65 axial fan, including its power and speed?

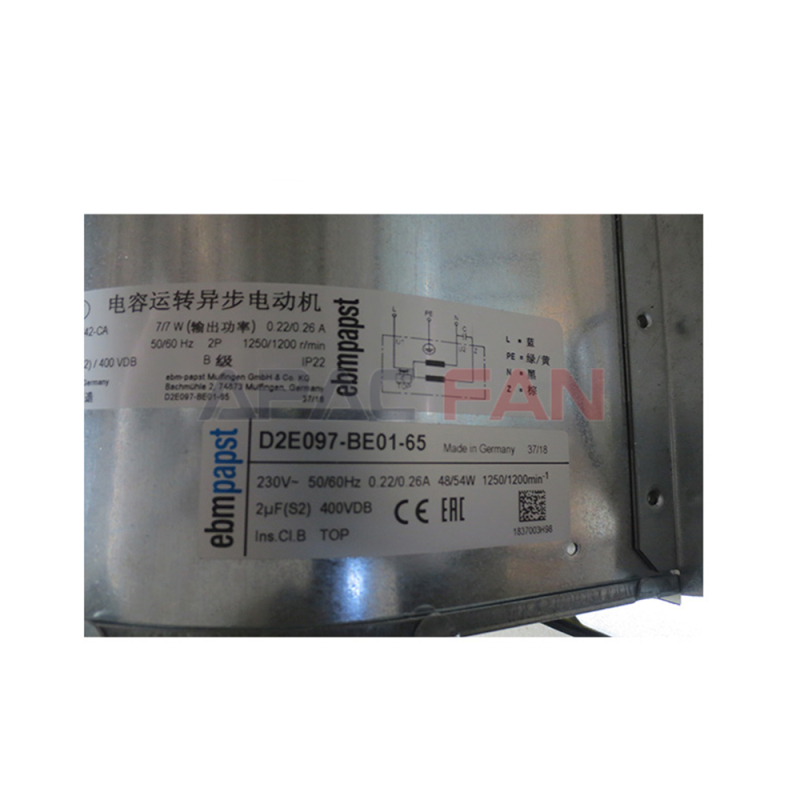

A1: The ebm-papst D2E097-BE01-65 is an axial fan with a rated voltage of 230V. It has an input power of 48W and operates at a speed of 1250 rpm. The fan measures 97mm in size and weighs 1.3 kg. Its motor size is 42, and it features ball bearings for durability. The impeller and housing are made of galvanized sheet steel, providing robustness. The rotation direction is counterclockwise when viewed toward the rotor, and it can be installed in any position. It includes a thermal overload protector (TOP) for motor protection and has an insulation class of "B" and a degree of protection of IP22 (installation- and position-dependent). It conforms to standards like EN 60335-1 and holds approvals such as EAC and CCC.
Q2: What materials are used in the construction of the ebm-papst D2E097-BE01-65 fan, and how does this affect its performance?
A2: The ebm-papst D2E097-BE01-65 axial fan uses galvanized sheet steel for both its impeller and housing. Galvanized steel offers excellent corrosion resistance, making the fan suitable for various environments, including those with moderate moisture, as indicated by its H0+ moisture protection class. This material choice enhances durability and ensures long-term performance, even in conditions where rusting could be a concern. The rotor surface is unpainted, which may simplify maintenance. Combined with ball bearings, these materials contribute to the fan’s reliability, allowing it to operate consistently at 1250 rpm with minimal wear, supported by the thermal overload protector for added safety.
Q3: What protection features does the ebm-papst D2E097-BE01-65 fan have, and what safety standards does it comply with?
A3: The ebm-papst D2E097-BE01-65 is equipped with several protection features. It includes a thermal overload protector (TOP) internally connected to safeguard the motor from overheating. The fan has an insulation class of "B," ensuring it can withstand moderate temperature rises without insulation failure. Its degree of protection is IP22, which protects against solid objects larger than 12mm and vertical water droplets, though this is installation- and position-dependent. It also has a protection class I, requiring customer connection of protective earth for electrical safety. The fan conforms to EN 60335-1 and holds approvals like EAC and CCC, ensuring it meets international safety and performance standards.
Q4: How is the ebm-papst D2E097-BE01-65 fan mounted, and what are its installation requirements?

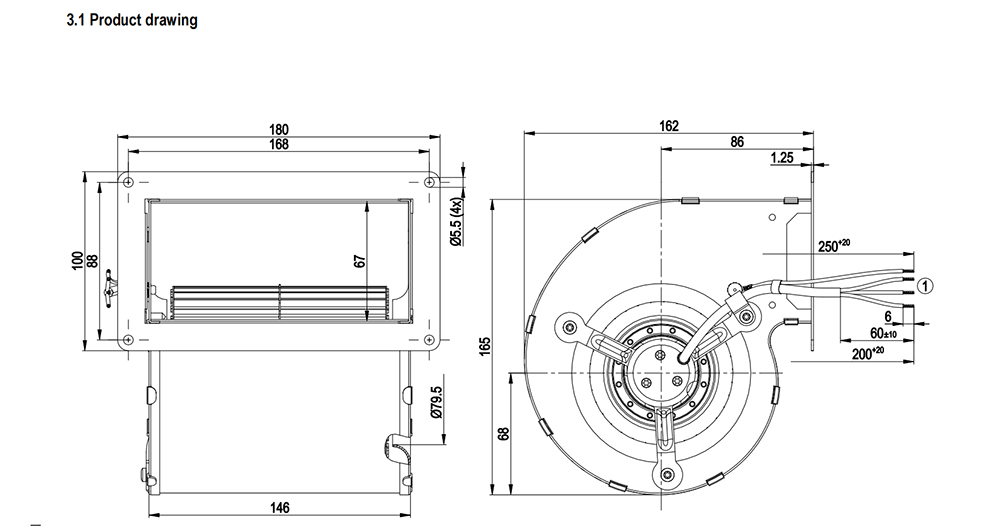

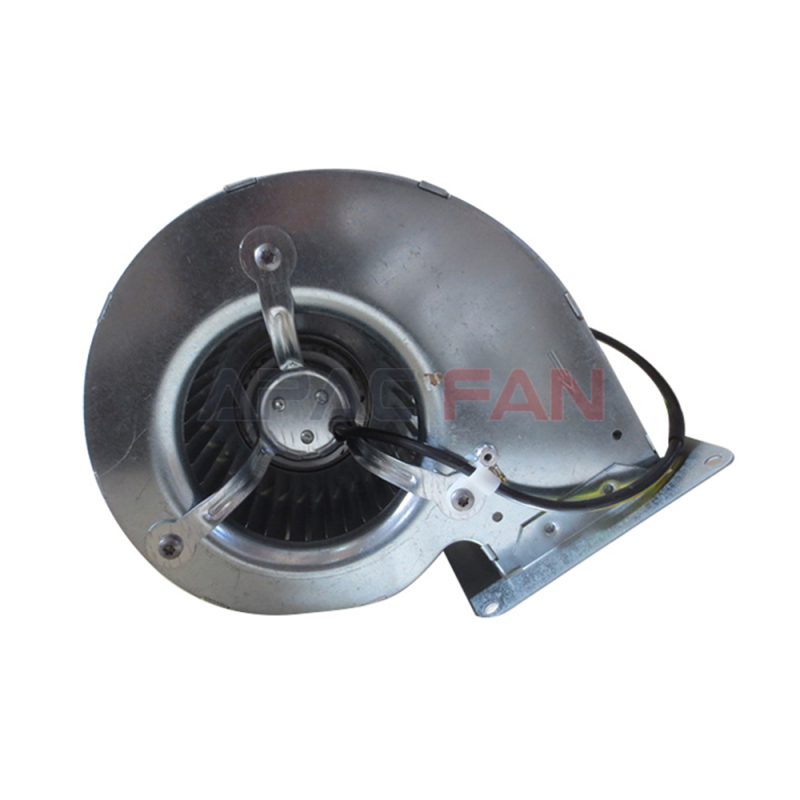

A4: The ebm-papst D2E097-BE01-65 axial fan features a motor suspension system where the motor is mounted with brackets on one side, facilitating secure installation. It can be installed in any position, offering flexibility in setup. However, it’s important to note that the degree of protection (IP22) is installation- and position-dependent, so proper placement is key to maintaining its protective capabilities. The fan requires a protective earth connection (protection class I) for electrical safety, which the customer must handle during installation. There are no condensation drainage holes, so avoiding excessive moisture buildup in the installation area is advisable. It operates in S1 mode (continuous duty), making it suitable for prolonged use once correctly mounted.
Q5: What approvals and standards does the ebm-papst D2E097-BE01-65 fan meet, and why are these important?
A5: The ebm-papst D2E097-BE01-65 complies with EN 60335-1, a key standard for household and similar electrical appliances, ensuring it meets safety and performance criteria for such devices. It holds EAC approval, which is necessary for marketing in the Eurasian Economic Union, and CCC approval, required for sale in China. These approvals indicate that the fan has undergone rigorous testing to meet regional regulations, ensuring compatibility and safety in those markets. Compliance with these standards and approvals gives users confidence in the fan’s reliability, electrical safety, and suitability for intended applications, whether in industrial, commercial, or household settings, and simplifies its integration into global supply chains.
