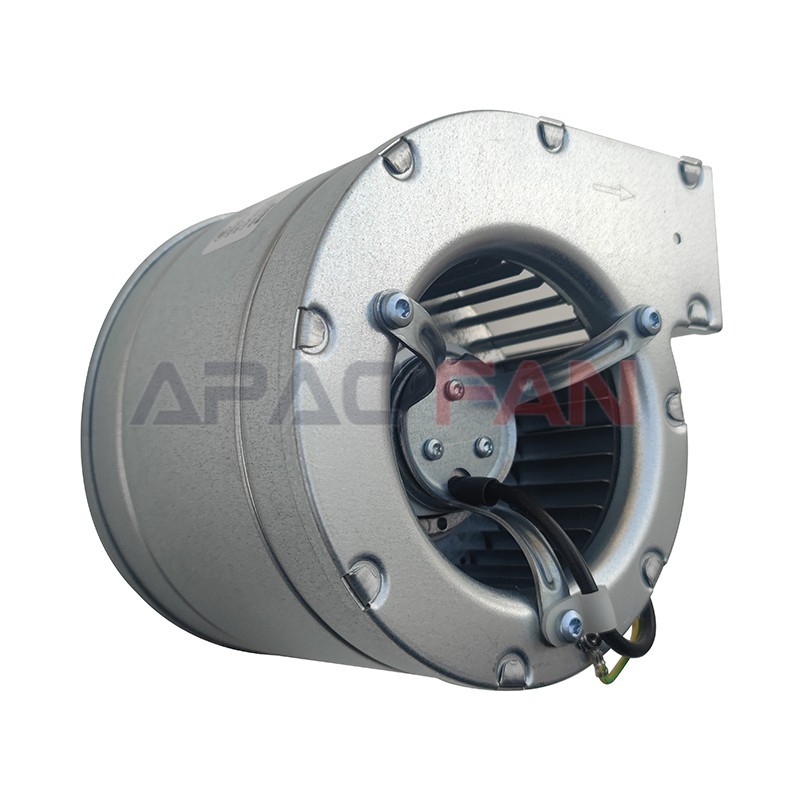

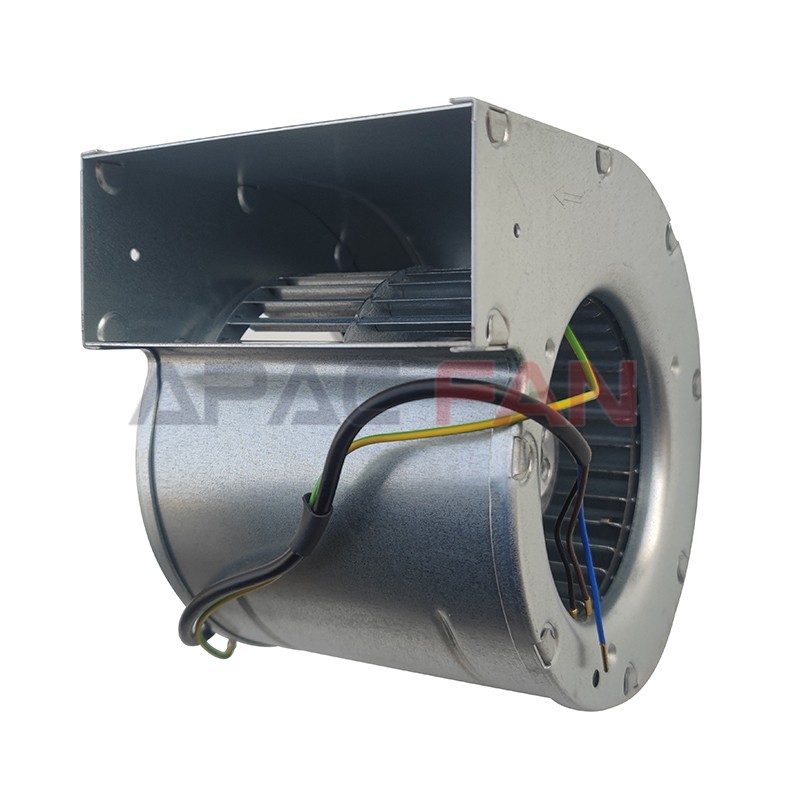

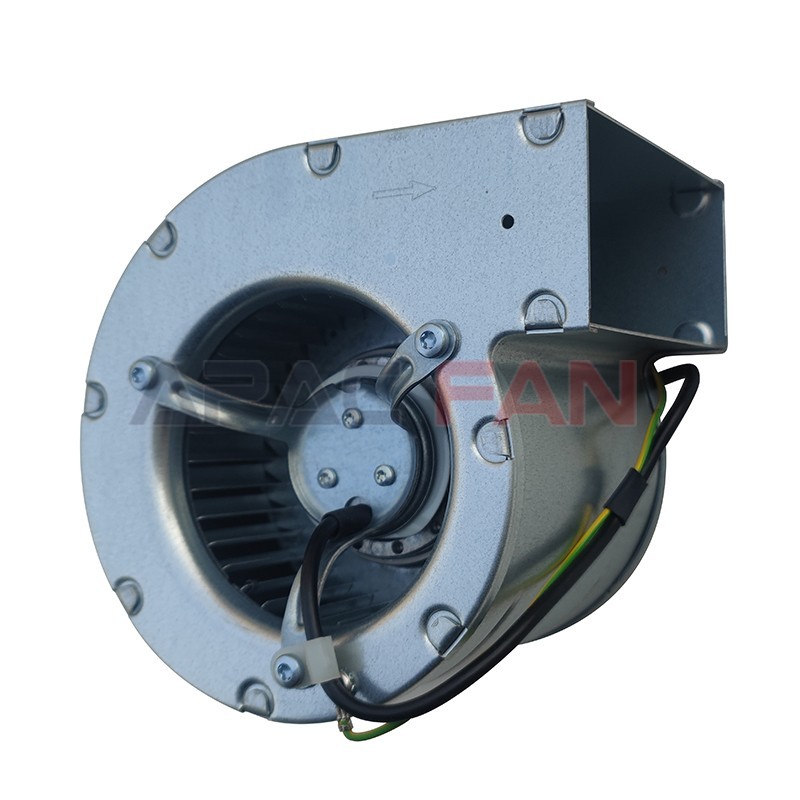

AC centrifugal fan, forward curved, dual inlet with housing (without flange)
| Brand: | ebm-papst |

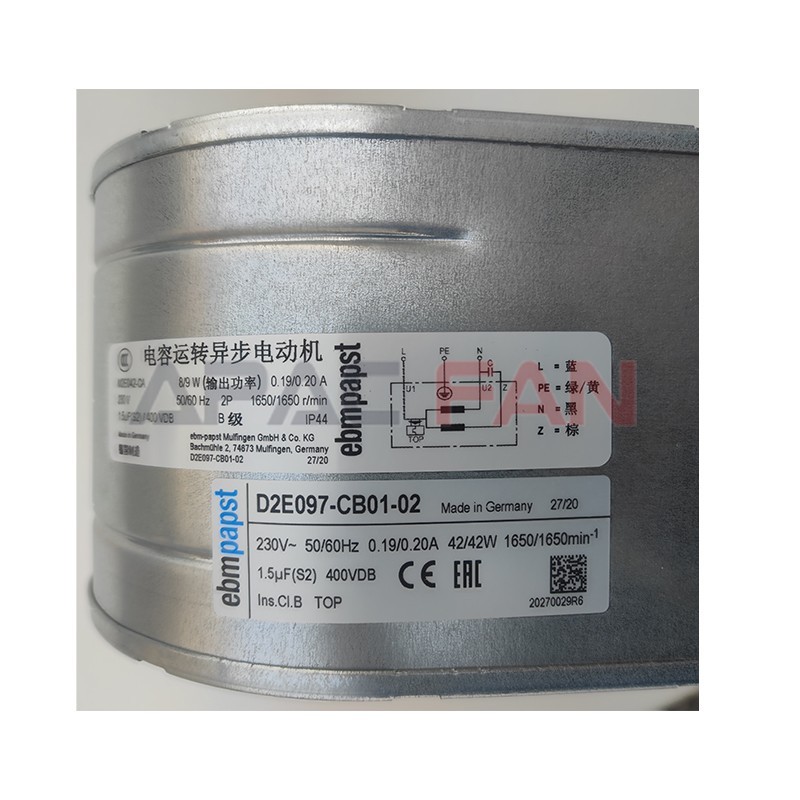

| Part No: | D2E097-CB01-02 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 230 |

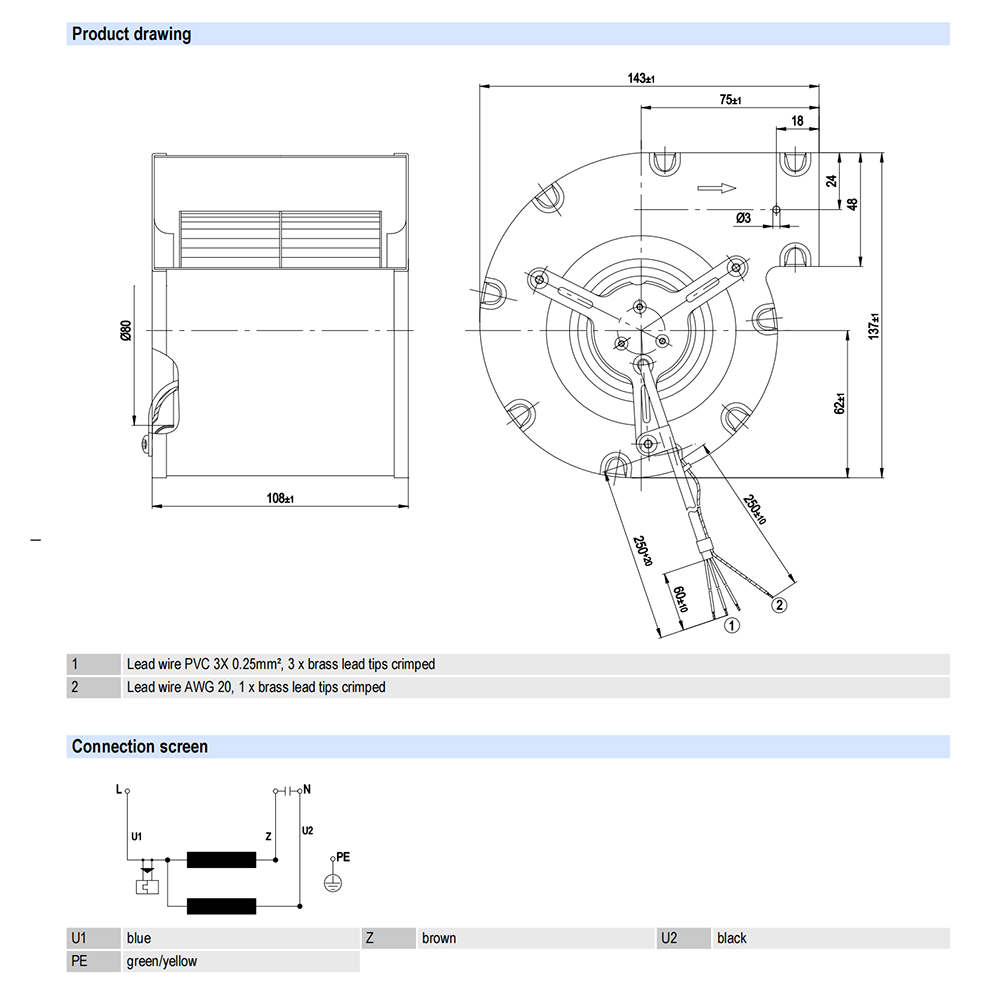

| Size(mm): | 97 |

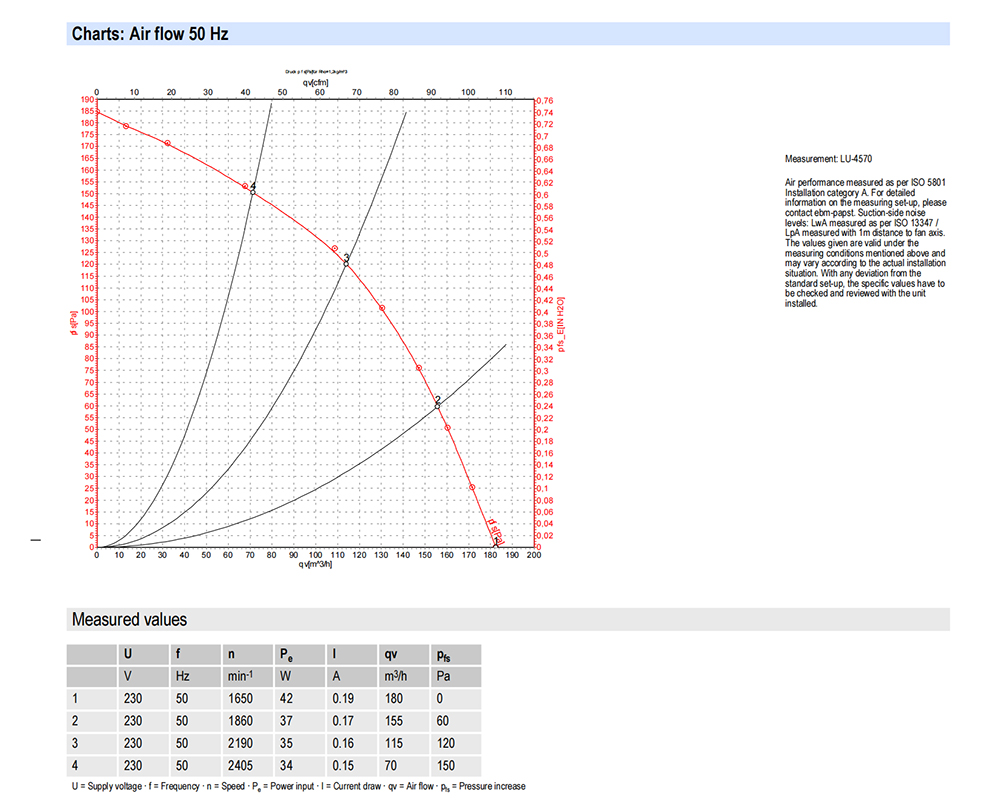

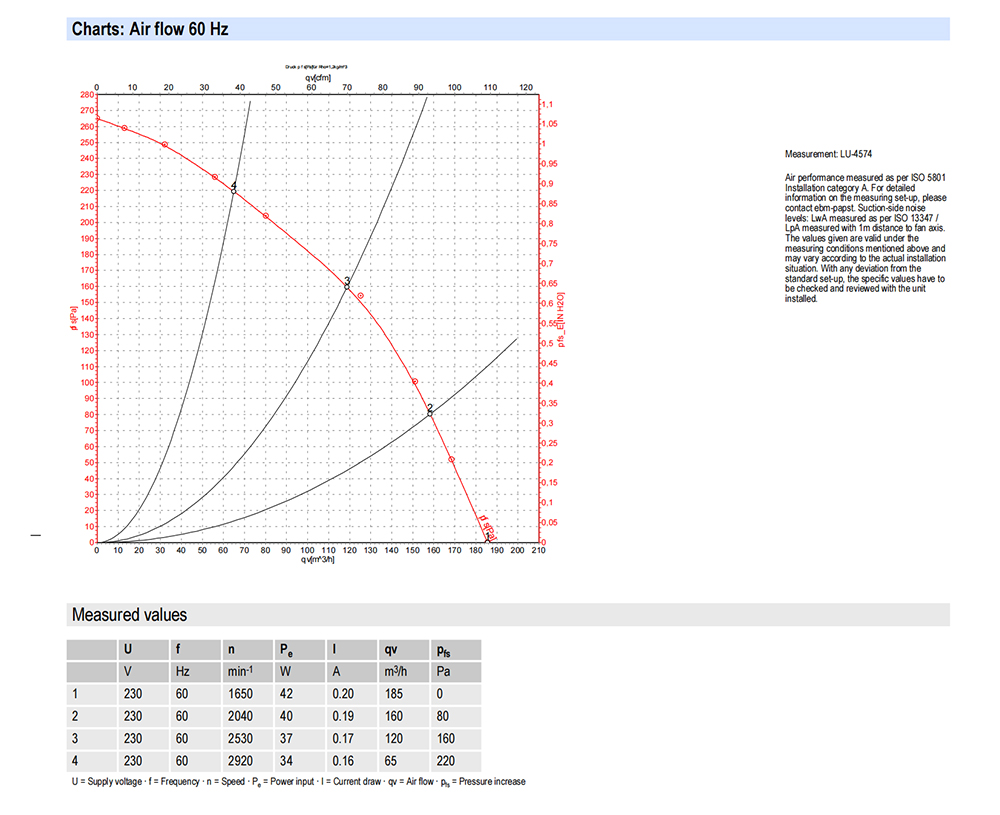

| Max.Air Flow(m³/h): | 185 |
| Max.Pressure(Pa): | 220 |
| Input Power(W): | 42 |
| Speed(RPM): | 1650 |
| Mass: | 1.1 kg |
| Material Of Impeller: | Sheet steel, hot-galvanised |
| Housing Material: | Sheet steel, hot-galvanised |
| Direction Of Rotation: | Counter-clockwise, seen on rotor |
| Type Of Protection: | IP 44; Depending on installation and position |
| Insulation Class: | "B" |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | None |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming To Standard: | EN 60335-1; CE |
| Approval: | CCC |
