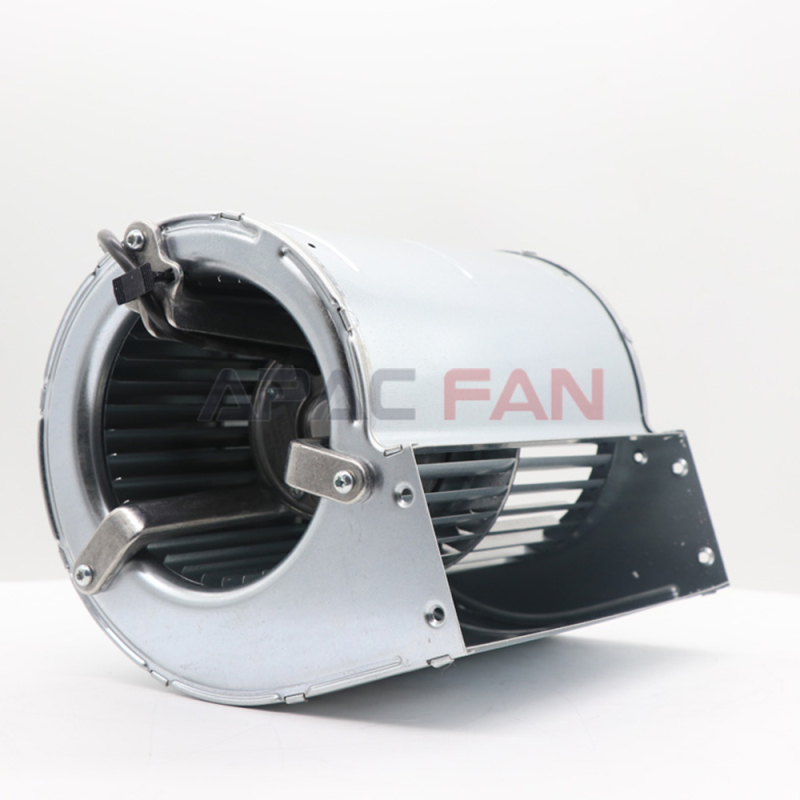

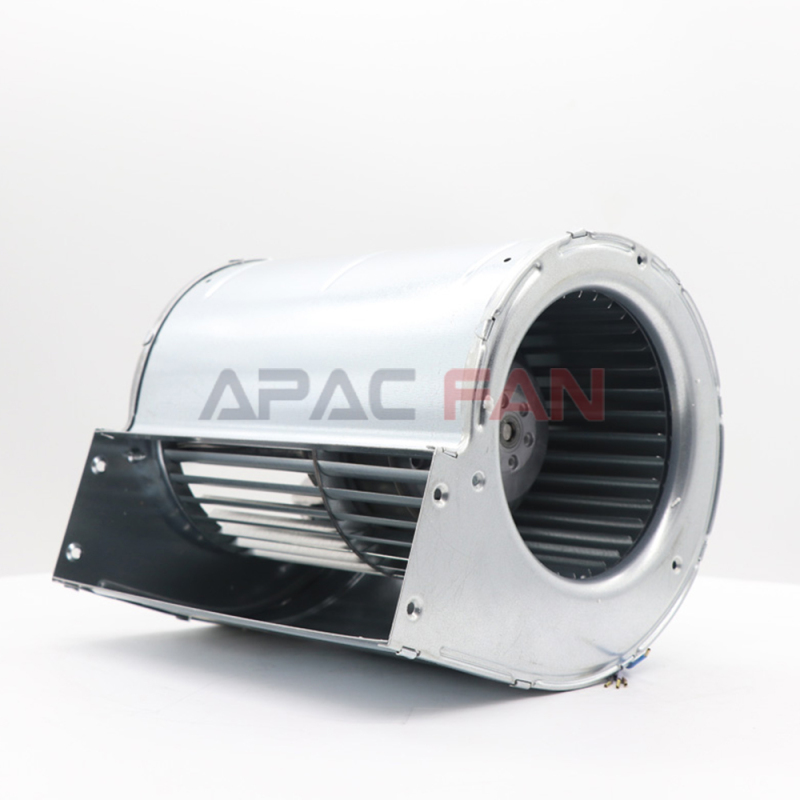

D2E133-AM31-05 ebm-papst

In the modern industrial and commercial fields, ventilation equipment plays a vital role. Among them, the D2E133-AM31-05 centrifugal fan of the ebm-papst brand has become the ideal choice of many users with its excellent performance and reliable quality. Next, we will have a comprehensive and in-depth understanding of this fan.

ebm-papst is a company with a deep foundation and excellent reputation in the fan manufacturing industry. Over the years, the company has been committed to technological innovation and product research and development, and continuously improved the performance and quality of fans to meet the needs of different customers around the world. The D2E133-AM31-05 centrifugal fan is the crystallization of its exquisite craftsmanship and advanced technology.

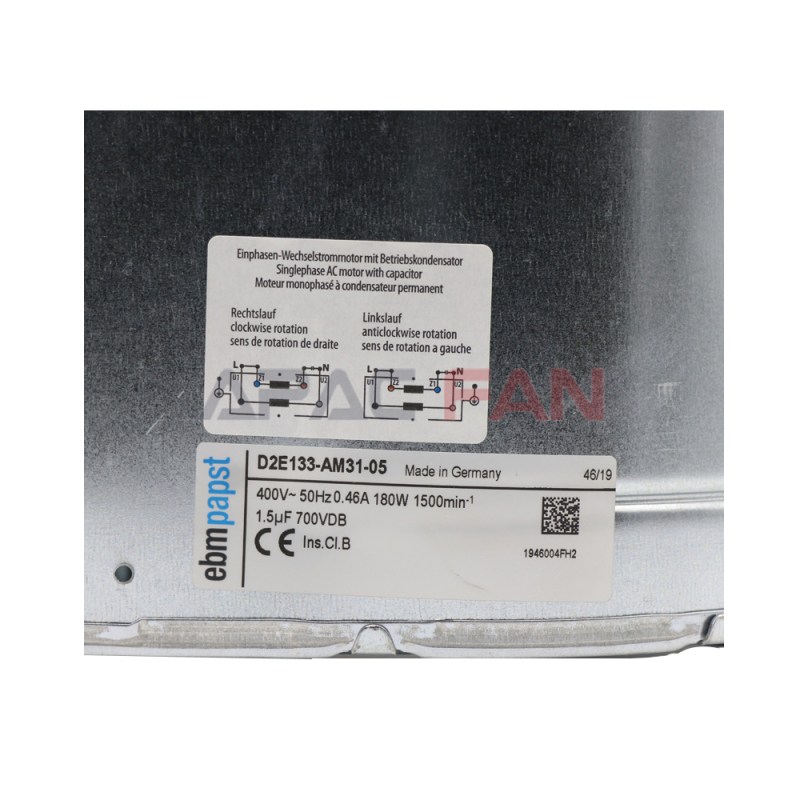

From the basic parameters, this fan has significant characteristics. Its rated voltage is 400V, and this higher voltage design enables the fan to operate stably in an industrial environment. In industrial production, many large equipment and systems use 400V power supply, and D2E133-AM31-05 is compatible with it, without the need for additional voltage conversion devices, reducing energy loss and equipment costs, and improving the overall efficiency of the system.

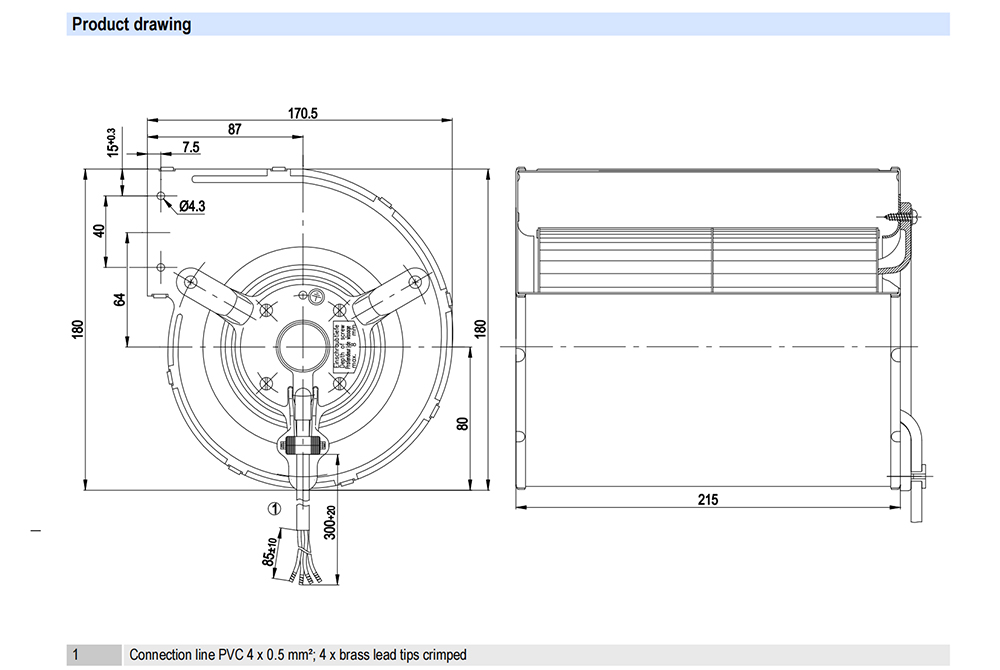

The fan measures 133 mm in size, and its compact design is a major advantage. It can be easily installed without taking up too much space in places with limited space, such as small machine rooms and narrow ventilation ducts. At the same time, its small size also makes it easy to transport and carry, reducing logistics costs and installation difficulties.

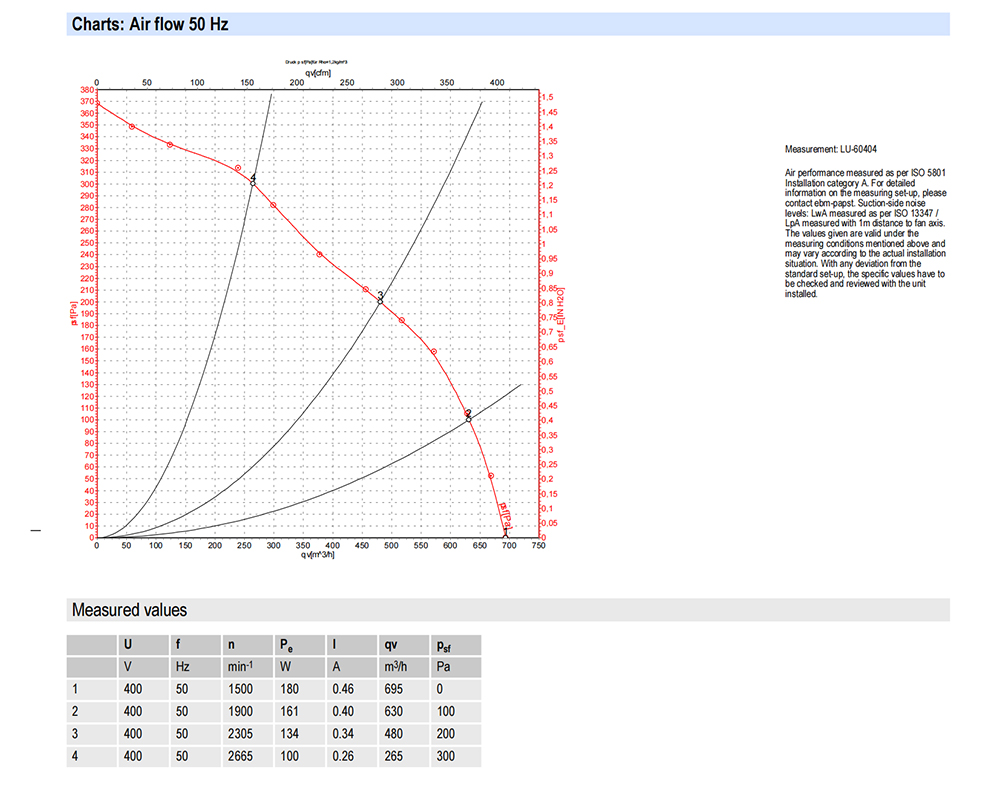

The maximum air volume can reach 695m³/h, which means that the fan can circulate a large amount of air in a short time. In some scenes that require rapid ventilation, such as factory workshops and underground garages, it can quickly discharge dirty air, introduce fresh air, improve air quality, and create a healthy and comfortable environment for people.

The maximum pressure is 300Pa, which shows that the fan has a strong pressure output capacity. In the ventilation system, when the air needs to overcome a certain resistance, such as passing through a long pipe, passing through multiple elbows or filters, the higher pressure can ensure the smooth flow of air and ensure the stability of the ventilation effect.

The input power is 180W, and the relatively low power consumption reflects the energy-saving characteristics of the fan. In today's era of advocating energy conservation and emission reduction, energy-saving fans can not only reduce users' operating costs, but also meet environmental protection requirements. D2E133-AM31-05 achieves low power consumption while ensuring high air volume and high pressure through optimized design and the use of high-efficiency motors.

The speed is 1500rpm, and a stable speed is the key to the normal operation of the fan. Stable speed can ensure the stability of air volume and pressure and reduce vibration and noise. At the same time, it also helps to extend the service life of the fan and reduce maintenance costs.

In terms of design features, D2E133-AM31-05 adopts advanced aerodynamic principles. The shape and structure of its impeller are carefully designed to maximize the efficiency of air intake and exhaust and reduce energy loss. The material of the impeller is made of high-strength, corrosion-resistant alloy material, which has good wear resistance and fatigue resistance, and can operate stably for a long time in harsh environments.

The shell of the fan is made of high-quality metal materials with good strength and protection performance. The surface of the shell has been specially treated with anti-corrosion and anti-rust functions, and can adapt to various complex environmental conditions. At the same time, the design of the shell also takes into account the needs of heat dissipation and noise reduction, which can effectively reduce the temperature of the motor and reduce the noise generated during operation.

The motor is the core component of the fan, and the D2E133-AM31-05 is equipped with a high-performance motor. The motor is efficient, stable and reliable, and can maintain good performance during long-term operation. The motor uses advanced insulation materials and heat dissipation technology, which can effectively improve the efficiency and service life of the motor.

In terms of application scenarios, the D2E133-AM31-05 centrifugal fan has a wide range of applicability. In the industrial field, it can be used for ventilation and heat dissipation in industries such as electronic manufacturing, chemical industry, and food processing. In the electronic manufacturing workshop, a large number of electronic equipment will generate heat and harmful gases during operation. The fan can discharge these pollutants in time to ensure the safety and stability of the production environment. In chemical production, it can discharge toxic and harmful gases to prevent gas accumulation from causing harm to workers. In the food processing industry, it can keep the air in the workshop fresh and meet food hygiene standards.

In the commercial field, shopping malls, hotels, office buildings and other places require good ventilation systems to ensure indoor air quality. D2E133-AM31-05 can be used as an auxiliary ventilation device for the central air conditioning system to provide sufficient fresh air for various areas and improve the comfort of customers and employees.

In the civilian field, it can be used for ventilation in places such as home kitchens and bathrooms. In the kitchen, it can quickly exhaust the fumes and odors generated during cooking to keep the kitchen air fresh. In the bathroom, it can timely exhaust moisture and odors to prevent bacteria from growing.

In summary, the D2E133-AM31-05 centrifugal fan has become a star product in the ventilation equipment market with its excellent parameter performance, unique design features and a wide range of application scenarios. Whether in industrial production, commercial operations or family life, it can provide users with efficient and reliable ventilation solutions.
