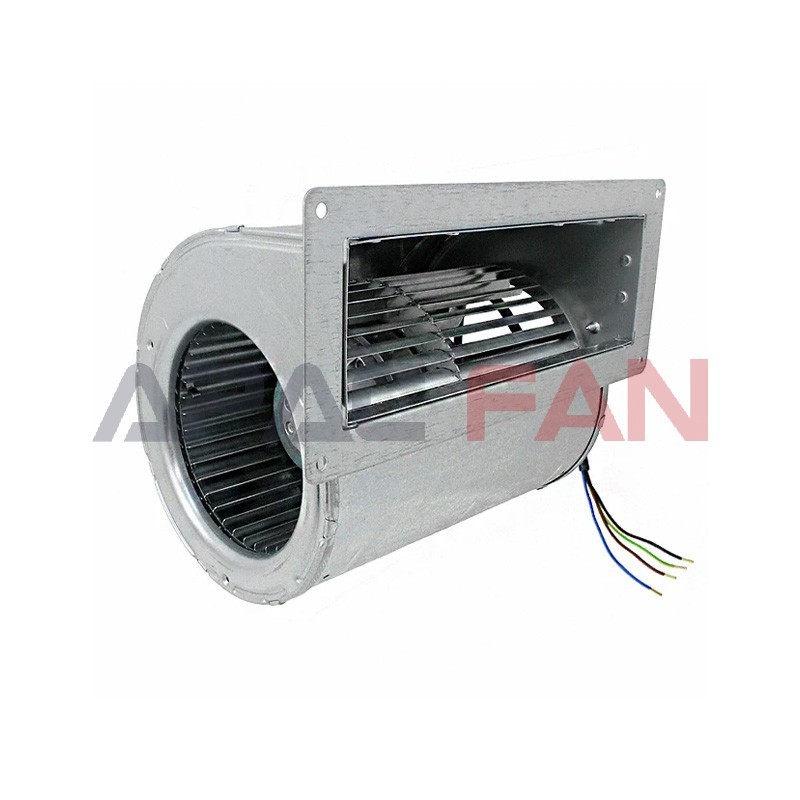

D2E133-AM47-A3 is a 230 V AC centrifugal fan intended for air-handling units and related air-moving or cooling equipment.
| Brand: | ebm-papst |
| Part No.: | D2E133-AM47-A3 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage (V): | 230 |
| Size (mm): | 133 |
| Max. Air Flow (m³/h): | 710 |
| Max. Pressure (Pa): | 375 |
| Input Power (W): | 200 |
| Speed (RPM): | 1800 |
| Noise (dB): | 55 |
D2E133-AM47-A3 is a forward-curved centrifugal fan for systems where airflow must be delivered through connected ducting or equipment passages. The 375 Pa value should be evaluated at the required operating point.
Replacement should compare the 133 mm impeller, 230 V supply, 200 W input, mounting, outlet geometry and required pressure. An axial fan is not a direct substitute for this centrifugal configuration.
D2E133-AM47-A3 is currently shown as out of stock on the product page. Availability, lead time and minimum order quantity may vary with quantity and supply conditions. Provide the complete part number and delivery destination when requesting current procurement information.
Q: What is the fan type of D2E133-AM47-A3?
A: It is listed as a centrifugal fan.
Q: Why is a centrifugal design useful in ducted equipment?
A: The housing directs air through an outlet and can support systems with more resistance than an open-air application.
Q: What should be checked against the 375 Pa value?
A: Compare the actual duct, filter, coil and equipment resistance with the fan curve.
