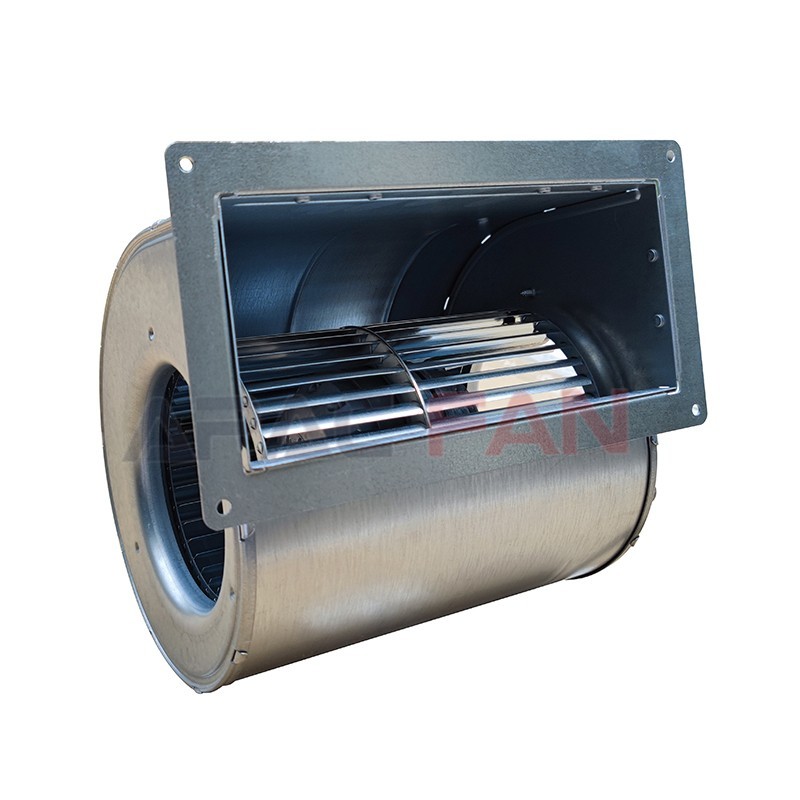

forward curved, dual inlet with housing (flange)
| Brand： | ebm-papst |
| Part No： | D2E133-DM47-23 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 133 |
| Max.Air Flow(m³/h)： | 480 |
| Max.Pressure(Pa)： | 250 |
| Input Power(W)： | 185 |
| Speed(rpm)： | 2200 |
| General Description: | With flange |
| Operation Mode: | S1 |
| Direction Of Rotation: | Clockwise, seen on rotor |
| Mounting Position: | Any |
| Humidity Class: | F0 |
| Insulation Class: | "B" |
| Cable Exit: | Axial |
| Condensate Discharge Holes: | None |
| Bearing Motor: | Ball bearing |
| Mass: | 4. kg |
| Housing Material: | Sheet steel, hot-galvanised |
| Material Of Impeller: | Sheet steel, hot-galvanised |
| Motor Suspension: | Motor mounted via brackets on one side |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Product Conforming To Standard: | CE; EN 60335-1 |
| Surface Of Rotor: | Partially cast in aluminium |
| Type Of Protection: | IP 44; Depending on installation and position |
| Protection Class: | I |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Approval: | CCC; GOST |
