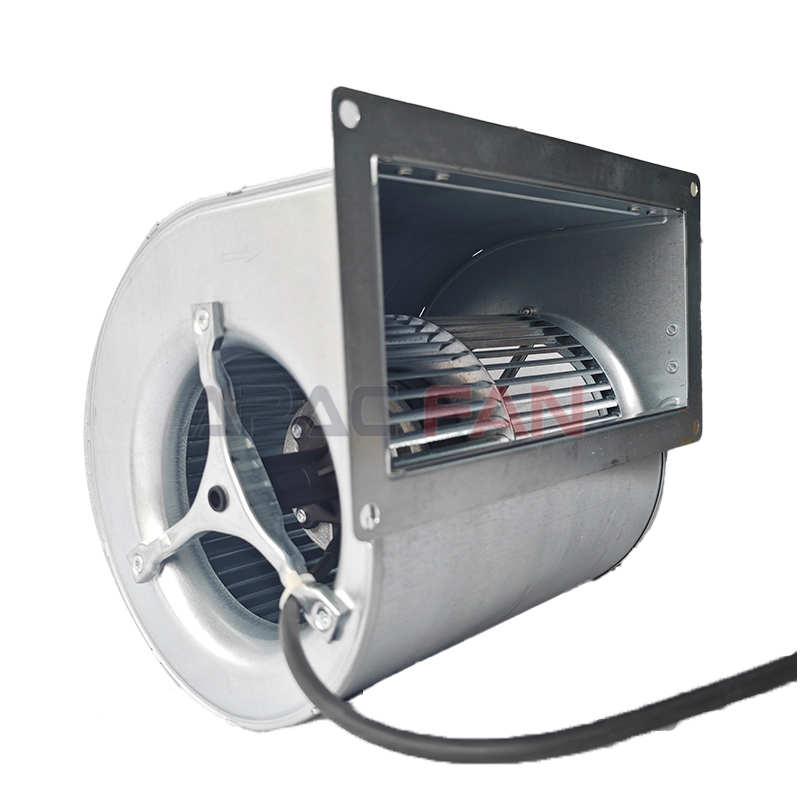

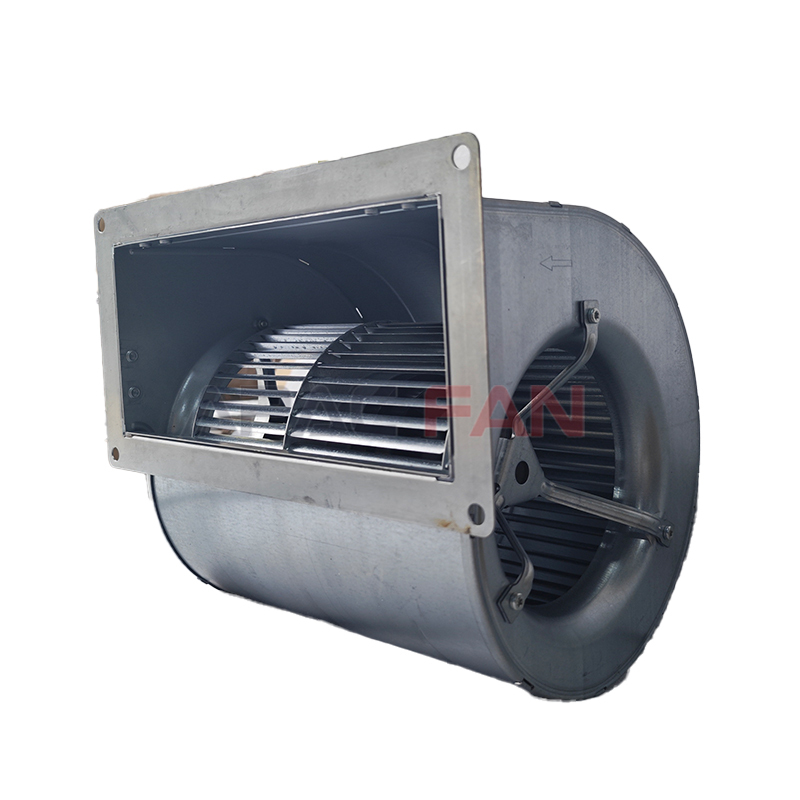

AC centrifugal fan, forward-curved, dual-intake with housing (flange)
| Brand： | ebm-papst |
| Part No： | D2E146-AP43-B4 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |

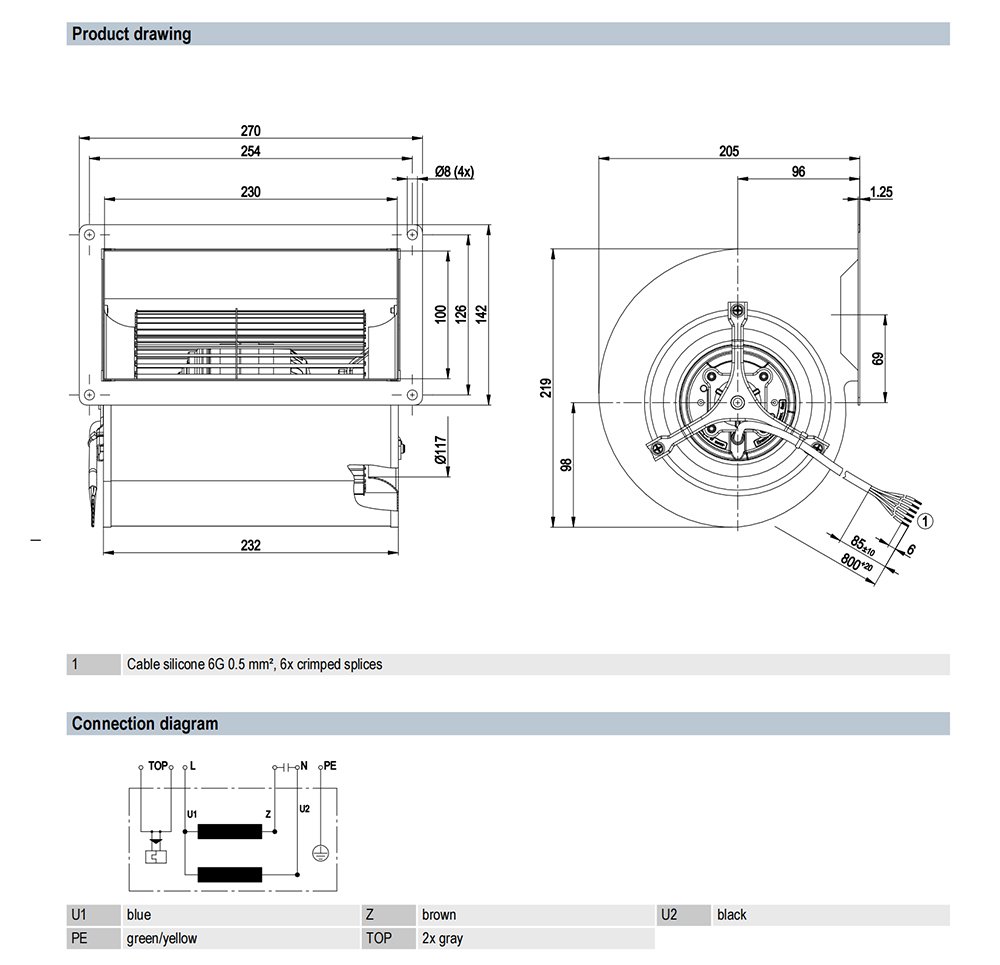

| Size(mm)： | 146 |

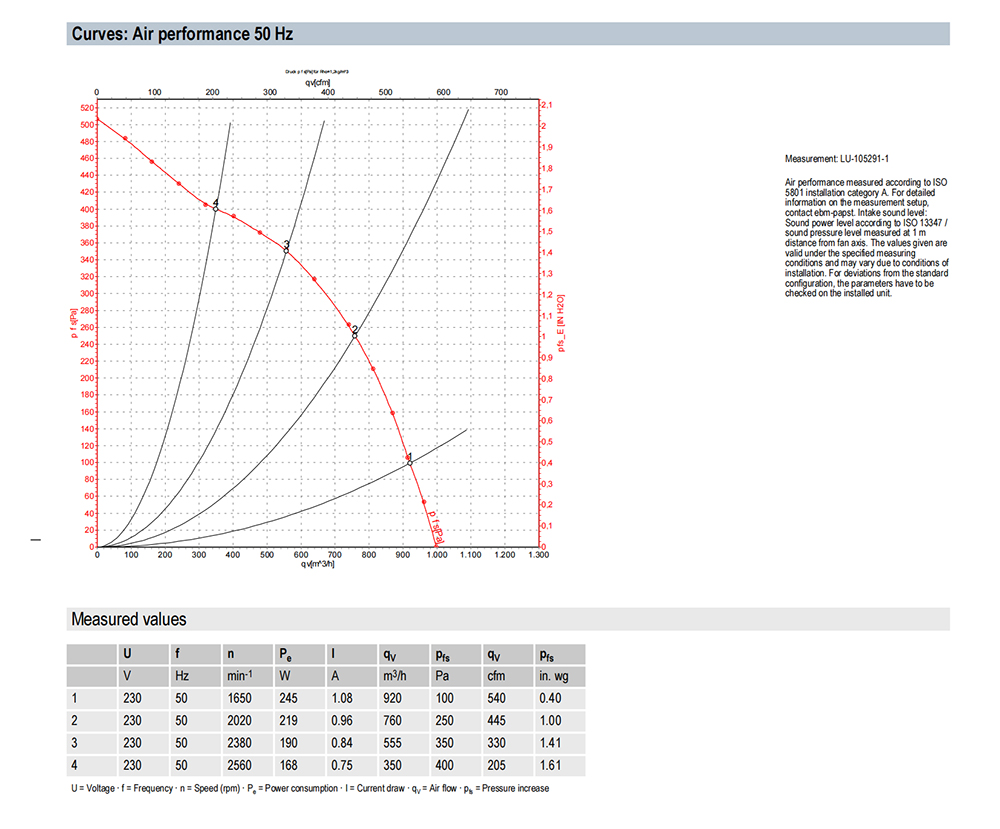

| Max.Air Flow(m³/h)： | 920 |
| Max.Pressure(Pa)： | 100 |
| Input Power(W)： | 245 |
| Speed(RPM)： | 1650 |
| Weight: | 4.46 kg |
| Motor Size: | 68 |
| Rotor Surface: | Painted black |
| Impeller Material: | Sheet steel, galvanized |
| Housing Material: | Sheet steel, galvanized |
| Motor Suspension: | Motor vibration-damped on both sides |
| Direction of Rotation: | Counterclockwise, viewed toward rotor |
| Degree of Protection: | IP44 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H1+ |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage): | + 80 °C |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage): | - 40 °C |
| Installation Position: | Any |
| Condensation Drainage Holes: | None |
| Mode: | S1 |
| Motor Bearing: | Ball bearing with low-temperature lubricant |
| Touch Current According to IEC 60990 (Measuring Circuit Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) with basic insulation |
| Cable Exit: | Axial |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity with Standards: | EN 60335-1 |
| Approval: | CCC |
