The best choice of centrifugal fan in supermarket refrigerator equipment field - ebm-papst D4E180-CA02-36

In the operation system of supermarket refrigerator equipment, ventilation and heat dissipation and energy efficiency balance are the core links to ensure the stable operation of the equipment. As a world-renowned fan manufacturer, the D4E180-CA02-36 centrifugal fan launched by ebm-papst has become an important supporting component of refrigerator equipment in supermarkets and hotel catering (HoReCa) industries with its targeted technical design and performance. This article will analyze the comprehensive strength of this centrifugal fan in detail from the dimensions of product positioning, technical characteristics, application adaptability and industry value.

Product positioning and basic parameter analysis

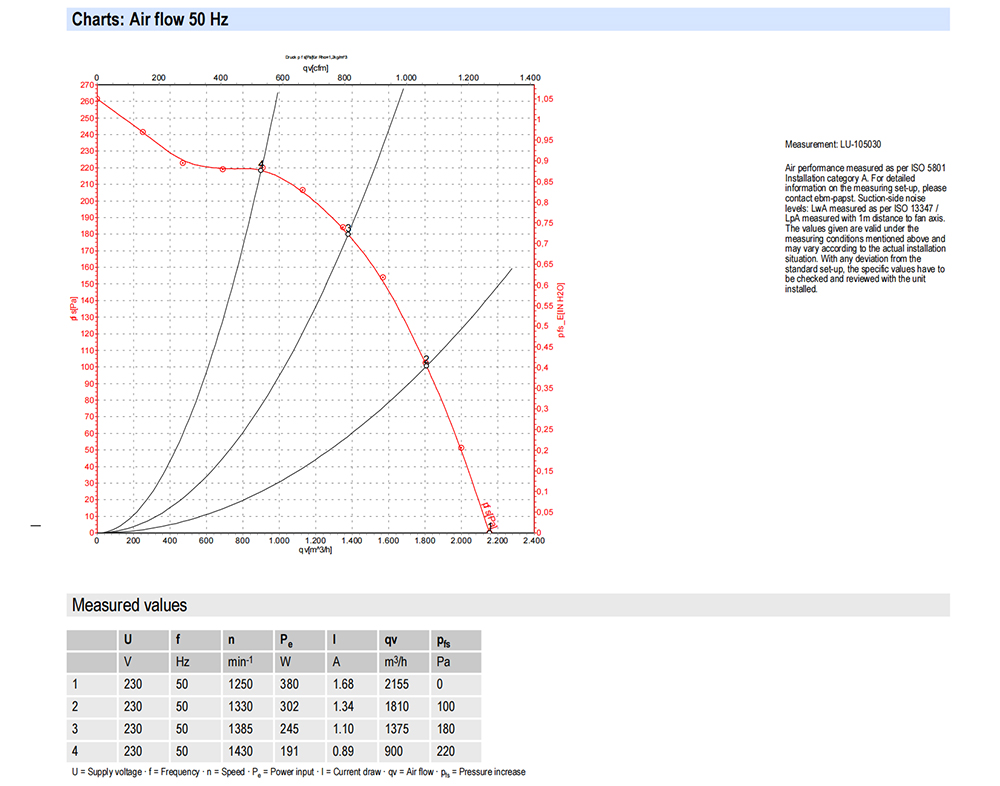

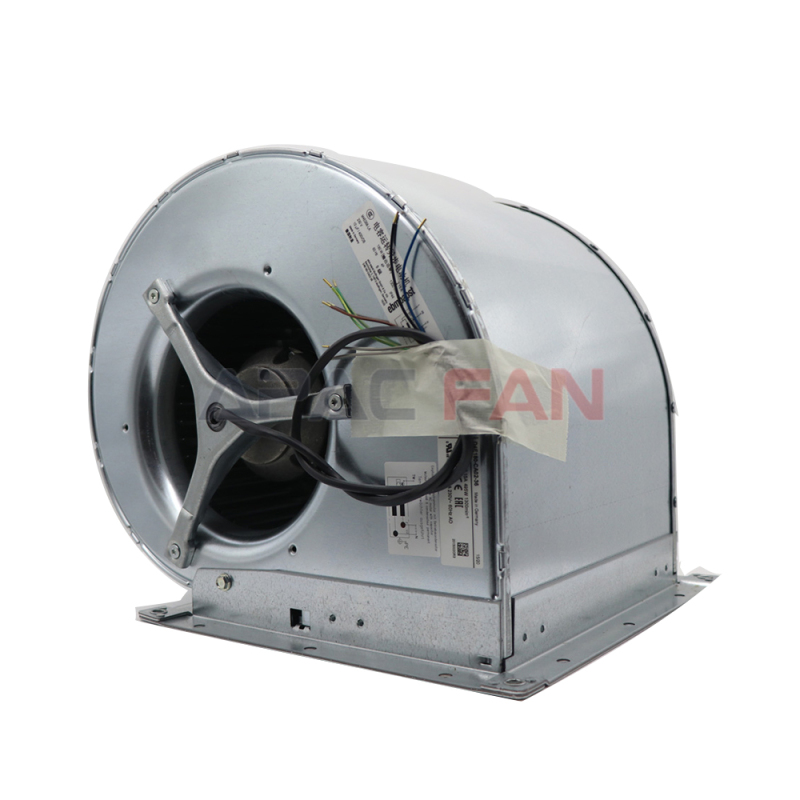

ebm-papst D4E180-CA02-36 belongs to the centrifugal fan category, and its naming system contains clear product characteristics: "D4E" represents the centrifugal fan series, and "180" corresponds to the specification of an impeller diameter of 180 mm. This size setting takes into account the balance between the adaptability of the internal space of the refrigerator equipment and the air handling efficiency. From the basic parameters, the rated voltage of the fan is 230V, which is suitable for mainstream commercial power supply environments; the maximum air flow can reach 2155 cubic meters/hour, forming a stable air circulation path inside the refrigerator; the maximum pressure is 220Pa, which can overcome the local resistance in the refrigerator air duct design and ensure the effective transmission of airflow; the input power is 495W, which can achieve energy consumption control while meeting the heat dissipation requirements; the operating speed is 1300rpm, combined with the impeller structure design, it can maintain a continuous and stable airflow output in the typical working scene of supermarket refrigerators.

The combination of this series of parameters reflects ebm-papst's accurate grasp of the operating requirements of supermarket refrigerator equipment. Refrigerator equipment usually needs to achieve efficient heat dissipation in a limited space, while taking into account noise control (although the noise parameters of this model are not marked, the brand has always focused on low noise design in similar products) and long-term operating reliability. The parameter configuration of D4E180-CA02-36 just provides basic performance support for refrigerator equipment.

Technical characteristics and structural design highlights

(I) Impeller design and aerodynamic optimization

As the core component of the centrifugal fan, the impeller of D4E180-CA02-36 adopts high-precision mold forming technology, and the blade angle and curvature are optimized by aerodynamic simulation, which can achieve an air flow of 2155 cubic meters/hour at a speed of 1300rpm. This design not only improves the ventilation efficiency per unit time, but also improves the overall aerodynamic efficiency of the fan by reducing airflow vortex and energy loss. In supermarket freezers, the evaporator surface inside the freezer is prone to frost due to temperature differences, affecting the heat exchange efficiency. Stable air flow can accelerate the conduction of cold air, slow down the condensation speed of the frost layer, and indirectly improve the refrigeration performance of the freezer.

(II) Motor technology and energy efficiency performance

The motor equipped with this fan adopts a copper winding design, which has good conductivity and heat dissipation capabilities, and can maintain a stable power output of 495W at a voltage of 230V. The insulation material and bearing components inside the motor have been treated with wear resistance and can adapt to the long-term continuous operation of the freezer equipment. It is worth noting that ebm-papst has incorporated energy-saving concepts into the motor design, and has reduced energy loss by optimizing the electromagnetic solution, so that the fan can provide sufficient air volume and pressure while avoiding unnecessary waste of electricity. This is particularly important for scenarios such as supermarkets that require a large number of freezer equipment to run simultaneously - reducing the energy consumption of a single device can achieve significant overall energy saving effects in large-scale applications.

(III) Compactness and installation adaptability

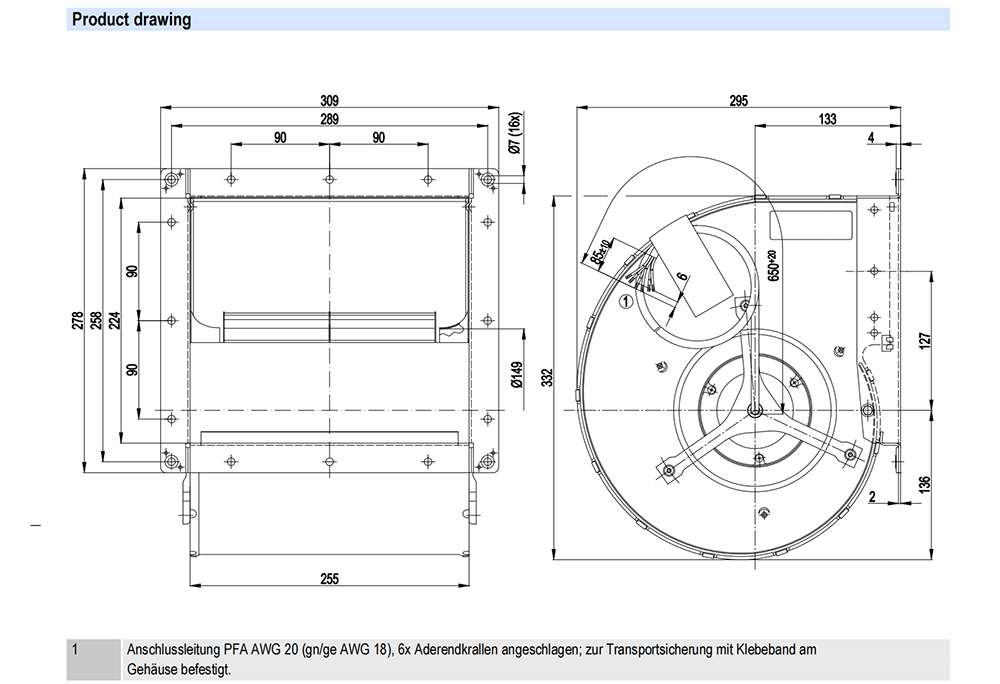

The 180 mm impeller diameter combined with the compact motor and housing design effectively controls the overall volume of the D4E180-CA02-36, making it easy to integrate into the limited space of various refrigerator equipment. The fan installation interface adopts a standardized design, supports multiple installation methods (such as horizontal or vertical installation), and can flexibly adapt to the internal structure layout of different refrigerator brands. In addition, the shell material is made of corrosion-resistant engineering plastics or metal materials (depending on the specific configuration), which can resist the humid air and refrigerant environment that may exist inside the refrigerator, extend the service life of the fan, and reduce the maintenance frequency.

Application adaptability in supermarkets and HoReCa refrigerators

(I) Demand matching of supermarket refrigerator scenes

Refrigerator equipment in supermarket environments has diverse characteristics, including vertical display cabinets, horizontal refrigerators, open shelf refrigerators, etc. The common requirement of these equipment is to maintain a stable low-temperature environment while displaying goods to avoid food spoilage or beverage heating due to temperature fluctuations. The 2155 cubic meters/hour air flow rate of D4E180-CA02-36 can form a uniform air circulation inside the refrigerator to ensure temperature consistency in different areas. For example, in a vertical display cabinet, the fan can transport the cold energy generated by the evaporator to the upper part of the cabinet through the air duct, and then form natural convection from the upper part to the lower part to avoid the appearance of "cold areas" or "hot areas" in the cabinet. At the same time, the maximum pressure of 220Pa can push the air flow through the filter, partition and other components inside the refrigerator. Even if the filter accumulates dust due to long-term use and causes increased resistance, the fan can still maintain a stable air volume output to ensure the continuity of the heat dissipation effect.

(II) Special scene applications in the HoReCa industry

In addition to meeting conventional refrigeration needs, refrigerator equipment in the HoReCa field such as hotels and restaurants often needs to cope with higher usage frequencies and more complex environments. For example, the kitchen refrigerator may cause more cabinet door openings and closings due to frequent loading and unloading of ingredients, which in turn causes cold energy loss and internal temperature fluctuations. The fast response characteristics of D4E180-CA02-36 can quickly restore the internal air circulation after the cabinet door is closed, accelerate the temperature drop, and reduce the temperature deviation caused by operation. In addition, the refrigerator in the HoReCa scenario may need to share the same space with other kitchen equipment (such as dishwashers, steam ovens, etc.). The compact structural design of the fan enables it to adapt to a small installation location, and the stable operating performance can avoid the impact of vibration or electromagnetic interference from surrounding equipment on its own working state.

(III) Environmental adaptability and reliability

The refrigerator equipment in supermarkets and HoReCa scenarios usually needs to operate uninterruptedly throughout the year, which places strict requirements on the reliability of the fan. The motor bearing of D4E180-CA02-36 adopts a long-term lubrication design and does not require additional maintenance within a tens of thousands of hours of operation cycle; the materials of the impeller and the housing have anti-aging properties and can maintain structural stability even in long-term low temperature environments. At the same time, the electrical components of the fan are treated with moisture and dust, which can adapt to the humid air that may exist around the refrigerator or the fine dust generated during food processing, reducing the risk of failure caused by environmental factors. This high-reliability design can reduce the downtime and maintenance time of refrigerator equipment, which is of great significance to the continuous operation of supermarkets and the stability of food supply in HoReCa venues.

Industry value and brand technology support

(I) Helping refrigerator equipment upgrade energy efficiency

In the context of global advocacy of energy conservation and emission reduction, supermarkets and HoReCa industries have increasingly stringent requirements for the energy efficiency of refrigerator equipment. ebm-papst D4E180-CA02-36 optimizes pneumatic design and motor efficiency to achieve efficient heat dissipation while reducing energy consumption, helping refrigerator manufacturers meet energy efficiency standards (such as the EU ErP Directive, the US ENERGY STAR certification, etc.). For end users, low energy consumption means lower electricity bills, especially in large supermarkets with dozens or even hundreds of refrigerators. The energy-saving advantages of a single fan can form a significant cost-saving effect through large-scale application.

(II) Promote the miniaturization and intelligence of refrigerator design

Although this article does not involve the discussion of intelligent control functions, the compact structure of D4E180-CA02-36 objectively provides the possibility for the miniaturization of refrigerator equipment. In the space of supermarkets where every inch of land is valuable, smaller refrigerators mean higher space utilization and can display more goods; in the HoReCa scenario, miniaturized refrigerators are easy to flexibly arrange in different areas of the kitchen. In addition, the stable performance of the fan provides a guarantee for the long-term unattended operation of the refrigerator, which meets the needs of modern supermarket automation management and efficient operation of HoReCa back kitchen.

(III) Relying on ebm-papst's brand technology accumulation

As a company with decades of experience in fan manufacturing, ebm-papst's technology accumulation in the field of aerodynamics has laid the foundation for the performance of D4E180-CA02-36. From the fluid simulation design of the impeller to the electromagnetic optimization of the motor, from material selection to process control, every link reflects the brand's strict control of product quality. This technological accumulation is not only reflected in the performance parameters of a single product, but also in the long-term reliability and environmental adaptability of the product. For refrigerator equipment manufacturers, choosing ebm-papst's fans means obtaining mature solutions and reducing R&D trial and error costs; for end users, it means lower failure risks and more stable user experience.

Summary: Professional choice focusing on scene needs

The ebm-papst D4E180-CA02-36 centrifugal fan has become an ideal supporting component in the field of supermarket and HoReCa refrigerator equipment with its targeted parameter configuration, optimized technical design and reliable performance. It solves the core needs of refrigerator equipment in heat dissipation, temperature uniformity and long-term operation reliability through efficient air circulation, stable pressure output and reasonable energy consumption control, and at the same time provides the industry with trustworthy solutions based on the brand's technical strength. In today's supermarket retail and hotel and catering industries that are constantly pursuing efficiency and quality, such professional equipment is not only a guarantee of refrigerator performance, but also an important force to promote the sustainable development of the industry.

From product development to actual application, every detail of D4E180-CA02-36 reflects ebm-papst's in-depth understanding of supermarkets and HoReCa scenarios. It is not a "data-based" product that simply pursues parameter indicators, but through the deep integration of technology and demand, it has become an "invisible but critical" core component in refrigerator equipment. As the industry's requirements for equipment performance continue to increase, similar specialized fan products will play an important role in more subdivided fields, helping various industries achieve the dual goals of efficiency improvement and green development.
