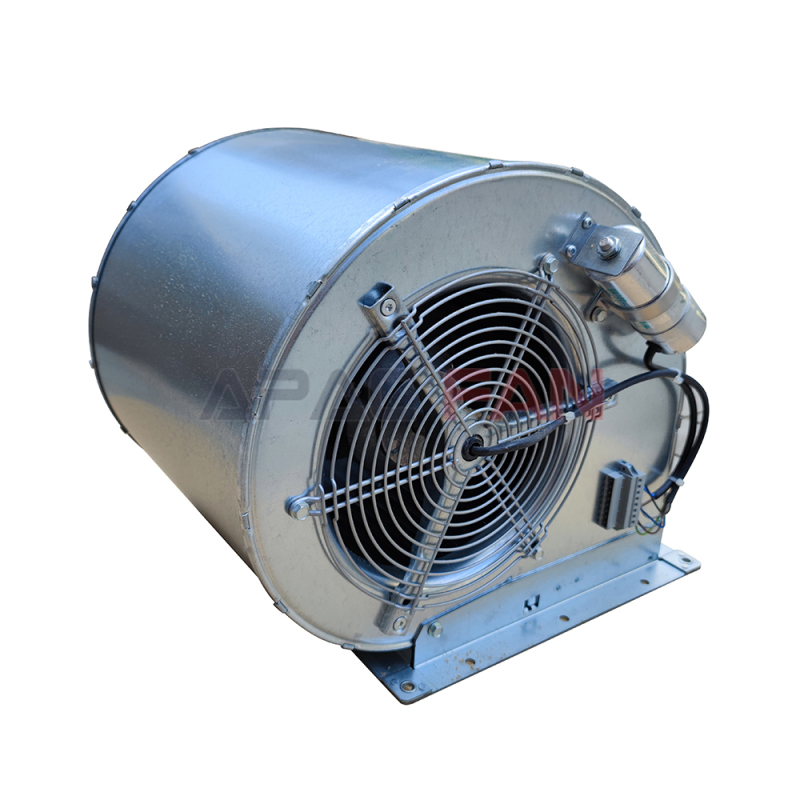

The technical genes and industrial adaptability of ebm-papst D4E225-CC01-57 centrifugal fan

In the field of ventilation equipment, ebm-papst has always led the industry development with precision engineering technology. As a representative of its classic product line, the ebm-papst D4E225-CC01-57 centrifugal fan has become a reliable choice for ventilation and heat dissipation in industrial scenarios with its precise parameter ratio and mature structural design. This article will comprehensively analyze the technical genes and practical application value of this fan from the aspects of technical architecture, core components, performance and application scenarios.

ebm-papst D4E225-CC01-57 belongs to the centrifugal fan category, and its working principle is based on the centrifugal force effect: when the impeller rotates, the air is sucked in along the axial direction, thrown out radially under the action of centrifugal force, and converged by the volute to form a compressed airflow. This feature makes it outstanding in scenarios where system resistance needs to be overcome. From the model code, "D4E" represents the centrifugal fan series, and "225" indicates that the impeller diameter is 225 mm. This size is positioned in the small and medium-sized fan range, which not only meets the medium air volume requirements, but also adapts to the installation space of most industrial equipment.

In terms of electrical parameters, the design of rated voltage 230V makes it compatible with the global mainstream single-phase power supply network (such as 220V~240V AC), especially suitable for the power environment of small and medium-sized industrial equipment, commercial facilities and renovation projects. The setting of input power of 540W controls the energy consumption level while ensuring ventilation performance. Combined with the rated speed of 1210rpm, it forms a "medium pressure and medium speed" power combination, which is suitable for scenes that require continuous and stable operation.

Forward-inclined impeller: a double breakthrough in efficiency and silence

As the "heart" of the fan, the impeller's design directly determines the upper limit of performance. D4E225-CC01-57 adopts a forward-inclined blade structure. The blade angle is optimized by CFD (computational fluid dynamics) simulation, and can generate a stable wind pressure of 250Pa at a speed of 1210rpm. The advantages of forward-inclined blades are:

High-pressure output: The airflow is accelerated by guiding the blade angle, and medium resistance (such as pipes, filters, etc.) can be overcome at medium and low speeds;

Compact size: Under the same pressure, the forward-inclined impeller is smaller than the backward-inclined structure, which is suitable for scenes with limited installation space;

Silent design: The blade surface adopts a tapered profile to reduce airflow separation and turbulence, and reduce aerodynamic noise.

The impeller material is modified engineering plastics (such as nylon plus glass fiber), which is injected and molded and passed the dynamic balance test to ensure stability during rotation. This material has the characteristics of light weight, impact resistance, and chemical corrosion resistance, and can adapt to humid, dusty and other industrial environments.

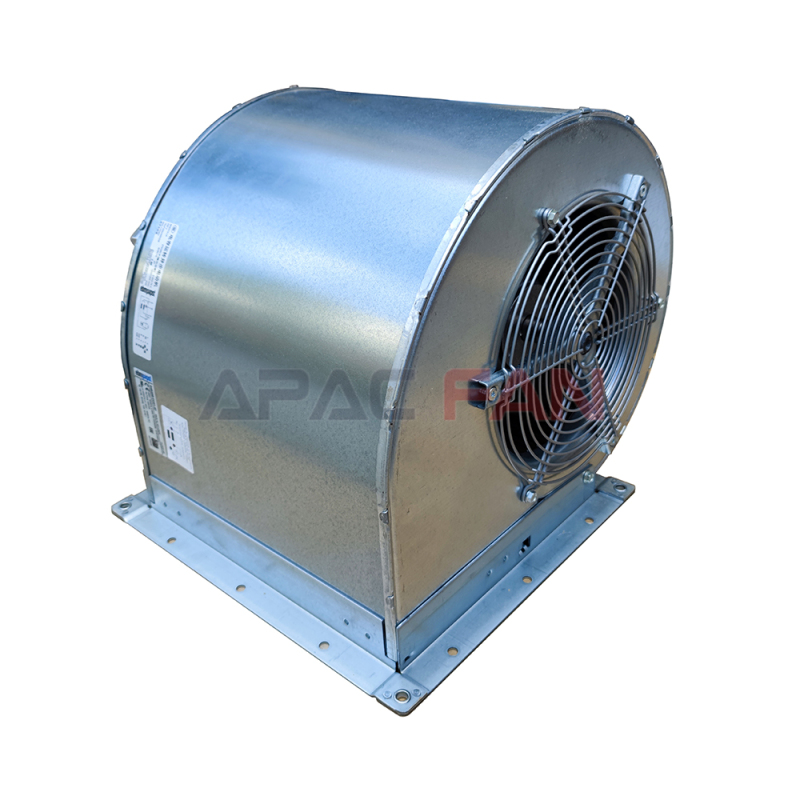

Metal volute: the key carrier of airflow management

The volute is stamped with high-quality cold-rolled steel plate, and the surface is treated with multiple layers of anti-rust treatment (such as galvanizing + epoxy resin spraying), which can resist water vapor, oil pollution and slightly corrosive gases in industrial environments. The spiral line profile of the volute strictly follows the aerodynamic design to ensure that the airflow thrown out by the impeller transitions smoothly in the volute and reduces energy loss. The diffuser section design at the air outlet converts the kinetic energy of the airflow into static pressure energy, further improving the pressure output efficiency of the fan.

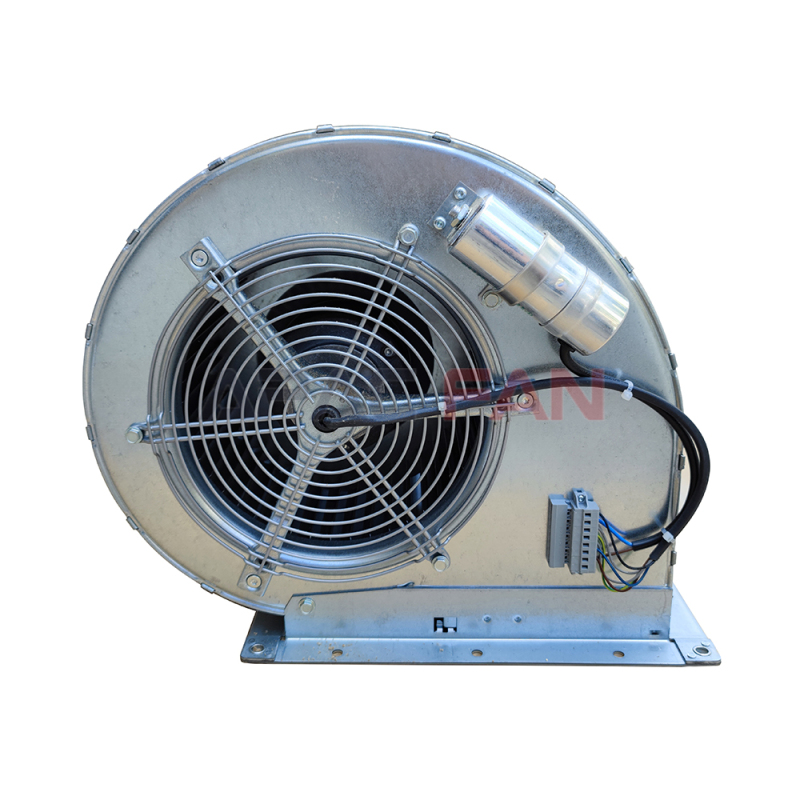

Single-phase asynchronous motor: the cornerstone of reliability

The single-phase asynchronous motor is the embodiment of ebm-papst's mature technology. Its core advantages include:

Simple structure: no complex commutation components, low failure rate, suitable for long-term continuous operation;

Easy maintenance: closed bearing design, lifelong lubrication-free, reducing operation and maintenance costs;

Safety protection: built-in bimetallic thermal protector, when the motor temperature exceeds 130℃, it automatically cuts off the power to avoid burning due to overload, stalling or poor heat dissipation.

The motor and impeller are rigidly connected by direct connection, eliminating intermediate transmission components such as belts and couplings, which not only reduces energy loss by 3%~5%, but also completely eliminates the maintenance requirements of the transmission system, improving the reliability and compactness of the system.

250Pa pressure: ideal choice for medium resistance scenarios

The pressure parameter is the core indicator for measuring the fan's ability to overcome system resistance. In actual applications, a pressure of 250Pa can meet the following typical scenarios:

Pipeline ventilation system: When the length of the ventilation duct is 8~12 meters and the inner diameter is 150~200 mm, the resistance along the duct is about 100~180Pa, plus the local resistance of elbows, valves, etc. (about 50~80Pa), the total resistance is usually no more than 250Pa, and the fan can ensure smooth airflow;

Internal heat dissipation of equipment: In control cabinets, welding machines and other equipment, air needs to pass through dust screens (resistance of about 50~100Pa), heat dissipation holes (resistance of about 30~60Pa) and internal air ducts (resistance of about 50~80Pa), and a pressure of 250Pa is sufficient to push the air to complete heat exchange.

540W power and 1210rpm speed: balance between energy efficiency and life

From the power-speed curve, the fan has a power output of 540W at 1210rpm, and the unit power pressure efficiency (Pa/W) reaches 0.46, which is better than the average level of similar products (about 0.40). This energy efficiency ratio means that higher pressure output can be provided at the same energy consumption, or less electricity is consumed at the same pressure. For scenarios with 24-hour continuous operation (such as data centers and food cold storage), about 500~800 kWh of electricity can be saved each year (calculated based on actual operating conditions).

Another advantage of the low and medium speed design (1210rpm) is reduced mechanical wear. Studies have shown that the life of the fan impeller is inversely proportional to the square of the speed. The speed of this fan is 57% lower than that of high-speed products (such as 2800rpm), and the theoretical life can be extended by more than 3 times, significantly reducing the replacement frequency and maintenance costs.

Industrial automation equipment heat dissipation

In precision equipment such as SMT placement machines and laser marking machines, the heat dissipation requirements of components such as electric control boxes and servo motors are strict. D4E225-CC01-57 can be installed on the top or back of the equipment, and the hot air is discharged outdoors through pipes. The anti-vibration performance of its metal volute (can withstand a vibration acceleration of 5m/s²) can adapt to the mechanical vibration environment during equipment operation; the anti-static properties of the plastic impeller (surface resistance ≤10⁹Ω) can avoid the impact of static electricity on dust absorption and heat dissipation efficiency.

Commercial building ventilation system

In small fresh air systems in shopping malls and office buildings, the fan can be used as a supply or exhaust main unit. For example, in the exhaust scene of the back kitchen of a restaurant, the fan needs to overcome the fume purifier (resistance of about 150Pa) and the pipe resistance (about 80Pa), and the pressure of 250Pa is enough to ensure smooth exhaust. At the same time, the speed of 1210rpm and the silent design of the impeller keep the noise value below 65dB (1 meter away from the fan), which meets the noise standard of commercial environment (≤70dB).

Cooling of new energy equipment

In new energy facilities such as energy storage power stations and charging piles, the heat dissipation of battery packs and power devices is crucial. The fan can be installed on the side of the equipment cabinet to reduce the internal temperature through forced convection. The wide voltage adaptability of its motor (230V±10%) can cope with grid voltage fluctuations; the IP44 protection level (dustproof and splashproof) meets the use requirements of outdoor or semi-outdoor environments.

Medical and laboratory environment

In medical equipment such as biosafety cabinets and fume hoods, fans need to provide stable airflow to ensure safe operation. The impeller material of D4E225-CC01-57 meets FDA certification requirements and can be exposed to neutral gases; the volute surface is smooth and easy to clean, meeting the hygiene standards of GMP workshops. The pressure of 250Pa can push the air through the high-efficiency filter (HEPA, resistance is about 200Pa), ensuring the filtration efficiency and airflow stability.

Preparation before installation

Environmental assessment: Ensure that the installation location is well ventilated, away from high-temperature sources (such as electric furnaces, steam pipes), and the ambient temperature does not exceed 40℃;

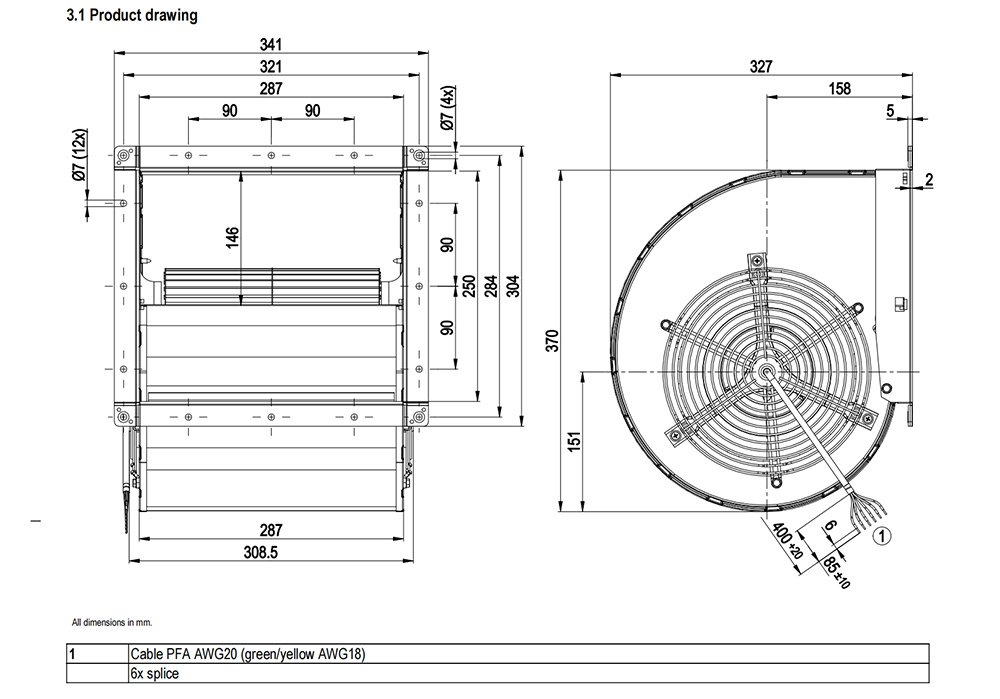

Bracket design: Use angle steel or channel steel to make the bracket, the load-bearing capacity must be 2~3 times the weight of the fan (the weight of the fan is about 8~10kg), and reserve shock absorption space;

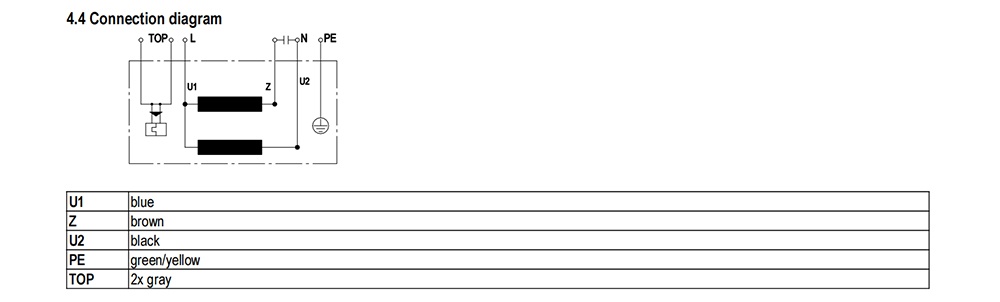

Electrical inspection: Confirm the power supply voltage and frequency (230V/50Hz), check the line load capacity (current is about 2.4A), and it is recommended to equip an independent circuit breaker.

Key points for installation implementation

Direction calibration: Confirm the direction of rotation through the impeller rotation direction mark (arrow on the volute), ensure that the air inlet is unobstructed, and the length of the air outlet pipe is ≥3 times the impeller diameter;

Flexible connection: Use canvas or rubber soft connection at the interface between the pipe and the fan, with a length of 150~200mm to absorb vibration and compensate for installation errors;

Grounding protection: The metal volute must be reliably grounded, and the grounding resistance must be ≤4Ω, which complies with electrical safety regulations.

Regular maintenance plan

Monthly inspection: Use a stethoscope to detect the sound of the bearing operation. It should be a uniform "buzzing" sound during normal operation. If there is a "rustling" or "clicking" sound, check the bearing wear;

Quarterly maintenance: Use an endoscope to check the dust accumulation of the impeller. In a dusty environment, use compressed air (pressure ≤0.4MPa) to clean the back of the blade and the inner wall of the volute;

Annual maintenance: Measure the insulation resistance of the motor (≥2MΩ) and check the function of the thermal protector (simulate the overheating state and test whether the power-off and reset are normal).

ebm-papst D4E225-CC01-57 has passed a number of international certifications to ensure compliance in different markets:

CE certification: Complies with the EU EMC Directive (2014/30/EU) and LVD Directive (2014/35/EU), and electromagnetic radiation and electrical safety meet the standards;

RoHS certification: The content of harmful substances such as lead and mercury in the material is lower than the limit, supporting green manufacturing and circular economy;

UL certification (optional): Passed the test of the American Underwriters Laboratory and is suitable for the electrical installation requirements of the North American market.

ebm-papst D4E225-CC01-57 centrifugal fan takes "precise parameter matching + mature technical architecture" as its core competitiveness, and shows wide adaptability in industrial heat dissipation, commercial ventilation, new energy cooling and other fields. The flexibility of 230V power supply, the practicality of 250Pa pressure, the economy of 540W power and the reliability of 1210rpm speed together build an "all-round" ventilation device. Whether it is dealing with complex industrial environments or meeting strict industry standards, this fan interprets the ebm-papst brand concept of "technology-driven quality" with stable performance, becoming a ventilation solution that users can trust.
