FAQ

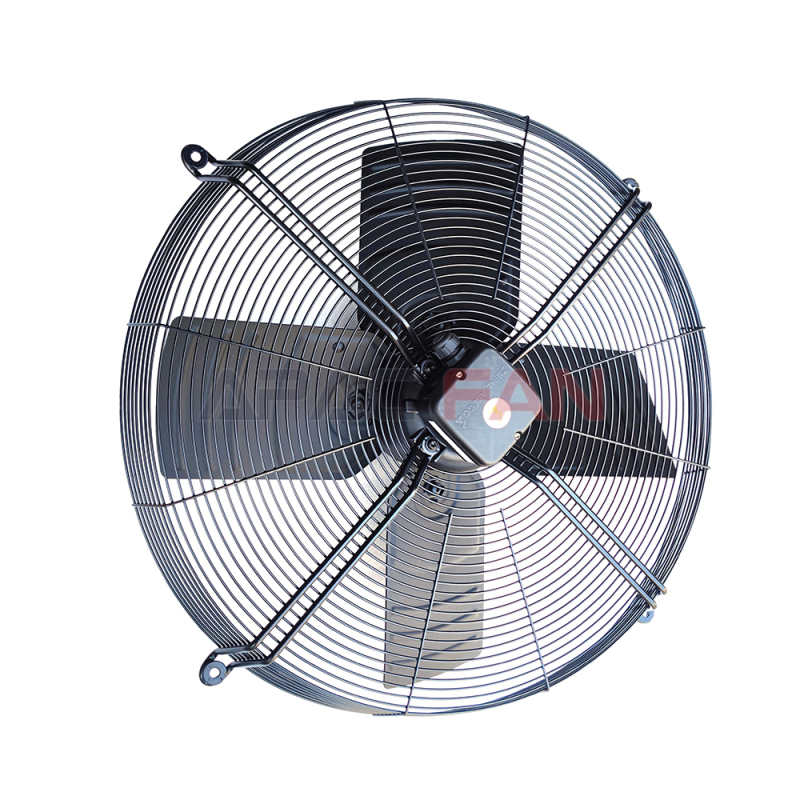

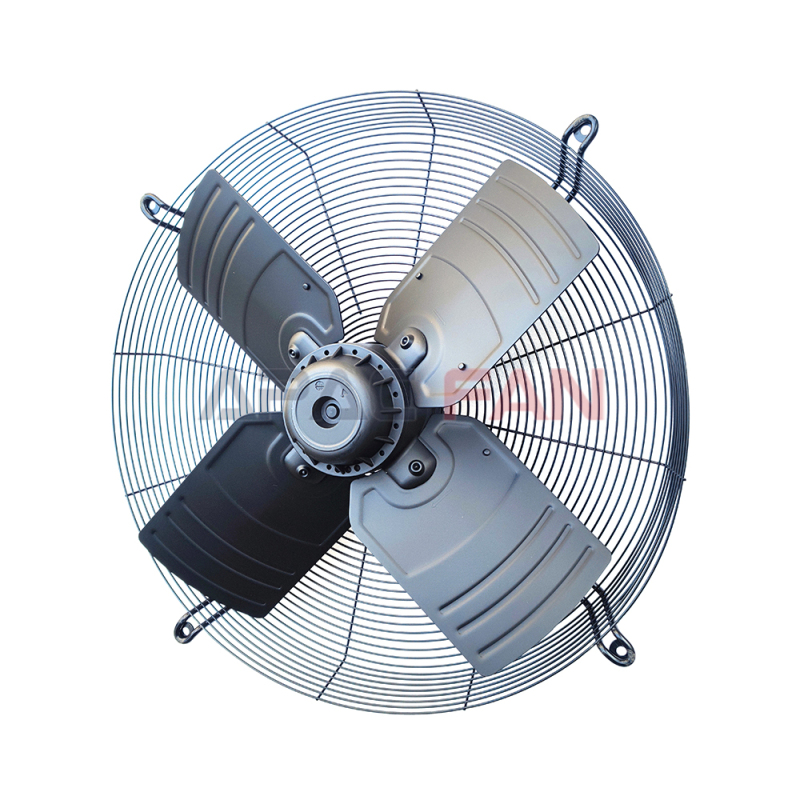

Q1: What type of fan is the ZIEHL-ABEGG FB063-6EK.4I.V4P 101680, and what key size specification does it have?

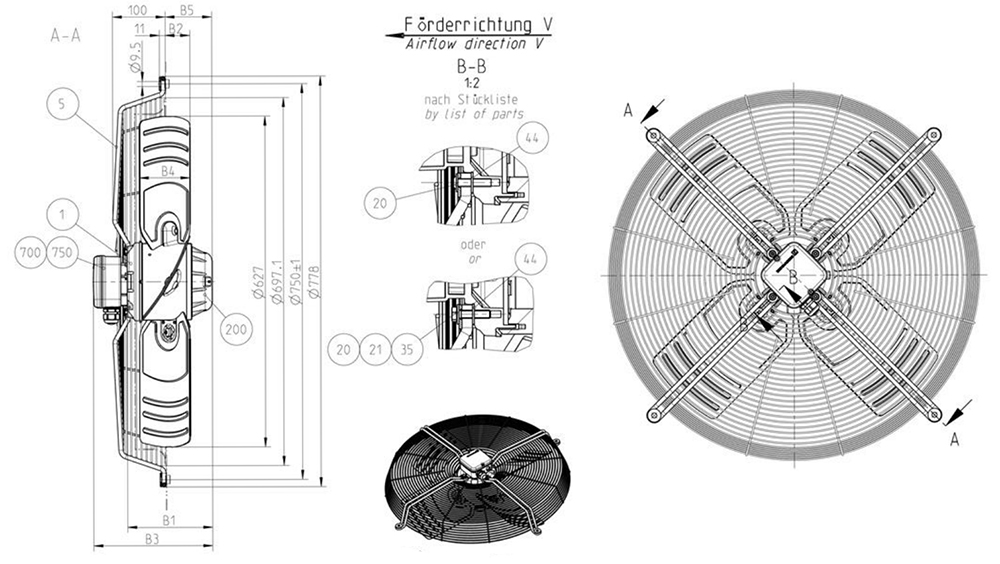

A1: It is an axial fan, as specified in its details. A key size parameter is its 630mm dimension, which refers to the fan’s main size (typically the impeller diameter), a critical factor for fitting it into compatible equipment or duct systems. This size helps ensure proper airflow distribution in applications it’s designed for.
Q2: What rated voltage does the FB063-6EK.4I.V4P 101680 fan require, and why is this voltage important?
A2: The fan has a rated voltage of 230V. This is vital because using a voltage outside this rating can damage the fan’s motor—too high may cause overheating or burnout, while too low leads to insufficient power, poor performance, or motor failure. Always match the power supply to 230V for safe, optimal operation.
Q3: What is the input power of the ZIEHL-ABEGG FB063-6EK.4I.V4P 101680, and how does it relate to its performance?
A3: Its input power is 630W. Input power reflects the energy the fan consumes to operate. For this axial fan, 630W supports its 880rpm speed and 150Pa max pressure—higher power enables it to generate sufficient airflow (even if max flow is N/A) and pressure for tasks like cooling industrial equipment or ventilating large spaces.

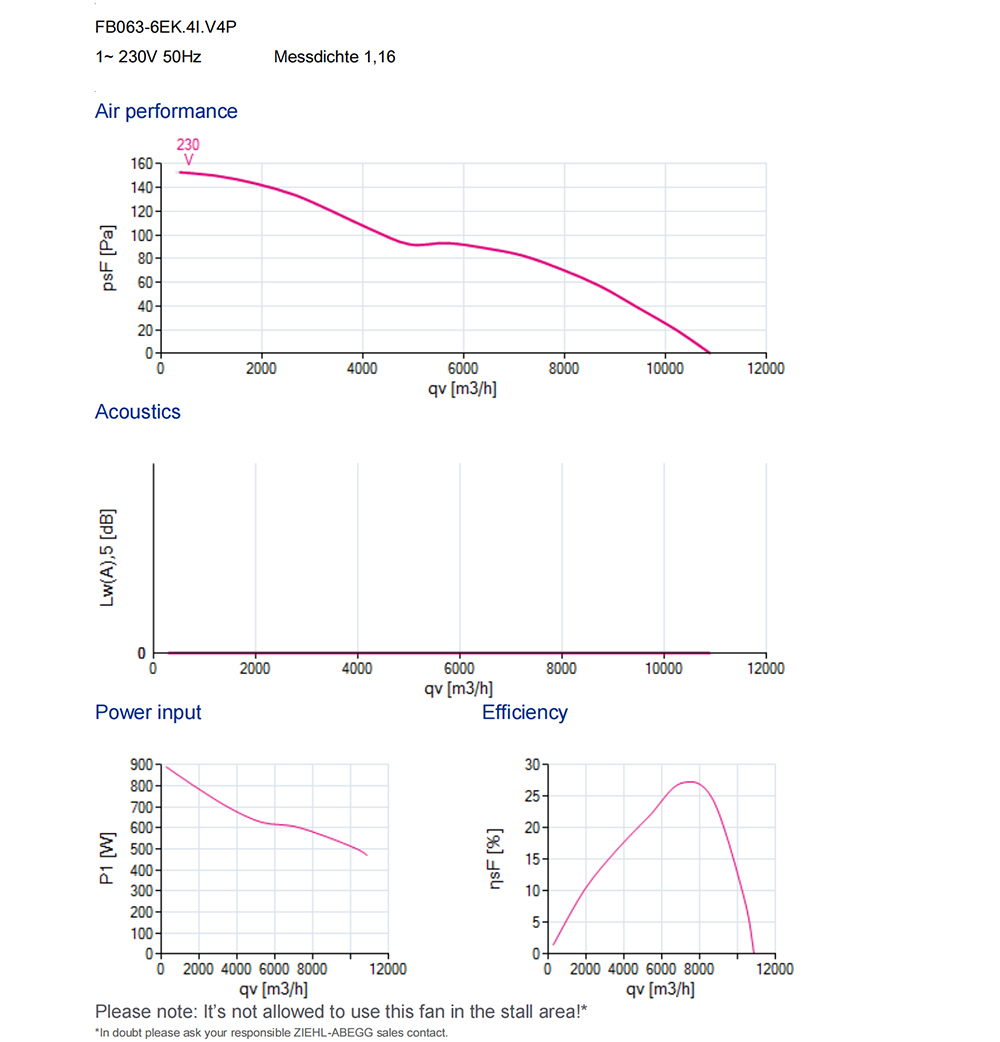

Q4: What is the maximum pressure of the FB063-6EK.4I.V4P 101680 fan, and what does this mean for its use?
A4: It has a max pressure of 150Pa. Max pressure indicates the fan’s ability to push air against resistance (e.g., ductwork, filters, or equipment obstructions). A 150Pa rating means it can maintain airflow in systems with moderate resistance, making it suitable for applications where air needs to be moved through slightly restricted paths.
Q5: The FB063-6EK.4I.V4P 101680 is an axial fan with 630mm size, 880rpm speed, and 630W input power. For users installing it in a duct system, how should they account for the fan’s 150Pa max pressure to avoid airflow loss?
A5: When installing this axial fan in a duct system, users first need to calculate the system’s total static resistance—including resistance from duct length (longer ducts = more resistance), number of bends (each bend adds resistance), and any accessories like filters or dampers. The fan’s 150Pa max pressure is the maximum resistance it can overcome while maintaining performance, so the system’s total resistance must be ≤150Pa. If resistance exceeds 150Pa (e.g., long duct runs with multiple bends), airflow will drop significantly. To fix this, users can reduce duct length, minimize bends, or use low-resistance filters. Additionally, ensure the duct diameter matches the 630mm fan’s air intake/exhaust (avoid narrow ducts that increase resistance) to fully leverage the fan’s pressure capability.
