FAQ

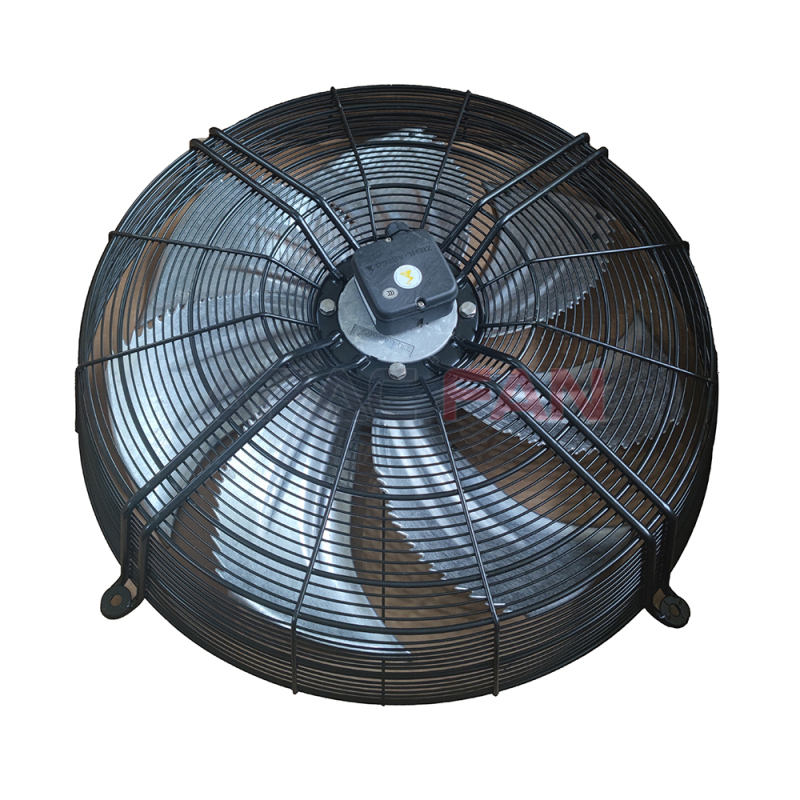

Q1: What type of fan is the FN071-SDK.6F.V7P1 from ZIEHL-ABEGG, and what are the typical applications for this fan type?
A1: The FN071-SDK.6F.V7P1 is an axial fan. Axial fans are designed to move air parallel to the fan's axis of rotation, making them efficient for high airflow at relatively low pressure. They are commonly used in applications such as ventilation systems, cooling units for industrial machinery, HVAC systems, and electronic equipment cooling, where consistent air movement over a large area is required.
Q2: What is the rated voltage of the ZIEHL-ABEGG FN071-SDK.6F.V7P1 fan, and does this voltage specification impact its compatibility with different power systems?
A2: The rated voltage of the FN071-SDK.6F.V7P1 is 400V. This voltage specification is crucial for compatibility, as it means the fan is designed to operate with three-phase power systems (common in industrial settings) rather than standard single-phase residential or light commercial power (typically 110V or 220V). It is important to ensure the power supply matches this rating to avoid damage to the fan motor and ensure optimal performance.

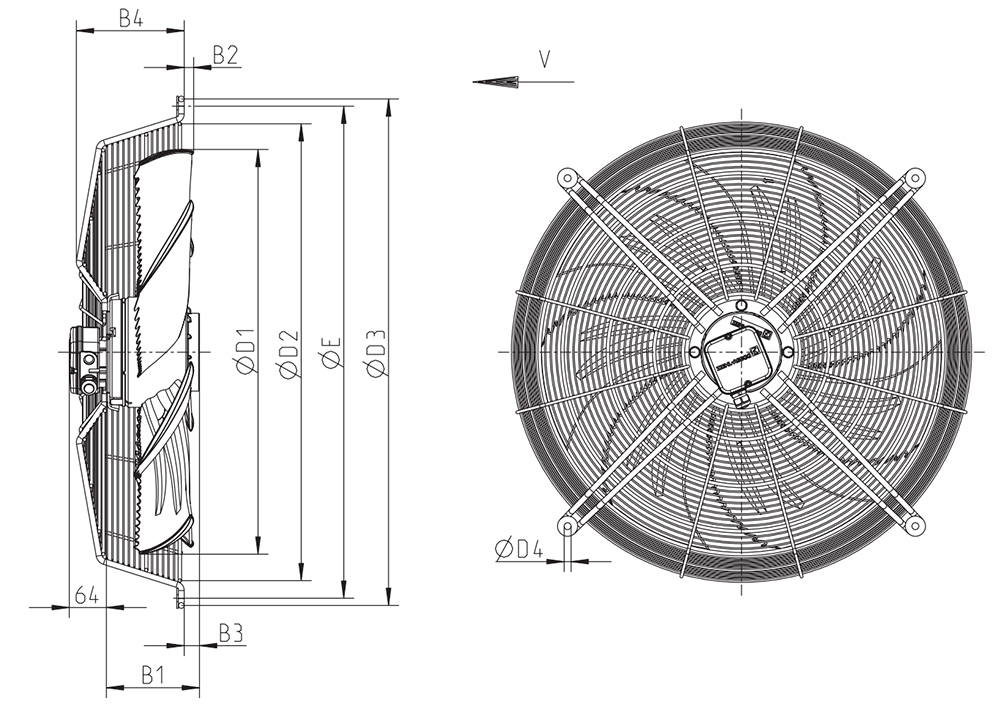

Q3: Can the size of the FN071-SDK.6F.V7P1 fan be inferred from its model number, and what specific dimension does this refer to?
A3: Yes, the size of the FN071-SDK.6F.V7P1 can be partially inferred from its model number, specifically the "071" segment, which corresponds to a size of 710mm. This dimension typically refers to the diameter of the fan's impeller (the rotating component that moves air), making it a relatively large fan suitable for applications requiring significant airflow volume.
Q4: What are the input power and rotational speed of the FN071-SDK.6F.V7P1 fan, and how do these parameters relate to its performance?
A4: The FN071-SDK.6F.V7P1 has an input power of 940W and a rotational speed of 900 rpm (revolutions per minute). Input power indicates the energy consumption required to operate the fan, while rotational speed directly influences airflow—higher rpm generally correlates with greater airflow, though this is also affected by fan design. With 900 rpm, this fan balances moderate speed with 940W power usage, making it suitable for applications needing steady, efficient air movement without excessive energy consumption.

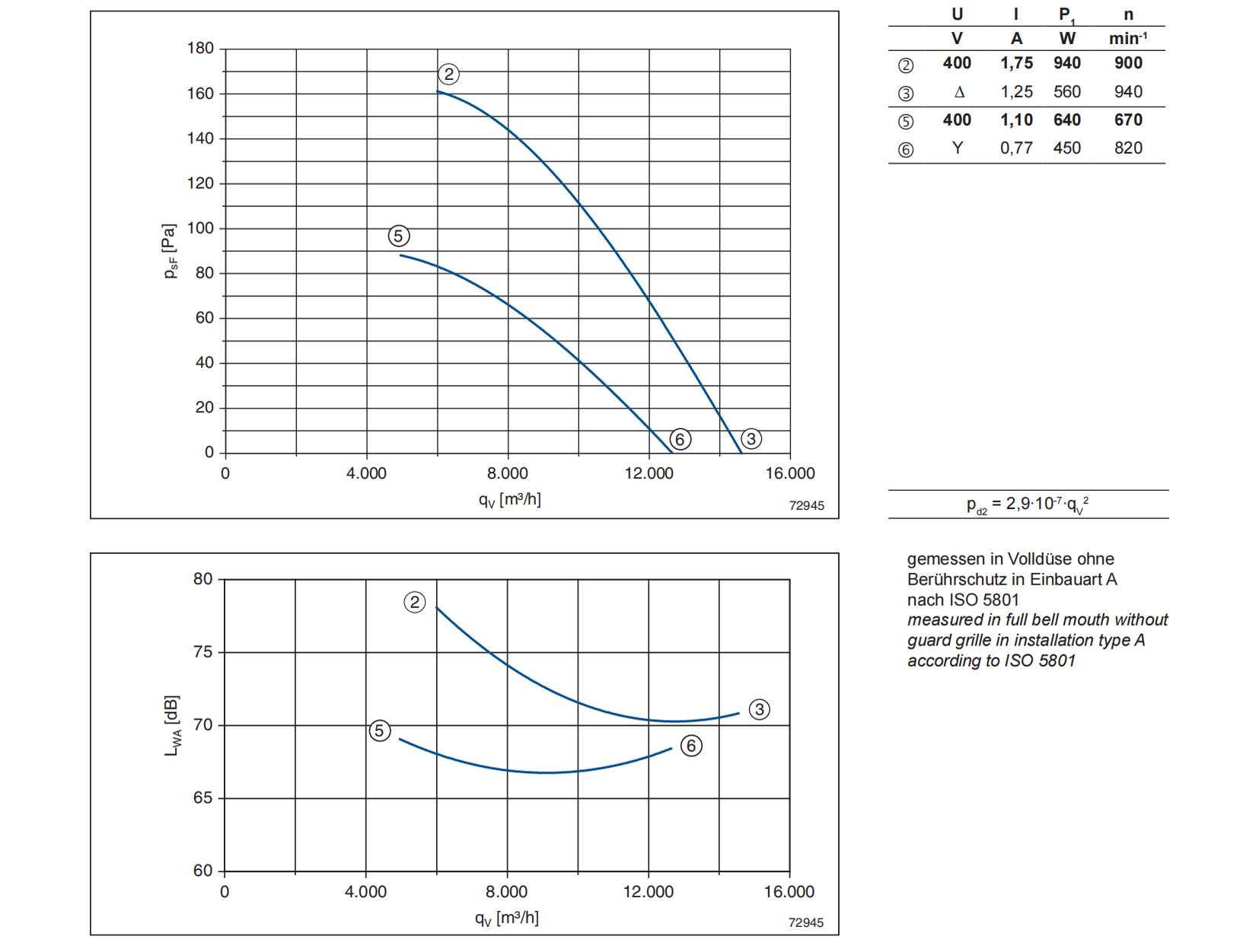

Q5: Are the maximum air flow and maximum pressure specifications available for the ZIEHL-ABEGG FN071-SDK.6F.V7P1 fan? If not, where might one obtain this information?
A5: Currently, the maximum air flow (m³/h) and maximum pressure (Pa) for the FN071-SDK.6F.V7P1 are listed as N/A (not available) in the provided parameters. To obtain these details, it is recommended to refer to the official product datasheet from ZIEHL-ABEGG, contact their customer support, or consult authorized distributors, as such specifications are often included in detailed technical documentation for industrial fans. These values are important for determining the fan's suitability for specific airflow or pressure requirements in systems like ductwork or cooling enclosures.
