| Brand： | ebmpapst |
| Part No： | G2E180-EH03-01 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 180 |
| Max.Air Flow(m³/h)： | 755 |
| Max.Pressure(Pa)： | 690 |
| Input Power(W)： | 400 |
| Speed(rpm)： | 1950 |
| Noise(db)： | N/A |

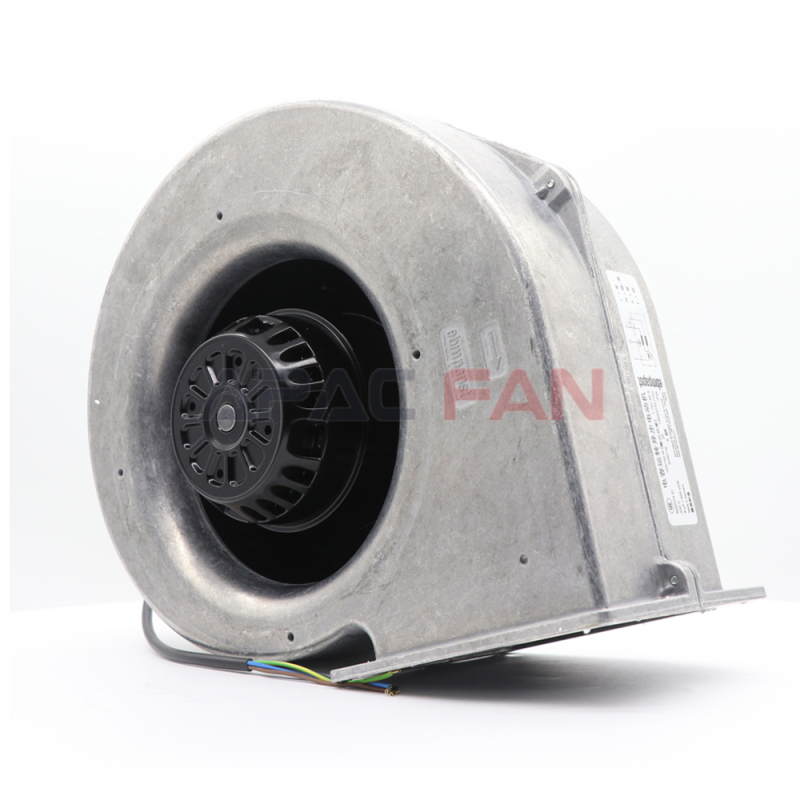

In the field of industrial and commercial ventilation, centrifugal fans play an important role due to their efficient air transport capacity. The G2E180-EH03-01 centrifugal fan under ebm-papst has become an ideal choice for many application scenarios due to its excellent performance and reliable quality. Below, we will provide a detailed analysis of the various parameters of the fan and delve into its characteristics.
（1） Rated voltage
The rated voltage of G2E180-EH03-01 centrifugal fan is 230V, which is a widely used standard voltage worldwide. The rated voltage of 230V enables the fan to be easily connected to most commercial and industrial power supply systems without the need for additional voltage conversion equipment, greatly improving its installation and ease of use. Whether in European factory workshops or commercial buildings in Asia, it is easy to adapt to the local power environment, saving users time and costs.

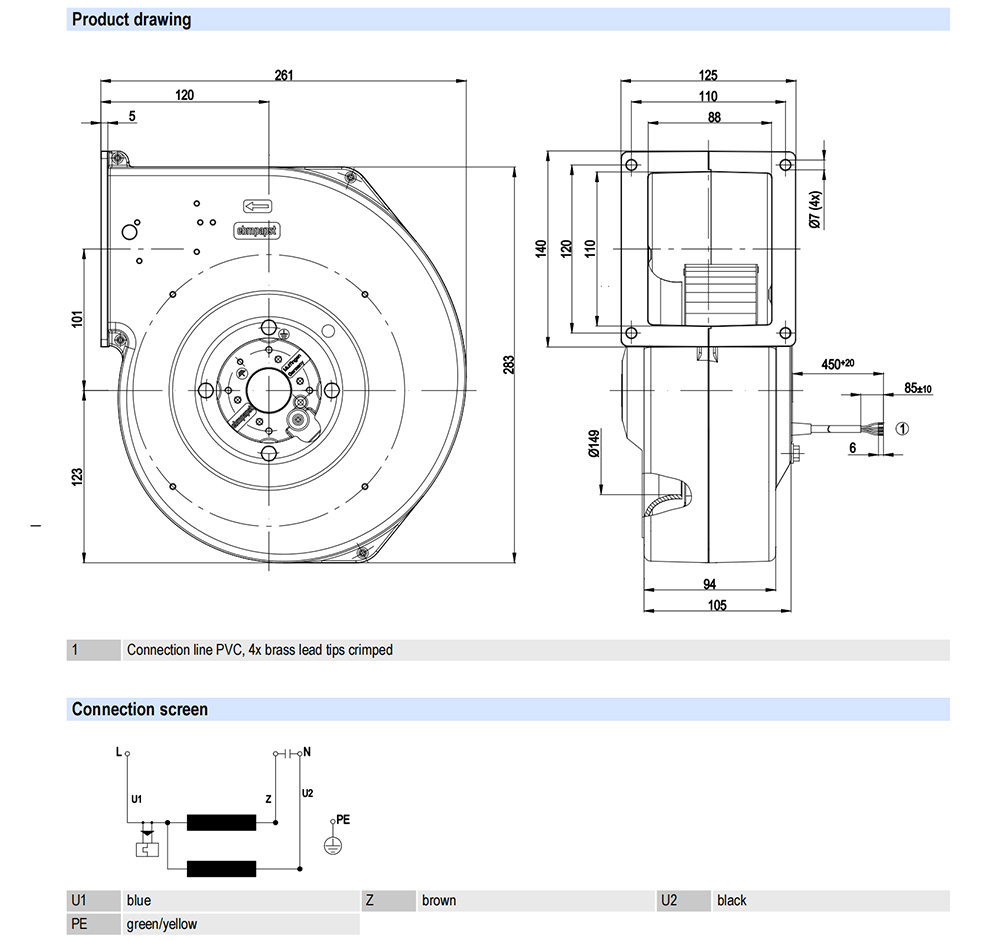

（2） Size specifications
The size of the fan is 180 millimeters, and this compact design gives it a significant advantage in space utilization. In some places with limited space, such as small computer rooms, compact industrial equipment interiors, etc., G2E180-EH03-01 centrifugal fans can be easily installed without taking up too much space. Meanwhile, its smaller size does not affect its ventilation performance and can still provide efficient air transport capacity.

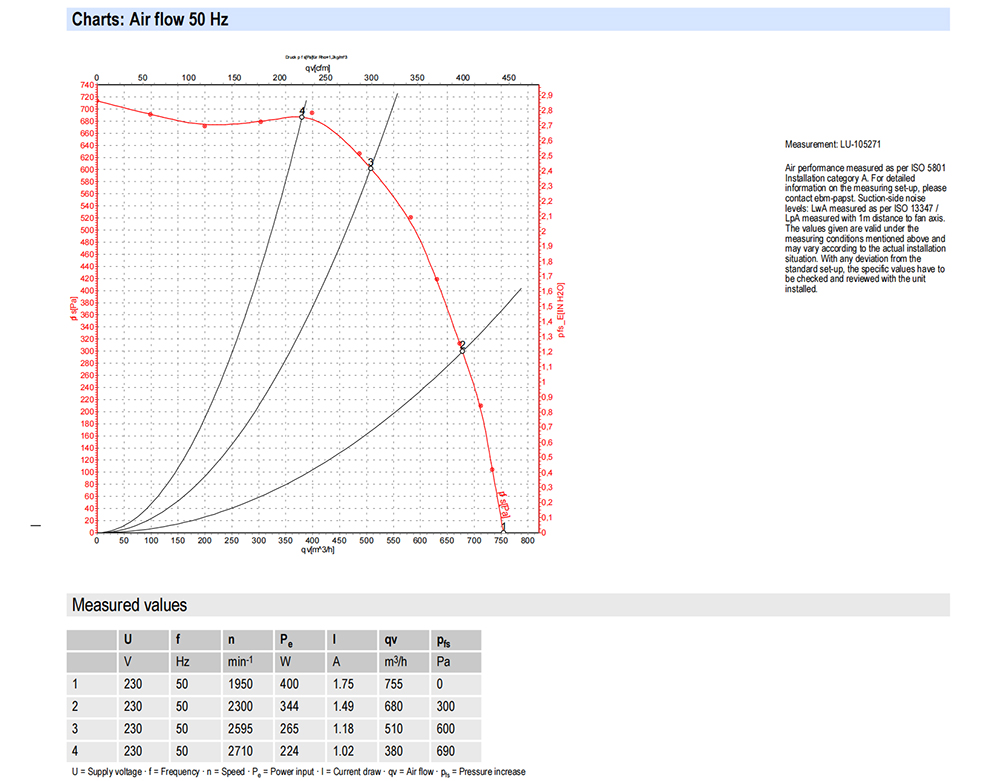

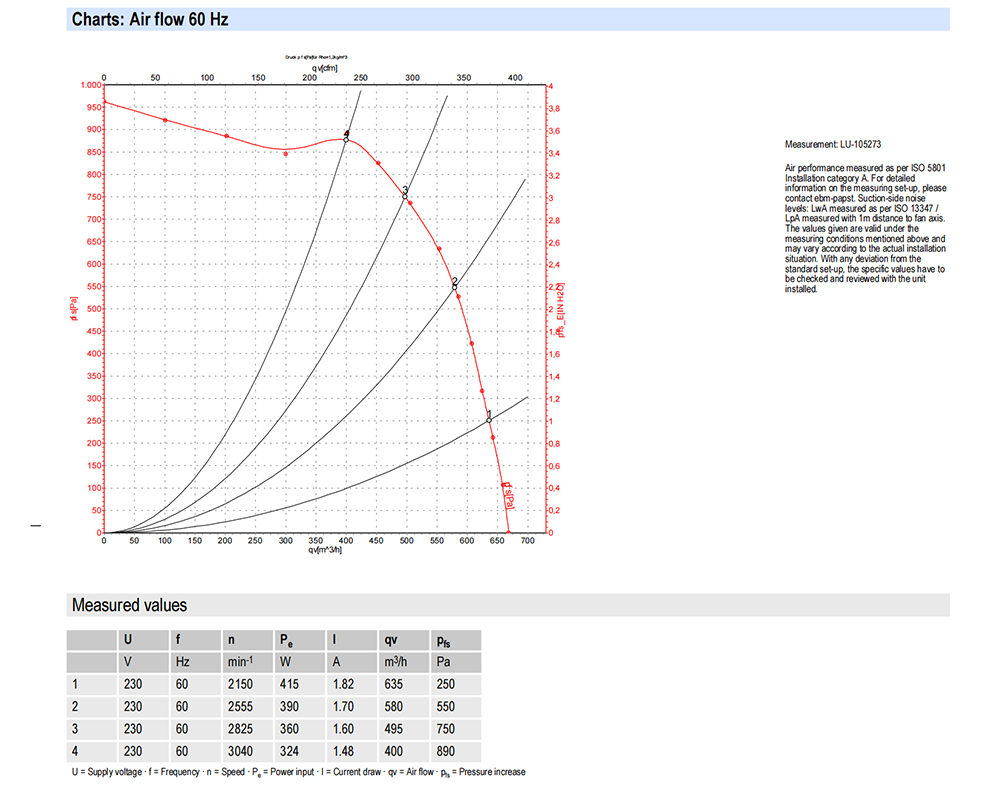

（3） Airflow and pressure
The maximum air volume can reach 755 cubic meters per hour, indicating that the fan has a strong air transport capacity. In places that require rapid ventilation, such as large warehouses, workshops, etc., G2E180-EH03-01 centrifugal fan can achieve a large amount of air exchange in a short period of time, effectively improving indoor air quality. The maximum pressure is 690Pa, and a higher pressure means that the fan can overcome greater ventilation resistance. In systems with long ventilation ducts, many bends, or equipped with high-efficiency air filtration equipment, this fan can still ensure smooth air circulation and ensure the stability of ventilation effect.
（4） Input power
The input power is 400W, which is relatively high, but considering its excellent air volume and pressure performance, this power consumption is reasonable. In some industrial production processes that require high ventilation, such as chemical and electronic manufacturing industries, strong ventilation capabilities are needed to ensure the safety and stability of the production environment. The high-power input of G2E180-EH03-01 centrifugal fan can meet these strict requirements.
（5） Rotational speed
The speed is 1950 rpm, and a stable speed is the key to the efficient operation of the fan. Moderate speed can ensure that the fan generates sufficient air volume and pressure, while reducing mechanical wear and noise problems caused by high-speed operation. Through precise design and manufacturing, G2E180-EH03-01 centrifugal fan can achieve stable and reliable operation at a speed of 1950 rpm, extending the service life of the fan.
（6） Noise level
Although the noise (db) displayed in the parameters is not applicable, in the actual design and manufacturing process, ebm-papst usually adopts a series of noise reduction techniques to reduce the noise generated during fan operation. For example, optimizing the shape and structure of the impeller to reduce turbulence and impact of the airflow; Use sound-absorbing materials to treat the fan casing, absorb and isolate noise, etc. These measures can to some extent reduce the noise level of the fan and provide users with a relatively quiet usage environment.
（1） Efficient Aerodynamic Design
The G2E180-EH03-01 centrifugal fan adopts advanced aerodynamic design concepts. The shape of the impeller and the layout of the blades have been carefully optimized to make the air flow smoother through the fan, reducing the loss of airflow and energy waste. This design not only improves the ventilation efficiency of the fan, but also reduces its energy consumption, achieving a perfect combination of energy conservation and efficiency.
（2） High quality materials and exquisite craftsmanship
All components of the fan are made of high-quality materials. The impeller is made of high-strength and corrosion-resistant alloy material, which can withstand the centrifugal force and airflow impact during high-speed rotation, ensuring the stability and reliability of the fan. The shell is made of sturdy and durable engineering plastics or metal materials, which have good impact resistance, corrosion resistance, and flame retardancy, and can adapt to various harsh working environments. Meanwhile, ebm-papst's exquisite manufacturing process ensures the assembly accuracy and quality stability of the fan, reducing malfunctions and noise caused by improper component coordination.
（3） Intelligent control system (optional)
In order to meet the needs of different users, the G2E180-EH03-01 centrifugal fan may be equipped with an intelligent control system. Through built-in sensors and controllers, the fan can monitor environmental parameters in real-time, such as temperature, humidity, air quality, etc., and automatically adjust the operating status of the fan based on these parameters. For example, when the ambient temperature rises, the fan automatically increases its speed to enhance ventilation and heat dissipation; When the air quality improves, the fan automatically reduces its speed to save energy. This intelligent control system not only improves the convenience of using the fan, but also further enhances its energy-saving performance.
（4） Wide applicability
Due to its excellent performance characteristics, G2E180-EH03-01 centrifugal fan has a wide range of applicability. It can be applied in multiple fields such as industry, commerce, and civil use, such as ventilation and air exchange in factory workshops, central air conditioning systems in commercial buildings, and ventilation in residential kitchens and bathrooms. It can play an excellent role in both high temperature, humid, and dusty industrial environments, as well as in civilian environments that require high air quality and comfort.
In summary, G2E180-EH03-01 centrifugal fan has strong competitiveness in the centrifugal fan market due to its excellent parameter combination and unique characteristics. It provides users with an efficient, reliable, and energy-saving ventilation solution that can meet the ventilation needs of different fields and scenarios.
In the complex environment of industrial production, a good ventilation system is a key factor in ensuring production safety, improving product quality, and promoting employee health. ebm-papst's G2E180-EH03-01 centrifugal fan, with its outstanding performance, has become a backbone force in the field of industrial production ventilation, providing strong ventilation support for various industrial scenarios.
