| Brand： | ebm-papst |

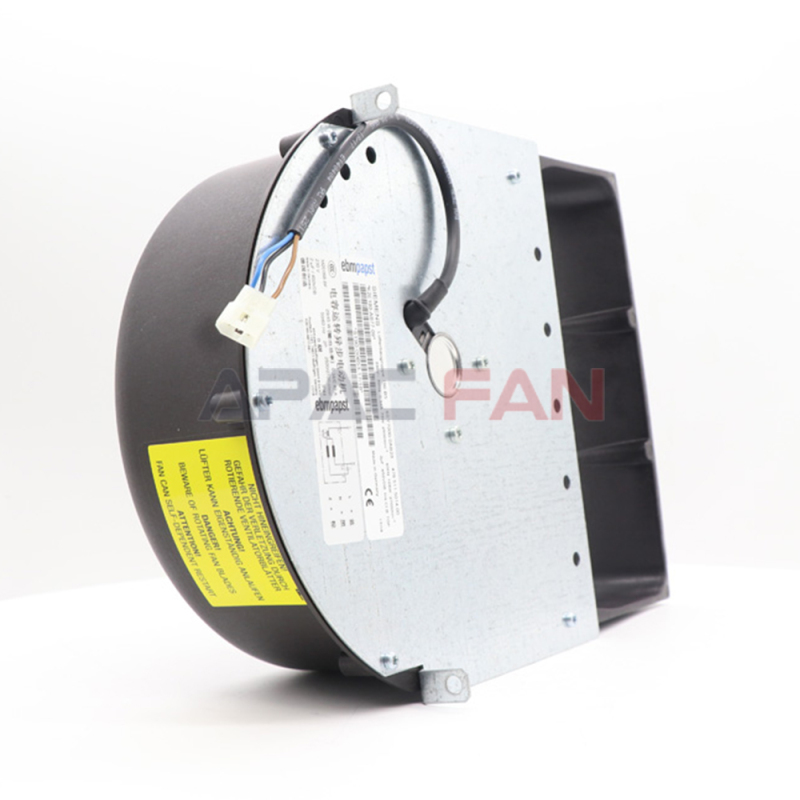

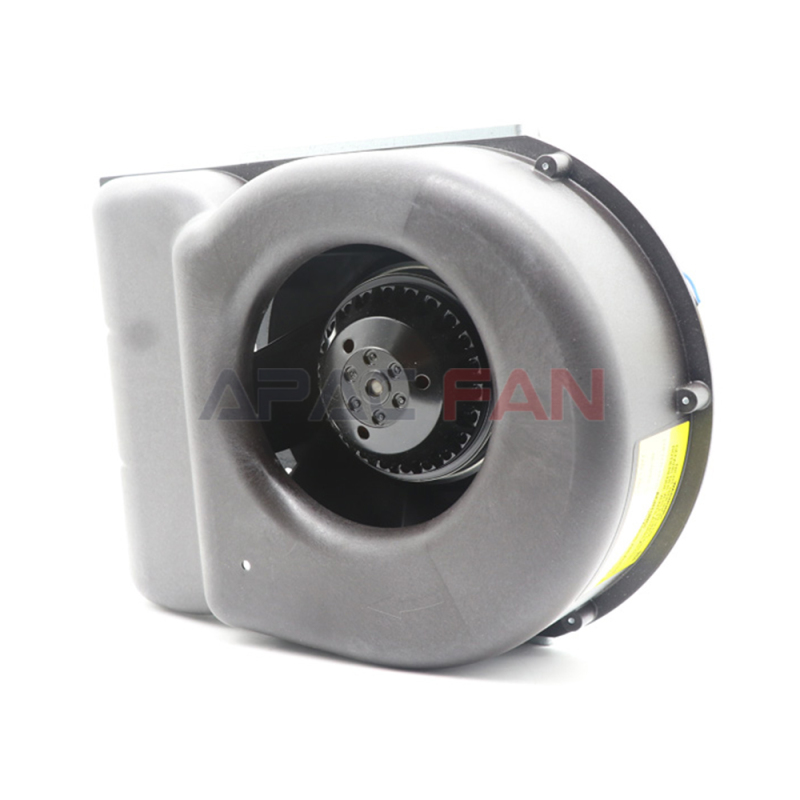

| Part No： | K2E190-AB77-09 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |

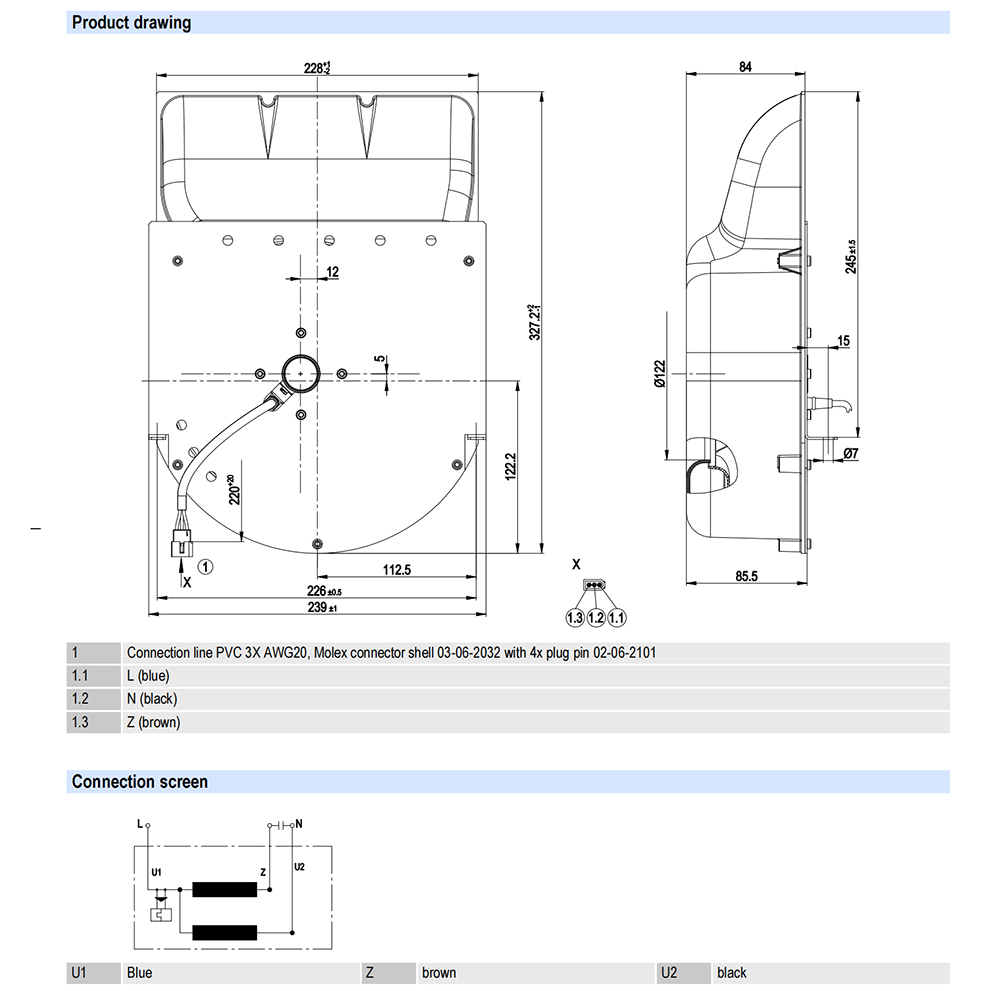

| Size(mm)： | 190 |

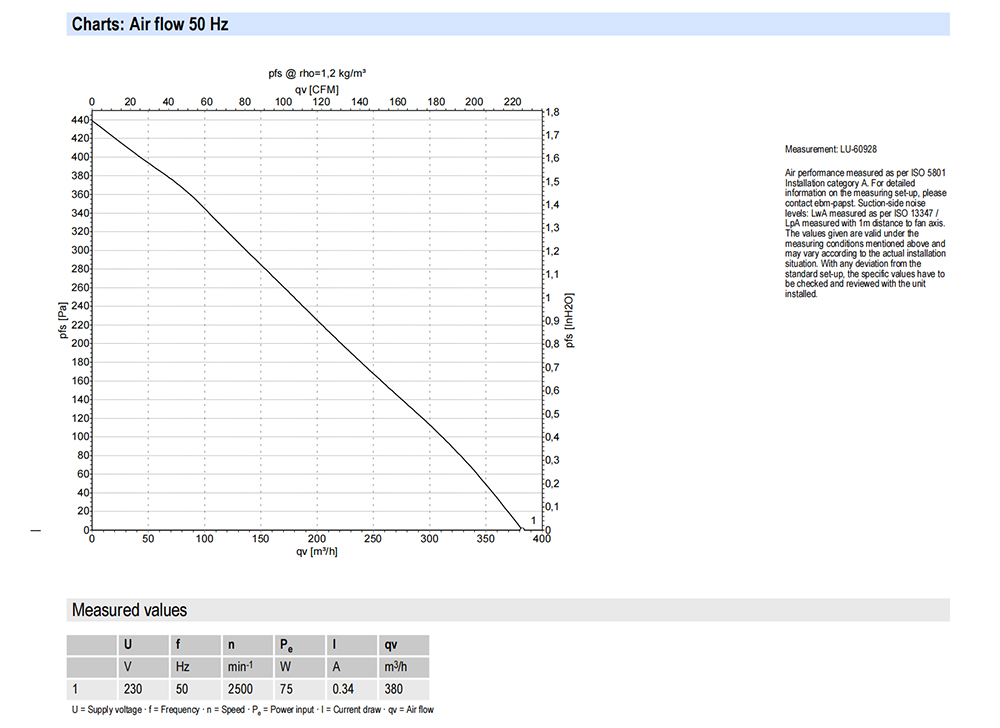

| Max.Air Flow(m³/h)： | 380 |
| Max.Pressure(Pa)： | N/A |
| Input Power(W)： | 75 |
| Speed(rpm)： | 2500 |
| Noise(dB)： | N/A |
| Mass: | 2.2 kg |
| Surface of Rotor: | Coated in black |
| Material of Impeller: | PA plastic |
| Housing Material: | PA plastic |
| Number of Blades: | 7 |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 44; Depending on installation and position as per EN 60034-5 |
| Insulation Class: | "B" |
| Humidity Class: | F1-2 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Cable Exit: | Axial |
| Protection Class: | Built-in component with basic insulation, protection rating results from installation according to intended use, must not be touched once installed |
| Product Conforming to Standard: | EN 60335-1; CE |
| Approval: | CCC; UL 1004-1; CSA C22.2 Nr.100 |
