R4E400-AN09-06 ebm-papst

• Brand background

ebm-papst is a highly reputable enterprise in the wind turbine manufacturing industry. For many years, it has held a significant share in the global wind turbine market through continuous technological innovation and strict quality control. Its products are widely used in various fields such as industry, commerce, and construction, providing high-quality ventilation solutions for different customers. As a member of the brand, R4E400-AN09-06 centrifugal fan naturally inherits the excellent tradition of the brand, possessing advanced technology and reliable performance.

• Product parameters

Rated voltage: The rated voltage of this fan is 230V. This voltage specification enables it to adapt to the power supply environment of most industrial and commercial places. In practical applications, a stable 230V voltage input can ensure the normal operation of the fan and provide reliable power support for the ventilation system. Compared with some low-voltage fans, a rated voltage of 230V can provide the fan with stronger driving force, thereby achieving higher air volume and pressure output.

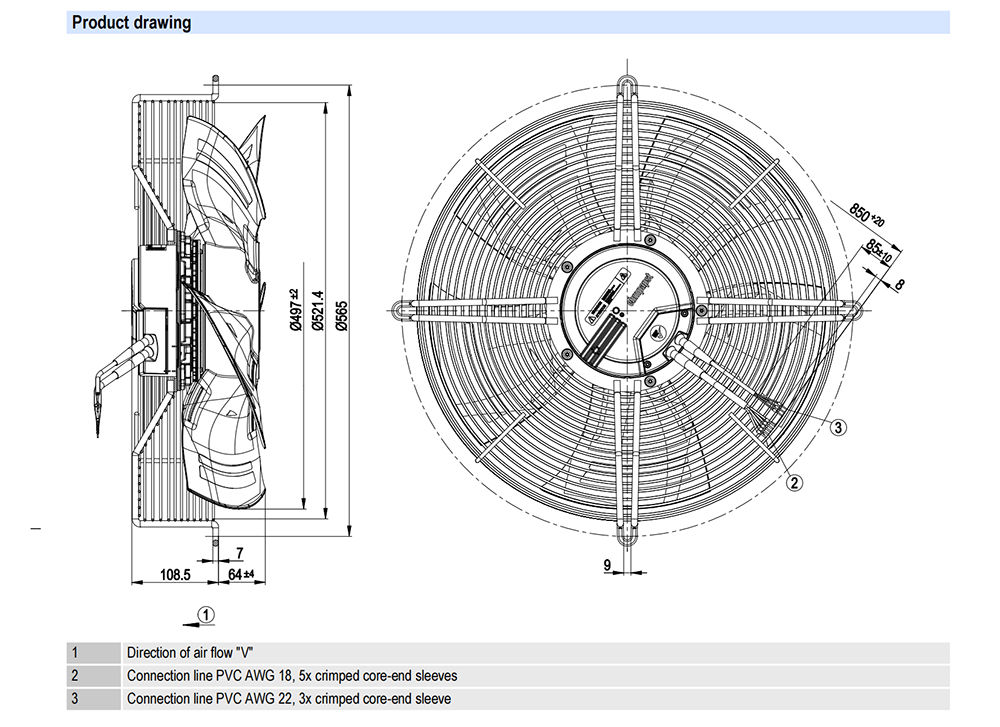

Size: The size of the fan is 400 millimeters. This size design gives it some flexibility in installation and layout. It can be applied to some large-scale ventilation systems, providing ventilation services for large areas of space; It can also be combined and installed according to actual needs to meet different ventilation requirements. Meanwhile, the moderate size also facilitates transportation and handling, reducing the difficulty of installation and maintenance.

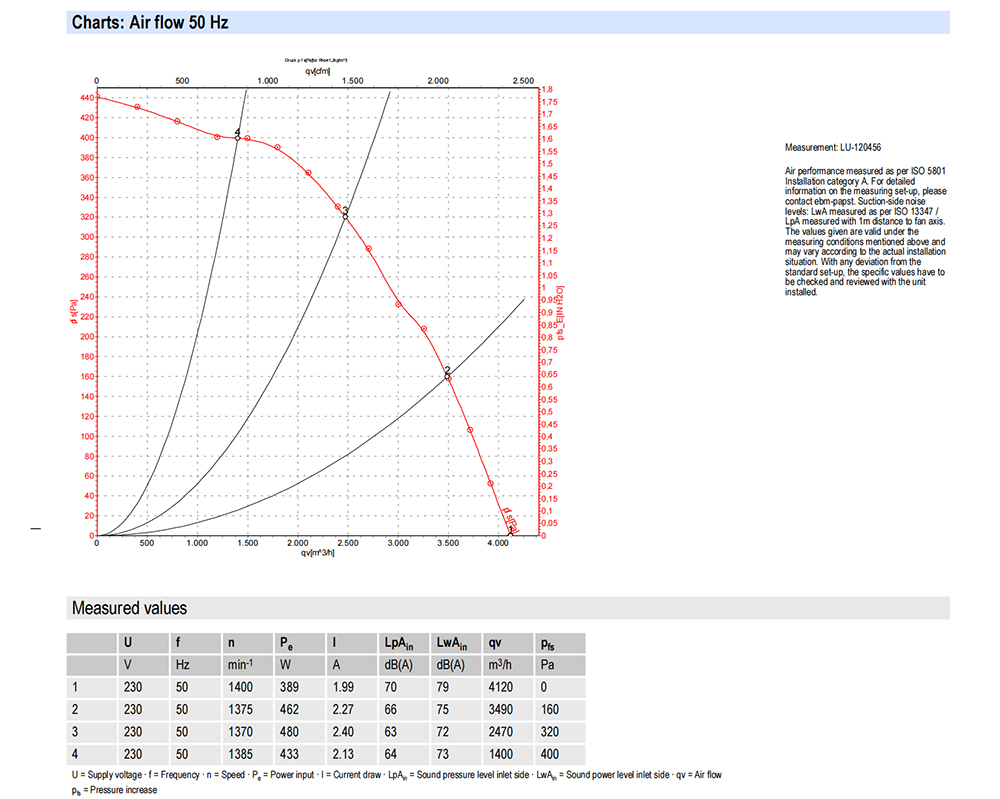

Maximum air volume: The maximum air volume can reach 4120m³/h. This parameter indicates that the fan has strong ventilation capacity and can provide sufficient fresh air for larger spaces in a short period of time. In some large factory workshops, warehouses, and other places, rapid and effective ventilation is needed to ensure air quality and employee health. The high air output of R4E400-AN09-06 centrifugal fan can well meet the needs of these places.

Maximum pressure: The maximum pressure is 440Pa. This means that the fan can overcome a certain resistance in the ventilation system, ensuring that the air can be effectively delivered to the designated location. In some places with long ventilation ducts and high resistance, such as the ventilation system of large commercial buildings, fans need to have sufficient pressure to promote air flow. The maximum pressure of 440Pa of R4E400-AN09-06 centrifugal fan can meet the ventilation requirements of these places and ensure the stability of ventilation effect.

Input power: The input power is 480W. Although the power is relatively high, considering its high air volume and high pressure output, this power consumption is reasonable. In practical operation, fans can efficiently convert electrical energy into wind energy, providing powerful power for ventilation systems. Meanwhile, through reasonable operation control and energy-saving measures, its energy consumption can be further reduced and energy utilization efficiency can be improved.

Speed: The speed of the fan is 1370rpm. A stable rotational speed is a key factor in ensuring stable output of fan airflow and pressure. At this speed, the impeller of the fan can rotate at an appropriate speed, effectively pushing the air flow. At the same time, a stable rotational speed also helps reduce the vibration and noise of the fan, improving its operational stability and reliability.

Noise: The noise level is 63dB. During operation, this noise level is relatively low and will not cause significant interference to the surrounding environment. In some places with high noise requirements, such as offices, hospitals, etc., low-noise operation of fans can provide people with a quiet and comfortable working and living environment.

• Product Features

Efficient ventilation

With a maximum air volume of 4120m ³/h and a stable speed of 1370rpm, the R4E400-AN09-06 centrifugal fan can quickly and effectively provide ventilation and air exchange services for large spaces. It can quickly remove indoor polluted air and introduce fresh air, improving air quality. In some industrial plants, due to the production process generating a large amount of dust, harmful gases, etc., timely ventilation treatment is needed. This fan can quickly discharge these pollutants outdoors, protecting the health of employees and also helping to improve production efficiency.

Stable pressure output

The maximum pressure of 440Pa enables the fan to overcome certain resistance in the ventilation system, ensuring stable air delivery to all corners. Whether in commercial buildings with long ventilation ducts or industrial ventilation systems that require overcoming certain resistance, fans can maintain stable pressure output to ensure consistent ventilation effects. Stable pressure output can also reduce airflow fluctuations in the ventilation system, minimize damage to ventilation equipment, and extend the service life of the equipment.

Low noise operation

The low noise level of 63dB is a major advantage of this fan. During operation, it will not produce excessive noise and will not cause significant interference to the surrounding environment. This is very important for places that are sensitive to noise, such as schools, libraries, etc. In these places, people need a quiet environment for learning and reading, and the low-noise operation of the fan can meet this demand, providing a comfortable learning and living environment for people.

Reliability

The quality assurance of the ebm-papst brand and the excellent design of the fan itself make the R4E400-AN09-06 centrifugal fan highly reliable. It adopts high-quality materials and advanced manufacturing processes, which can adapt to various harsh working environments. During long-term continuous operation, the fan can maintain stable performance, reduce the occurrence of faults, and provide reliable ventilation guarantee for users. At the same time, the fan is also equipped with comprehensive protection devices such as overload protection, overheating protection, etc., further improving its operational safety and reliability.

Flexible installation

The 400mm size design provides a certain degree of flexibility in the installation of the fan. It can be installed horizontally, vertically, or diagonally according to different ventilation system requirements. At the same time, the interface design of the fan is also easy to connect with various ventilation ducts, reducing the difficulty and cost of installation. In some ventilation system renovation projects of large buildings, this fan can be easily installed into existing ventilation ducts to upgrade and optimize the ventilation system.

• Comparison with other similar products

Compared with other similar centrifugal fans on the market, R4E400-AN09-06 has significant advantages. In terms of ventilation capacity, the maximum air volume of 4120m³/h and the maximum pressure of 440Pa enable it to meet a wider range of ventilation needs, surpassing some similar products with lower air volume and pressure. In terms of noise control, its low noise level of 63dB sets it apart from similar products and provides users with a quieter usage environment. In addition, the popularity and quality assurance of the ebm-papst brand have added more competitiveness to the products.

• Installation and usage precautions

When installing R4E400-AN09-06 centrifugal fan, the first thing to ensure is that the installation position is flat and firm, to avoid shaking and vibration of the fan during operation. At the same time, it is necessary to ensure that the ventilation ducts are tightly connected to prevent air leakage. During use, attention should be paid to the stability of the power supply to avoid damage to the fan caused by excessive voltage fluctuations. Regularly clean and maintain the fan, check whether the blades are damaged, whether the motor is running normally, etc., to ensure the performance and service life of the fan.

• Summary

In summary, R4E400-AN09-06 centrifugal fan is a ventilation equipment with excellent performance and outstanding features. It has important application value in the field of ventilation and heat dissipation due to its advantages of efficient ventilation, stable pressure output, low-noise operation, high reliability, and flexible installation. This fan can play an important role in ensuring industrial production and improving commercial and civilian environments. If you are looking for a high-quality centrifugal fan, R4E400-AN09-06 is definitely worth considering.
