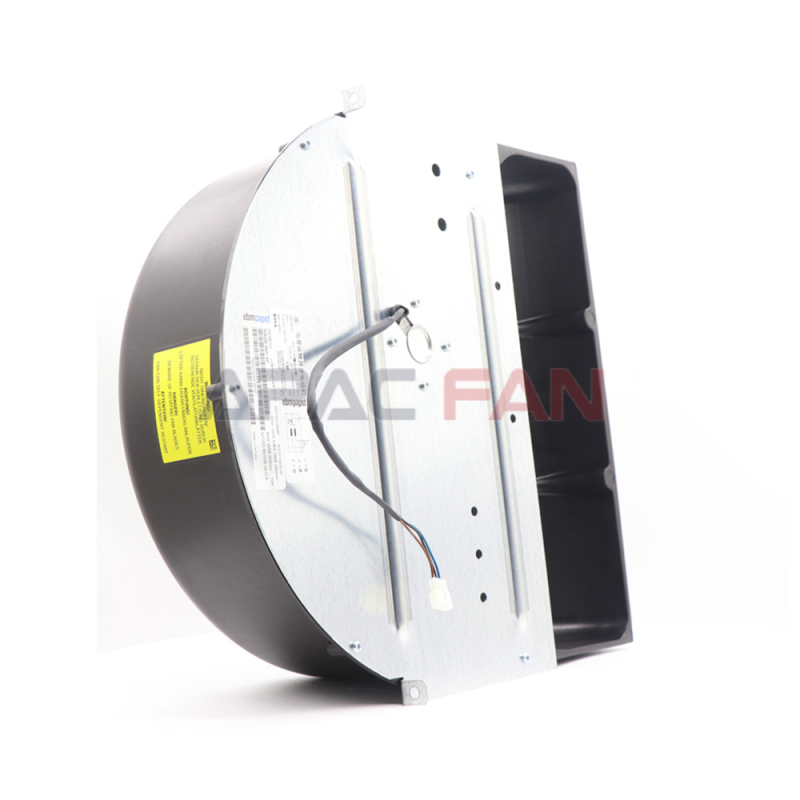

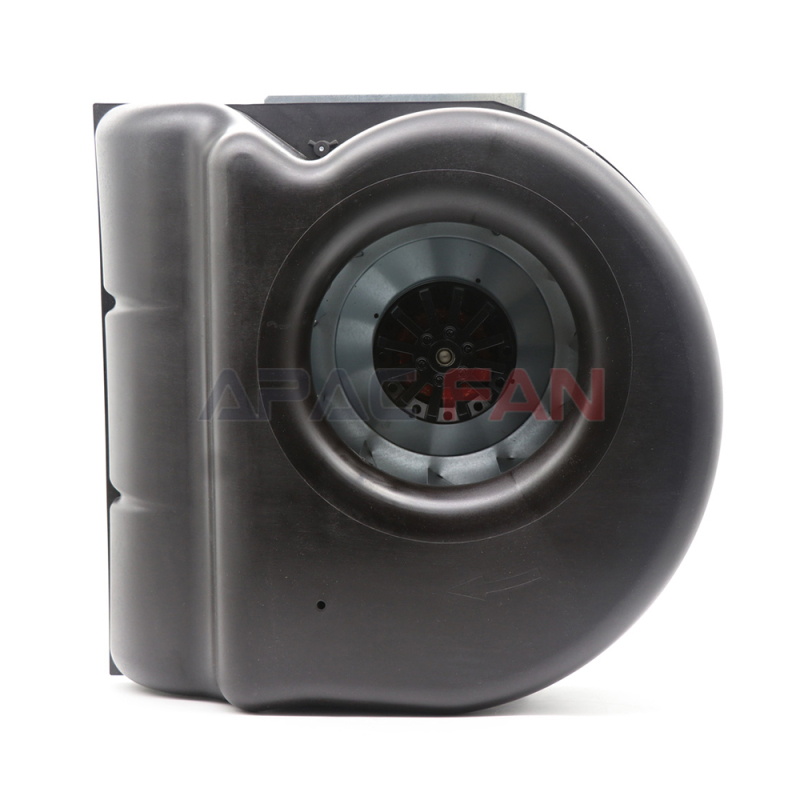

backward curved with housing (without flange)
| Brand： | ebm-papst |
| Part No： | K2E250-AA01-09 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 250 |
| Max.Air Flow(m³/h)： | N/A |
| Max.Pressure(Pa)： | 1180 |
| Input Power(W)： | 195 |
| Speed(rpm)： | 2450 |
| Noise(dB)： | N/A |
| Mass: | 5.4 kg |
| Surface Of Rotor: | Coated in black |
| Material Of Impeller: | Sheet steel, galvanised |
| Housing Material: | PA plastic |
| Number Of Blades: | 11 |
| Direction Of Rotation: | Clockwise, seen on rotor |
| Type Of Protection: | IP 00 |
| Insulation Class: | "B" |
| Humidity Class: | F1-2 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | None |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Cable Exit: | Variable |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming To Standard: | EN 60335-1 |
| Approval: | CSA C22.2 Nr.77; UL 2111; CCC |
