| Brand： | ebm-papst |

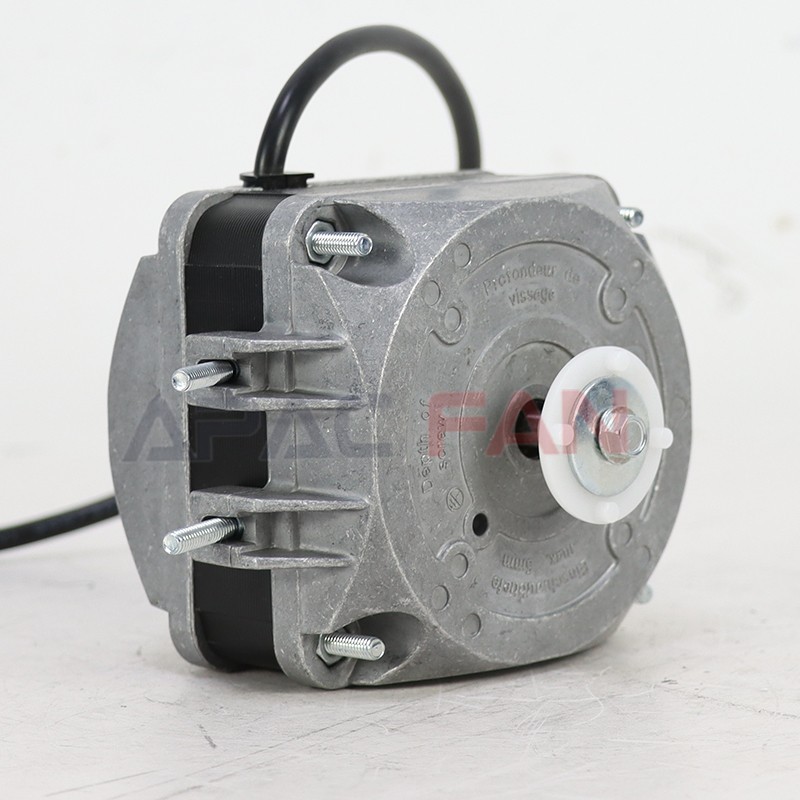

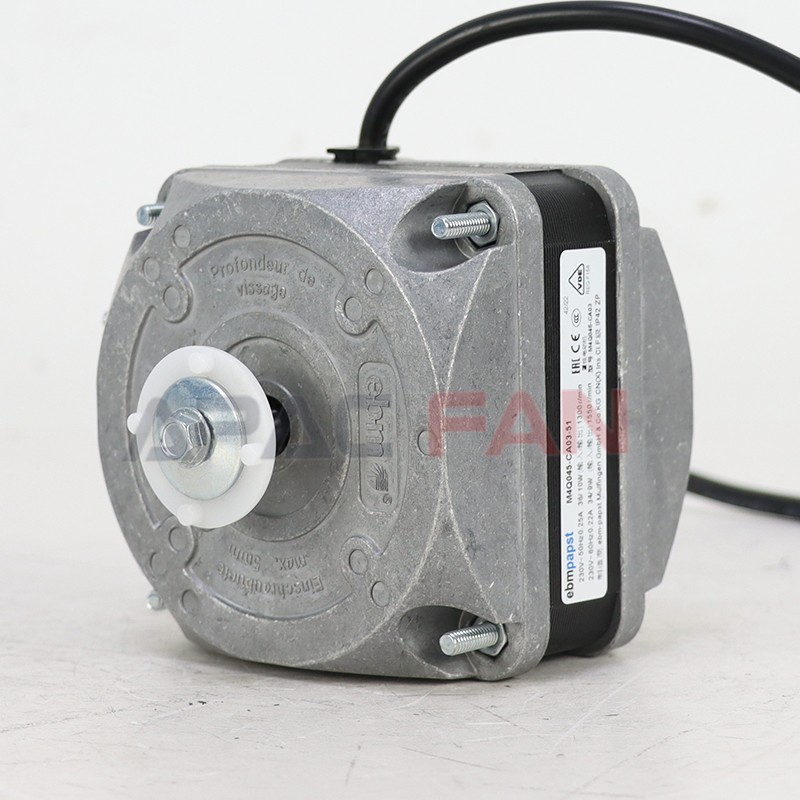

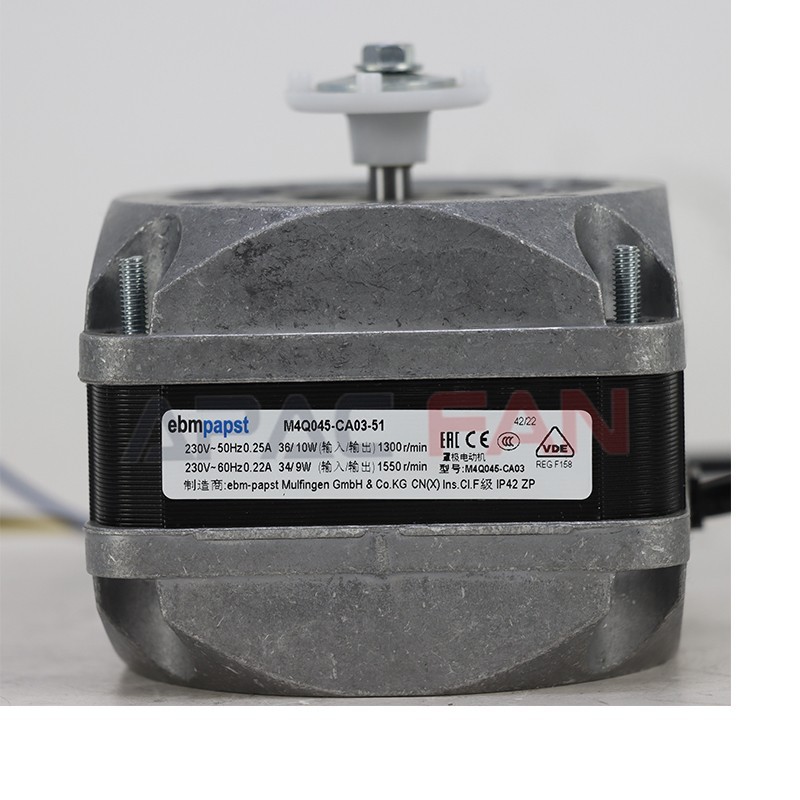

| Part No： | M4Q045-CA03-51/A64 |
| Fan Type： | Motor |
| Rated Voltage(V)： | 230 |
| Input Power(W)： | 34 |
| Speed(rpm)： | 1550 |
| Mass: | 1.1 kg |
| Material of End Shield: | Die-cast aluminium |
| Direction of Rotation: | Counter-clockwise, seen on rotor |
| Type of Protection: | IP 42; Depending on installation and position |
| Insulation Class: | "B" |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Shaft horizontal |
| Condensate Discharge Holes: | None |
| Operation Mode: | S1 |
| Motor Bearing: | Calotte bearing |
| Touch Current acc. IEC 60990 (Measuring Network Fig. 4, TN System): | < 0.75 mA |
| Motor Protection: | Impedance protected |
| Cable Exit: | Lateral |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming to Standard: | EN 60335-1; CE |
| Approval: | VDE |
