FAQ
Q1: Since the MK137-2DK.07.N 135772 motor is compatible with both 230V and 400V three-phase power, are there any differences in its performance (such as torque or power output) when operating at these two voltage levels?
A1: When properly wired for either 230V or 400V, the motor’s core performance (including torque and power output) remains consistent—this is because its design balances winding configuration with voltage to maintain rated output. For example, when wired for 230V (typically delta configuration), the motor’s windings receive more current to compensate for lower voltage; when wired for 400V (typically star configuration), current draw decreases, but voltage increases. Both setups deliver the same power to drive the connected equipment (e.g., a fan), ensuring the load operates as intended. The only practical difference is current draw (lower at 400V), which may influence wire gauge selection during installation—but performance itself does not vary with voltage, as long as wiring follows ZIEHL-ABEGG’s guidelines.
Q2: The motor has a rated voltage of "3~230/400V"—what does this mean for wiring, and can it be switched between the two voltage options after installation?

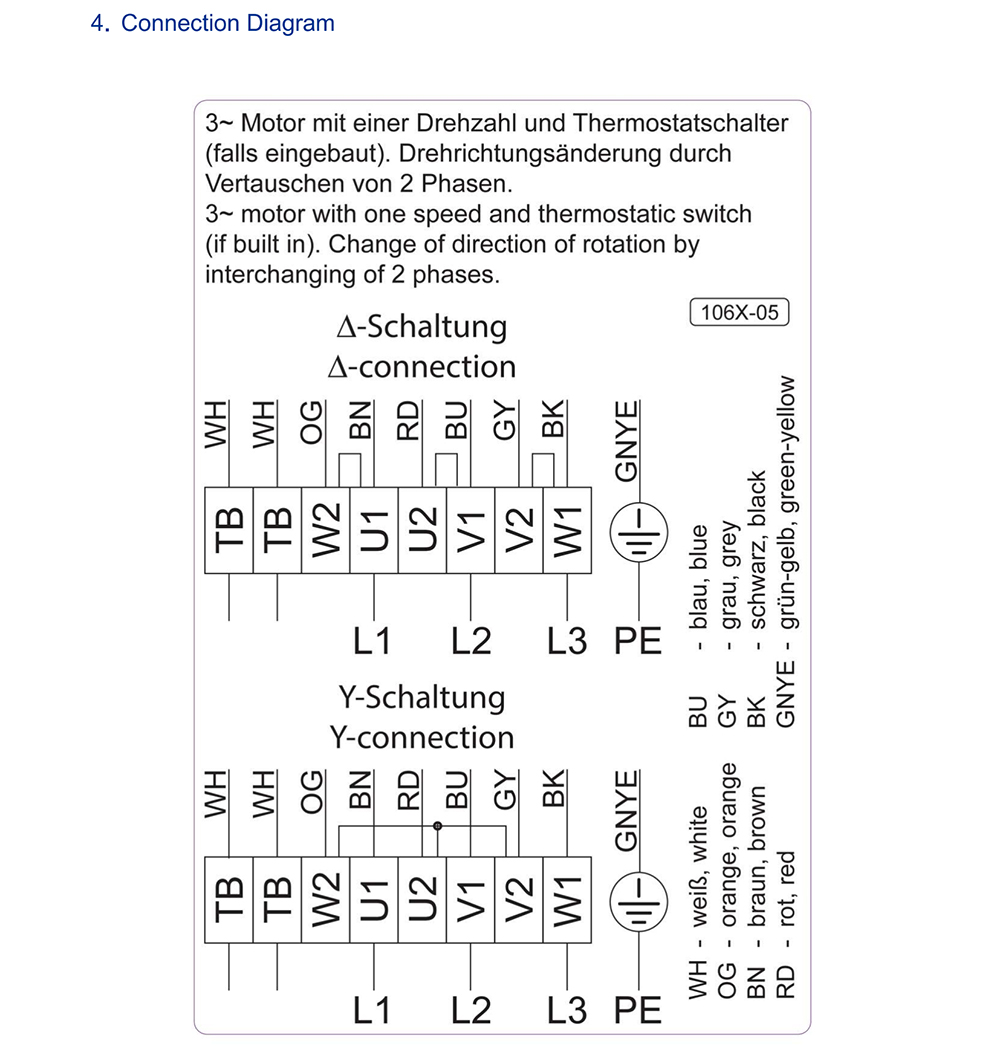

A2: "3~" denotes a three-phase motor, while "230/400V" means it’s compatible with two common three-phase voltage systems (230V for regional industrial setups, 400V as a global commercial/industrial standard). Wiring depends on the site’s voltage: during installation, users must configure the motor’s terminal block to match either 230V or 400V (following ZIEHL-ABEGG’s wiring diagram—e.g., connecting windings in delta for 230V or star for 400V). However, it cannot be switched between voltages after installation without rewiring the terminal block (a task requiring electrical expertise to avoid motor damage from voltage mismatch).
Q3: With a speed of 2830rpm, what does this indicate about the motor’s design, and how does it impact the performance of the equipment it powers?
A3: 2830rpm is a high-speed rating for an industrial motor, close to the 3000rpm synchronous speed of 50Hz three-phase power (the slight difference is due to "slip" in induction motors). This speed indicates the motor is designed for equipment needing fast, consistent rotation—for example, a fan requiring high airflow (faster impeller rotation = more air moved) or a pump needing high fluid flow. For a connected fan, 2830rpm ensures it can deliver strong airflow/pressure (e.g., a centrifugal fan moving 2500+ m³/h) without relying on gearboxes, simplifying the equipment’s design and reducing maintenance needs.
Q4: For users installing the MK137-2DK.07.N 135772 motor to replace a faulty one, what key specs must they match to ensure compatibility with the existing equipment?

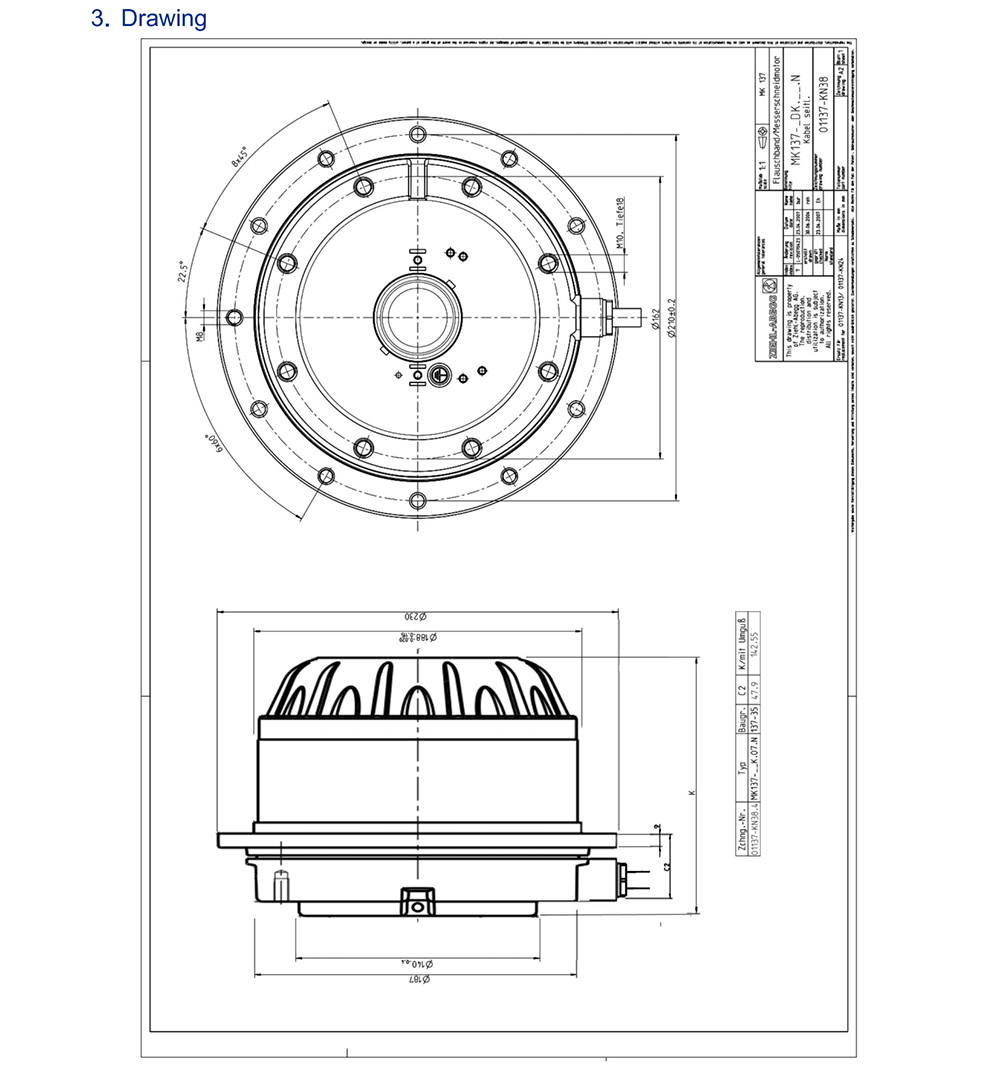

A4: Three critical specs must align for compatibility: First, voltage and phase: the existing equipment’s power supply must be three-phase 230V or 400V (matching the motor’s rating) to avoid electrical damage. Second, speed: the replacement motor’s 2830rpm must match the faulty motor’s speed—if the equipment (e.g., a fan) relies on a specific rpm to meet performance needs (e.g., airflow, pressure), a slower/faster motor will cause underperformance or overload. Third, mounting and shaft dimensions: the motor’s physical mounting (e.g., flange type, bolt pattern) and shaft size (diameter, length) must match the existing setup to ensure it connects securely to the equipment’s load (e.g., fan impeller) without alignment issues.
Q5: What safety precautions are essential when installing or maintaining the MK137-2DK.07.N 135772 motor, given its three-phase design and high speed?
A5: Safety is critical due to its three-phase power and 2830rpm speed: 1) Electrical safety: Always disconnect three-phase power before wiring or maintenance—three-phase systems carry higher current than single-phase, increasing shock risk. Use a voltage tester to confirm power is off. 2) Mechanical safety: When the motor is running, ensure the shaft and connected load (e.g., fan impeller) are guarded to prevent contact with rotating parts (2830rpm can cause severe injury). 3) Load alignment: Ensure the motor shaft is properly aligned with the equipment load—misalignment causes vibration, which damages the motor bearings and reduces lifespan. 4) Overload protection: Install a three-phase overload relay to shut down the motor if it draws excess current (e.g., from a jammed load), preventing overheating and motor burnout.
