R2E133-BH66-05 ebm-papst

1. Brand Background

As a world-renowned fan and motor manufacturer, ebm-papst has more than 70 years of rich experience in the field of ventilation and drive technology. The company has always been committed to innovative research and development, and has established a good brand reputation worldwide with advanced technology, strict quality control and excellent product performance. Its products are widely used in many fields such as ventilation and air conditioning, refrigeration equipment, automobiles, industrial automation, etc., providing efficient, energy-saving and reliable ventilation solutions for various industries. R2E133-BH66-05 centrifugal fan is the crystallization of ebm-papst brand technical strength and innovative spirit.

2. Detailed parameter analysis

Fan type: R2E133-BH66-05 is a centrifugal fan. The working principle of the centrifugal fan is to drive the impeller to rotate at high speed through the motor, so that the gas is thrown out radially along the impeller under the action of centrifugal force, thereby realizing the gas transportation. Compared with axial flow fans, centrifugal fans have a higher pressure coefficient and are suitable for ventilation systems that need to overcome greater resistance.

Rated voltage (V): The rated voltage of this fan is 230V. This voltage setting meets the power supply standards of most industrial and commercial sites, making it convenient for users to install and use in a conventional power environment without the need for additional voltage conversion equipment, reducing the cost of use and installation complexity.

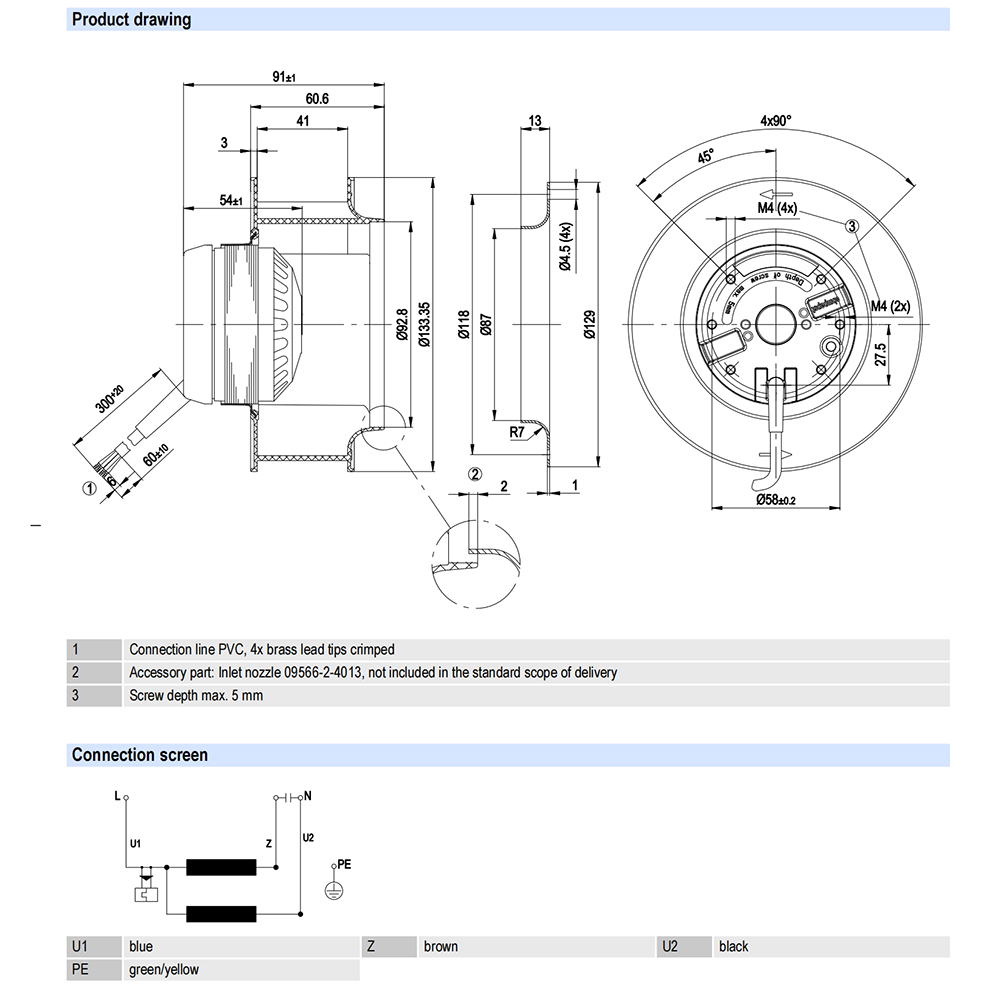

Size (mm): The size of the fan is 133 mm, where the size usually refers to the diameter of the fan impeller. The moderate size design allows it to adapt to a variety of space installation requirements while ensuring sufficient ventilation, whether it is a compact internal space of the equipment or a larger-scale ventilation duct system.

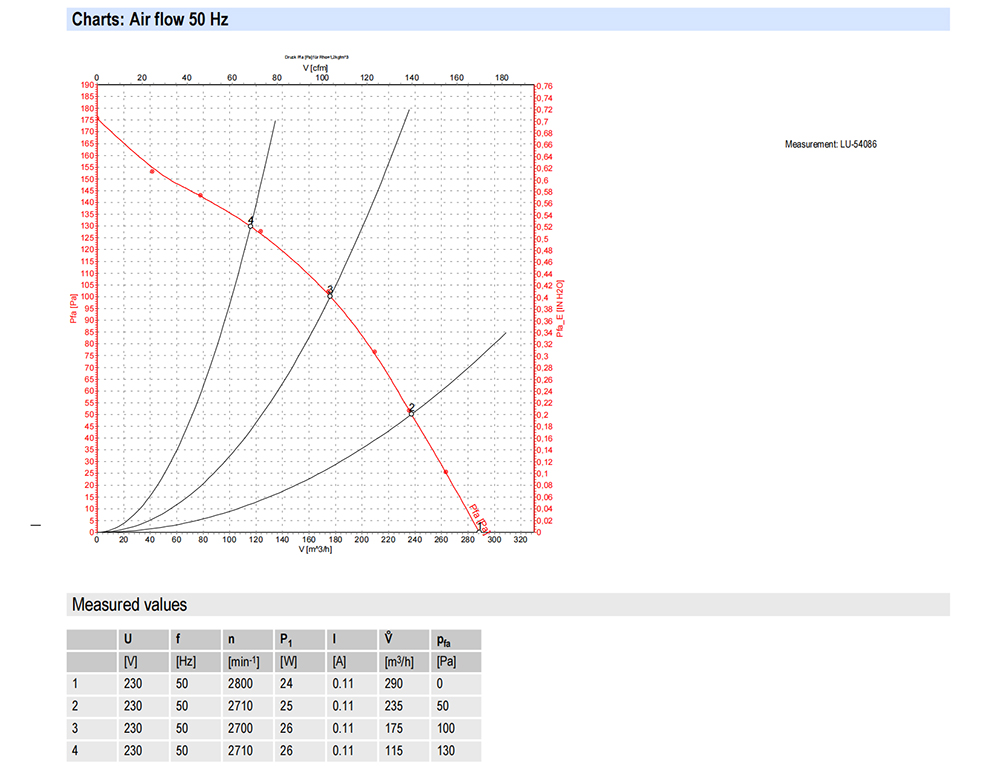

Maximum air volume (m³/h): The maximum air volume of R2E133-BH66-05 can reach 290m³/h. Air volume is an important indicator to measure the ventilation capacity of the fan. This air volume level can meet the needs of many medium-sized ventilation scenarios, such as heat dissipation ventilation of small equipment, air circulation in local areas, etc., ensuring that sufficient air volume can be delivered per unit time to maintain a good air environment.

Maximum pressure (Pa): The maximum pressure of the fan is 130Pa. The pressure parameter determines the fan's ability to overcome pipeline resistance and transport gas. For some systems with long ventilation ducts and large resistance, higher pressure can ensure that the gas is smoothly transported to the designated location and ensure the stability of the ventilation effect. The pressure performance of R2E133-BH66-05 enables it to work normally in a variety of complex ventilation environments.

Input power (W): Its input power is 24W, which shows excellent energy-saving characteristics while ensuring good ventilation performance. Lower input power means that in the long-term operation process, it can save a lot of electricity consumption for users and reduce operating costs, which meets the requirements of modern industry for energy saving and consumption reduction.

Speed (rpm): The speed of the fan is 2800rpm. The speed is closely related to the air volume and pressure of the fan. Within a certain range, the higher the speed, the greater the air volume and pressure. The speed setting of R2E133-BH66-05 has been carefully designed to achieve a good balance of air volume, pressure and power at this speed, providing users with efficient and stable ventilation services.

Noise (db): Although "not applicable" is indicated in the parameters, EBM-PAPST uses advanced noise reduction technology and optimized impeller structure in the design and manufacturing process of the fan, which effectively reduces the noise generated by the fan during operation. Even when running at high speed, the noise can be controlled at a low level, creating a relatively quiet working environment for users. It is particularly suitable for places with high noise requirements, such as ventilation auxiliary equipment in offices and hospitals.

3. Unique features

High efficiency and energy saving: As mentioned above, the R2E133-BH66-05 fan achieves high air volume and pressure output with low input power, and has excellent energy efficiency ratio. This is due to EBM-PAPST's advanced motor technology and optimized impeller design, which can maximize the conversion of electrical energy into mechanical energy, reduce energy loss, save users a lot of electricity expenses in long-term operation, and also conform to the development trend of environmental protection and energy saving.

Stable and reliable operation: The fan is made of high-quality materials, and the impeller undergoes strict dynamic balancing tests to ensure smooth operation during high-speed rotation and reduce vibration and wear. The motor has good protection performance, can adapt to different working environments, effectively prevent the intrusion of impurities such as dust and water vapor, and extend the service life of the motor. In addition, the electrical control system inside the fan has perfect protection functions, such as overload protection, short-circuit protection, etc. When the fan is running abnormally, it can cut off the power supply in time to protect the fan equipment from damage and ensure the stable operation of the entire ventilation system.

Easy installation and maintenance: The structural design of the R2E133-BH66-05 fan fully considers the convenience of installation and maintenance. The overall structure of the fan is compact and the weight is moderate, which is easy to carry and install. Its installation interface design meets industry standards and can be quickly connected with common ventilation ducts and equipment. In terms of maintenance, the various components of the fan are easy to disassemble and replace, and users can quickly perform daily maintenance and fault repairs as needed, which reduces maintenance costs and downtime and improves the use efficiency of the equipment.

Wide applicability: Due to its excellent performance parameters and characteristics, the R2E133-BH66-05 centrifugal fan has a wide range of applications. In the industrial field, it can be used for heat dissipation and ventilation of various mechanical equipment, such as distribution boxes, control cabinets, welding machines, etc., to ensure that the equipment operates within the normal temperature range and improve the reliability and stability of the equipment; in the commercial field, it can be used in the ventilation and ventilation systems of restaurants, supermarkets, hotels and other places to keep the indoor air fresh and provide a comfortable environment for customers and employees; in the communication field, it can be used as a heat dissipation fan for equipment such as communication base stations and data centers to ensure the normal operation of communication equipment.

1. Application Cases

Cooling of industrial equipment: During the production process of an electronic equipment manufacturing company, a large number of electronic equipment will generate a lot of heat during operation. If the heat cannot be dissipated in time, it will seriously affect the performance and service life of the equipment. The company selected R2E133-BH66-05 centrifugal fan for heat dissipation and ventilation of the equipment. By reasonably installing the fan on the equipment chassis, an effective heat dissipation duct is formed to quickly discharge the heat inside the equipment. After actual operation tests, the operating temperature of the equipment has been significantly reduced, the stability has been greatly improved, and the equipment failure rate has been significantly reduced, providing a strong guarantee for the normal production of the company.

Ventilation of commercial places: A restaurant located in a bustling urban area, due to the relatively closed space, the indoor air is prone to become turbid during the peak dining period. In order to improve the dining environment, the restaurant installed R2E133-BH66-05 centrifugal fans as ventilation equipment. The fans bring fresh air from the outside into the room, and at the same time exhaust the odor and dirty air in the room, so that the air in the restaurant is always fresh. Customers reported that the dining experience has been greatly improved, and the restaurant's customer flow has also increased.

Heat dissipation of communication base stations: In a certain communication base station, due to the large number of equipment in the base station and 24-hour uninterrupted operation, the heat dissipation problem has become a key factor affecting the normal operation of the base station. The original heat dissipation system was not effective, resulting in frequent overheating alarms in the equipment. After upgrading the heat dissipation system with R2E133-BH66-05 centrifugal fans, the fan's powerful ventilation capacity effectively reduced the temperature in the base station, the equipment's operating stability was significantly improved, and the number of overheating alarms was greatly reduced, ensuring the reliable operation of the communication base station and reducing maintenance costs.

In summary, ebm-papst's R2E133-BH66-05 centrifugal fan has become an excellent product in the field of ventilation and heat dissipation with its excellent parameter performance, unique product characteristics and wide application fields. Whether in industrial production, commercial operation or communication guarantee, it can provide users with efficient, energy-saving and stable ventilation solutions to help the sustainable development of various industries. In the future, with the continuous advancement of technology and the continuous expansion of application needs, it is believed that the R2E133-BH66-05 fan will play an important role in more fields and create greater value for users.
