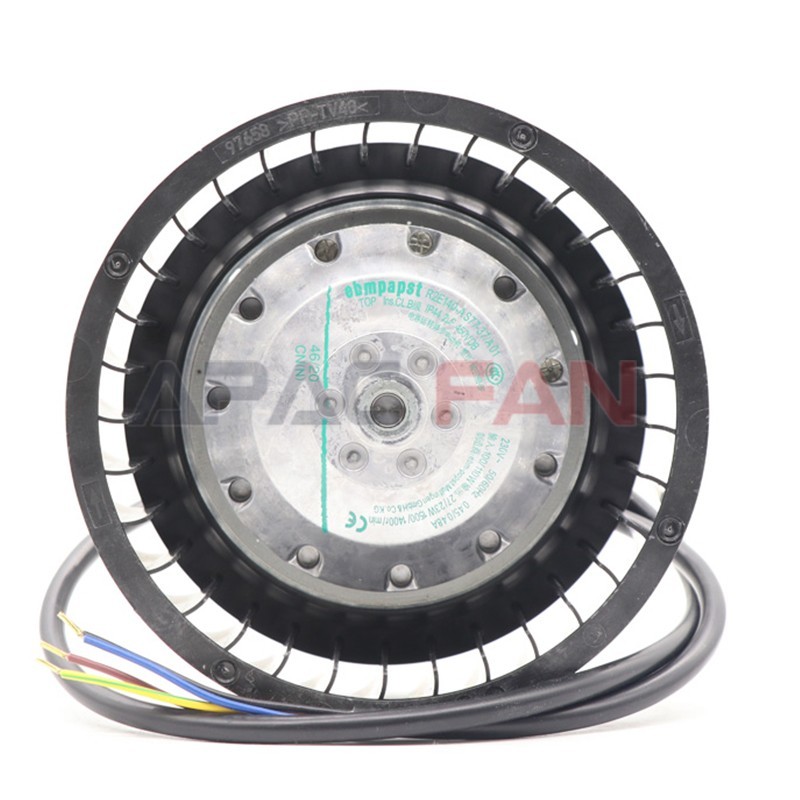

AC centrifugal fan, forward-curved, single-intake
| Brand: | ebm-papst |
| Part No: | R2E140-AS77-37/A01 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 230 |
| Size(mm): | 140 |
| Input Power(W): | 110 |
| Speed(RPM): | 1400 |
| Weight: | 1.2 kg |
| Motor Size: | 68 |
| Impeller Material: | PP plastic |
| Direction Of Rotation: | Clockwise, viewed toward rotor |
| Degree Of Protection: | IP44; installation- and position-dependent |
| Insulation Class: | "B" |
| Moisture (F) / Environmental (H) Protection Class: | H0 - dry environment |
| Max. Permitted Ambient Temp. For Motor (transport/storage): | + 80 °C |
| Min. Permitted Ambient Temp. For Motor (transport/storage): | - 40 °C |
| Installation Position: | Any |
| Condensation Drainage Holes: | None |
| Mode: | S1 |
| Motor Mounting: | Ball bearing |
| Touch Current According To IEC 60990 (measuring circuit Fig. 4, TN system): | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) internally connected |
| With Cable: | Variable |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity With Standards: | CCC |
