R2E250-AL05-16 fan: in-depth analysis of parameters and features

In the fan market, ebm-papst's R2E250-AL05-16 fan plays a key role in many applications due to its unique performance and design. Next, we will analyze the various parameters and significant features of this centrifugal fan in depth.

Brand background and product positioning

As a world-renowned fan manufacturer, ebm-papst has always been known for its innovative technology and excellent quality. The R2E250-AL05-16 fan is a centrifugal fan carefully built by it to meet the needs of various equipment and environments with high ventilation and pressure requirements. Whether it is large-scale equipment in industrial production or ventilation systems in commercial buildings, it can show excellent performance.

Key parameter details

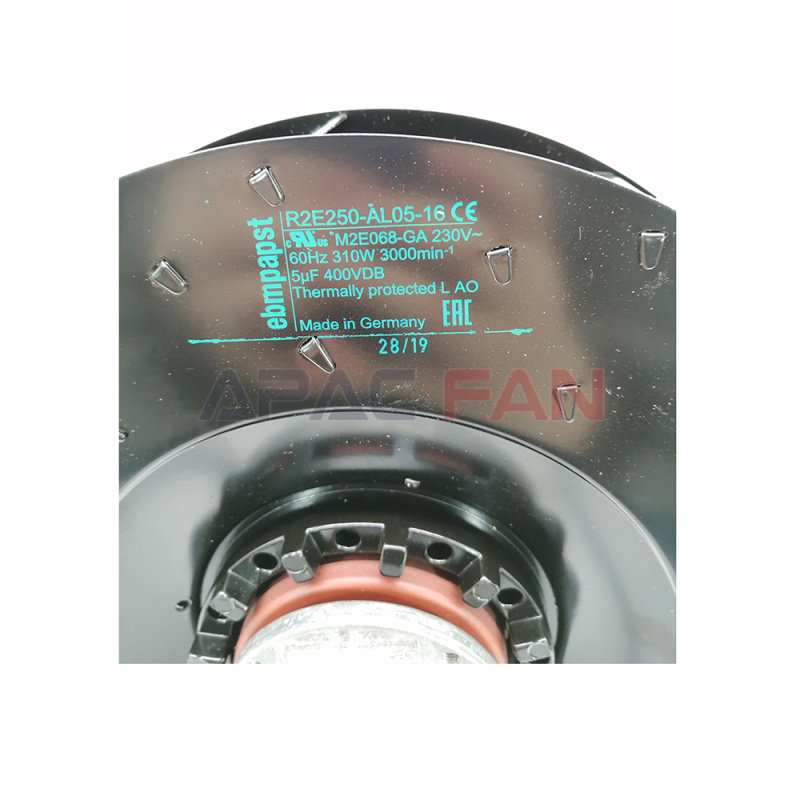

Rated voltage: The rated voltage of 230V is the power guarantee for the stable operation of the fan. This common industrial and commercial power voltage allows the fan to be easily connected to various conventional power supply systems without the need for complex voltage conversion devices, reducing the cost of use and the complexity of the electrical system, and providing convenience for wide application.

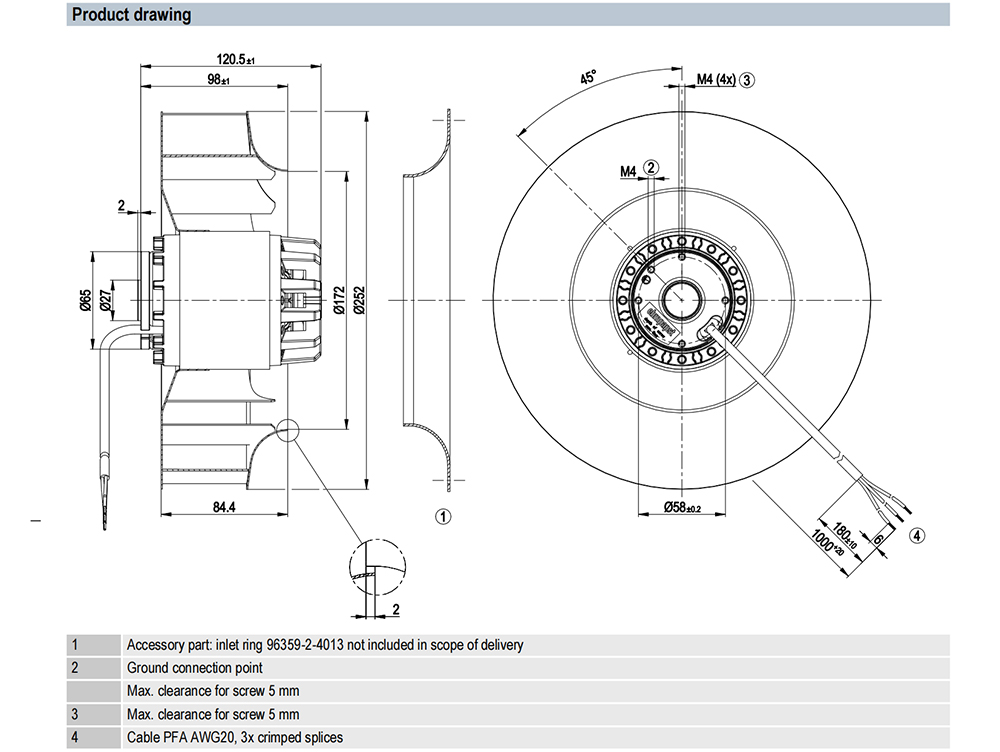

Size: The 250 mm size design takes into account the performance and installation space requirements of the fan. The moderate size ensures that there is enough space inside the fan to accommodate key components such as efficient impellers and motors to achieve good ventilation and pressure output, while not taking up too much installation space, so that it can be flexibly adapted to various equipment and places, whether it is inside compact mechanical equipment or in the ventilation duct system of large buildings, it can find a suitable installation location.

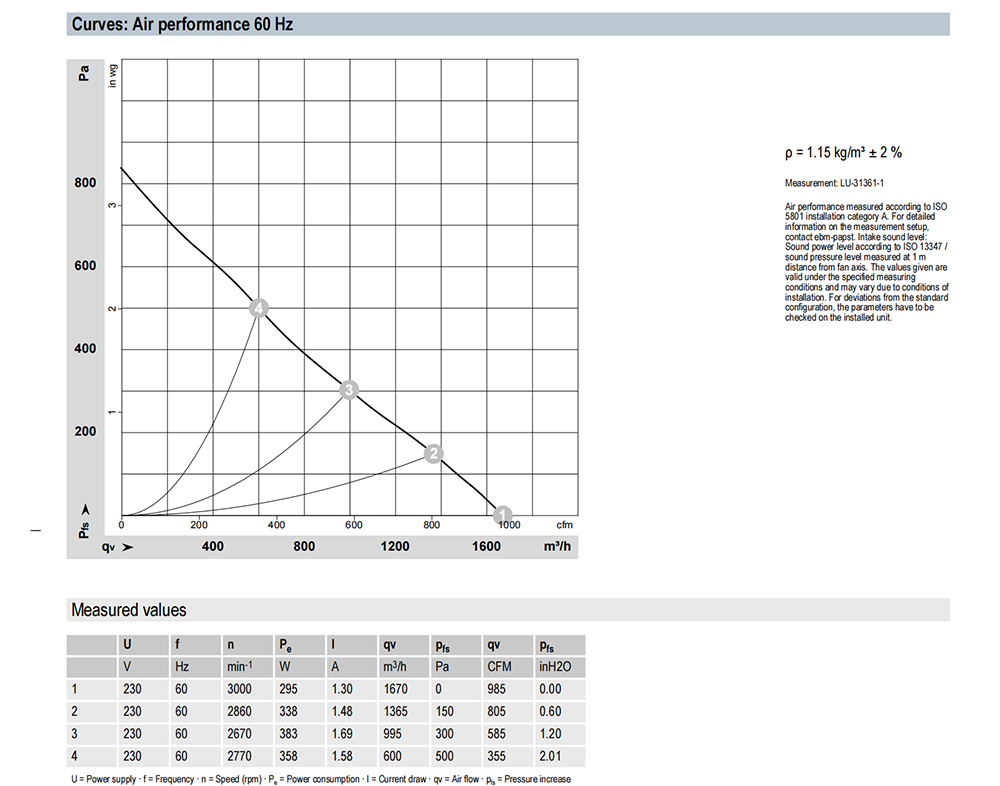

Maximum air volume: The maximum air volume of up to 1670m³/h fully demonstrates the powerful ventilation capacity of the fan. Such a large air volume can quickly replace a large amount of air in a short time, which is extremely important for scenes that require rapid heat dissipation and ventilation. For example, in large data centers, many servers continuously run and generate a lot of heat. The R2E250-AL05-16 fan can exhaust hot air in time with its large air volume characteristics, create a cool operating environment for the server, and ensure the stable operation of the data center.

Maximum pressure: The maximum pressure of 500Pa reflects the fan's excellent ability to overcome ventilation resistance. When there are bends in the ventilation path, the pipeline is long, or long-distance air supply is required, the fan needs sufficient pressure to drive the air flow. The fan can effectively overcome various resistances in a complex ventilation system, accurately deliver air to the designated location, and ensure the stability and reliability of the ventilation effect.

Input power: The input power of 310W achieves a relatively ideal energy efficiency ratio while ensuring powerful performance. Compared with some high-power but low-efficiency fans, it provides considerable air volume and pressure while consuming relatively less electricity, saving users long-term energy costs. Especially in some places where fans need to run continuously for a long time, such as industrial production workshops and ventilation systems in commercial buildings, the advantage of lower energy consumption is more obvious.

Speed: The high speed of 3000rpm is one of the key factors for the fan to achieve large air volume and high pressure output. The high-speed rotating impeller can quickly convert electrical energy into kinetic energy of air and drive a large amount of air flow. The stable high speed ensures the stability and continuity of the fan output airflow, providing reliable protection for equipment and environments with high requirements for ventilation stability.

Noise: Although the noise parameter is marked as not applicable, it does not mean that the fan will produce unacceptable noise during operation. In the fan design process, ebm-papst effectively reduced the noise level of the fan during operation by optimizing the impeller shape, adopting advanced motor noise reduction technology and reasonable structural design. Even in places that are more sensitive to noise, such as hospitals and offices, as long as it is reasonably installed and used, the fan can meet the environmental noise requirements.

Unique design features

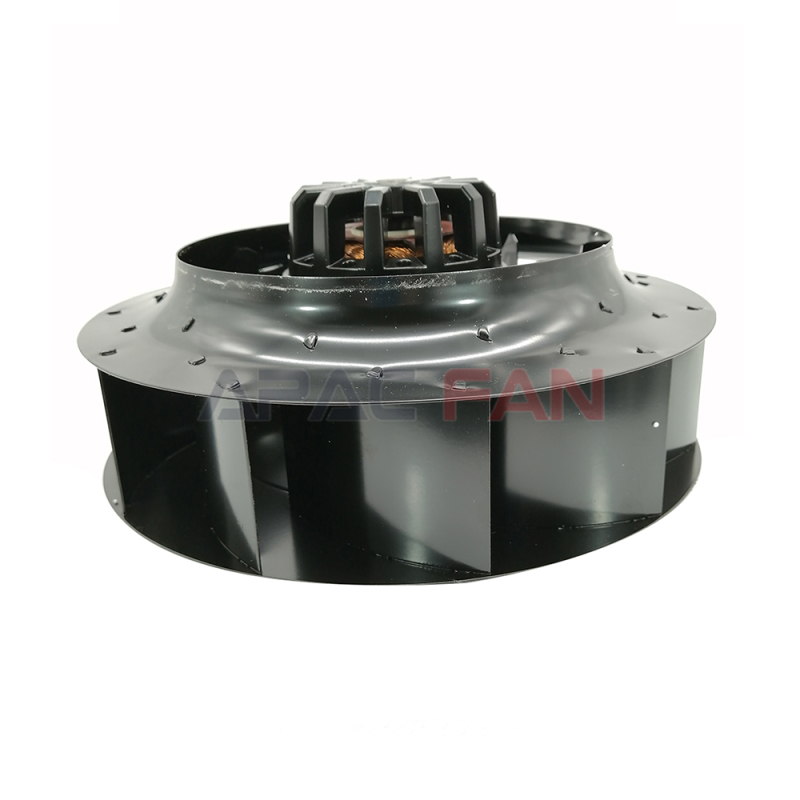

Centrifugal fan structure: As a centrifugal fan, its working principle is based on centrifugal force. The motor drives the impeller to rotate at high speed, so that the air entering the fan is thrown out along the radial direction of the impeller under the action of centrifugal force, thereby generating a strong airflow. This structural design enables the fan to provide a certain amount of air output while providing a higher pressure, and is suitable for a variety of complex ventilation scenarios. The impeller is usually designed with a special blade shape and angle, and is optimized through precise aerodynamic calculations and tests to ensure that it can efficiently promote air flow when rotating at high speeds, thereby improving the overall performance of the fan.

High-efficiency motor configuration: The R2E250-AL05-16 fan is equipped with a high-efficiency motor independently developed by ebm-papst. The motor uses high-quality electromagnetic materials and advanced manufacturing processes, and has a high power factor and operating efficiency. The stability and reliability of the motor have been rigorously tested and verified, and it can maintain good performance during long-term continuous operation, reducing the fan downtime caused by motor failure and improving the overall operating stability of the equipment. At the same time, the design of the motor fully considers the matching with the fan impeller to ensure that the two work together to achieve the best ventilation effect.

Optimized aerodynamic design: The fan casing and impeller have been carefully aerodynamically optimized. The shape design of the casing can guide the air to flow in and out of the fan smoothly, reducing resistance and turbulence during air flow. The shape and number of impeller blades are precisely calculated and tested to ensure uniform and stable airflow at high speeds, further improving the fan's air volume and pressure performance while reducing noise and energy consumption. For example, the leading and trailing edges of the blades are designed with special curves to reduce the separation and vortex formation of air on the blade surface and improve the efficiency of air flow.

In summary, the R2E250-AL05-16 fan occupies an important position in the fan field with its excellent parameter performance and unique design features. Whether in industrial production, commercial buildings, or other fields that require ventilation, it can provide users with efficient and reliable ventilation solutions. In subsequent articles, we will delve into its application in different scenarios and its operation and maintenance.
