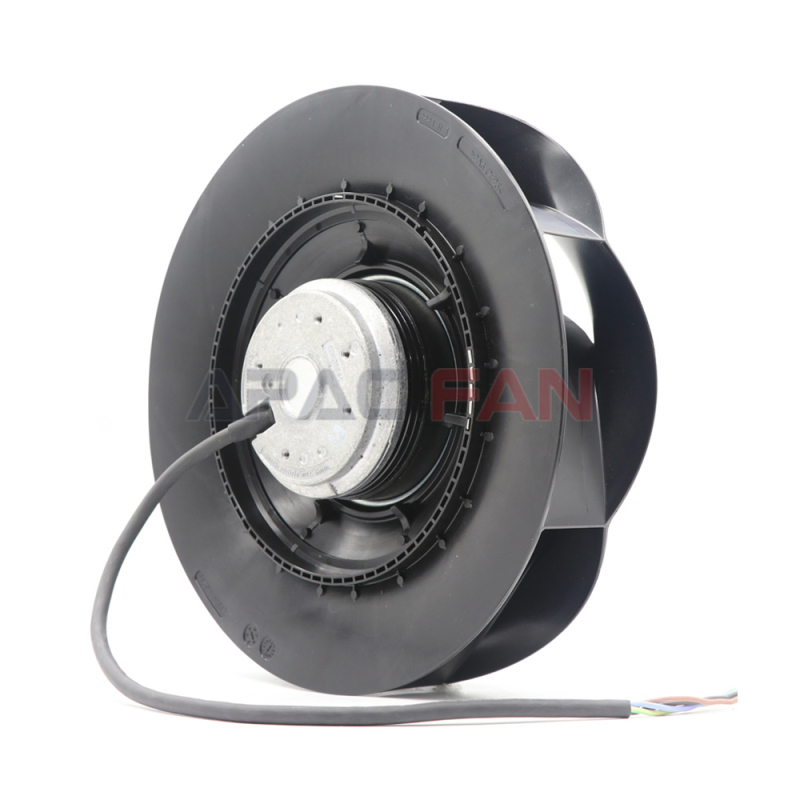

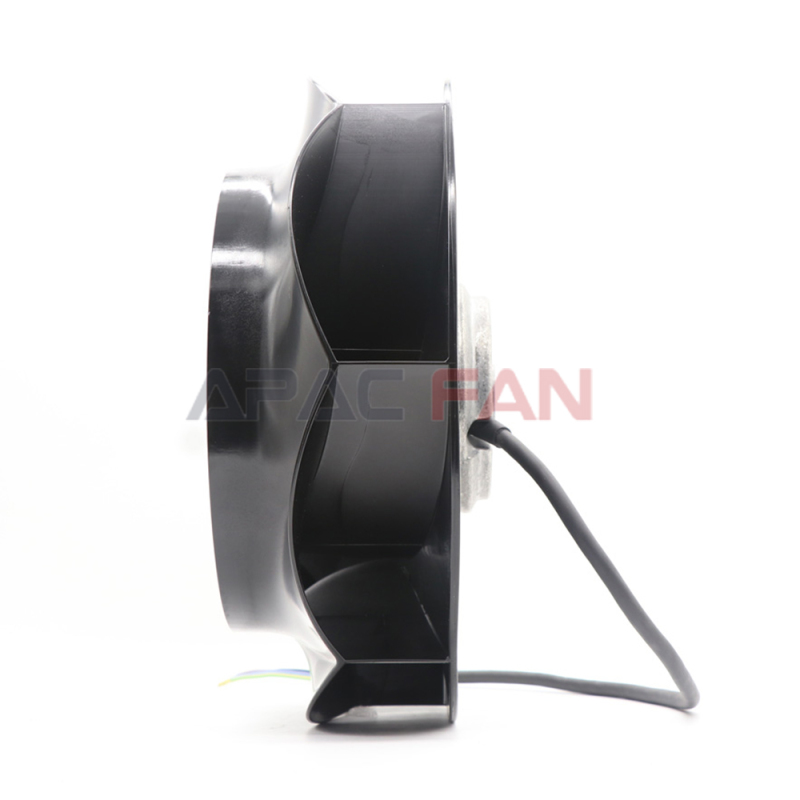

R2E250-RA50-01 ebm-papst

• Parameter interpretation

（1） Rated voltage

The rated voltage of R2E250-RA50-01 centrifugal fan is 230V. This voltage specification enables it to be compatible with most common industrial and civilian power systems. In industrial production, the power supply system of many equipment usually uses 230V voltage. The fan can be directly connected without the need for additional voltage conversion equipment, simplifying the installation and use process. In civil buildings such as shopping malls and office buildings, a voltage of 230V can also meet their normal operation needs, ensuring the universality and stability of fans in different environments.

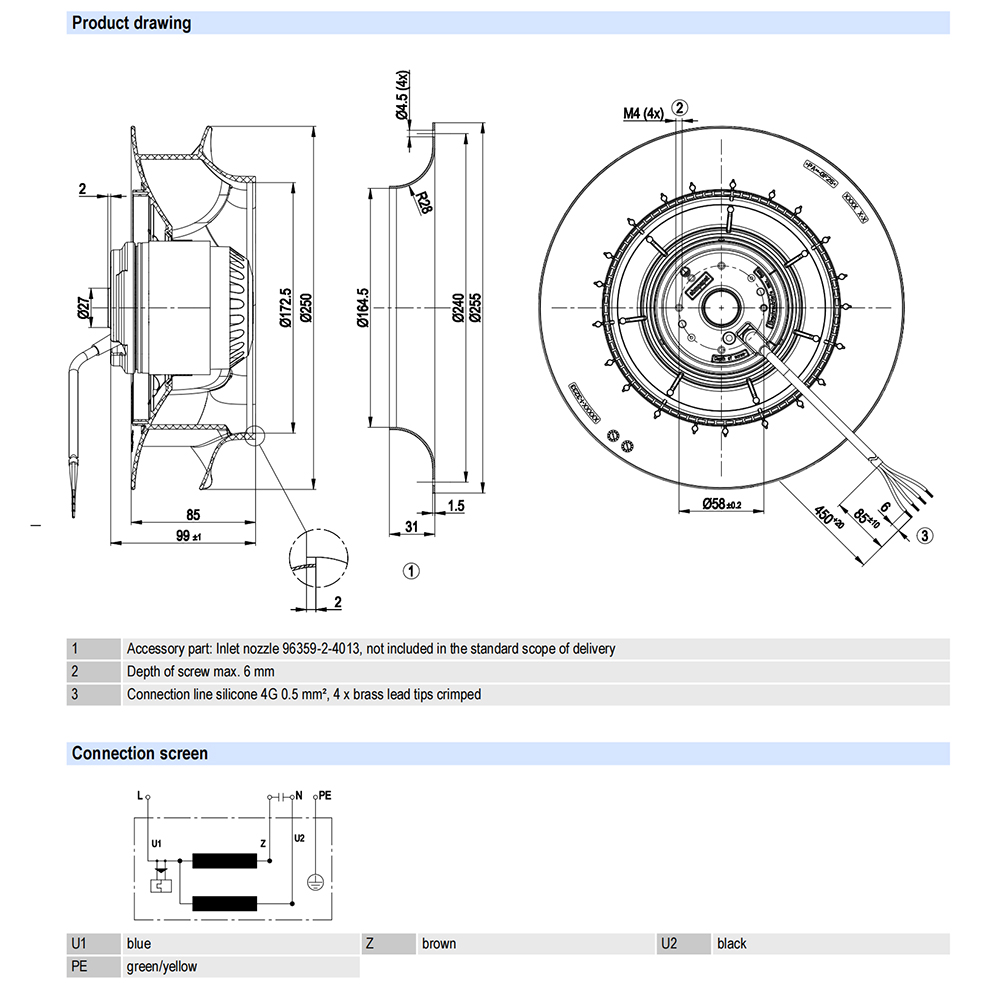

（2） Size specifications

The size of the fan is 250 millimeters. This moderate size design gives it some flexibility in terms of installation space. Compared to large centrifugal fans, the 250mm size is more convenient for installation in equipment or places with relatively limited space, such as small industrial control cabinets, ventilation duct branches, etc. Meanwhile, compared with small fans, it has greater ventilation capacity and pressure output, which can meet the ventilation needs of more scenarios and provide a wider range of possibilities in the layout and selection of ventilation equipment.

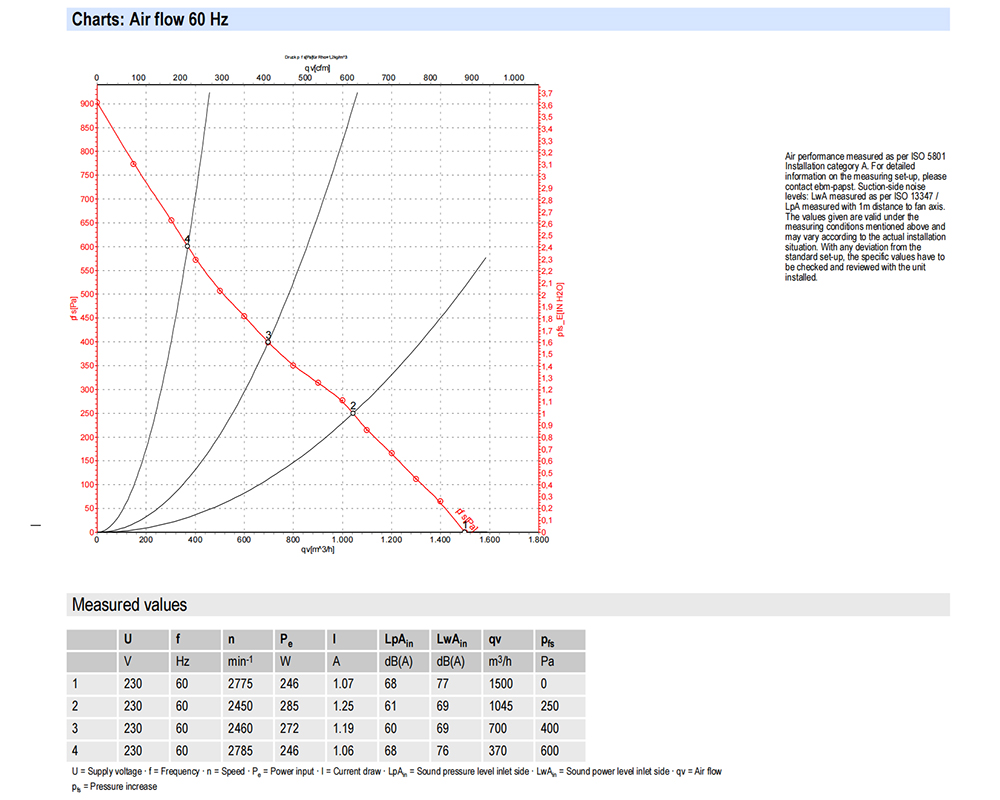

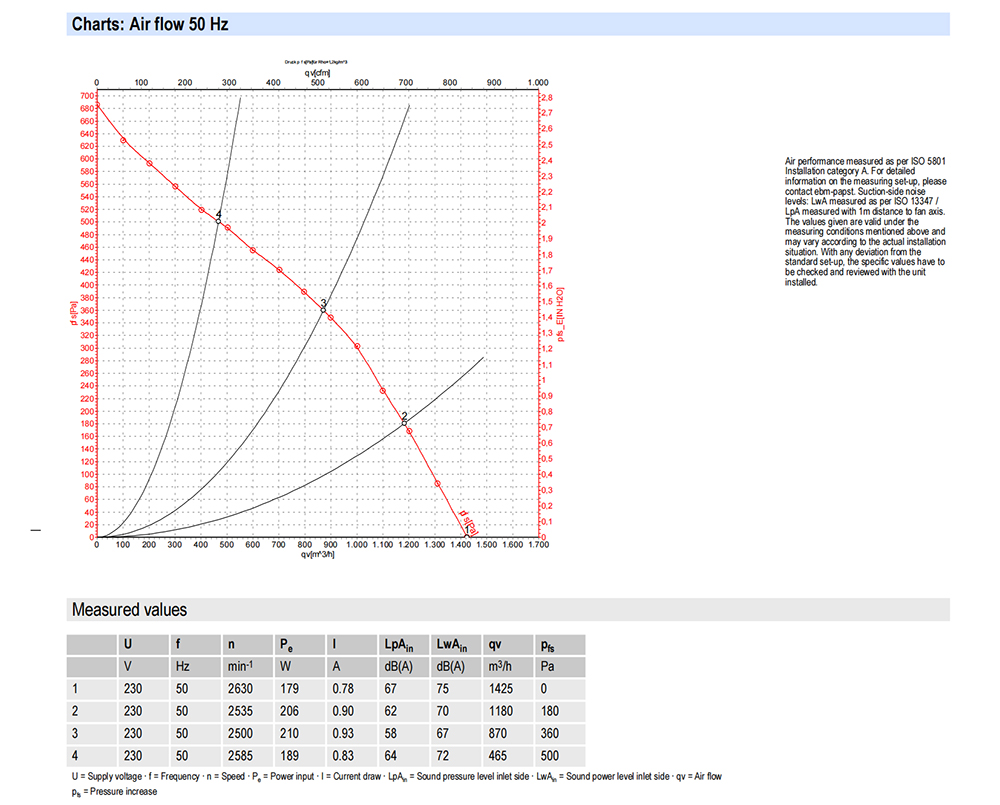

（3） Maximum air volume

The maximum air volume can reach 1425 cubic meters per hour. This outstanding air volume performance enables it to quickly and effectively achieve air circulation and exchange. In large workshops, warehouses, and other spacious places, this fan can quickly discharge a large amount of polluted air and introduce fresh air, improving indoor air quality. For areas where heating equipment is concentrated, such as server rooms in data centers, an air volume of 1425 cubic meters per hour can promptly remove the heat generated by the equipment, ensuring that the equipment operates at a suitable temperature and improving its stability and service life.

（4） Maximum pressure

The maximum pressure is 500Pa. A higher pressure means that the fan can overcome greater ventilation resistance. In ventilation systems, there may be longer ventilation ducts, multiple bends, air filters, and other components that increase the resistance to air flow. The R2E250-RA50-01 centrifugal fan has a maximum pressure of 500Pa, which ensures that air can flow smoothly in these complex ventilation environments and maintain a stable ventilation effect. This fan is capable of handling both industrial ventilation systems and commercial spaces that require high ventilation pressure.

（5） Input power

The input power is 210W. Under the condition of ensuring high wind capacity and high-pressure output, the input power of 210W is at a relatively reasonable level. Compared with fans of similar performance, it has certain advantages in energy utilization efficiency. Lower input power not only saves users long-term electricity expenses and reduces operating costs, but also conforms to the current trend of energy conservation and emission reduction, reducing energy consumption and improving energy utilization efficiency.

（6） Rotational speed

The rotational speed is 2650rpm. Moderate rotational speed is one of the important factors for achieving high air volume and high pressure. The speed of 2650rpm enables the impeller of the fan to rotate rapidly, accelerating the flow of air and generating sufficient air volume and pressure. At the same time, this speed has also been carefully designed and optimized, effectively controlling the generation of noise and vibration while ensuring the performance of the fan, ensuring the stability and reliability of the fan during operation.

（7） Noise situation

The noise level is 58dB. Although the noise level of 58dB is relatively high compared to some silent devices, it is acceptable in the field of centrifugal fans, especially for high air volume and high pressure fans. Moreover, ebm-papst has adopted a series of noise reduction measures in the design and manufacturing process, such as optimizing the impeller shape and improving the motor structure, to minimize the noise during fan operation as much as possible. In practical applications, through reasonable installation and layout, such as installing sound insulation materials and installing fans in areas far away from personnel work, the impact of noise on the surrounding environment can be further reduced.

• Characteristic analysis

（1） Efficient Aerodynamic Design

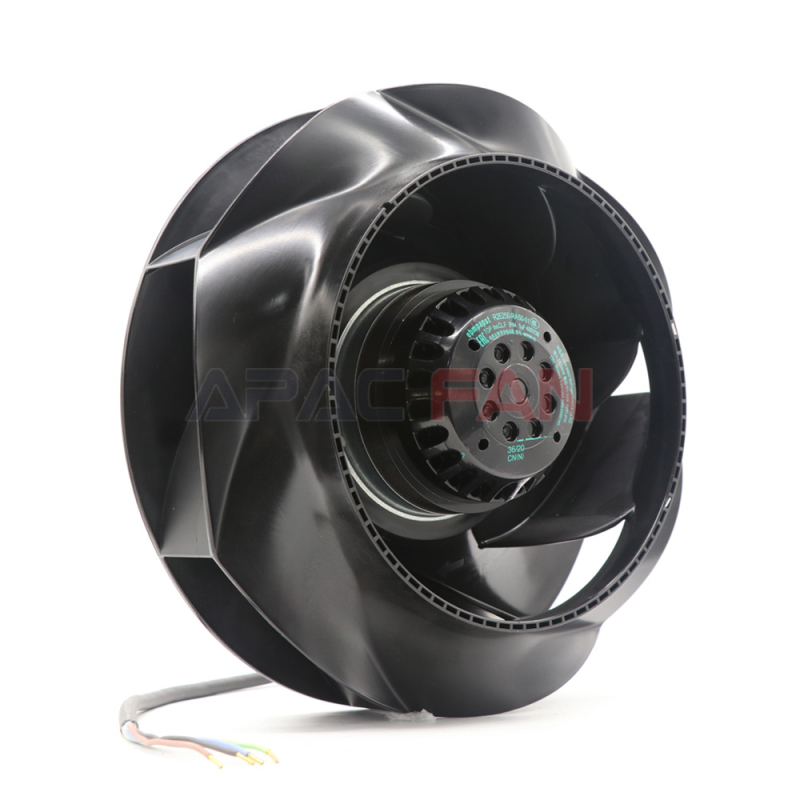

The R2E250-RA50-01 centrifugal fan is designed using advanced aerodynamic principles. The shape and blade angle of the impeller are precisely calculated and optimized to create an efficient airflow channel for air passing through the impeller, reducing energy loss in the airflow. The backward curved blade design allows air to flow more smoothly after entering the impeller, improving the efficiency of air kinetic energy conversion and achieving high air volume and high pressure output. At the same time, this aerodynamic design also reduces turbulence and eddies in the airflow, reduces noise generation, and improves the operational efficiency and stability of the fan.

（2） High quality materials and exquisite craftsmanship

All components of the fan are made of high-quality materials. The impeller is made of high-strength aluminum alloy material, which has good strength and toughness, and can withstand the huge centrifugal force generated during high-speed rotation, ensuring the long-term stable operation of the impeller. The motor adopts high-quality copper windings and high-performance permanent magnets, which have the characteristics of high efficiency and stability, and can efficiently convert electrical energy into mechanical energy, providing strong power support for the operation of the fan. The casing of the fan is made of sturdy and durable steel, which has been finely processed and surface treated to have good corrosion resistance and protective performance, and can adapt to various harsh working environments.

In terms of manufacturing process, ebm-papst adopts advanced production technology and strict quality control system. The impeller is manufactured through precision casting and machining processes, ensuring the shape and dimensional accuracy of the blades, and improving the balance and stability of the impeller. The assembly process of the motor is strictly carried out according to high standards, ensuring the performance and reliability of the motor. The overall assembly of the fan has also undergone careful debugging and testing to ensure that each fan can meet high-quality standards.

（3） Long lifespan and reliability

The R2E250-RA50-01 centrifugal fan has undergone strict quality inspection and reliability testing. The key components such as the motor and impeller have undergone long-term durability tests and can operate stably under various complex working conditions. The heat dissipation design of the motor is reasonable, which can timely dissipate the heat generated during operation and avoid damage due to overheating. The material and structural design of the impeller enable it to have high fatigue resistance and maintain stable performance under long-term high-speed rotation. In addition, the fan is equipped with various safety protection devices such as overload protection and short circuit protection, further improving the reliability and safety of the fan.

（4） Easy to install and maintain

The structural design of the fan is simple and reasonable, easy to install and maintain. It is equipped with standard installation interfaces and fixing devices, and users can choose the appropriate installation method according to their actual needs, such as horizontal installation, vertical installation, etc. In terms of maintenance, the various components of the fan adopt modular design, making it more convenient and efficient to replace damaged parts. At the same time, key components such as the motor and impeller of the fan have good maintainability, and users can regularly clean and maintain them to extend the service life of the fan. In addition, ebm-papst also provides comprehensive after-sales service, providing timely solutions for problems encountered by users during use.

The R2E250-RA50-01 centrifugal fan has strong competitiveness in the centrifugal fan market due to its excellent parameter combination and outstanding characteristics. It provides users with an efficient, energy-saving, reliable, and stable ventilation solution that can meet the ventilation needs of different fields and scenarios.
