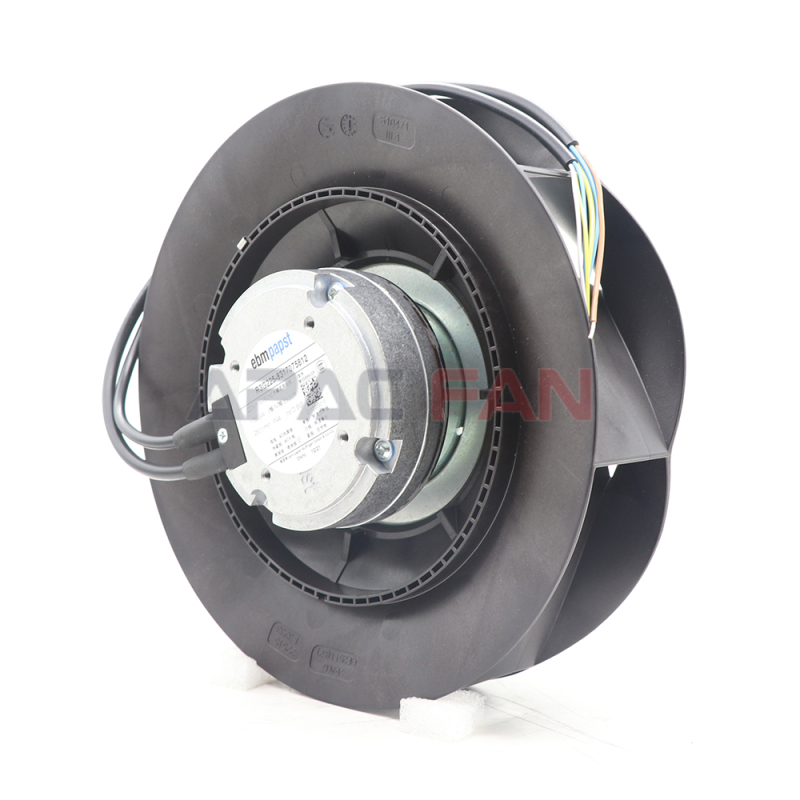

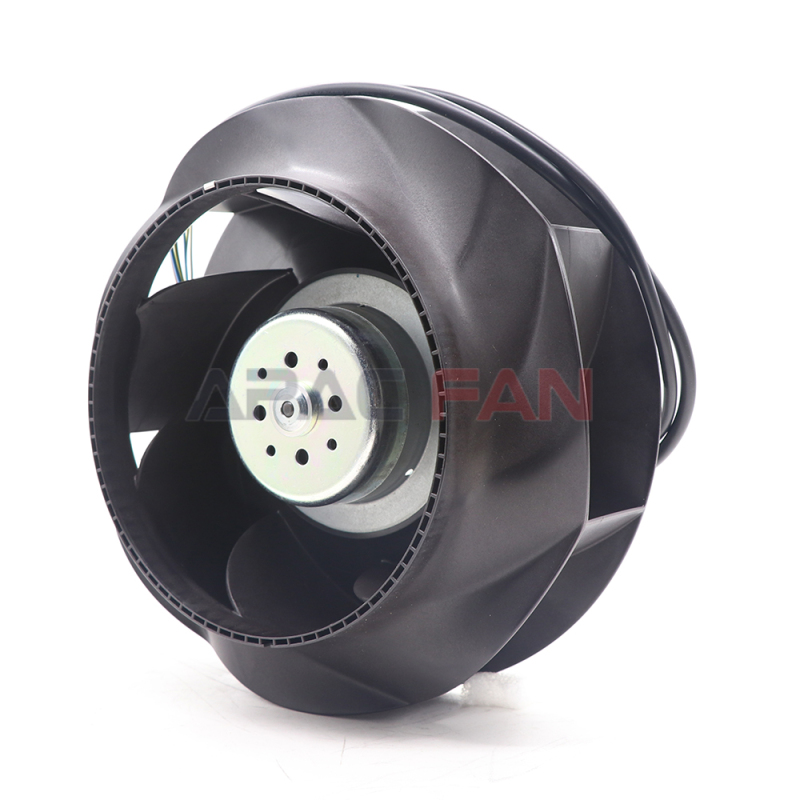

R3G225-8317075812 ebm-papst

R3G225-8317075812 Centrifugal Fan: Parameter Analysis and Characteristic Interpretation

In the centrifugal fan market, ebm-papst's R3G225-8317075812 fan stands out with its unique performance. Below, we will conduct a detailed analysis of the parameters of the fan and interpret its significant characteristics.

• Core parameter analysis

（1） Rated voltage

The rated voltage of R3G225-8317075812 centrifugal fan is 220V, which is a widely used standard voltage worldwide. For most industrial and commercial places, a 220V power supply is common, which eliminates the need for complex voltage conversion during installation and use of the fan, greatly improving its versatility and convenience. Whether in the workshops of small businesses or the ventilation systems of large commercial buildings, it is easy to connect to power and quickly put into use.

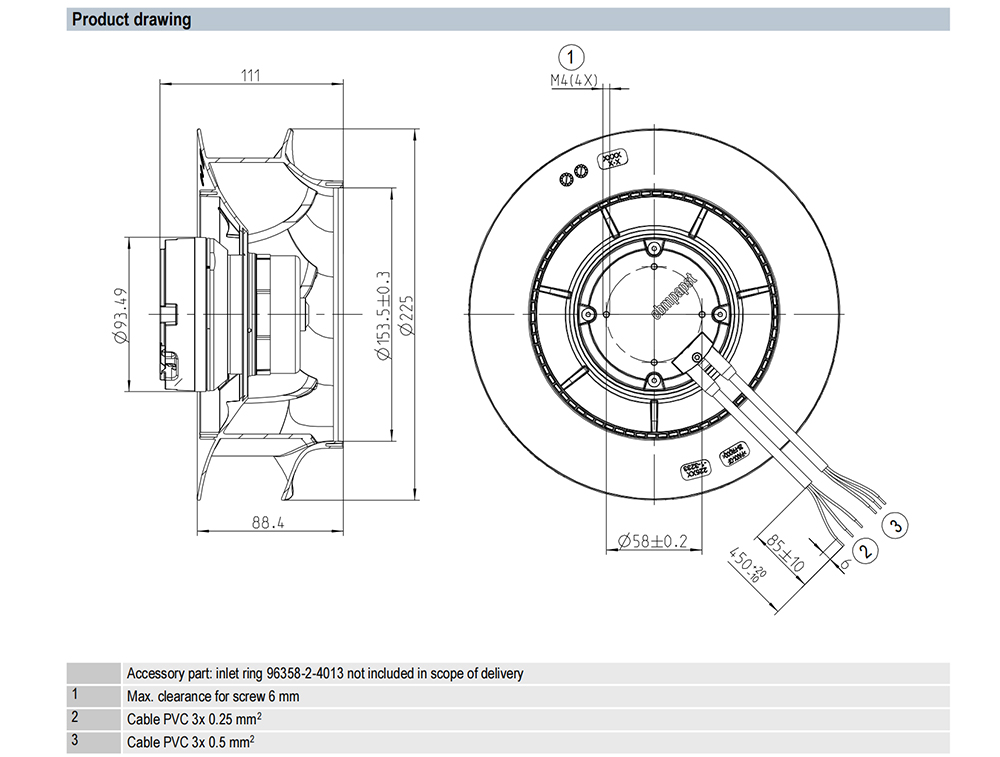

（2） Size specifications

The size of the fan is 225 millimeters, which is a moderate design that balances space utilization and ventilation efficiency. Compared to large centrifugal fans, it does not take up too much installation space and is suitable for places with limited space but strong ventilation capabilities. For example, in scenarios such as ventilation for compact industrial equipment and local ventilation for small commercial shops, a size of 225mm can better integrate into the environment and achieve efficient ventilation.

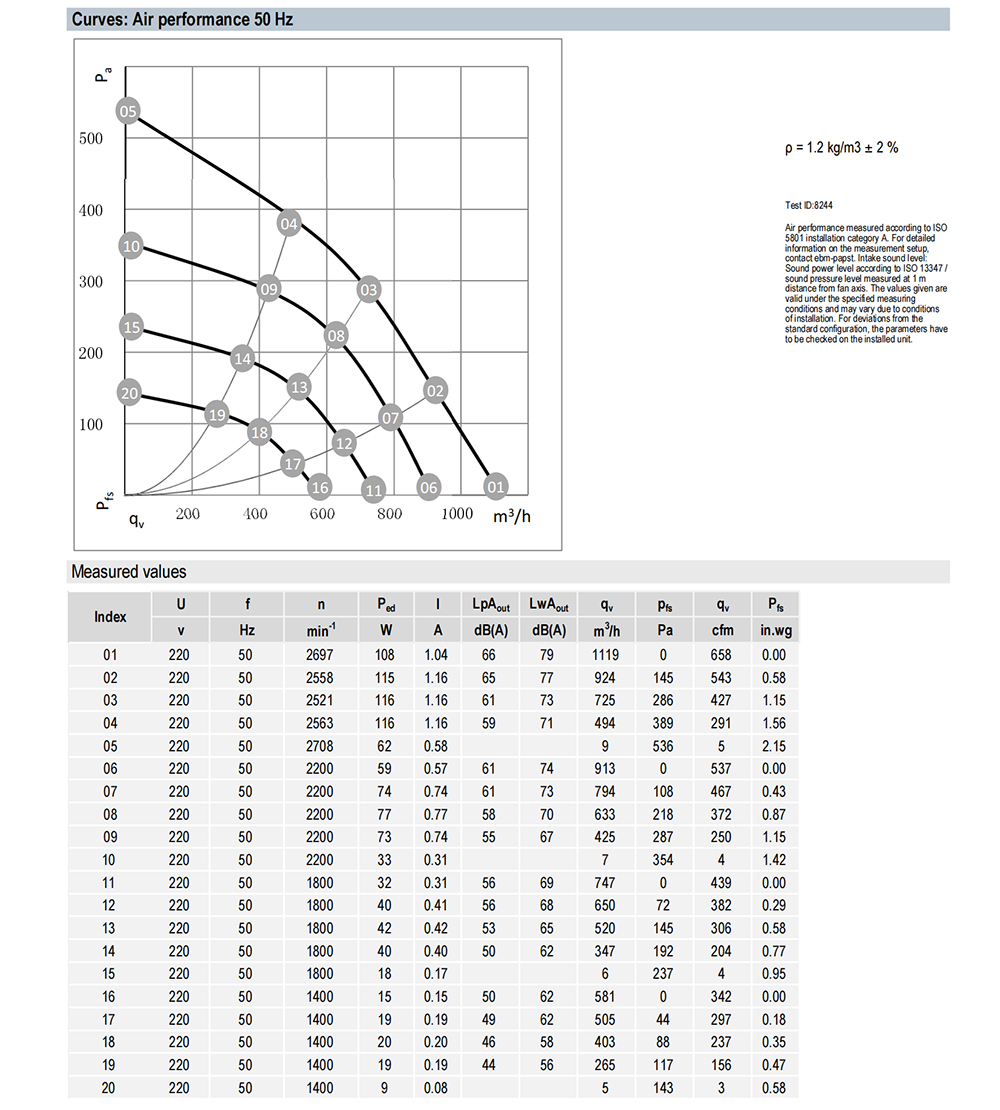

（3） Airflow and pressure

The maximum air volume can reach 1119 cubic meters per hour, which enables the fan to achieve large-scale air exchange in a short period of time. In some places that require rapid ventilation, such as large warehouses, factory workshops, etc., polluted air can be quickly discharged and fresh air can be introduced to improve indoor air quality. At the same time, the maximum pressure is 536 Pa, and a higher pressure means that the fan has a stronger ability to overcome ventilation resistance. In situations where the ventilation ducts are long, there are many bends, or air filtration devices are installed, smooth air circulation can still be ensured, ensuring the stability of the ventilation effect.

（4） Input power and speed

The input power is 115W, combined with its large air volume and pressure output, the fan performs well in terms of energy consumption. While meeting the demand for efficient ventilation, relatively low power consumption can save users a significant amount of electricity expenses. The stable and moderate speed of 2501rpm not only ensures the efficient operation of the fan, but also reduces mechanical wear and noise problems caused by high-speed operation, extending the service life of the fan.

（5） Noise level

The noise level is only 44dB, which is a significant advantage of this fan. In many noise sensitive places, such as hospitals, schools, office buildings, etc., low-noise fans can avoid interfering with people's work, study, and rest. Even in long-term operation, it can provide a quiet and comfortable atmosphere for the surrounding environment.

• Interpretation of unique characteristics

（1） Efficient Aerodynamic Design

The R3G225-8317075812 centrifugal fan adopts advanced aerodynamic design concepts. The shape of its impeller and the layout of its blades have been carefully optimized to make the air flow smoother through the fan, reducing the loss of airflow and the generation of turbulence. This design not only improves the ventilation efficiency of the fan, but also reduces energy consumption, achieving the goal of high efficiency and energy conservation.

（2） High quality materials and exquisite craftsmanship

All components of the fan are made of high-quality materials. The impeller is made of high-strength and lightweight alloy material, which has good mechanical properties and fatigue resistance, and can maintain stability under high-speed rotation. The shell is made of durable engineering plastics or metal materials, which have good impact resistance, corrosion resistance, and flame retardancy, and can adapt to various harsh working environments. Meanwhile, ebm-papst's exquisite manufacturing process ensures the assembly accuracy and quality stability of the fan, reducing malfunctions and noise caused by improper component coordination.

（3） Intelligent Control and Stability

The fan may be equipped with an intelligent control system that can automatically adjust the operating status of the fan according to environmental conditions and ventilation requirements. For example, by using built-in sensors to monitor indoor air quality, temperature, humidity, and other parameters in real time, when the air quality deteriorates or the temperature rises, the fan automatically increases its speed to enhance ventilation effectiveness; When the environmental conditions improve, the fan automatically reduces its speed to save energy. In addition, the motor and control system of the fan have high stability, which can maintain stable performance under long-term continuous operation and reduce the probability of failure.

（4） Wide applicability

Due to its excellent performance characteristics, the R3G225-8317075812 centrifugal fan has a wide range of applicability. It can be applied in multiple fields such as industry, commerce, and civil use, such as ventilation and air exchange in factory workshops, central air conditioning systems in commercial buildings, and ventilation in residential kitchens and bathrooms. It can play an excellent role in both high temperature, humid, and dusty industrial environments, as well as in civilian environments with high requirements for air quality and noise.

R3G225-8317075812 centrifugal fan occupies a place in the centrifugal fan market with its excellent parameter combination and unique characteristics. It provides users with an efficient, energy-saving, low-noise, stable and reliable ventilation solution that can meet the ventilation needs of different fields and scenarios.
