| Brand： | ebmpapst |
| Part No： | R4D450-AD12-06 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 450 |
| Max.Air Flow(m³/h)： | 4655 |
| Max.Pressure(Pa)： | 500 |
| Input Power(W)： | 650 |
| Speed(rpm)： | 1380 |
| Noise(db)： | N/A |
Centrifugal fans play a crucial role in industrial ventilation and air treatment. Today, we will introduce in detail the R4D450-AD12-06 centrifugal fan under the ebm-papst brand. With its unique design and excellent performance, it stands out among many fan products.
rated voltage
The rated voltage of R4D450-AD12-06 centrifugal fan is 400V. This higher rated voltage design enables it to adapt to common high-voltage power systems in industrial environments, providing stable and powerful power support for wind turbines. Compared to low-voltage fans, a rated voltage of 400V can reduce current losses, improve energy transmission efficiency, and ensure stable performance of the fan during long-term operation.
Specification

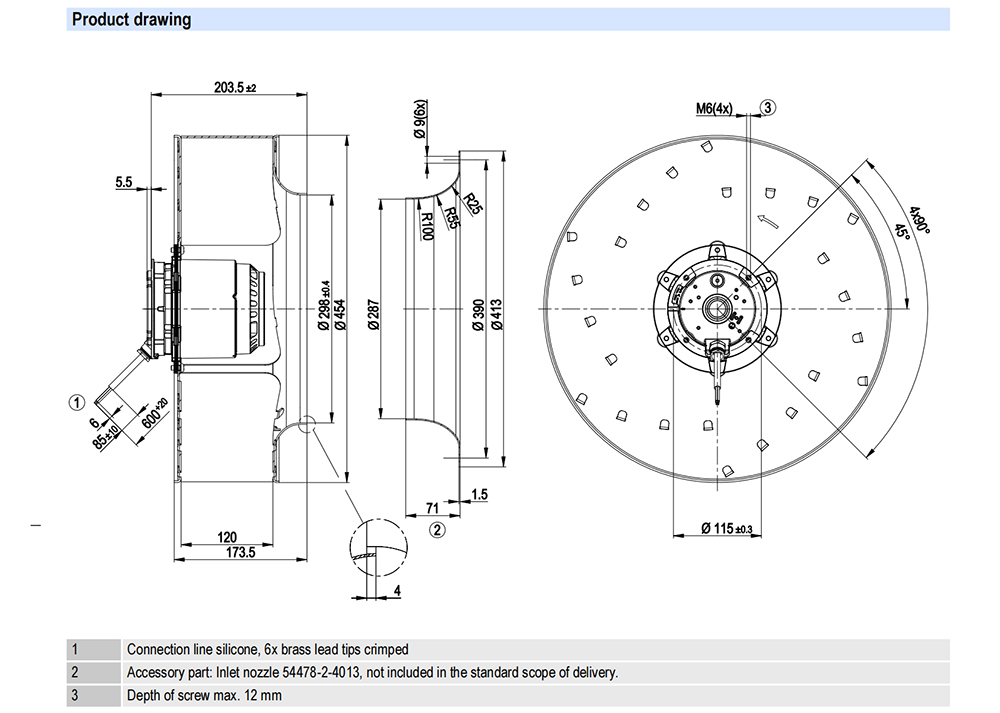

The size of the fan is 450 millimeters, which gives it a significant advantage in places with limited installation space due to its compact design. R4D450-AD12-06 can easily adapt to local ventilation systems in small industrial workshops, commercial buildings, and equipment that requires air delivery in limited spaces. Meanwhile, the compact size does not affect its performance, but rather helps to improve space utilization.
Airflow and pressure

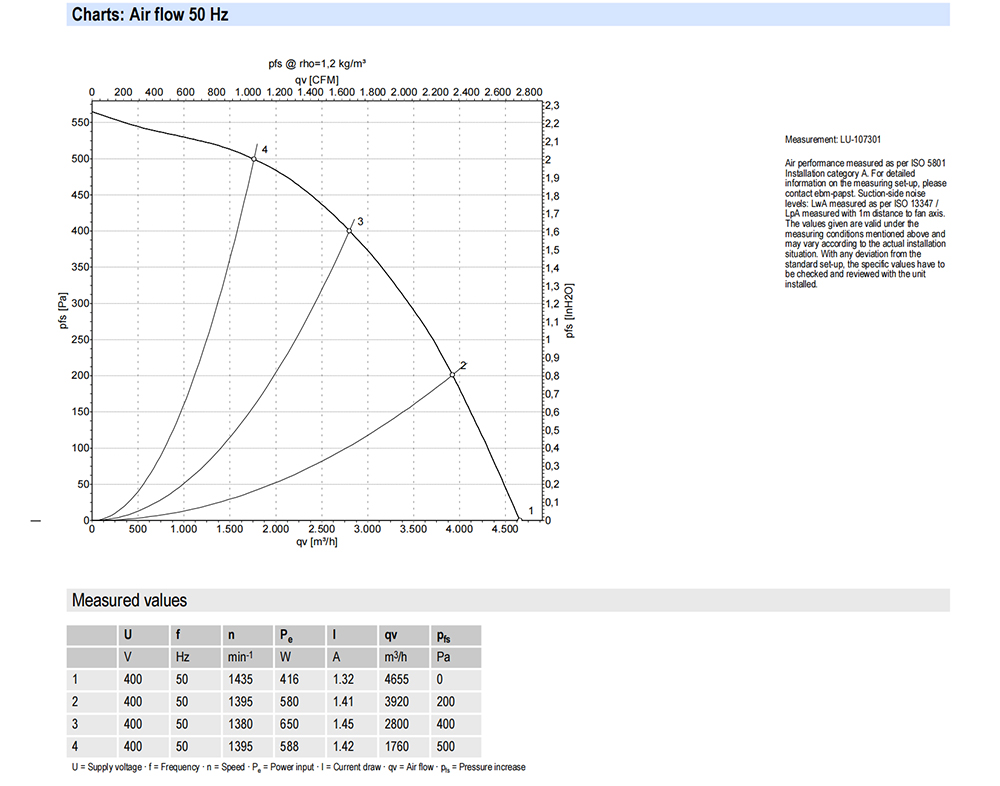

The maximum air volume can reach 4655m³/h, and the maximum pressure is 500Pa. This parameter combination makes the fan perform well in ventilation, air exchange, and gas delivery. In some places where air needs to be quickly replaced, such as warehouses, computer rooms, etc., a high air volume of 4655m³/h can quickly exhaust indoor polluted air and introduce fresh air; The maximum pressure of 500Pa ensures that the fan can overcome certain pipeline resistance and air resistance, and transport air to a longer distance or higher position.
Input power and speed
The input power is 650W and the speed reaches 1380rpm. A lower input power means that while achieving efficient ventilation, it can effectively reduce energy consumption and save operating costs for users. The stable speed of 1380rpm ensures that the fan can continuously and stably output air volume and pressure, ensuring the stable operation of the ventilation system.
Efficient impeller design
R4D450-AD12-06 adopts a carefully designed impeller. The blade shape and angle of the impeller have been optimized to effectively suck in and accelerate the discharge of air during high-speed rotation, improving the efficiency of the fan. This design not only increases air volume and pressure, but also reduces energy loss, allowing the fan to achieve better ventilation at the same input power.
High quality material selection
The shell and key internal components of the fan are made of high-quality materials. The shell is made of high-strength metal material, which has good corrosion resistance and mechanical strength, and can be used for a long time in harsh industrial environments without damage. The internal impeller and other components are made of wear-resistant and lightweight materials, reducing the moment of inertia, lowering the load on the motor, and improving the overall reliability and service life of the fan.
Silent design concept
Although the noise parameters are not applicable, ebm-papst still focuses on the mute effect in the design process. By optimizing the structure and airflow channels of the fan, turbulence and noise generation during air flow have been reduced. During operation, the fan can maintain a relatively quiet working state without causing interference to the surrounding environment and personnel, making it suitable for places with high noise requirements.
Industrial ventilation
In industrial production, R4D450-AD12-06 can be used for ventilation and air exchange in various workshops. For example, in the chemical workshop, it can timely discharge harmful gases and odors, ensuring the health and production safety of workers; In the machining workshop, dust and heat can be effectively removed, improving the working environment. Its stable performance and efficient ventilation capacity can meet the strict requirements of industrial production for ventilation systems.
Commercial buildings
In commercial buildings such as shopping malls and hotels, this fan can be used for ventilation and air circulation in air conditioning systems. By introducing fresh air indoors and expelling polluted air, indoor air quality can be improved, providing a comfortable environment for customers and employees. Meanwhile, its compact size makes it easy to install in the ventilation duct system of buildings without taking up too much space.
Equipment matching
For some equipment that requires ventilation and heat dissipation, such as large electrical equipment, server rooms, etc., R4D450-AD12-06 can be used as a matching fan. It can timely remove the heat generated by the equipment, ensure the normal operation of the equipment, and extend the service life of the equipment.
key points of installation
When installing R4D450-AD12-06 fan, the first thing to ensure is that the installation foundation is firm and flat. The foundation should be able to withstand the vibration and weight generated during the operation of the fan, avoiding abnormal operation of the fan caused by unstable foundation. The inlet and outlet pipelines of the fan should be tightly connected to prevent air leakage. At the same time, attention should be paid to the layout of pipelines, minimizing bends and resistance as much as possible to improve ventilation efficiency.
Maintenance points
Regular maintenance of the fan is the key to ensuring its long-term stable operation. The maintenance work includes checking whether there is any looseness or wear in the various components of the fan, especially the connection between the impeller and the motor. Regularly clean the dust and debris inside and outside the fan to prevent them from affecting the performance of the fan. For motors, maintenance should be carried out at regular intervals to check the insulation performance of the motor and the lubrication of the bearings.
In summary, ebm-papst's R4D450-AD12-06 centrifugal fan has become an ideal choice for ventilation and air exchange in industrial and commercial fields due to its excellent parameter performance, unique design features, and extensive application advantages. Through proper installation and maintenance, it can provide users with reliable and efficient ventilation solutions.
