| Brand： | ebm-papst |
| Part No： | R4E310-AP11-09/F01 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |

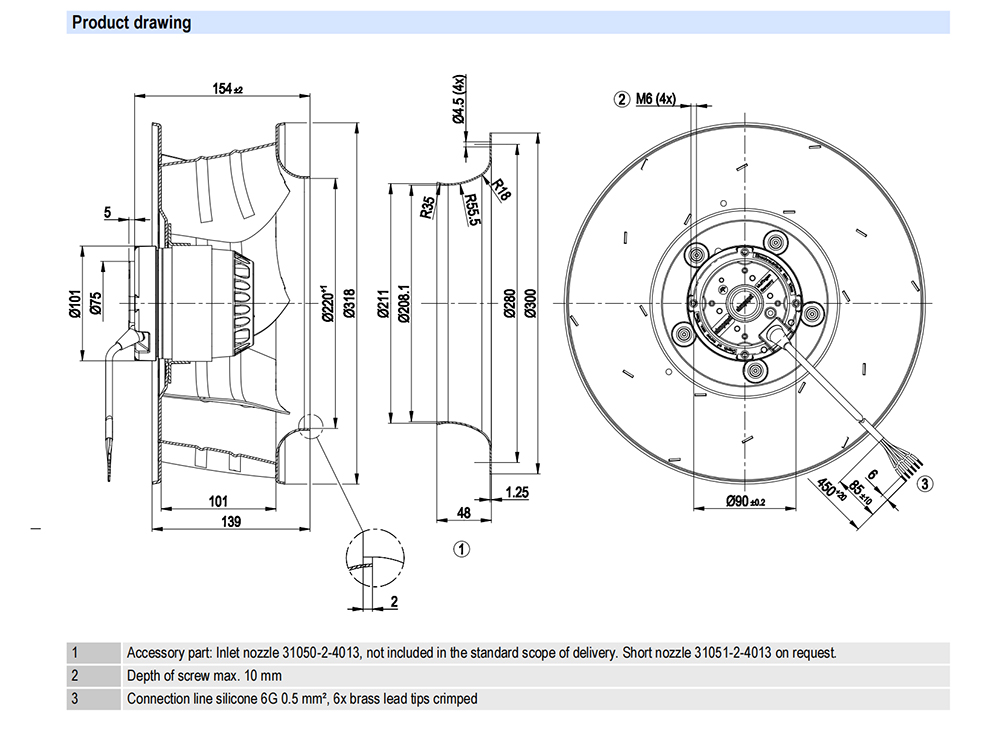

| Size(mm)： | 310 |

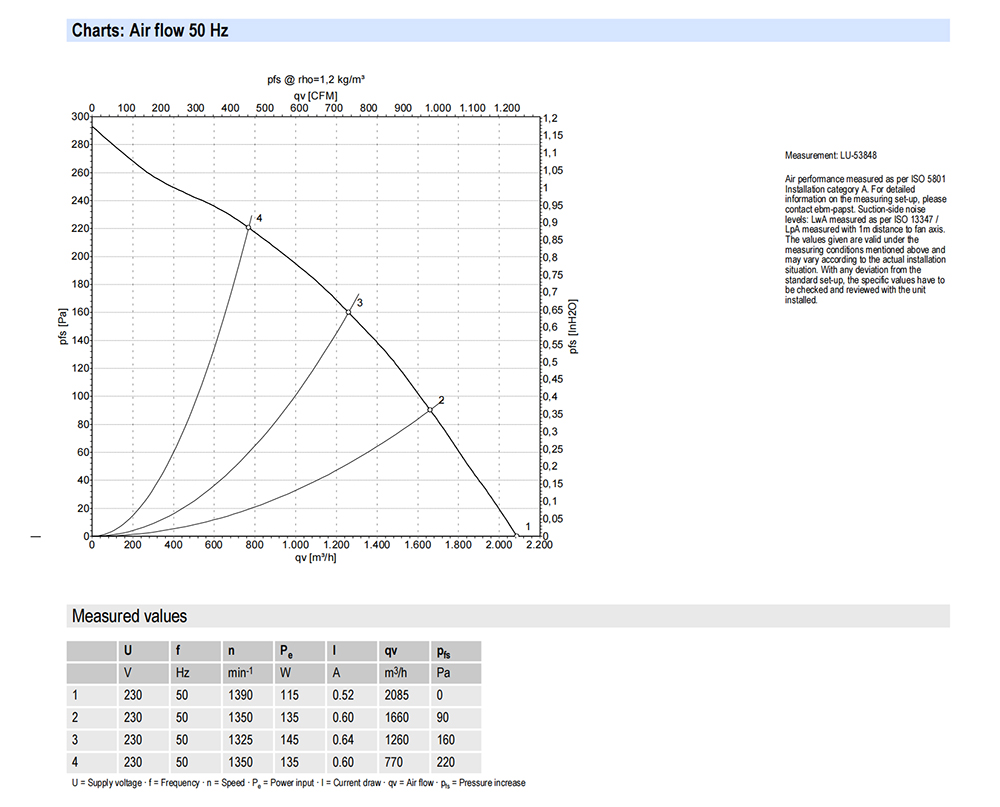

| Max.Air Flow(m³/h)： | 2085 |
| Max.Pressure(Pa)： | 220 |
| Input Power(W)： | 115 |
| Speed(RPM)： | 1390 |
| Noise(dB)： | N/A |
| Mass: | 4 kg |
| Surface Of Rotor: | Coated in black |
| Material Of Impeller: | Aluminium sheet |
| Number Of Blades: | 6 |
| Direction Of Rotation: | Clockwise, seen on rotor |
| Type Of Protection: | IP 44; Depending on installation and position as per EN 60034-5 |
| Insulation Class: | "F" |
| Humidity Class: | F1-2 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): | < 0.75 mA |

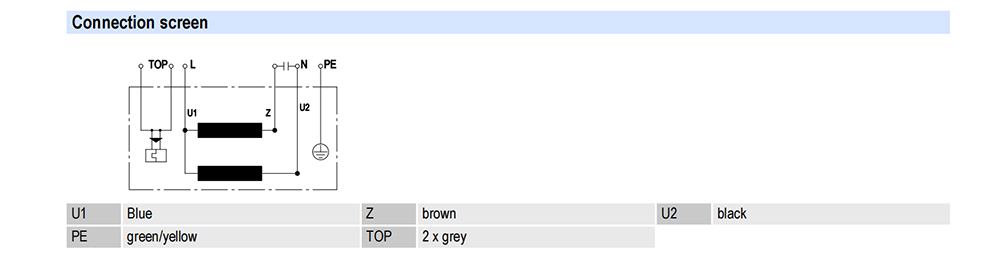

| Motor Protection: | Thermal overload protector (TOP) brought out |
| Cable Exit: | Variable |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming To Standard: | EN 60335-1; CE |

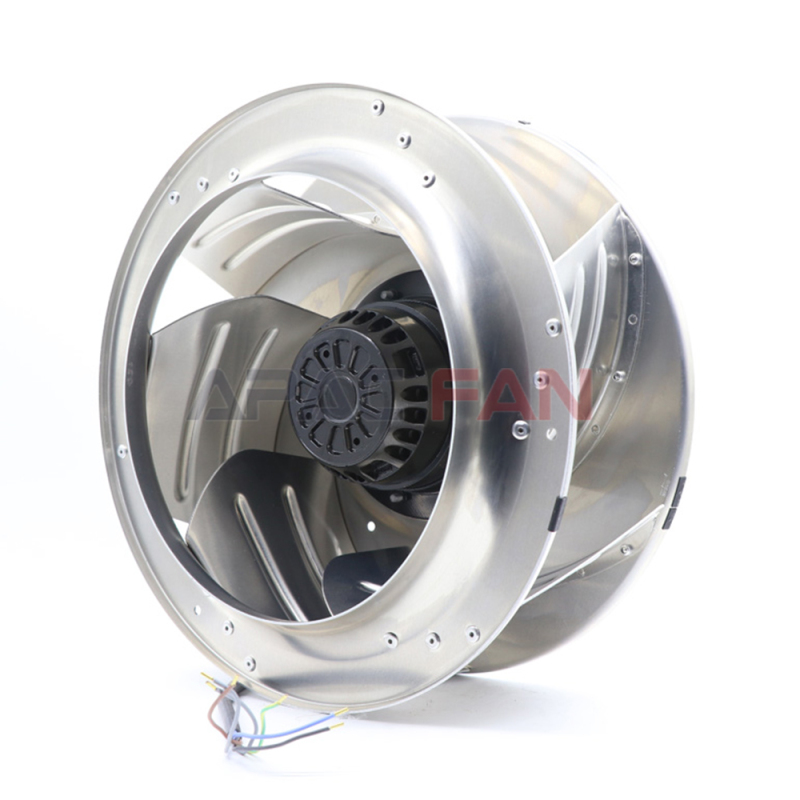

In the vast field of ventilation equipment, ebm-papst's R4E310-AP11-09/F01 centrifugal fan has become a reliable assistant in many industries with its unique performance and reliable quality. Next, let's have a comprehensive understanding of this fan.
Brand and Product Overview: ebm-papst, as a well-known brand in the fan manufacturing industry, has always been known for its excellent technology and exquisite craftsmanship. The R4E310-AP11-09/F01 centrifugal fan is a carefully crafted product that combines advanced design concepts and strict manufacturing standards, dedicated to providing users with efficient and stable ventilation solutions.
Detailed explanation of product parameters
Rated voltage: With a rated voltage of 230V, this fan can be perfectly adapted to most conventional power systems, and can operate stably in industrial plants, commercial buildings, and public facilities, ensuring continuous ventilation work.
Size specification: The 310mm size design ensures that the fan has sufficient ventilation capacity without occupying too much space. It has high flexibility in installation and layout, and can adapt to various installation environments.
Maximum air volume: With a maximum air volume of up to 2085m³/h, it can deliver a large amount of air per unit time, quickly achieve indoor and outdoor air exchange, effectively improve air quality, and meet the ventilation needs of different places.
Maximum pressure: The maximum pressure of 220Pa reflects the powerful ability of the fan to overcome the resistance of the ventilation system. Even in the presence of long ventilation ducts, bends or other obstacles, it can ensure smooth air flow and guarantee the reliability of ventilation effect.
Input power: Only 115W of input power fully demonstrates the energy-saving characteristics of the fan. Compared to some similar fans, it can significantly reduce energy consumption during operation, save operating costs for users, and also meet the pursuit of energy conservation and environmental protection in today's society.
The stable speed of 1390rpm is the key guarantee for the efficient operation of the fan. At this speed, the impeller can rotate at its optimal state, generating stable airflow and pressure, ensuring the continuity and stability of ventilation.
Analysis of Product Features
Efficient ventilation performance: Advanced aerodynamic design is adopted, and the shape and structure of the impeller are carefully optimized to maximize the efficiency of air intake and exhaust. In actual operation, it can quickly discharge polluted air and introduce fresh air, creating a fresh and comfortable environment for users.
Stable and reliable operation: equipped with high-quality motors and sturdy structural components. The motor has good heat dissipation performance and overload protection function, and can maintain stable performance under long-term continuous operation. The casing of the fan is made of high-strength materials, which have excellent corrosion and wear resistance and can adapt to various harsh working environments.
Low noise operation: Although the noise level (dB) in the product parameters is not applicable, in the design and manufacturing process, measures such as optimizing the balance of the impeller, using shock-absorbing materials and structures have effectively reduced the noise generated during fan operation, providing users with a quiet working and living environment.
Easy to install and maintain: The design of the fan fully considers the installation and maintenance needs of users, with a compact structure and standardized interfaces, making the installation process simple and fast. At the same time, the internal structure layout is reasonable, and each component is easy to disassemble and replace, making it convenient for daily maintenance and upkeep work.
Widely applicable scenarios
Industrial field: In industrial production, many workshops generate a large amount of heat, dust, and harmful gases. R4E310-AP11-09/F01 centrifugal fan can be widely used for ventilation and air exchange in industries such as mechanical manufacturing, chemical engineering, and electronics, effectively improving the working environment in the workshop, protecting the health of employees, and improving production efficiency.
Business field: In commercial places such as shopping malls, hotels, and office buildings, where people are dense, the air is prone to become polluted. This fan can be installed in the ventilation system to maintain fresh indoor air and provide a comfortable environment for customers and employees through continuous ventilation and air exchange.
In the field of public facilities, such as hospitals, schools, and libraries, there are high requirements for air quality and noise levels. The efficient ventilation performance and low-noise operation characteristics of R4E310-AP11-09/F01 centrifugal fan make it very suitable for the ventilation needs of these places, providing people with a healthy and quiet learning and working environment.
In summary, R4E310-AP11-09/F01 centrifugal fan has become an excellent product in the field of ventilation due to its excellent parameter performance, unique product features, and wide range of applicable scenarios. It can play an important role in industrial production, commercial operations, and public facilities, providing users with efficient, stable, and reliable ventilation solutions. If you are looking for a high-performance centrifugal fan, R4E310-AP11-09/F01 is undoubtedly a worthwhile choice to consider.
