FAQ

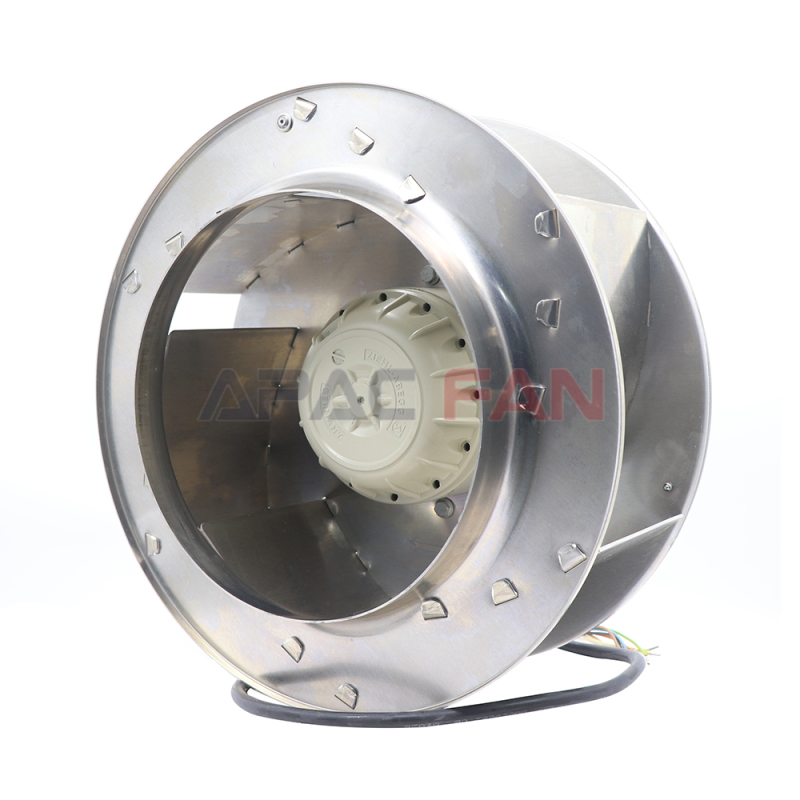

Q1: What type of fan is the ZIEHL-ABEGG RH35M-4EK.4F.1R 139899, and what distinguishes this fan type in terms of airflow characteristics?
A1: The RH35M-4EK.4F.1R 139899 is a centrifugal fan. Centrifugal fans are designed to move air perpendicular to the fan’s axis of rotation, generating higher pressure compared to axial fans. This makes them suitable for applications where air needs to be pushed through ductwork, filters, or other systems with resistance, such as industrial ventilation, HVAC systems, or equipment cooling requiring focused airflow.

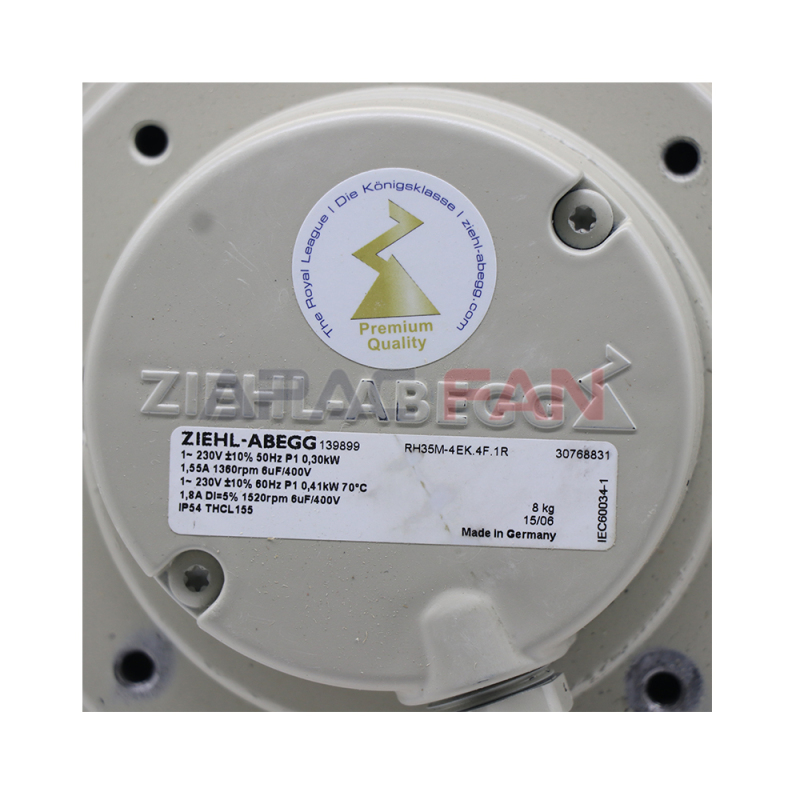

Q2: What is the rated voltage of RH35M-4EK.4F.1R 139899, and how does this affect its suitability for different power setups?
A2: The rated voltage of the RH35M-4EK.4F.1R 139899 is 230V. This voltage is commonly used in single-phase residential, commercial, and light industrial power systems, making the fan compatible with standard electrical setups in these environments. It is important to ensure the power supply matches this rating to prevent motor damage and ensure stable operation.
Q3: Can the size of RH35M-4EK.4F.1R 139899 be determined from the provided information, and what does this dimension typically represent?
A3: Yes, the size of the RH35M-4EK.4F.1R 139899 is specified as 350mm. This dimension typically refers to the diameter of the fan’s impeller (the rotating component responsible for moving air). A 350mm impeller indicates a mid-to-large-sized centrifugal fan, suitable for applications requiring moderate to high airflow volumes.
Q4: What are the input power and rotational speed of RH35M-4EK.4F.1R 139899, and how do these parameters influence its performance and energy usage?
A4: The fan has an input power of 300W and a rotational speed of 1360 rpm (revolutions per minute). Input power reflects the energy consumption during operation, with 300W classifying it as a moderately power-efficient fan for its size. Rotational speed directly impacts airflow—1360 rpm is a moderate speed that balances airflow output with noise and energy use, making it suitable for applications where steady, efficient air movement is prioritized.
Q5: Are the maximum air flow, maximum pressure, or noise level specifications available for the RH35M-4EK.4F.1R 139899 fan? If not, how can these details be obtained?
A5: Currently, the maximum air flow (m³/h), maximum pressure (Pa), and noise level (dB) for the RH35M-4EK.4F.1R are listed as N/A (not available) in the provided parameters. To access these details, it is recommended to refer to ZIEHL-ABEGG’s official product datasheet, contact their technical support team, or consult authorized distributors. These specifications are critical for evaluating the fan’s suitability for specific applications, such as determining if it can meet airflow/pressure requirements in duct systems or if its noise level aligns with environmental standards.
