FAQ

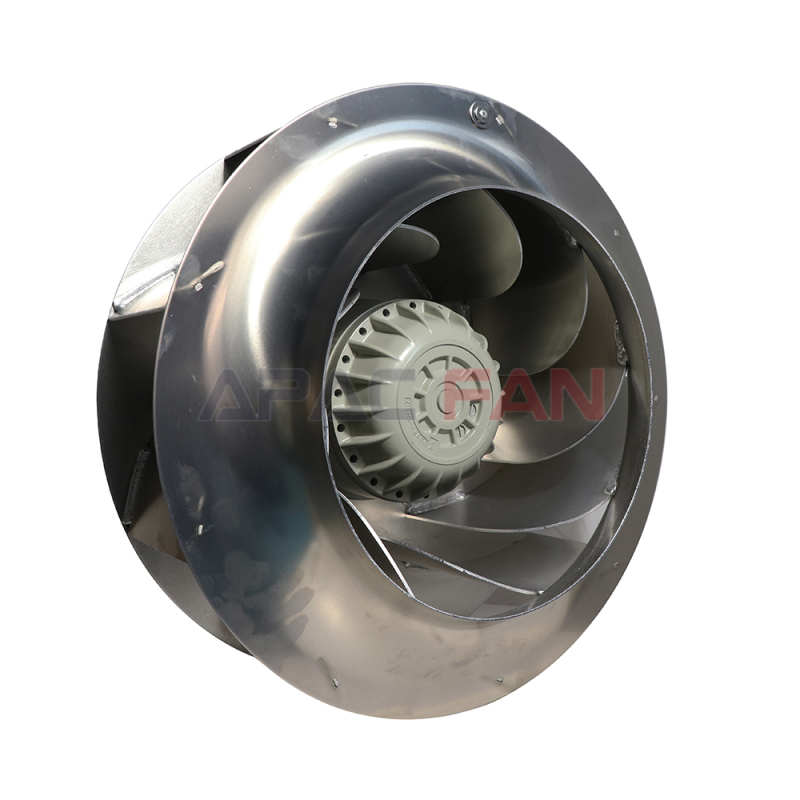

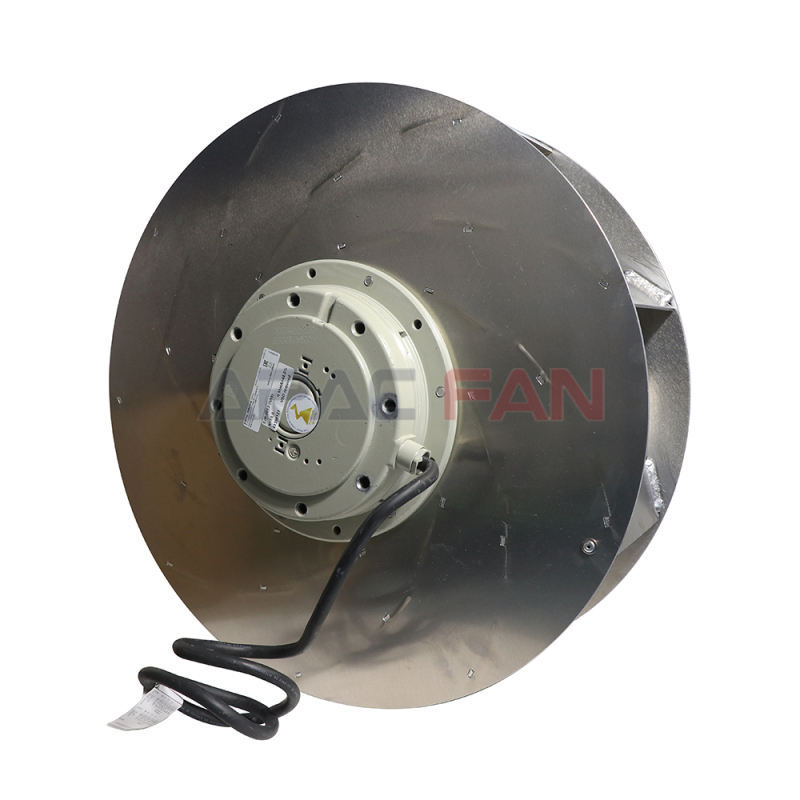

Q1: What type of fan is the ZIEHL-ABEGG RH50E-4DK.6K.1R 129560, and what are the key traits that make this fan type suitable for certain applications?
A1: The RH50E-4DK.6K.1R 129560 is a centrifugal fan. Centrifugal fans are characterized by their ability to move air at a right angle to the fan’s axis of rotation, which allows them to generate higher pressure compared to axial fans. This makes them particularly well-suited for applications where air needs to be pushed through ductwork, filters, or systems with significant resistance—such as industrial ventilation, HVAC systems in large buildings, or machinery cooling where pressure is required to overcome airflow restrictions.

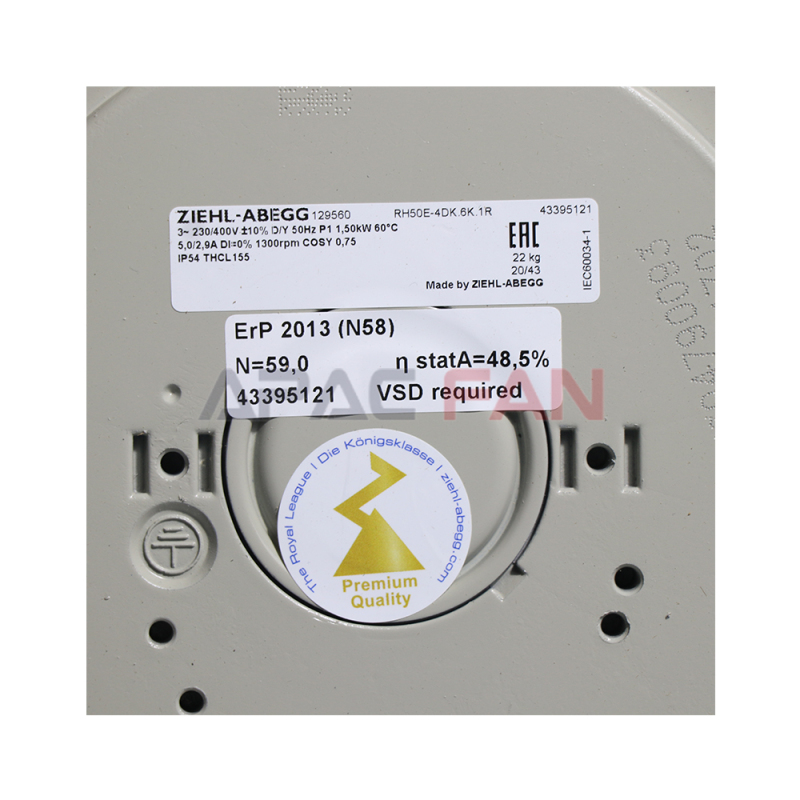

Q2: What is the rated voltage of the RH50E-4DK.6K.1R 129560 fan, and what does this imply about its intended power supply setup?
A2: The RH50E-4DK.6K.1R 129560 has a rated voltage of 400V. This voltage is typically associated with three-phase power systems, which are common in industrial and commercial settings due to their ability to deliver higher power efficiently. As a result, this fan is likely designed for use in environments with three-phase electrical infrastructure, such as factories, large commercial buildings, or industrial facilities, rather than standard single-phase residential setups.
Q3: What size is the RH50E-4DK.6K.1R 129560 fan, and what does this dimension typically correspond to in centrifugal fan design?
A3: The size of the RH50E-4DK.6K.1R 129560 is specified as 500mm. In centrifugal fan design, this dimension most commonly refers to the diameter of the fan’s impeller—the rotating component responsible for drawing in and moving air. A 500mm impeller indicates a relatively large fan, which is capable of moving substantial volumes of air, making it suitable for high-capacity ventilation or cooling applications.
Q4: What are the input power and rotational speed of the RH50E-4DK.6K.1R 129560 fan, and how do these parameters relate to its performance capabilities?
A4: The fan has an input power of 1500W and a rotational speed of 1300 rpm (revolutions per minute). Input power reflects the energy consumption required to operate the fan, with 1500W indicating a higher-power unit capable of handling demanding airflow or pressure needs. Rotational speed (1300 rpm) influences both airflow and pressure output: while higher speeds generally increase airflow, this fan’s moderate speed, combined with its 500mm impeller and centrifugal design, is balanced to deliver effective performance—particularly in generating its specified maximum pressure of 750Pa—without excessive energy use or noise.

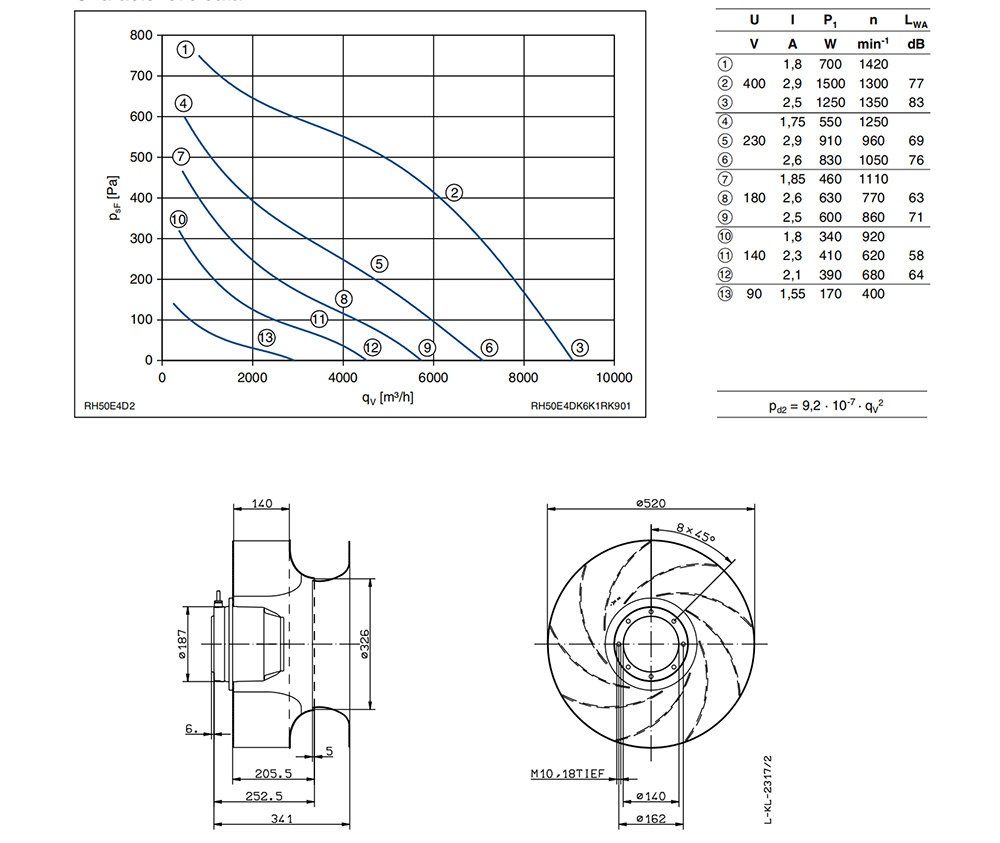

Q5: What maximum pressure does the RH50E-4DK.6K.1R fan offer, and why is this specification important for potential applications?
A5: The RH50E-4DK.6K.1R has a maximum pressure of 750Pa. Maximum pressure (also known as static pressure) measures the fan’s ability to push air against resistance, such as that caused by ductwork, filters, or enclosed spaces. A 750Pa rating indicates this fan is capable of overcoming moderate to significant airflow resistance, making it suitable for applications like duct-based ventilation systems, air handling units, or industrial processes where air must be distributed through complex pathways. This specification is critical for ensuring the fan can meet the specific pressure requirements of a system, preventing underperformance or inefficiency.
