FAQ
Q1: As a centrifugal fan with "air in axially, air out radially" airflow, how does the ebm-papst RLF35-8/14N’s air movement differ from axial fans, and when is this radial outflow design more advantageous?
A1: Unlike axial fans that push air linearly along the shaft, the ebm-papst RLF35-8/14N draws air axially (along the rotor shaft) and expels it radially (perpendicular to the shaft). This design excels at generating high static pressure (168 Pa) with low airflow (10 m³/h), making it ideal for scenarios where air must flow through narrow channels, small ducts, or restricted enclosures. It’s more advantageous than axial fans for targeted, low-volume cooling (e.g., compact power supplies, miniaturized sensors) or applications requiring air to change direction sharply—its radial outflow eliminates the need for extra ducting to redirect airflow, saving space while leveraging its 6700 RPM speed to maintain pressure through restrictions.
Q2: The ebm-papst RLF35-8/14N specifies uniform max torque (100 Ncm) for all mounting corners and ISO 4762 - M4 degreased screws. Why is consistent torque critical for this centrifugal fan, and how does screw choice support its 0.036 kg lightweight design?
A2: Consistent 100 Ncm torque across all mounting corners ensures even pressure on the fan’s plastic housing and flanges. For a lightweight (0.036 kg) centrifugal fan operating at 6700 RPM, uneven torque would create structural imbalance, leading to vibration, reduced bearing life (ball bearing system), and disrupted airflow (below 10 m³/h). The ISO 4762 - M4 degreased screws (no brace/washer) are sized to match the housing’s load capacity—their design avoids adding unnecessary weight, preserving the fan’s compact, lightweight advantage. Using the specified screws also prevents over-tightening damage to the plastic housing/impeller, ensuring the radial airflow path remains unobstructed for optimal pressure (168 Pa) and performance.

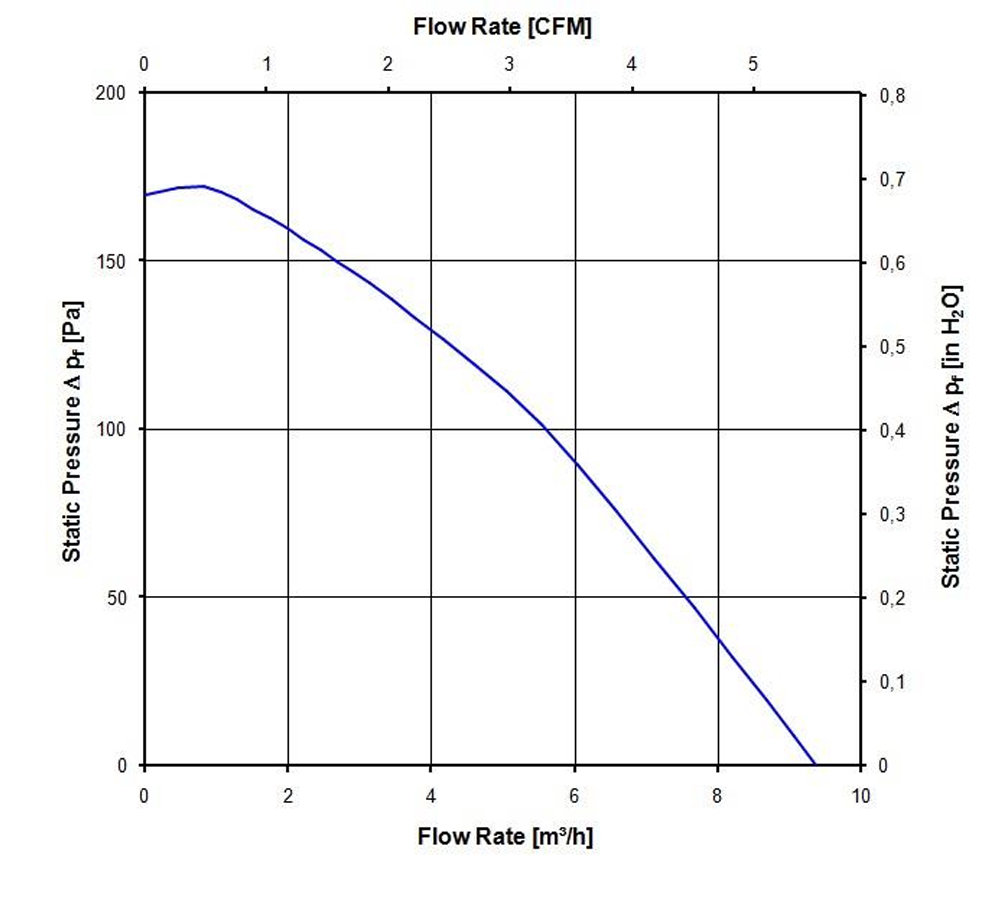

Q3: With a max pressure of 168 Pa and only 10 m³/h max air flow, what specific low-airflow, high-pressure cooling or ventilation tasks is the ebm-papst RLF35-8/14N engineered for, and why is its pressure rating more critical than airflow here?
A3: This fan is engineered for low-airflow, high-resistance applications: cooling small enclosed electronics (e.g., mini PLC modules, compact LED drivers) with tight internal clearances, ventilating tiny sealed enclosures, or supplying air to micro-duct systems in precision equipment. Its 168 Pa max pressure is more critical than airflow because these tasks involve air moving through narrow gaps or filters—without sufficient pressure, airflow would drop to near-zero, failing to remove heat. The 10 m³/h airflow is perfectly sized for low-heat-density components, while the high pressure ensures air penetrates restrictions. Paired with its 24V voltage and 4.3W power draw, it’s a efficient solution for scenarios where "pushing hard" matters more than "pushing much."
Q4: The ebm-papst RLF35-8/14N has a ball bearing system and "any" shaft mounting position. How do these features work together to enhance its versatility, and what benefits do they offer for installation in space-constrained setups?
A4: The ball bearing system minimizes friction and wear, even at 6700 RPM, enabling reliable operation in any shaft mounting position (horizontal, vertical, angled)—a key advantage over sleeve-bearing fans that often require specific orientations. For space-constrained setups (e.g., portable devices, tight equipment enclosures), this flexibility lets installers position the fan to fit available space without compromising performance. The ball bearings also support consistent radial airflow and pressure (168 Pa) regardless of orientation, while the fan’s 0.036 kg mass and plastic construction keep mounting simple. Together, these features make the fan adaptable to diverse installation scenarios where orientation is limited, without sacrificing longevity or airflow efficiency.
Q5: Given the ebm-papst RLF35-8/14N’s counterclockwise rotation (looking at rotor) and axial-in/radial-out airflow, what installation mistakes could reverse or disrupt its air movement, and how to avoid them?
A5: Two key mistakes can disrupt airflow: reversed rotation and blocked intake/outlet paths. Reversed rotation (from incorrect 24V wiring) flips the counterclockwise rotor spin, which misaligns the plastic impeller’s design—this reduces pressure (below 168 Pa) and may reverse the radial outflow direction. To avoid this, confirm counterclockwise rotation post-installation. Second, blocking the axial intake (e.g., covering the rotor-side opening) or radial outlet (e.g., mounting too close to a surface) restricts airflow, as the fan relies on unobstructed axial entry to generate radial pressure. Ensure clear space around the intake (for axial air draw) and align the radial outlet with the target area (e.g., component hotspots) without obstruction. Also, follow torque/screw specs to avoid housing warping that could narrow the airflow path.
