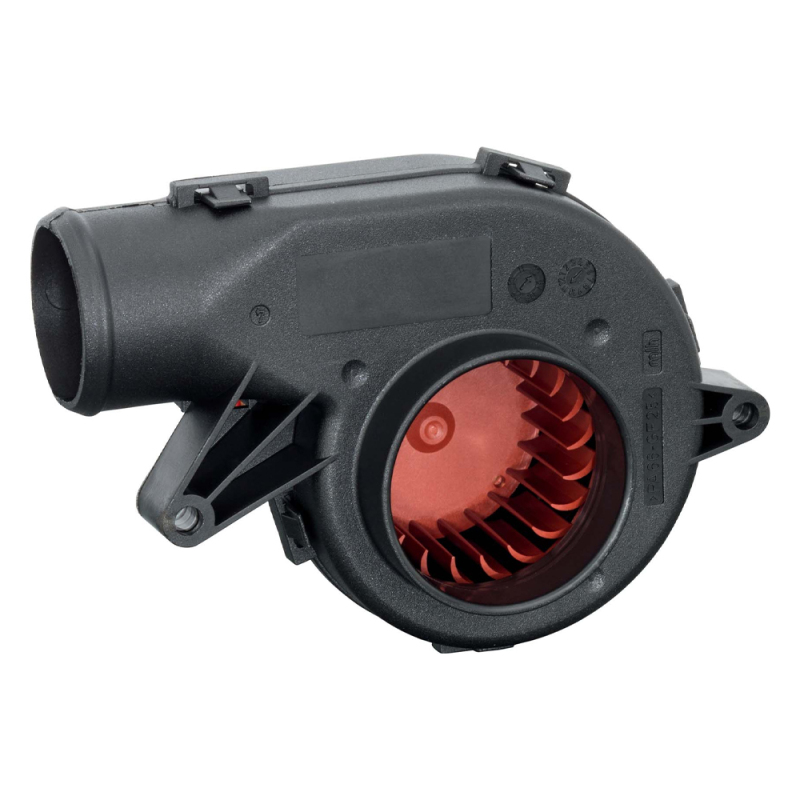

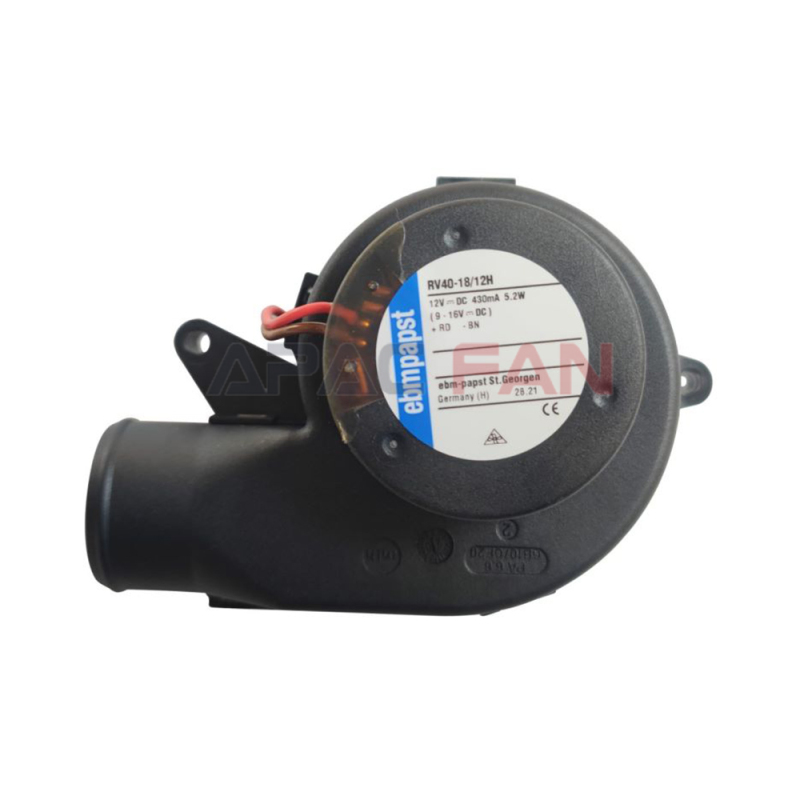

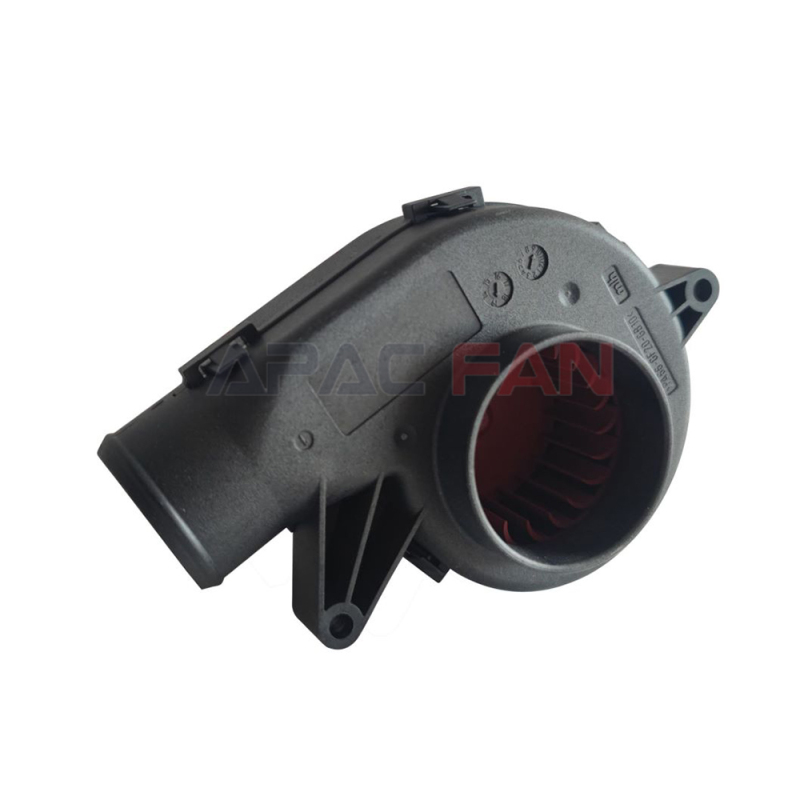

DC centrifugal compact fan,single inlet
| Brand： | ebm-papst |
| Part No： | RV40-18/12H |
| Fan Type： | Compact Fan |
| Rated Voltage(V)： | 12 |
| Size(mm)： | N/A |

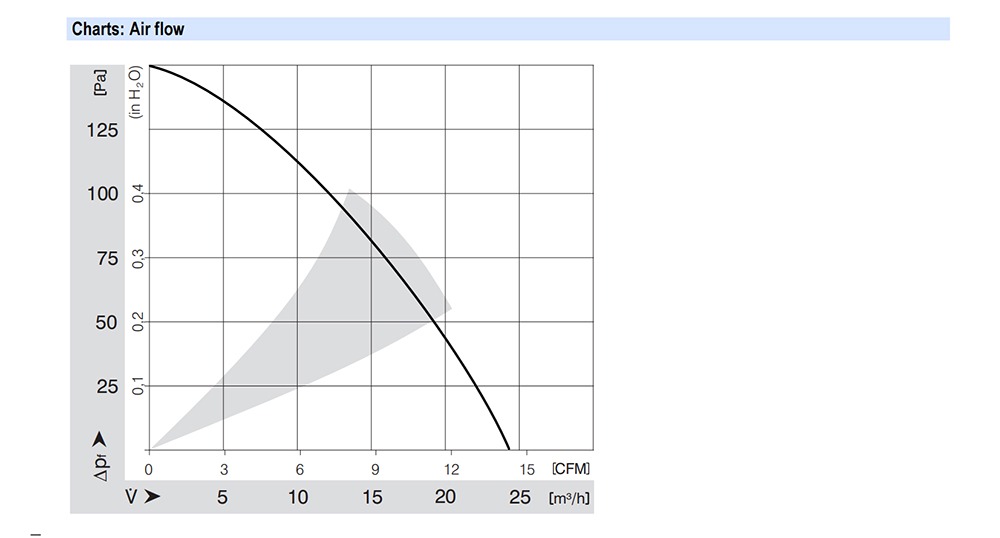

| Max.Air Flow(m³/h)： | 24 |
| Max.Pressure(Pa)： | 150 |
| Input Power(W)： | 4.5 |
| Speed(RPM)： | 4800 |
| Noise(dB)： | 5 |

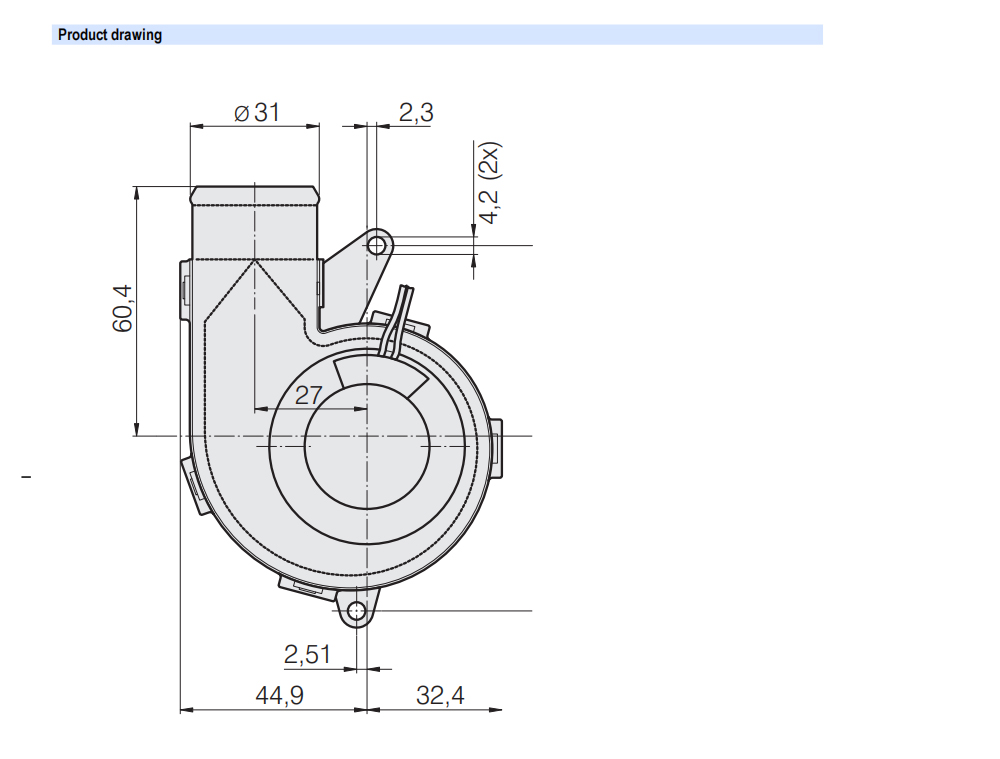

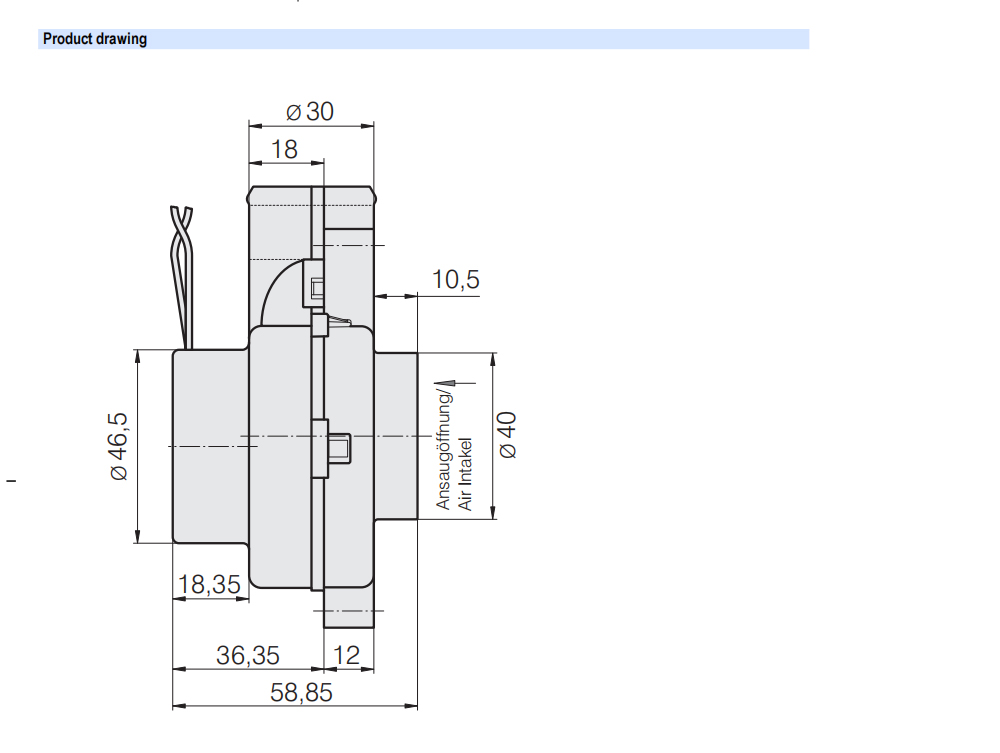

| Dimensions: | 105 x 59 x 79 mm |
| General Description: | Particular design features: - Pressure-optimised blower - Motor has very low structure-borne noise - Forward-curved impeller General features: - Scroll housing and impeller made of fibreglass-reinforced plastic - Electronic commutation completely integrated - Protected against reverse polarity and locking - Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet - Connection via single strands AWG 26, TR 64, bared and tin-plated |
| Direction of Air Flow: | Axial air intake, centrifugal air exhaust out of the outlet |
| Connection Line: | Single strands AWG 26, TR 64, bared and tin-plated |
| Locked-Rotor Protection: | Electronic blocking protection |
| Bearing: | Ball bearings |
| Lifetime L10 at 40 °C: | 50000 h |
| Lifetime L10 at Maximum Temperature: | 25000 h |
| Mass: | 0.100 kg (100 g) |
| Housing Material: | Scroll housing of fiberglass-reinforced plastic |
| Material of Impeller: | Fiberglass-reinforced plastic |
| Motor Protection: | Protected against reverse polarity and locking |
| Approval: | VDE, CSA, UL, CE |
