| Brand： | ebmpapst |
| Part No： | S2D300-AP02-30 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 300 |
| Max.Air Flow(m³/h)： | 3135 |
| Max.Pressure(Pa)： | 160 |
| Input Power(W)： | 210 |
| Speed(rpm)： | 2580 |
| Noise(db)： | 70 |
rated voltage
The rated voltage of S2D300-AP02-30 axial fan is 400V. This voltage specification is quite common in power systems in industrial and some large commercial locations. The use of a rated voltage of 400V enables the fan to operate stably at high power, providing sufficient power support for its efficient ventilation performance. Compared with low-voltage fans, 400V fans have stronger power and better adaptability when dealing with ventilation needs in larger spaces. For example, in some large factory workshops, warehouses, and other places, a 400V power supply can ensure the stable operation of fans and provide continuous and effective ventilation services for these spaces.
Specification
The size of the fan is 300 millimeters. This size belongs to the medium specification and has strong universality and flexibility. It will not be difficult to install in places with limited space due to its size, nor will it be too small to meet the ventilation needs of a certain scale of space. In practical applications, the 300mm size allows fans to be easily installed in different locations such as walls, ceilings, ventilation ducts, etc. For example, in some small computer rooms, laboratories, and other places, fans can be easily installed on the side or top of equipment to provide protection for equipment heat dissipation and air circulation.
Maximum air volume
Its maximum air volume can reach 3135m ³/h. This air volume value indicates that the fan has strong air transport capacity. In ventilation systems, air volume is one of the important indicators to measure the performance of fans. A larger air volume means that the fan can deliver more air per unit time, thereby achieving faster air displacement and circulation. In densely populated places such as shopping malls, sports centers, etc., the S2D300-AP02-30 axial fan can quickly exhaust polluted indoor air and introduce fresh air through its large air volume, improving indoor air quality and creating a comfortable environment for people.
Maximum pressure
The maximum pressure is 160Pa. This parameter reflects the ability of the fan to overcome air flow resistance. In actual ventilation systems, air flow encounters various resistances, such as frictional resistance in ventilation ducts and resistance in filters. Fans need to have a certain pressure to effectively deliver air to the target location. The S2D300-AP02-30 axial fan has a maximum pressure of 160Pa, which can overcome these resistances to a certain extent and ensure smooth air flow in the ventilation system. For example, in a ventilation system equipped with an air purification filter, the fan can use its pressure to transport filtered clean air over a long distance, ensuring the uniformity of the ventilation effect.
Input power
The input power is 210W. Under the premise of ensuring a large air volume and a certain pressure, an input power of 210W is relatively energy-efficient. This can significantly reduce energy consumption and operating costs for ventilation systems that require long-term continuous operation. Compared with some fans with higher power but similar performance, the S2D300-AP02-30 axial flow fan has significant advantages in energy saving. In some large commercial buildings, multiple fans run simultaneously. If each fan can achieve energy savings, the overall energy saving effect will be significant.
rotational speed
The speed of the fan is 2580rpm. Speed is one of the important factors affecting the air volume and pressure of a fan. A higher rotational speed can cause the fan blades to rotate faster, resulting in greater airflow and pressure. The speed of 2580rpm enables the S2D300-AP02-30 axial fan to achieve rapid air flow in a short period of time, meeting the needs of places with high ventilation speed requirements. For example, in some industrial production workshops, when the equipment generates a large amount of heat and exhaust gas, the fan can quickly discharge the heat and exhaust gas out of the workshop through its high speed, ensuring the safety and stability of the production environment.
noise level
The noise level is 70dB. Noise is a concern during the operation of the fan. The noise level of 70db is within a relatively reasonable range. Although some places with extremely high noise requirements, such as hospital wards, libraries, etc., may feel a bit noisy, in most industrial, commercial, and general civilian places, this noise level is acceptable. Moreover, the fan may have been designed with some noise reduction measures to minimize its impact on the surrounding environment. For example, the shape and material of the blades may have been optimized to reduce the noise generated during air flow.

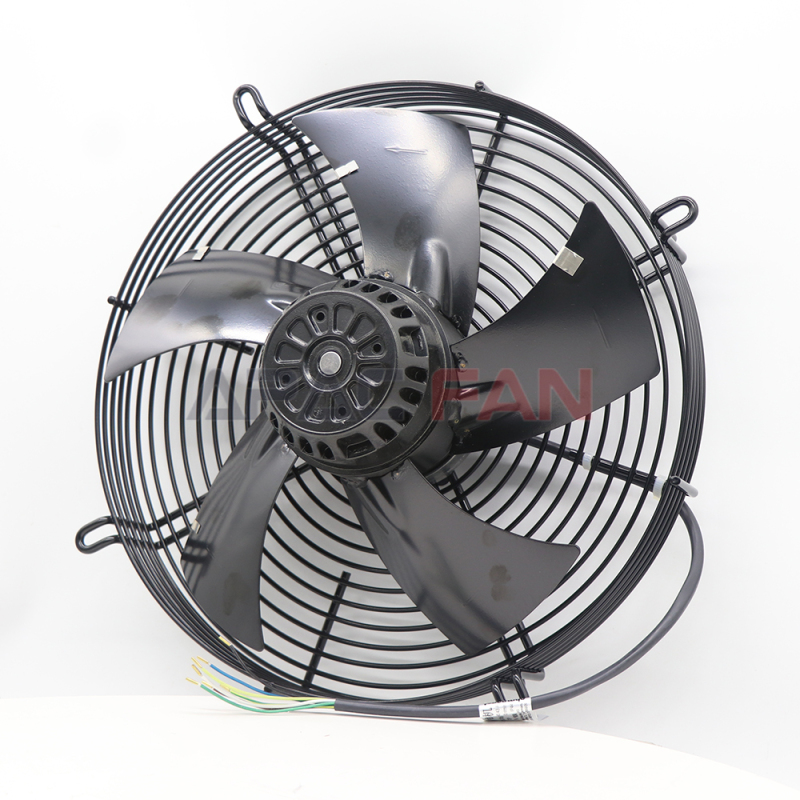

blade design
The blades of the S2D300-AP02-30 axial fan adopt advanced aerodynamic design. The shape of the blades has been carefully optimized, with unique curved surfaces and tilt angles. This design can make the air flow more smoothly on the blade surface, reduce air turbulence and resistance, thereby improving the ventilation efficiency of the fan. At the same time, the material of the blades is selected to be high-strength and lightweight, which not only ensures the strength and stability of the blades during high-speed rotation, but also reduces the load on the motor and lowers energy consumption. In addition, the surface of the blades has been specially treated to have a certain degree of smoothness and wear resistance, which can reduce the adhesion of dust and dirt and extend the service life of the blades.
motor performance
The motor equipped is the core power component of the fan. This motor has the characteristics of high efficiency and reliability. The motor adopts advanced electromagnetic design and manufacturing technology, which can efficiently convert electrical energy into mechanical energy. The winding of the motor is made of high-quality copper material, which has low resistance and reduces the loss of electrical energy during transmission. At the same time, high-precision bearings and lubrication systems are used inside the motor to ensure smooth operation and low noise. In addition, the motor also has overheating protection function. When the motor temperature is too high, it can automatically cut off the power supply, protecting the motor from damage and improving the safety and reliability of the fan.
Shell structure
The casing of the fan is made of sturdy and durable engineering plastic or metal materials. The design of the shell not only focuses on strength and durability, but also considers aesthetics and practicality. The surface of the shell has been specially treated to have good corrosion resistance and impact resistance, which can effectively protect the internal motor and blades from external environmental influences. There are reasonable ventilation openings and installation holes on the shell, and the design of the ventilation openings can ensure smooth air circulation and improve the ventilation efficiency of the fan; The position and size of the installation holes have been carefully designed to facilitate user installation and fixation, ensuring the firmness and stability of the fan installation.
Protective design
In order to adapt to different usage environments, the S2D300-AP02-30 axial fan has been carefully designed in terms of protection. The motor and electrical components of the fan adopt a sealed design, which can prevent the invasion of dust, moisture, and corrosive gases, and improve the reliability and service life of the fan in harsh environments. At the same time, the blades of the fan also have a certain protective function, which can prevent the impact and damage of external objects. For example, in some industrial production workshops, there may be metal debris, dust, and other debris. The protective design of the fan can effectively protect the internal components from these debris and ensure the normal operation of the fan.
Production process
ebm-papst, as a well-known fan manufacturer, has advanced production processes and strict quality control systems. In the production process of S2D300-AP02-30 axial fan, every link from raw material procurement to component processing, to assembly and debugging of the whole machine has undergone strict quality inspection and control. We use high-precision processing equipment and advanced manufacturing processes to ensure that the dimensional accuracy and quality of each component meet the requirements. For example, the processing of blades uses CNC machine tools and precision molds to ensure the accuracy of blade shape and size; The motor winding adopts automated winding equipment, which improves the quality and consistency of the winding.
performance testing
Every S2D300-AP02-30 axial fan undergoes rigorous performance testing before leaving the factory. The test content includes multiple aspects such as air volume, pressure, power, speed, noise, etc. By using professional testing equipment and strict testing standards, ensure that the various performance indicators of the fan meet the design requirements and relevant standards. For example, in air volume testing, a high-precision air volume tester is used to accurately measure the actual air volume of the fan; In noise testing, a professional noise tester is used to measure the noise level of the fan in a specific testing environment. Only fans that have passed all performance tests can be sold from the factory, ensuring that the products purchased by users have reliable performance.
after-sale service
ebm-papst provides users with comprehensive after-sales service. If users encounter problems while using the S2D300-AP02-30 axial fan, they can contact the manufacturer's after-sales service team at any time. The after-sales service team is composed of professional technicians who can provide timely and effective technical support and solutions to users. The manufacturer also provides a certain period of warranty service. During the warranty period, if there is a quality problem with the fan, the manufacturer will provide free repair or replacement for the user. In addition, the manufacturer will conduct regular follow-up visits to users to understand their user experience and needs, and continuously improve the quality of products and services.
Industrial sector
In industrial production, S2D300-AP02-30 axial fan has a wide range of applications. In some factory workshops, such as mechanical manufacturing workshops, electronic production workshops, etc., equipment generates a large amount of heat and exhaust gas during operation. Fans can be installed on the walls, ceilings, or ventilation ducts of the workshop. With their large air volume and certain pressure, they can discharge the heat and exhaust gases from the workshop outdoors, introduce fresh air, and improve the working environment of the workshop. In some production workshops of chemical, pharmaceutical and other industries, harmful gases and odors may be generated. Fans can be used in conjunction with air purification equipment to remove harmful gases and odors from the workshop, ensuring that the air quality in the workshop meets environmental protection requirements.
Business field
In commercial places such as shopping malls, supermarkets, hotels, etc., S2D300-AP02-30 axial flow fans can be used to improve indoor ventilation. In shopping malls, with dense crowds, the air can easily become polluted. Fans can be installed on the ceiling or ventilation openings of shopping malls to accelerate air circulation and deliver fresh air to every corner of the mall, enhancing the shopping experience for customers. In hotel rooms, restaurants, and other places, fans can exhaust indoor moisture and odors, keeping indoor air fresh. Meanwhile, the appearance design of the fan can also match the decoration style of commercial places without affecting the overall aesthetics.
Civilian field
In residential buildings, fans can also play an important role. In spaces such as basements and garages, due to poor ventilation, it is easy to become damp and produce odors. The S2D300-AP02-30 axial fan can be installed on the walls or ceilings of these spaces, and through its ventilation function, it can expel moisture and odors outdoors, keeping the space dry and the air fresh. In places such as kitchens and bathrooms, fans can exhaust the oil fumes and odors generated during cooking, as well as the water vapor generated during bathing, improving indoor air quality. In addition, the energy-saving characteristics of fans also meet the energy saving needs of residential buildings.
The S2D300-AP02-30 axial fan has become an excellent product in the field of ventilation due to its outstanding parameter performance, unique design features, reliable quality, and wide applicability. Whether in industrial production, commercial operation, or residential use, it can provide users with efficient, stable, and reliable ventilation solutions. If you are looking for a high-performance axial fan, S2D300-AP02-30 is definitely worth considering.
