| Brand： | ebmpapst |
| Part No： | S2E300-AP02-31 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |

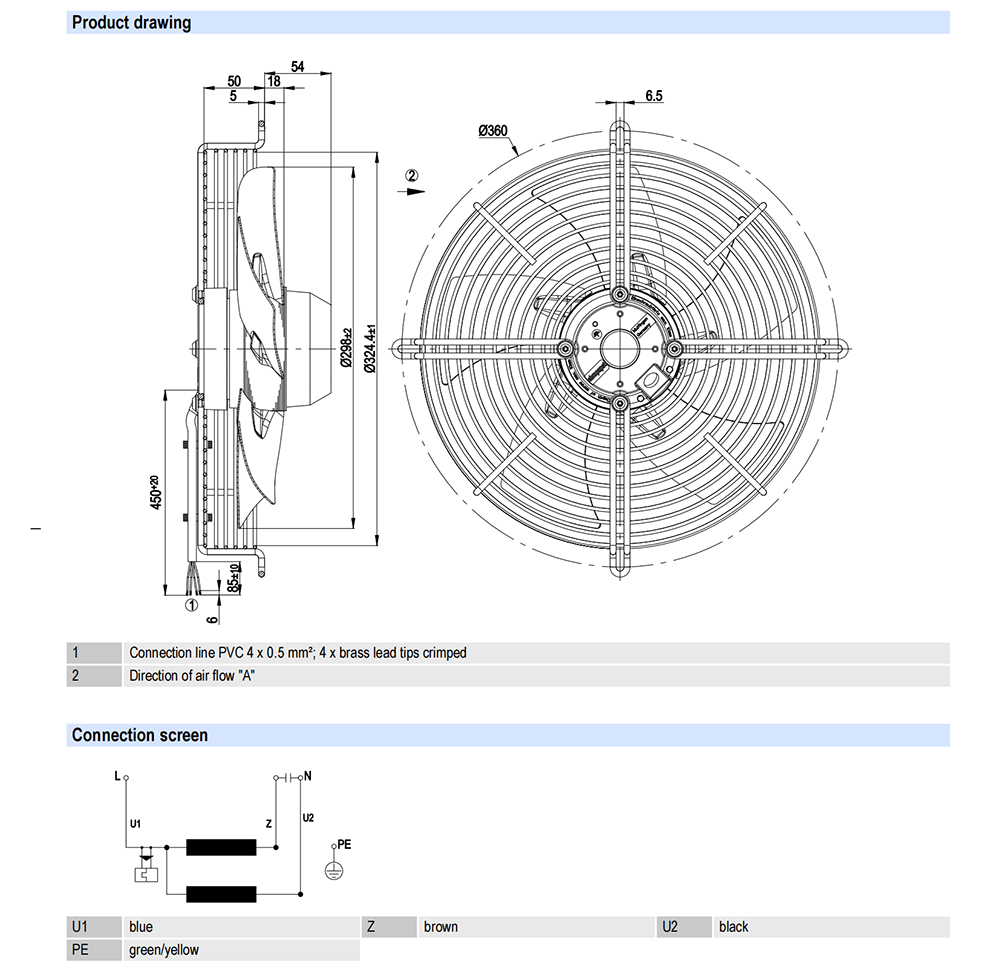

| Size(mm)： | 300 |

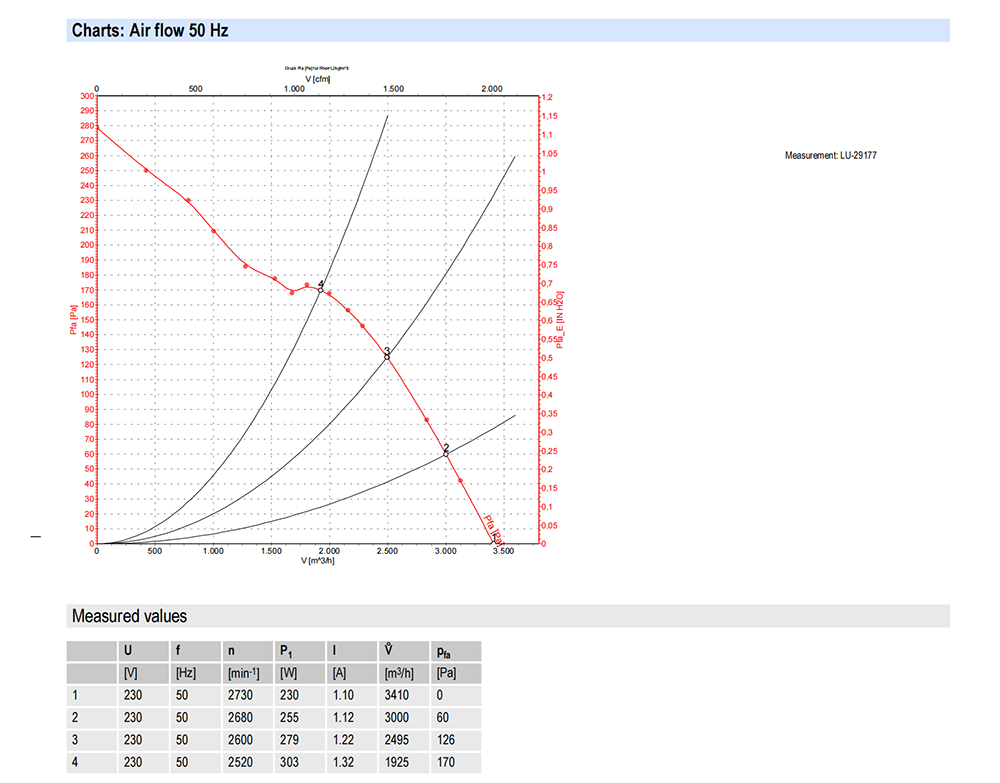

| Max.Air Flow(m³/h)： | 3410 |
| Max.Pressure(Pa)： | 170 |
| Input Power(W)： | 230 |
| Speed(rpm)： | 2730 |
| Noise(db)： | N/A |
rated voltage
The rated voltage of S2E300-AP02-31 axial fan is 230V. This common voltage specification has strong universality and can be conveniently powered in most industrial, commercial, and civilian settings. No need for complex power conversion equipment, as long as it is connected to a standard 230V power socket, the fan can run stably, greatly reducing the difficulty of installation and use.
Specification
The size of the fan is 300 millimeters, which is relatively compact. This size advantage makes it more flexible and diverse in the selection of installation space. It can be easily installed inside devices with limited space, such as small cabinets, instrument equipment, etc., to provide effective heat dissipation and ventilation; It is also possible to meet the ventilation needs of specific areas by reasonably arranging multiple fans in larger spaces. For example, in some small laboratories, multiple 300mm sized fans can work together to ensure air circulation in the experimental environment.
Maximum air volume
Its maximum air volume can reach 3410m³/h. Although this air volume value is not particularly outstanding compared to some large fans, it can already meet the basic ventilation needs for many small and medium-sized spaces. In offices, small conference rooms, and other places, it can quickly and effectively remove polluted indoor air, introduce fresh air, improve indoor air quality, and create a comfortable working and learning environment for people.
Maximum pressure
The maximum pressure is 170Pa, indicating that the fan has strong resistance overcoming ability. In actual ventilation systems, components such as ventilation ducts and filters increase the resistance to air flow. The S2E300-AP02-31 axial fan, with its pressure of 170Pa, can ensure to some extent that air can smoothly pass through these resistance components, ensuring the stability of ventilation effect. For example, in a ventilation system equipped with an air filtration device, it can still effectively deliver filtered fresh air to the required areas.
Input power
The input power is 230W, combined with its air volume and pressure output, the fan has good energy efficiency performance. A lower input power means that relatively less electricity is consumed during operation, which can save users considerable electricity expenses for ventilation systems that require long-term continuous operation. At the same time, lower power also reduces the heat generated by the fan itself, which is beneficial for extending the service life of the fan.
rotational speed
The fan has a speed of 2730rpm, which allows it to quickly propel air flow and achieve efficient ventilation. A stable rotational speed is a key factor in ensuring stable output of air volume and pressure. During operation, a speed of 2730rpm can ensure that the fan continuously and uniformly outputs air volume and pressure, avoiding unstable ventilation caused by speed fluctuations.
blade design
The blades of the S2E300-AP02-31 axial fan adopt advanced aerodynamic design concepts. The shape of the blades has been carefully optimized, and their curved surface design enables air to flow more smoothly on the blade surface, reducing resistance and turbulence during the air flow process. This design not only improves the ventilation efficiency of the fan, increases air volume and pressure output, but also reduces the noise level during fan operation (although noise parameters are not provided, a good design can help reduce noise). At the same time, the blades are made of high-strength and lightweight materials, which not only ensure the strength and stability of the blades during high-speed rotation, but also reduce the load on the motor and improve the overall efficiency of the fan.
motor performance
The motor equipped is the core component for the stable operation of the fan. This motor has the characteristics of high efficiency and reliability. The winding of the motor is made of high-quality copper material with low resistance, which can reduce the loss of electrical energy during transmission and improve the efficiency of the motor. The motor also adopts advanced heat dissipation design inside, which can timely dissipate the heat generated during the operation of the motor through reasonable heat dissipation channels and fins, avoiding damage to the motor due to overheating. In addition, the motor has good starting performance and can reach a stable speed in a short period of time, providing a guarantee for the fast start and stable operation of the fan.
Shell structure
The casing of the fan is made of sturdy and durable engineering plastic or metal materials. The design of the shell not only focuses on strength and durability, but also considers aesthetics and practicality. Its surface has been specially treated to have good wear resistance and corrosion resistance, which can effectively protect the internal motor and blades from external environmental influences such as dust, moisture, corrosive gases, etc. The shell is equipped with reasonable installation holes and ventilation openings, which facilitate user installation and maintenance, while also ensuring smooth air circulation.
Sealing performance
In order to ensure the operational efficiency and reliability of the fan, the S2E300-AP02-31 axial flow fan has good sealing performance. Sealing strips or gaskets are used at the connection between the motor and blades, as well as at various interfaces of the housing, to prevent air leakage and dust from entering. Good sealing performance can not only increase the air volume and pressure output of the fan, but also extend its service life and reduce the occurrence of faults.
Production process
ebm-papst, as a well-known fan manufacturer, has advanced production processes and strict quality control systems. In the production process of S2E300-AP02-31 axial fan, every link from raw material procurement to component processing, to assembly and debugging of the whole machine has been carefully designed and rigorously tested. We use high-precision processing equipment and advanced manufacturing processes to ensure that the dimensional accuracy and quality of each component meet the requirements. Meanwhile, through automated production lines and strict quality inspection processes, the consistency and stability of the products are ensured.
Testing and Certification
This fan has undergone a series of rigorous performance tests and safety certifications. In terms of performance testing, precise measurements will be taken on various parameters of the fan, such as air volume, pressure, power, and speed, to ensure that they meet design requirements and relevant standards. For example, by using professional air volume testing equipment and pressure sensors, the actual air volume and pressure of the fan can be detected to ensure that it reaches the nominal value. In terms of safety certification, the fan has passed multiple certifications such as electrical safety testing and mechanical safety testing, and has obtained relevant certification certificates such as CE certification, UL certification, etc., ensuring the safety of users during use.
service life
Due to the use of high-quality materials and advanced manufacturing processes, the S2E300-AP02-31 axial fan has a long service life. Under normal use and maintenance, the fan can run continuously for many years without significant performance degradation. This saves users the cost and time of frequent device replacement, and improves the efficiency of device usage. At the same time, the manufacturer also provides comprehensive after-sales service to solve problems encountered by users during use, further safeguarding their rights and interests.
Industrial sector
In industrial production, S2E300-AP02-31 axial flow fan can be used for ventilation and heat dissipation in various scenarios. For example, in the workshop of an electronics factory, due to the heat and exhaust gas generated by electronic devices during operation, fans can timely discharge these heat and exhaust gases, maintaining fresh air and suitable temperature in the workshop, which is conducive to the normal operation of electronic devices and the physical health of employees. In some small mechanical equipment, fans can also be used for cooling the equipment and extending its service life. In addition, in production workshops in industries such as chemical and pharmaceutical, fans can be used in conjunction with air purification systems to ensure that the air quality in the workshop meets production requirements.
Business field
In commercial places such as shopping malls, supermarkets, restaurants, etc., S2E300-AP02-31 axial flow fans can improve indoor ventilation. In shopping malls, with dense crowds, the air can easily become polluted. Fans can accelerate the circulation of air, delivering fresh air to every corner of the mall and improving the shopping experience for customers. In a restaurant, fans can exhaust the fumes and odors generated by the kitchen, keeping the air fresh and providing customers with a comfortable dining environment. Meanwhile, the compact size and flexible installation method of the fan allow for reasonable installation according to different commercial layouts.
Civilian field
In residential buildings, fans can be used for ventilation in spaces such as basements, bathrooms, kitchens, etc. The basement is prone to moisture and odor, and fans can remove the moisture and odor, keeping the basement dry and the air fresh. The bathroom generates a large amount of water vapor and odors during use, which can be promptly expelled by a fan to prevent the growth of mold and the spread of odors. During the cooking process, the kitchen generates oil fumes and heat, and a fan can help to remove these fumes and heat, keeping the air in the kitchen clean.
The S2E300-AP02-31 axial fan has become an excellent product in the field of ventilation due to its outstanding parameter performance, unique design features, reliable quality, and wide applicability. Whether in industrial production, commercial operation, or residential use, it can provide users with efficient, stable, and reliable ventilation solutions. If you are looking for a high-performance axial fan, S2E300-AP02-31 is definitely worth considering.
