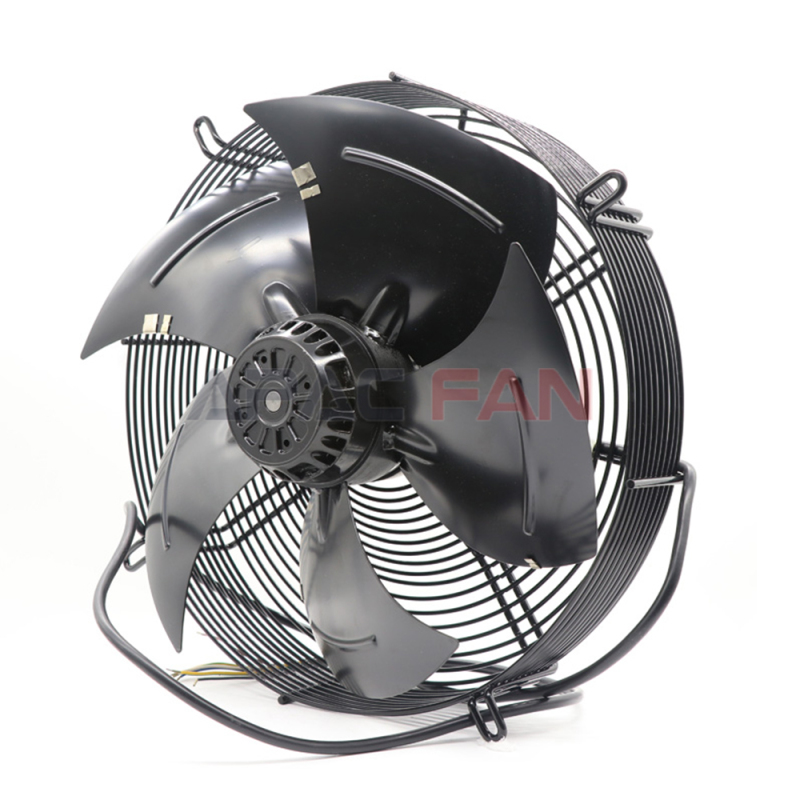

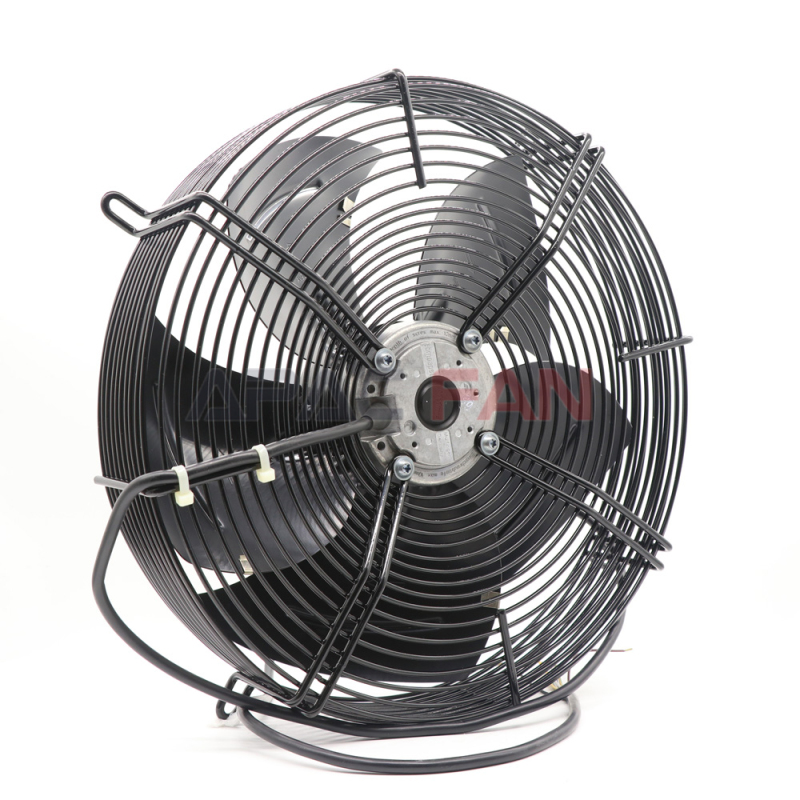

S4D350-AP08-30/A06 ebm-papst

Brand and technical heritage ​

As a world-renowned fan manufacturer, ebm-papst has profound technical accumulation and rich industry experience. Over the years, it has always adhered to the persistent pursuit of innovation and strict control of quality, and established a good reputation in the industry. The S4D350-AP08-30/A06 axial flow fan is a powerful testimony to the brand's technical strength. It combines cutting-edge design concepts and advanced manufacturing processes to meet the diverse needs of different users for ventilation equipment. ​

Accurate parameter interpretation ​

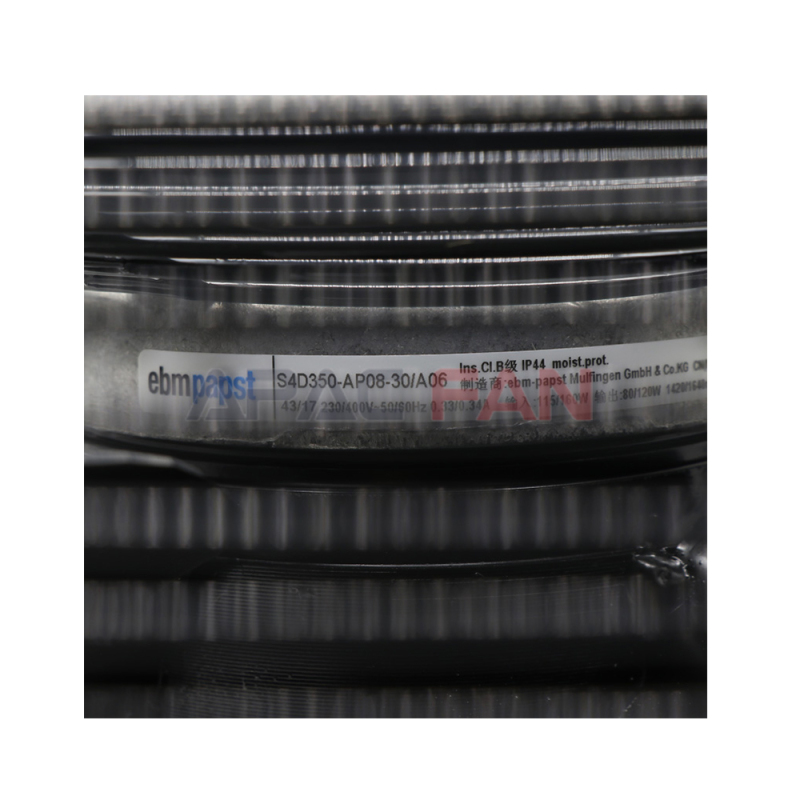

Part number ​

S4D350-AP08-30/A06 This unique part number is like the product's exclusive "ID card". In the production process, from raw material procurement, parts processing to finished product assembly, this number runs through the entire process to ensure that each production link can be accurately traced and quality controlled. In the after-sales stage of the product, with this number, product information can be quickly located, providing users with timely and accurate technical support and solutions, greatly improving the efficiency of product life cycle management.​

Fan type​

This fan belongs to the axial flow fan category. Its working principle is based on the rotation of the impeller to push the air to flow along the axial direction. The axial flow fan has the remarkable characteristics of large air volume, simple structure, and convenient installation. It can achieve efficient ventilation in a limited space and is suitable for scenes with high ventilation volume requirements and relatively open space, such as large equipment heat dissipation, large area space ventilation, etc. ​

Rated voltage​

The rated voltage of the fan is 230V, which makes it well adapted to the common mains power system. In various industrial sites, commercial buildings, and some application scenarios with high requirements for power stability, the rated voltage of 230V can ensure the stable operation of the fan, reduce the risk of equipment failure caused by voltage mismatch, and provide a solid guarantee for the reliable operation of the equipment. ​

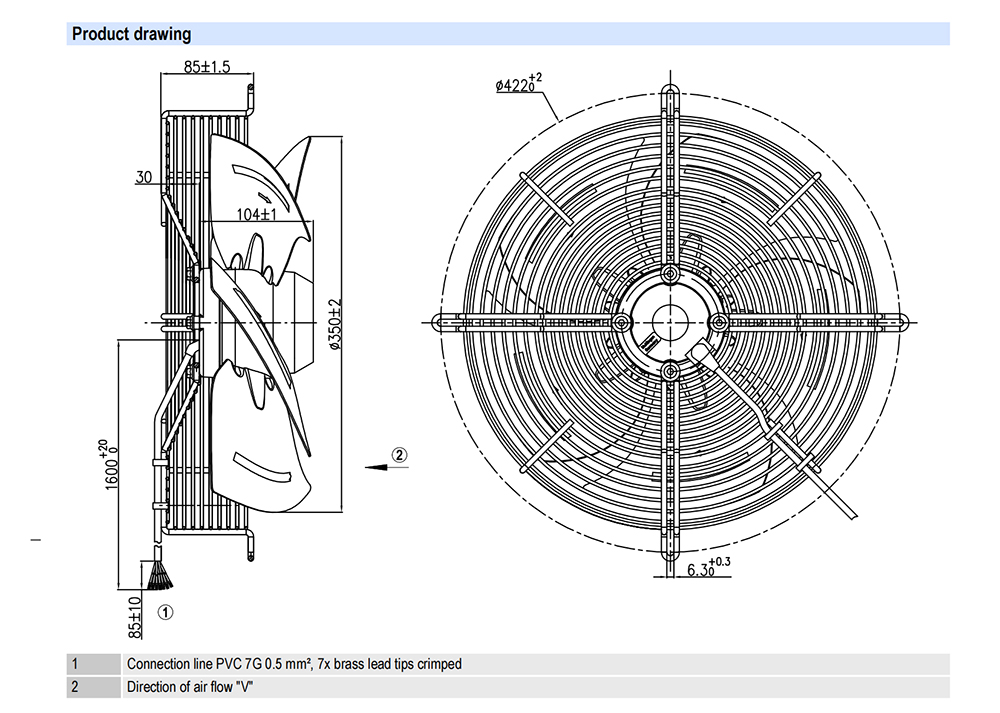

Dimensions​

The size of the fan is 350 mm, and its relatively large size gives it a strong ventilation capacity. The larger impeller diameter and overall structural design enable it to push a large amount of air flow per unit time to meet the ventilation needs of large areas or high-power equipment. At the same time, the spatial layout should be fully considered during installation to ensure that there is enough space around the fan to give full play to its optimal performance.​

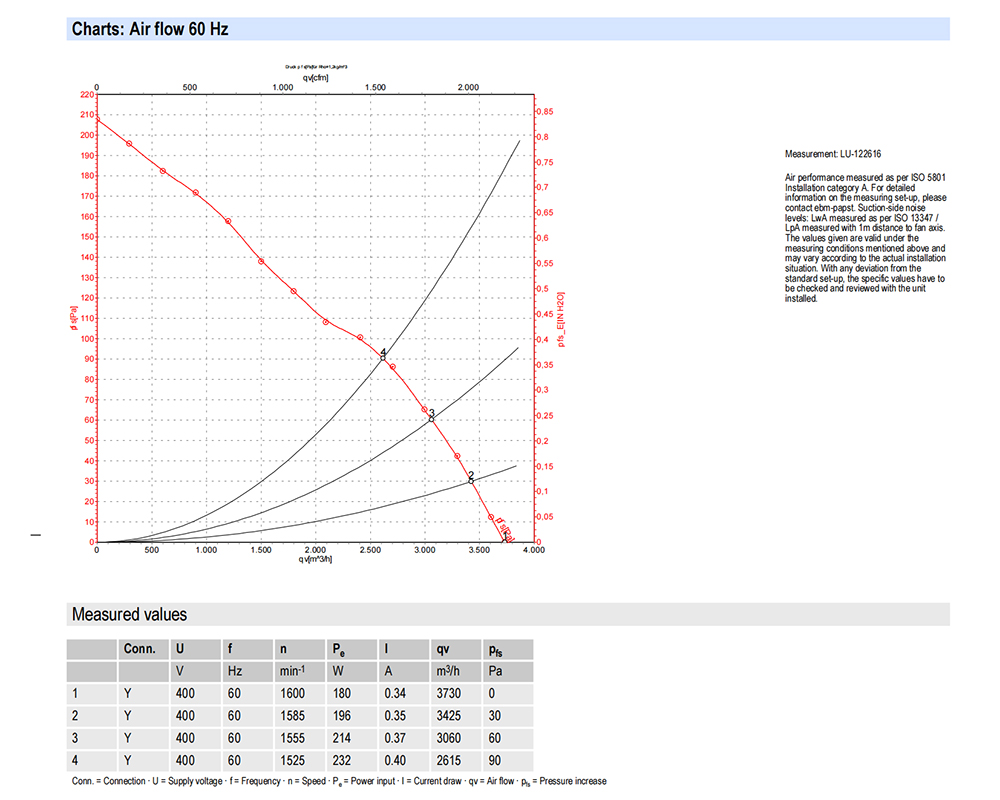

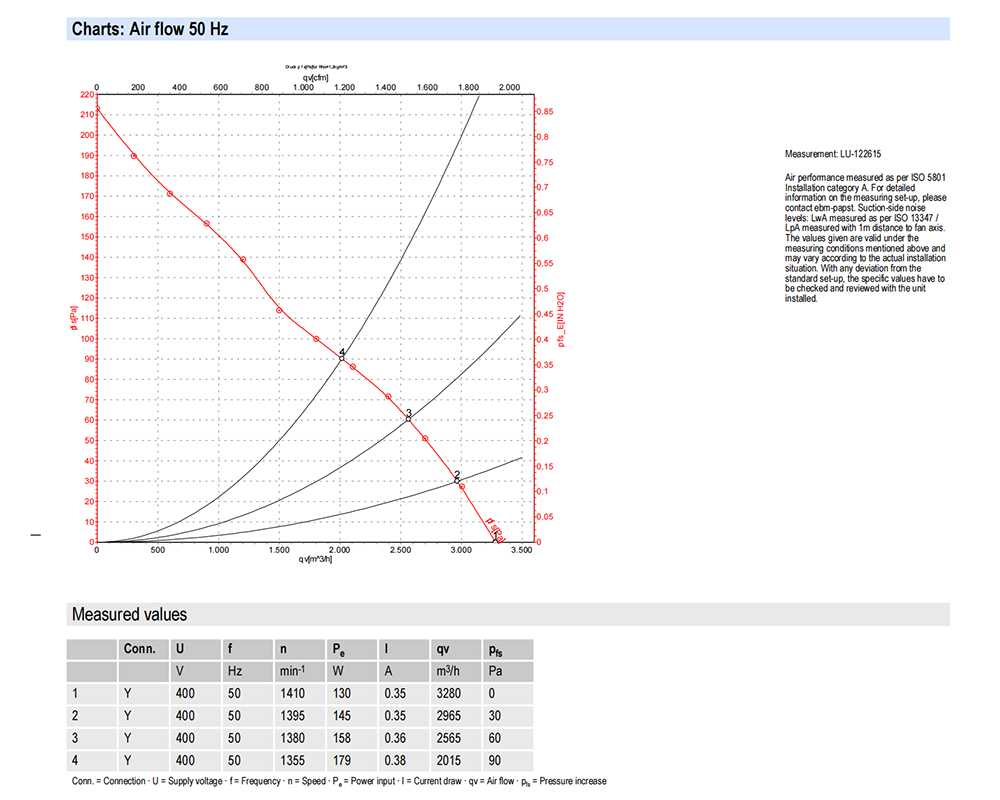

Maximum air volume​

The maximum air volume can reach 3500m³/h. Such a powerful air volume output fully demonstrates the efficient ventilation performance of the fan. In large industrial plants, data centers, exhibition halls and other places with open space and high ventilation requirements, the fan can quickly realize effective air circulation, exhaust dirty air, introduce fresh air, and create good environmental conditions for personnel and equipment. ​

Maximum pressure​

The maximum pressure is 90Pa, which reflects the ability of the fan to overcome air flow resistance. In the ventilation system, the length of the air duct, the number of elbows, the filter resistance, etc. will increase the resistance to air flow. With a maximum pressure of 90Pa, the S4D350-AP08-30/A06 fan can ensure smooth air flow in complex ventilation duct systems and ensure that the ventilation effect is not affected. ​

Input power​

The input power is 130W, which maintains a relatively reasonable energy consumption level while ensuring strong ventilation capacity. Compared with similar high-volume fans, this fan performs well in energy consumption control. It can reduce energy consumption while operating efficiently, saving operating costs for users, and is in line with the development trend of modern energy conservation and environmental protection. ​

Speed​

The speed is 1600rpm. Stable speed is one of the key factors for the fan to achieve efficient ventilation. This speed matches the impeller design and motor performance of the fan, ensuring that the impeller can push the air flow at a stable speed during rotation, ensuring the stable output of air volume, while maintaining the stability of the fan operation and reducing vibration and noise caused by speed fluctuations. ​

Exquisite design highlights​

High-efficiency impeller structure​

The impeller of the S4D350-AP08-30/A06 fan has been carefully optimized and the blades adopt a special shape and angle. When rotating, the blades can push the air to flow axially with minimal resistance, greatly improving ventilation efficiency. The impeller material is made of high-strength and lightweight materials, which not only reduces the weight of the impeller and reduces the motor load, but also enhances the durability of the impeller, enabling it to maintain stable performance during long-term high-speed operation and reduce performance degradation caused by impeller wear.​

Selection of high-quality materials​

The fan housing is made of high-quality metal materials with excellent strength and corrosion resistance. In complex use environments, such as humid, dusty or slightly corrosive gas places, it can effectively resist the erosion of external factors, protect the core components inside the fan, and ensure the reliability and service life of the fan. At the same time, the good heat dissipation performance of the metal housing helps the motor to dissipate heat in time during operation, improving the working efficiency and stability of the motor. ​

Low-noise operation design​

Although the fan has a large air volume, the S4D350-AP08-30/A06 fan can control the noise at a low level during operation through the dynamic balancing optimization of the impeller and the precise adjustment of the motor. In noise-sensitive environments, such as hospitals, schools, offices and other places, the fan can run quietly without disturbing the surrounding environment, providing users with a quiet and comfortable working or use environment. ​

Multiple application areas​

Industrial plant ventilation​

In large industrial plants, the operation of equipment generates a lot of heat, exhaust gas and dust. S4D350-AP08-30/A06 fans can be installed on the walls or roofs of factories. Through forced ventilation, hot air, exhaust gas and dust in the factory are discharged to the outside, fresh air is introduced, the air quality in the factory is improved, and a good working environment is created for workers. In electronic manufacturing factories, fans can effectively discharge harmful gases generated during the production process to protect the health of workers; in mechanical processing factories, fans can timely discharge the heat generated by the operation of equipment to prevent equipment from overheating and damage. ​

Data Center Cooling ​

The servers in the data center will generate a lot of heat during operation. If the heat cannot be dissipated in time, the performance and life of the server will be affected. S4D350-AP08-30/A06 fans can be installed in the computer room of the data center. Through circulating ventilation, the heat generated by the server is discharged to the outside to maintain the temperature balance in the computer room. In large data centers, multiple fans of this model work together to ensure that the server operates stably at a suitable temperature, ensuring the safe storage and efficient transmission of data. ​

Exhibition Halls and Shopping Malls Ventilation ​

Exhibition halls and shopping malls usually have large spaces and dense personnel, and have high requirements for air quality. The S4D350-AP08-30/A06 fan can be installed on the ceiling or wall of these places to improve indoor air quality, exhaust polluted air and introduce fresh air through continuous air circulation. When holding exhibitions in exhibition halls, the fan can protect exhibits from polluted air and provide visitors with a fresh visiting environment; when shopping malls are open, the fan can maintain air circulation and improve customers' shopping comfort. ​

ebm-papst's S4D350-AP08-30/A06 axial flow fan has demonstrated excellent performance and reliability with precise parameter settings, outstanding design highlights and a wide range of applications. Whether in data centers that pursue efficient heat dissipation, industrial plants with strict ventilation requirements, or exhibition halls and shopping malls that need to improve air quality, it can play an important role, provide strong support for the stable operation of equipment and the optimization of the environment, and become an excellent representative in the field of axial flow fans.
