| Brand: | ebm-papst |
| Part No: | S4E300-AS72-53/F02 |
| Fan Type: | Axial Fan |
| Rated Voltage(V): | 230 |
| Size(mm): | 300 |

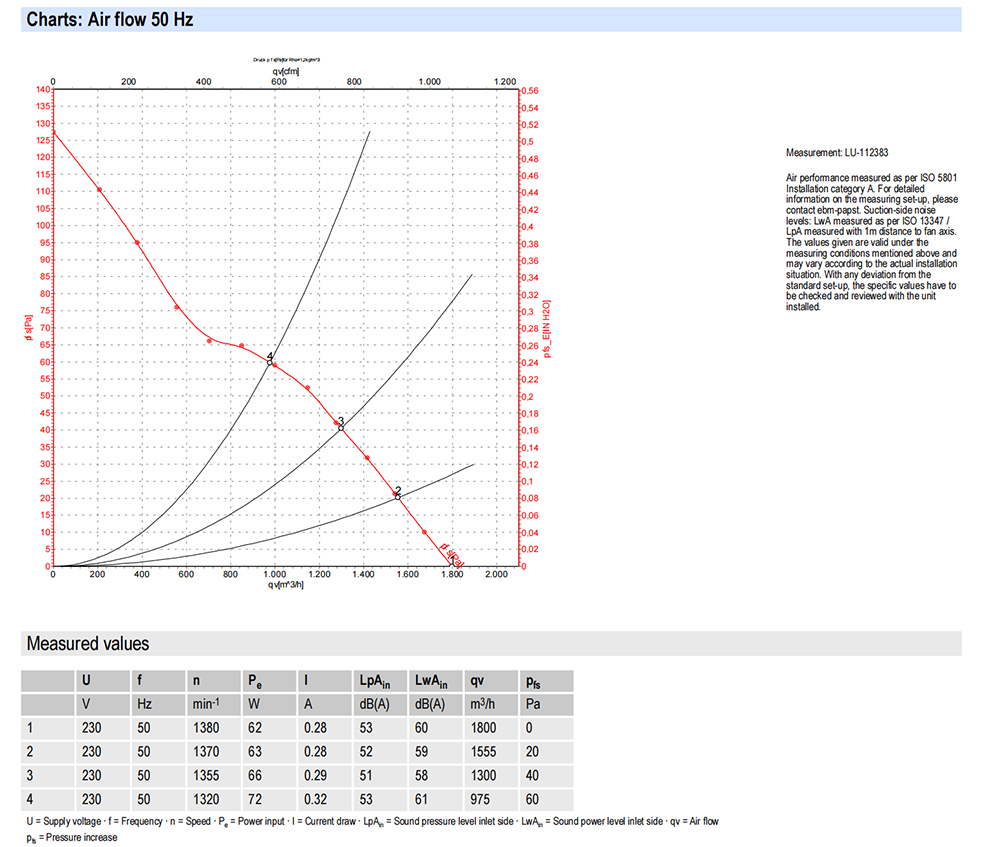

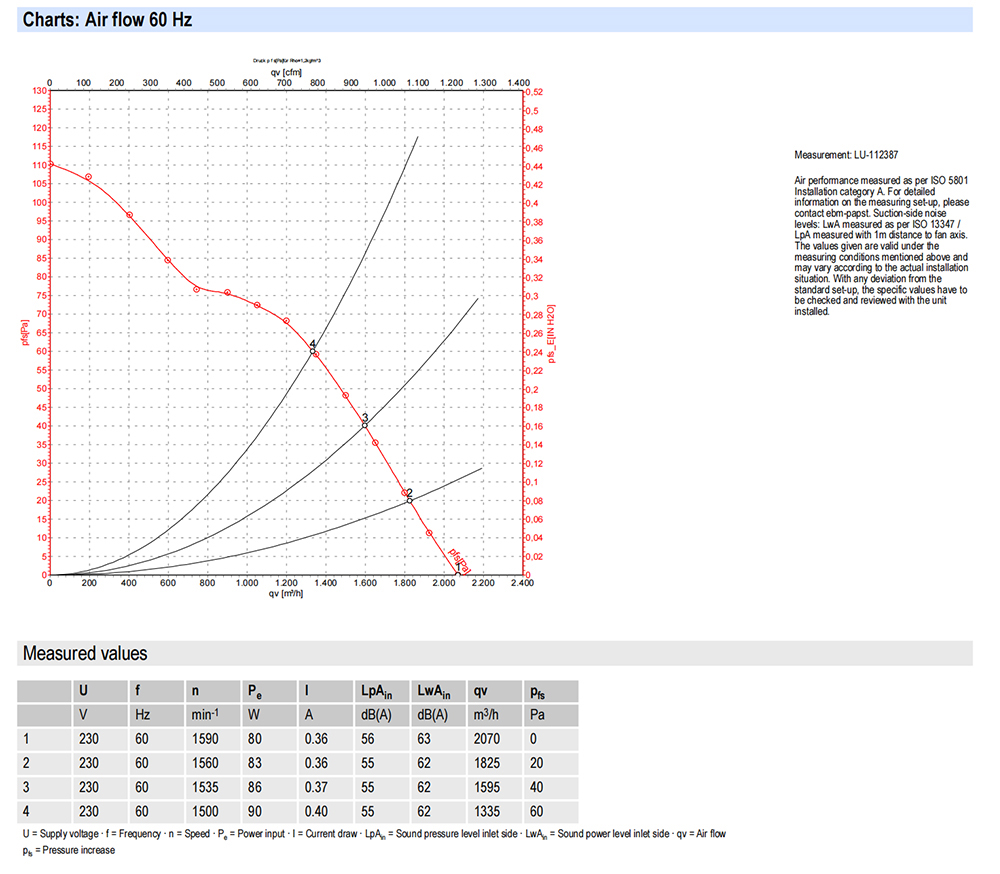

| Max.Air Flow(m³/h): | 2070 |
| Max.Pressure(Pa): | 60 |
| Input Power(W): | 90 |
| Speed(RPM): | 1500 |
| Noise(dB): | 55 |
| Surface of rotor: | Coated in black |
| Material of terminal box: | ABS plastic, black |
| Material of impeller: | PP plastic |
| Material of guard grille: | Steel, phosphated and coated in black plastic |
| Number of blades: | 5 |
| Direction of air flow: | "V" |
| Direction of rotation: | Counter-clockwise, seen on rotor |
| Type of protection: | IP 44; Depending on installation and position |
| Insulation class: | "B" |
| Humidity class: | F1-2 |
| Max. permissible ambient motor temp. (transp./ storage): | + 80 °C |
| Min. permissible ambient motor temp. (transp./storage): | - 40 °C |
| Mounting position: | Any |
| Condensate discharge holes: | None |
| Operation mode: | S1 |
| Motor bearing: | Ball bearing |
| Touch current acc. IEC 60990 (measuring network Fig. 4, TN system): | < 0.75 mA |

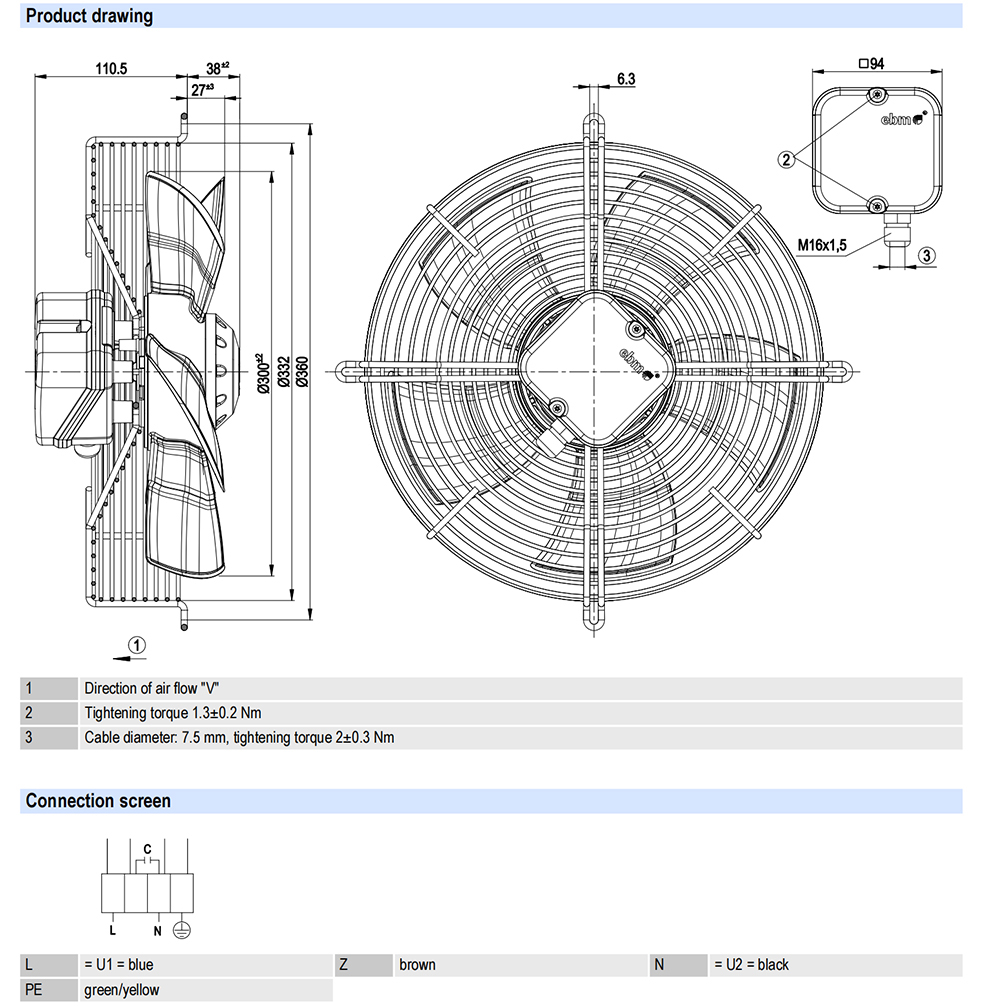

| Electrical leads: | Via terminal box, integrated capacitor connected via terminal box |
| Motor protection: | Thermal overload protector (TOP) wired internally |
| Cable exit: | Variable |
| Protection class: | I (if protective earth is connected by customer) |
| Product conforming to standard: | EN 60335-1; CE |
| Approval: | CCC |
