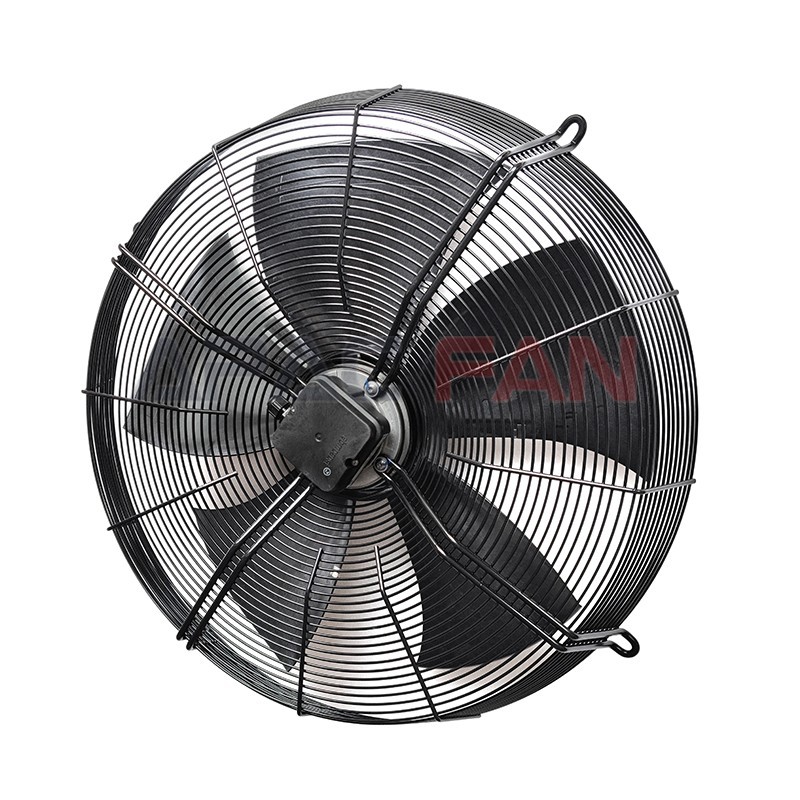

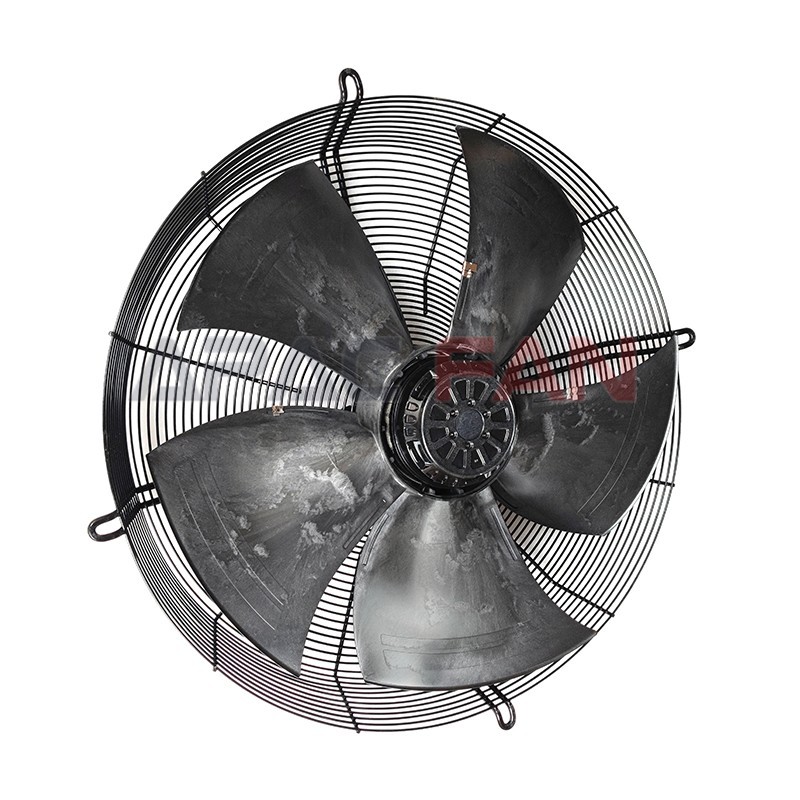

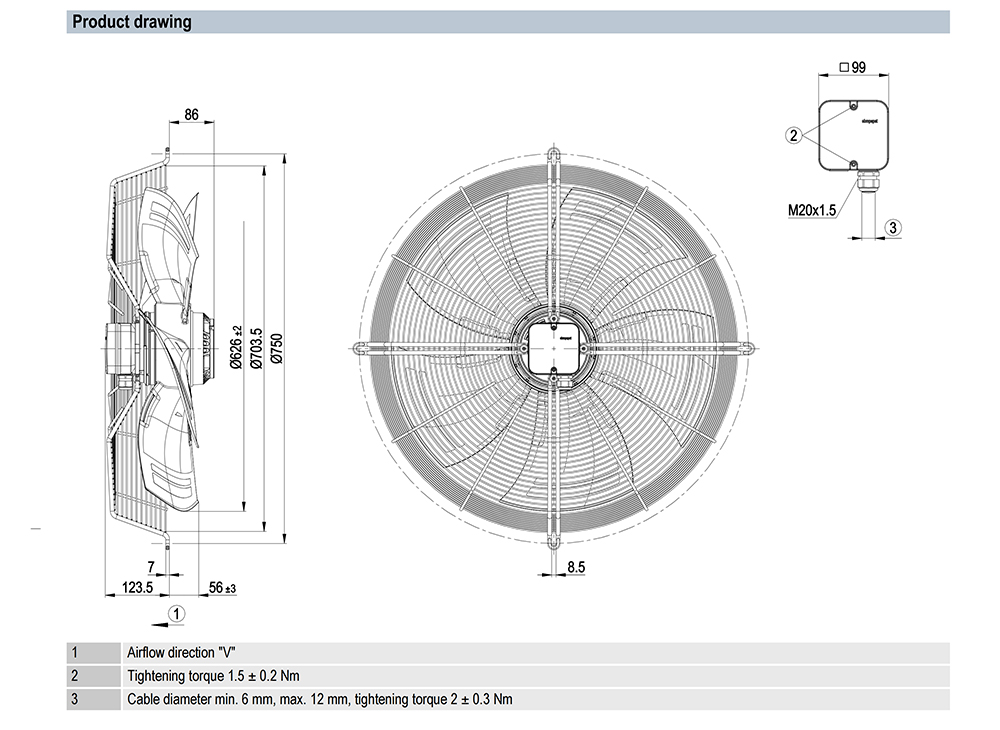

AC axial fan - HyBlade, sickle-shaped blades (S series) with guard grille for short nozzle

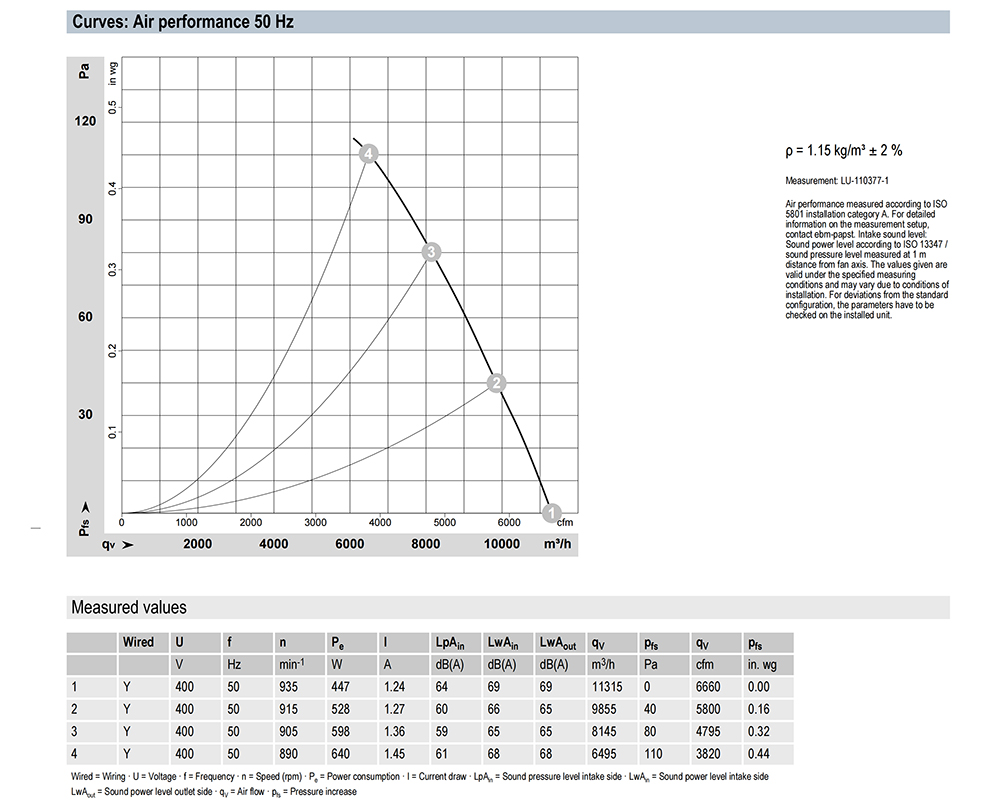

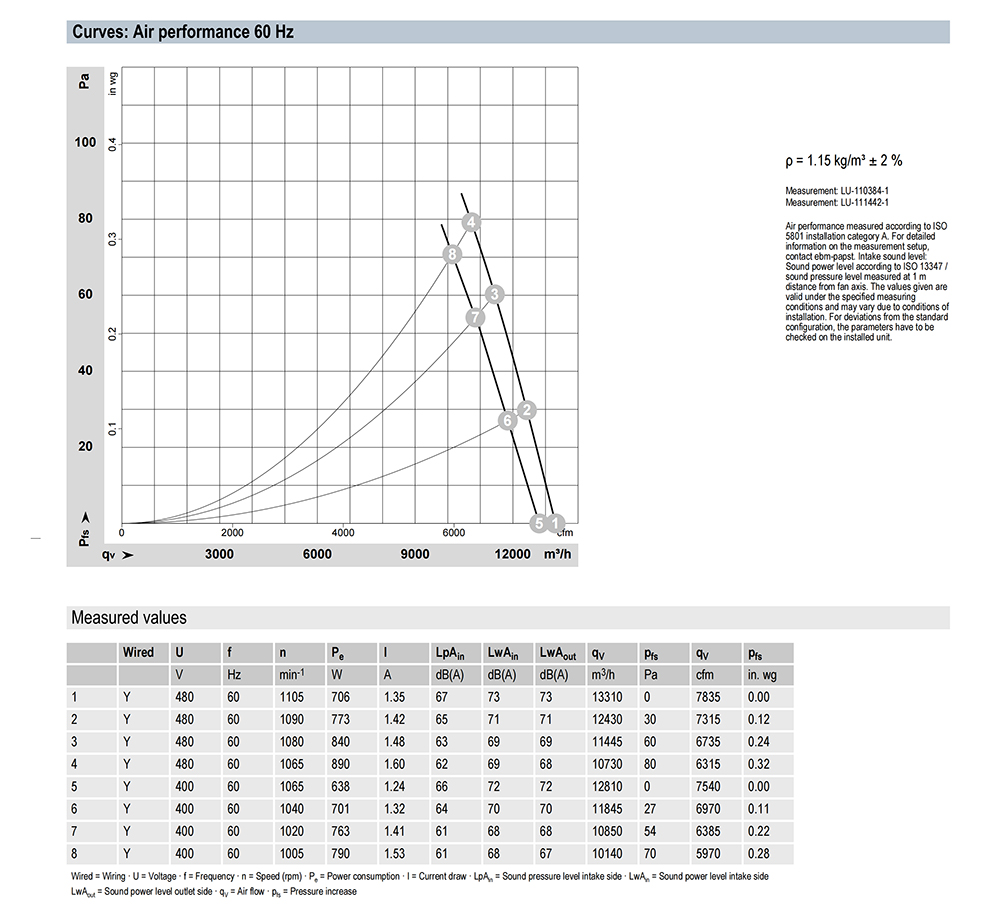

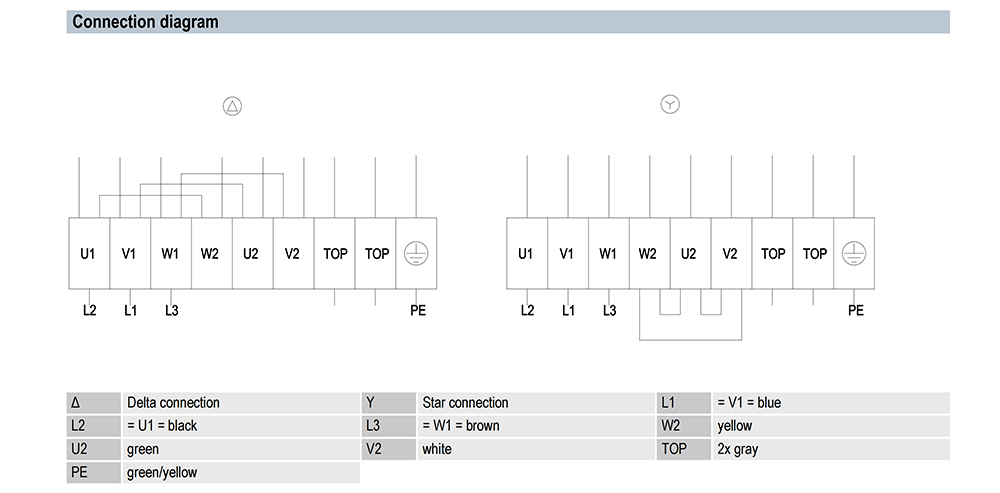

| Brand： | ebm-papst |
| Part No： | S6D630-AN09-03 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 630 |
| Max.Air Flow(m³/h)： | 13310 |
| Max.Pressure(Pa)： | 70 |
| Input Power(W)： | 790 |
| Speed(RPM)： | 1005 |
| Noise(dB)： | 61 |
| Weight: | 13.82 kg |
| Motor Size: | 110 |
| Rotor Surface: | Cast in aluminum |
| Terminal Box Material: | PP plastic |
| Blade Material: | Press-fitted sheet steel blank, sprayed with PP plastic |
| Guard Grille Material: | Steel, coated with black plastic (RAL 9005) |
| Number of Blades: | 5 |
| Airflow Direction: | V |
| Direction of Rotation: | Counterclockwise, viewed toward rotor |
| Degree of Protection: | IP54 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H2 |
| Ambient Temperature Note: | Occasional start-up at temperatures between -40°C and -25°C is permitted. For continuous operation at ambient temperatures below -25°C (such as refrigeration applications), use must be made of a fan design with special low-temperature bearings. |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage): | +80 °C |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage): | -40 °C |
| Installation Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current According to IEC 60990 (Measuring Circuit Fig. 4, TN System): | <= 3.5 mA |
| Electrical Hookup: | Terminal box |
| Motor Protection: | Thermal overload protector (TOP) with basic insulation |
| With Cable: | Axial |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity with Standards: | EN 60034-1 (2010); CE |
| Approval: | VDE; CSA C22.2 No. 100; EAC; UL 1004-1 |
