S6E630-AN01-01 ebm-papst

• Introduction

In the vast field of ventilation equipment, ebm-papst's S6E630-AN01-01 axial flow fan has become a key choice for ventilation solutions in many industries due to its unique performance and excellent quality. Whether it is comprehensive ventilation in large industrial plants or air circulation in commercial places, this fan can play an important role with its own advantages. Next, we will delve into the S6E630-AN01-01 axial flow fan, from its core parameters, unique design features, to its performance in practical applications, to fully understand the charm of this fan.

• Detailed explanation of fan parameters

Brand and Model: ebm-papst, as a well-known brand in the fan industry, has profound technical accumulation and strict quality control system. The S6E630-AN01-01 model is the crystallization of the brand's technical strength and innovative concept, carrying the mission of providing users with efficient and reliable ventilation services, and occupies an important position in the field of axial flow fans.

Fan type: It belongs to axial flow fans, and its working principle is based on the motor driving the blades to rotate at high speed, pushing air to flow along the axial direction of the fan. This working method makes axial fans have the characteristics of large air volume, simple structure, and high operating efficiency, which can play an important role in various ventilation scenarios, from comprehensive ventilation of large industrial plants to local heat dissipation of small equipment, the figure of axial fans can be seen.

Rated voltage (V): The rated voltage is 230V, which allows the fan to adapt to common industrial and commercial power environments without the need for additional voltage conversion equipment, making it convenient for users to use and install. A voltage supply of 230V can provide stable power support for the wind turbine, ensuring efficient and stable performance during operation.

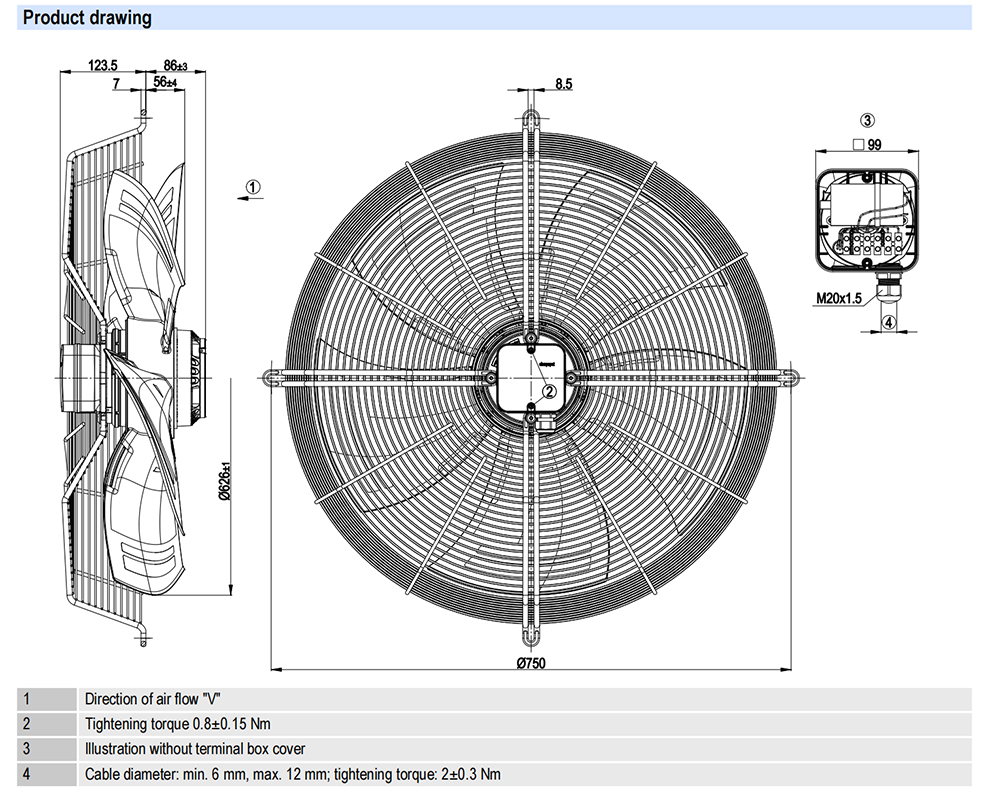

Size (millimeters): The size of the fan is 630 millimeters, which usually refers to the diameter of the fan. The large diameter design of 630 millimeters makes the fan relatively larger in structure, but also brings it greater ventilation capacity. A larger size can accommodate larger blades, resulting in greater airflow at the same speed, making it suitable for large places with high ventilation requirements.

Maximum air volume (m³/h): The maximum air volume can reach 6705m³/h, which intuitively reflects the ability of the fan to deliver air per unit time. Such a large air volume can quickly achieve air circulation and replacement, meeting the ventilation needs of some highly efficient application scenarios, such as large industrial plants, sports venues, and other places.

Maximum pressure (Pa): The maximum pressure is 100Pa, which means that the fan can provide some pressure support when overcoming ventilation duct resistance and other obstacles. In actual ventilation systems, air encounters various resistances during the flow process. The pressure performance of the S6E630-AN01-01 fan can ensure that air passes through the pipeline smoothly to a certain extent, delivering fresh air to the designated location and ensuring the stable operation of the ventilation system.

Input power (W): With an input power of 600W, this power consumption is at a relatively reasonable level while ensuring efficient ventilation. The lower power consumption not only reduces the operating costs for users, but also meets the modern society's pursuit of energy conservation and environmental protection, making the fan have a higher cost-effectiveness in long-term operation.

Speed (rpm): The speed is 860rpm, and a relatively moderate speed can ensure that the fan maintains a relatively stable operating state while generating a large amount of air. The speed is closely related to the air volume, pressure, and energy consumption of the fan. Through precise design and optimization, ebm-papst has achieved a good balance between air volume, pressure, and energy consumption of the S6E630-AN01-01 fan at a speed of 860rpm.

• Fan characteristics

High air volume and efficient ventilation: With 630mm large-diameter blades and a speed of 860rpm, the fan can generate a maximum air volume of up to 6705m ³/h. The blades adopt a unique aerodynamic design, and the shape, angle, and curvature of the blades have been accurately calculated and optimized, enabling the blades to more effectively promote air flow during rotation, reducing energy loss during air flow and achieving efficient ventilation. In large industrial plants, the characteristic of high air volume and efficient ventilation can quickly exhaust the hot air indoors, introduce fresh air, improve the working environment, and enhance production efficiency.

Energy saving design: ebm-papst adopts advanced motor technology and optimized aerodynamic design, enabling the S6E630-AN01-01 fan to achieve efficient ventilation with low power consumption during operation. The motor adopts high-efficiency and energy-saving winding materials and optimized magnetic circuit design, which improves the efficiency of the motor and reduces the loss of electrical energy during the conversion process. Compared with traditional fans, this fan can save a certain proportion of electricity under the same ventilation effect, bringing significant energy-saving benefits to users. In some enterprises that are sensitive to energy consumption, such as food processing plants, textile factories, etc., the energy-saving design of S6E630-AN01-01 fan can effectively reduce production costs.

Durable and sturdy structure: The casing of the fan is made of high-strength materials, which have good corrosion resistance and mechanical strength, and can effectively resist external environmental erosion and mechanical collisions. Even in harsh industrial environments such as high temperature, high humidity, and dusty workshops, the fan casing can remain intact for a long time, protecting the internal components from damage. The key internal components, such as motors and blades, have also undergone strict screening and testing to ensure their reliable quality and ability to withstand long-term operation and various working conditions. In some places where equipment reliability is highly required, such as petrochemical plants, power plants, etc., the sturdy and durable structure of S6E630-AN01-01 fan can provide strong support for the normal operation of the equipment.

Easy installation and maintenance: Despite the large size of the fan, the design fully considers the convenience of installation and maintenance. The fan is equipped with specialized installation brackets and connecting components, making the installation process simple and fast, which can save installation time and costs. At the same time, the internal structure design of the fan is reasonable, and the key components are easy to disassemble and replace, making it convenient for users to carry out daily maintenance and upkeep. In some places that require regular maintenance, such as shopping malls, hotels, etc., the convenient installation and maintenance of S6E630-AN01-01 fan can improve maintenance efficiency and reduce equipment downtime.

• Application scenarios

Industrial plant ventilation: In various industrial plants such as mechanical manufacturing, electronic processing, chemical production, etc., due to the large amount of heat, exhaust gas, and dust generated during the production process, timely ventilation and air exchange are needed to ensure the health of workers and the normal operation of equipment. The S6E630-AN01-01 fan, with its high air volume and efficient ventilation, can quickly discharge polluted air from the factory building and introduce fresh air, improving the air quality inside the factory building. In mechanical manufacturing plants, large machine tools generate a large amount of heat during operation. The S6E630-AN01-01 fan can be installed on the roof or walls of the plant to discharge hot air through strong air flow, maintain a suitable temperature inside the plant, and improve workers' work efficiency.

Ventilation in commercial places: In densely populated areas such as shopping malls, supermarkets, and sports centers, poor air circulation can easily lead to a decrease in air quality, affecting the comfort of customers and staff. The S6E630-AN01-01 fan can be installed in the ventilation system of these places to maintain fresh and circulating indoor air through efficient ventilation and air exchange. In large shopping malls, the S6E630-AN01-01 fan can be used in conjunction with the central air conditioning system to deliver processed fresh air into various areas while expelling indoor polluted air, creating a comfortable shopping and working environment for customers and staff.

Warehouse ventilation: Warehouses usually store a large amount of goods, which may produce odors, moisture, etc. during storage. Timely ventilation is needed to ensure the quality and safety of the goods. The S6E630-AN01-01 fan can be installed on the ventilation opening or roof of the warehouse, and through high air volume ventilation, it can remove odors and moisture from the warehouse, keeping it dry and fresh. In the grain warehouse, the S6E630-AN01-01 fan can effectively prevent grain from mold and deterioration, ensuring the storage quality of grain.

• Summary

The S6E630-AN01-01 axial flow fan has become a leader in the field of ventilation equipment due to its excellent parameter performance, unique characteristics, and wide application scenarios. This fan plays an important role in ensuring smooth production in the industrial sector and creating a favorable environment for people in the commercial and warehousing fields. I believe that in the future, with the continuous advancement of technology and the increasing demand for applications, the S6E630-AN01-01 fan will continue to shine and generate heat in the field of ventilation, providing high-quality and efficient ventilation solutions for more users and continuously promoting the development and innovation of ventilation technology.
