W1G180-AB47-01 ebm-papst

• Introduction

In the vast market of ventilation equipment, there are various types of fans with different functions, and ebm-papst's W1G180-AB47-01 axial flow fan has become a high-quality choice for many users due to its excellent performance and stable quality. Whether in bustling industrial production workshops, precision electronic manufacturing fields with extremely strict environmental requirements, or communication base stations related to smooth communication, this fan plays a crucial role silently, providing strong guarantees for the normal operation of equipment and the suitability of the environment. Next, let's delve into the various parameters, unique features, and application advantages of the W1G180-AB47-01 axial flow fan in different scenarios.

• Detailed explanation of fan parameters

Brand and Model: ebm-papst, as a well-known brand in the fan industry, enjoys a high reputation worldwide. Its advanced technology research and development capabilities and strict quality control system have always been a solid support for product quality. The W1G180-AB47-01 model is not only one of ebm-papst's many excellent products, but also embodies the brand's years of technological accumulation and innovative achievements in the field of fans, representing high quality and high performance.

Fan type: It belongs to axial flow fan. The working principle of this type of fan is to rely on the motor to drive the blades to rotate at high speed, so that the air flows quickly along the axial direction of the fan. The structural design of axial flow fans is relatively simple, with blades directly connected to the motor shaft. During rotation, the blades apply force to the air, pushing it forward in a straight line. Its characteristics of large air volume, compact structure, and high operating efficiency make it capable of performing well in many ventilation scenarios, from comprehensive ventilation in large industrial plants to local heat dissipation in small electronic devices, where axial flow fans can be seen.

Rated voltage (V): The rated voltage is 48V, and this voltage setting has many considerations. Compared to common low-voltage fans, 48V can provide stronger power to the fan, ensuring stable output of air volume and pressure during operation. In some environments with high ventilation requirements and the need for continuous and efficient operation of fans, the advantage of a rated voltage of 48V is highlighted. At the same time, the voltage of 48V is also within the safe voltage range, ensuring the performance of the fan while ensuring safety during use, and reducing safety hazards caused by voltage issues.

Size (millimeters): The size of the fan is 180 millimeters, where 180 millimeters usually refers to the diameter of the fan. This diameter size makes the fan relatively compact in overall structure and small in size. In practical applications, whether installed inside devices with narrow spaces, such as small control cabinets, precision instrument cooling modules, or integrated into complex ventilation duct systems, they do not occupy too much space resources, providing more flexibility for equipment layout and ventilation system design.

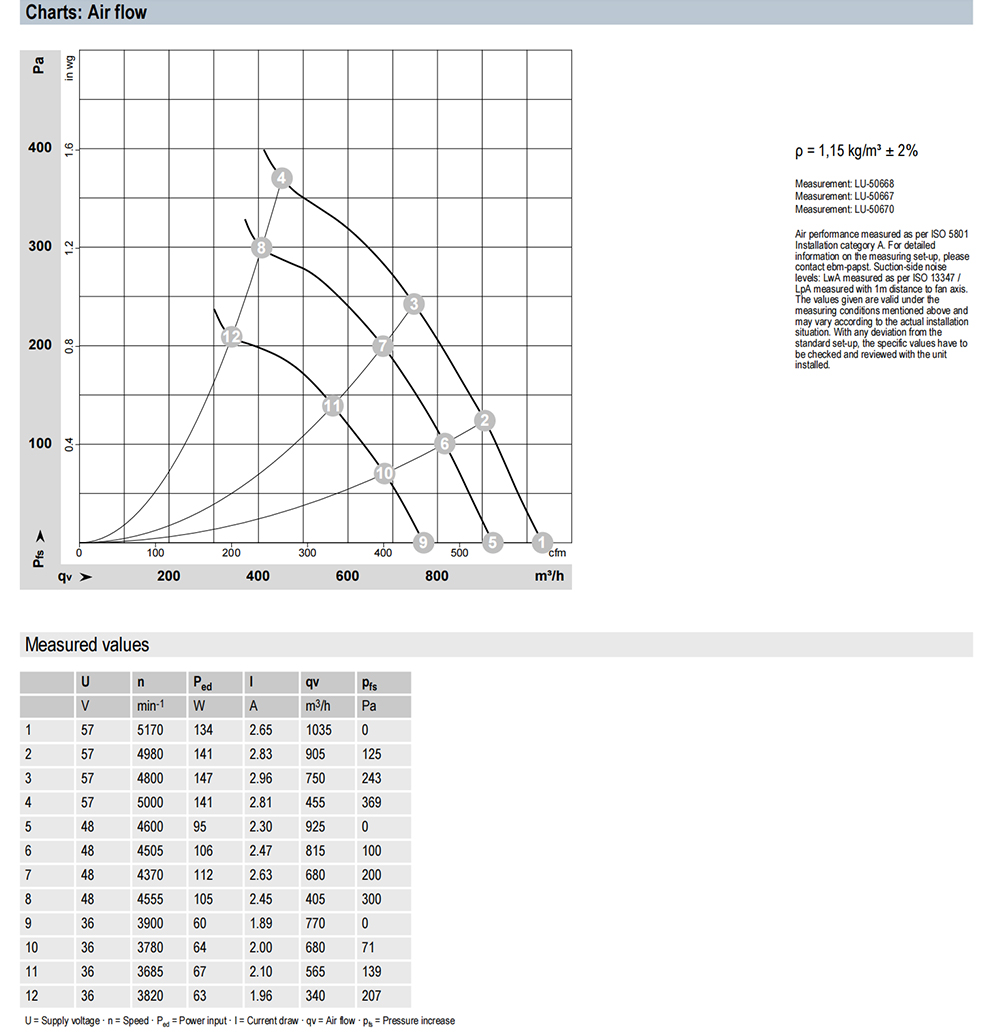

Maximum air volume (m ³/h): The maximum air volume can reach 1035m ³/h, which intuitively reflects the ability of the fan to deliver air per unit time. In industrial production, many large equipment generate a large amount of heat during operation, which needs to be discharged in a timely manner to ensure the normal operation of the equipment. At this time, the large air volume advantage of W1G180-AB47-01 fan can be fully utilized to quickly discharge hot air and introduce cold air, achieving efficient heat dissipation and ventilation. In some places that require rapid replacement of indoor air, such as densely populated conference rooms, classrooms, etc., high air volume can also quickly fill the entire space with fresh air, improving indoor air quality.

Maximum pressure (Pa): The maximum pressure is 369Pa, which determines the ability of the fan to overcome ventilation duct resistance and other obstacles. In actual ventilation systems, air flows through pipes and encounters various resistances, such as frictional resistance in pipes and local resistance in bends. The W1G180-AB47-01 fan has a high maximum pressure, which ensures that air passes through these resistances smoothly during the conveying process, delivering fresh air to the designated location and ensuring the stable operation of the ventilation system. For example, in some industrial plants with long ventilation ducts and complex layouts, the high pressure performance of the fan can effectively ensure the ventilation effect.

Input power (W): The input power is 100W, which is within a relatively reasonable range while ensuring efficient ventilation. Lower power consumption means that during the long-term operation of the wind turbine, it can save users a lot of electricity expenses and reduce operating costs. At the same time, this also conforms to the pursuit of energy conservation and environmental protection in today's society, reducing energy waste and making it more environmentally friendly. In some enterprises that are sensitive to energy costs, such as small processing plants and commercial stores, low-power fans can effectively reduce operating costs and improve economic efficiency.

Rotational speed (rpm): With a speed of up to 4600rpm, the high-speed rotating blades are the key to achieving high air volume and high pressure output. A higher rotational speed allows the blades to quickly cut through the air, exerting greater force on the air and pushing it to flow rapidly. However, high rotational speed also places extremely high demands on the structural design and manufacturing process of fans. ebm-papst ensures the stable operation of the fan at high speeds by using advanced materials and precision manufacturing technology, reducing vibration and noise caused by high-speed rotation, and improving the reliability and service life of the fan.

• Fan characteristics

Efficient ventilation performance: With a high speed of 4600rpm and carefully designed blade structure, the fan can generate a maximum air volume of up to 1035m ³/h and a maximum pressure of 369Pa. The blades adopt a unique aerodynamic design, and the shape, angle, and curvature of the blades have been accurately calculated and optimized, enabling the blades to more effectively promote air flow and reduce energy loss during the flow process. This efficient ventilation performance enables it to deliver a large amount of air in a short period of time, meeting various ventilation needs. Whether it is cooling large equipment or providing fresh air for space, it can perform excellently. For example, in large data centers, servers generate a large amount of heat during operation. The W1G180-AB47-01 fan can quickly exhaust the hot air, providing a good heat dissipation environment for the servers and ensuring the stable operation of the data center.

Energy saving design: ebm-papst adopts advanced motor technology and optimized aerodynamic design, enabling W1G180-AB47-01 fan to achieve efficient ventilation with low power consumption during operation. The motor adopts high-efficiency and energy-saving winding materials and optimized magnetic circuit design, which improves the efficiency of the motor and reduces the loss of electrical energy during the conversion process. Meanwhile, the optimized aerodynamic design enables the fan to operate at lower speeds under the same air volume and pressure requirements, further reducing energy consumption. Compared with traditional fans, this fan can save about 20% -30% of electricity under the same ventilation effect, bringing significant energy-saving benefits to users.

Compact structure: The 180mm diameter design makes the overall structure of the fan compact and compact in size. This compact structure not only facilitates installation and layout, but also provides good ventilation in limited space. The casing of the fan is made of high-strength lightweight materials, which not only ensures structural strength but also reduces the weight of the fan, making it easy to install and transport. In addition, the installation methods of fans are flexible and diverse. They can be fixed on a flat surface with bolts, hung on walls or ceilings with brackets, and customized according to user needs, such as being integrated into specific ventilation systems, providing great convenience for users.

High stability and reliability: The brand's strict quality control and exquisite manufacturing process ensure the stability and reliability of the fan. In the production process, from the procurement of raw materials to the processing of components, to the assembly and debugging of the entire machine, every link strictly follows international standards and the internal quality control system of the enterprise. The key components inside the fan, such as the motor and blades, have undergone strict screening and testing to ensure their performance meets the requirements. At the same time, the fan also has good anti-interference ability and can operate stably in complex electromagnetic environments. In places where high stability is required for equipment, such as operating rooms in hospitals and testing workshops for aerospace equipment, the high stability and reliability of W1G180-AB47-01 fan can provide strong support for the normal operation of the equipment.

• Application scenarios

Industrial cooling system: In industrial production, many equipment such as large motors, transformers, welding machines, etc. generate a large amount of heat during operation and require timely cooling. The W1G180-AB47-01 fan can be installed in the cooling system of these devices, quickly removing the heat generated by the equipment through strong air flow, ensuring that the equipment operates at a suitable temperature, improving the stability and reliability of the equipment, and extending its service life. For example, in a steel plant, large motors can generate high temperatures after prolonged operation. If not cooled in a timely manner, the insulation performance of the motor will decrease and may even cause malfunctions. The W1G180-AB47-01 fan is installed in the heat dissipation duct of the motor, which can quickly discharge hot air, keep the motor within the normal operating temperature range, and ensure the smooth progress of steel production.

Communication base station ventilation: The communication equipment inside the communication base station requires good ventilation and heat dissipation conditions to ensure its normal operation. The equipment inside the base station is dense and the heat dissipation is concentrated. The W1G180-AB47-01 fan, with its efficient ventilation performance and compact structure, can be installed on the ventilation port or equipment rack of the base station to quickly exhaust the hot air inside the base station, introduce cold air, maintain the temperature balance inside the base station, ensure the stable operation of communication equipment, and guarantee smooth communication. In some remote communication base stations, due to harsh environmental conditions, higher reliability requirements are placed on wind turbines. The high stability and adaptability of W1G180-AB47-01 wind turbine can meet the communication needs in these special environments.

Laboratory ventilation: In the laboratory, various chemical and biological experiments are often conducted, which can produce harmful gases and odors during the experimental process. In order to ensure the health of experimental personnel and the safety of the experimental environment, it is necessary to promptly discharge these harmful gases from the laboratory. The W1G180-AB47-01 fan can be applied to the ventilation system of laboratories, quickly expelling harmful gases indoors through strong air volume, while introducing fresh air to maintain the freshness and cleanliness of laboratory air. For example, in a chemistry laboratory, a large amount of volatile organic compounds are produced during organic synthesis experiments, which are harmful to human health. The W1G180-AB47-01 fan can quickly exhaust these harmful gases outdoors, creating a safe experimental environment for the experimenters.

• Summary

W1G180-AB47-01 axial flow fan has become a leader in the field of ventilation equipment due to its excellent parameter performance, unique characteristics, and wide application scenarios. This fan plays an important role in ensuring the normal operation of equipment in the industrial field, as well as creating a good environment for people in communication, laboratory and other fields. I believe that in the future, with the continuous advancement of technology and the increasing demand for applications, the W1G180-AB47-01 fan will continue to shine and generate heat in the field of ventilation, providing high-quality and efficient ventilation solutions for more users and continuously promoting the development and innovation of ventilation technology.
