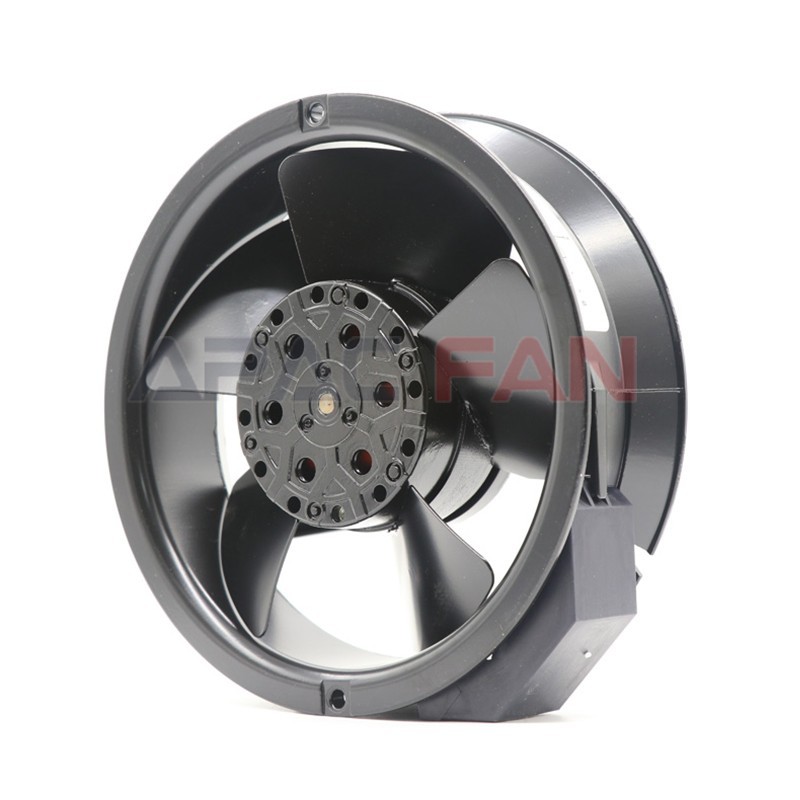

| Brand： | ebm-papst |
| Part No： | W2E143-AB15-01/F01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 115 |

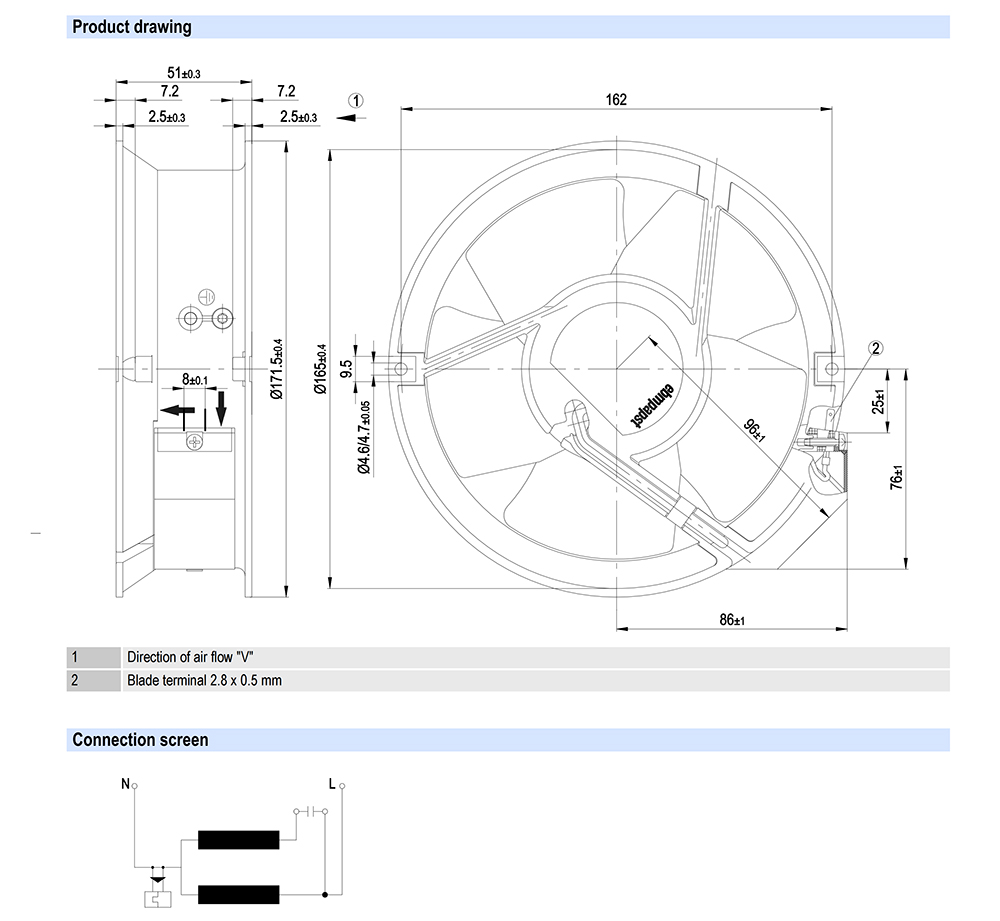

| Size(mm)： | φ172*51 |

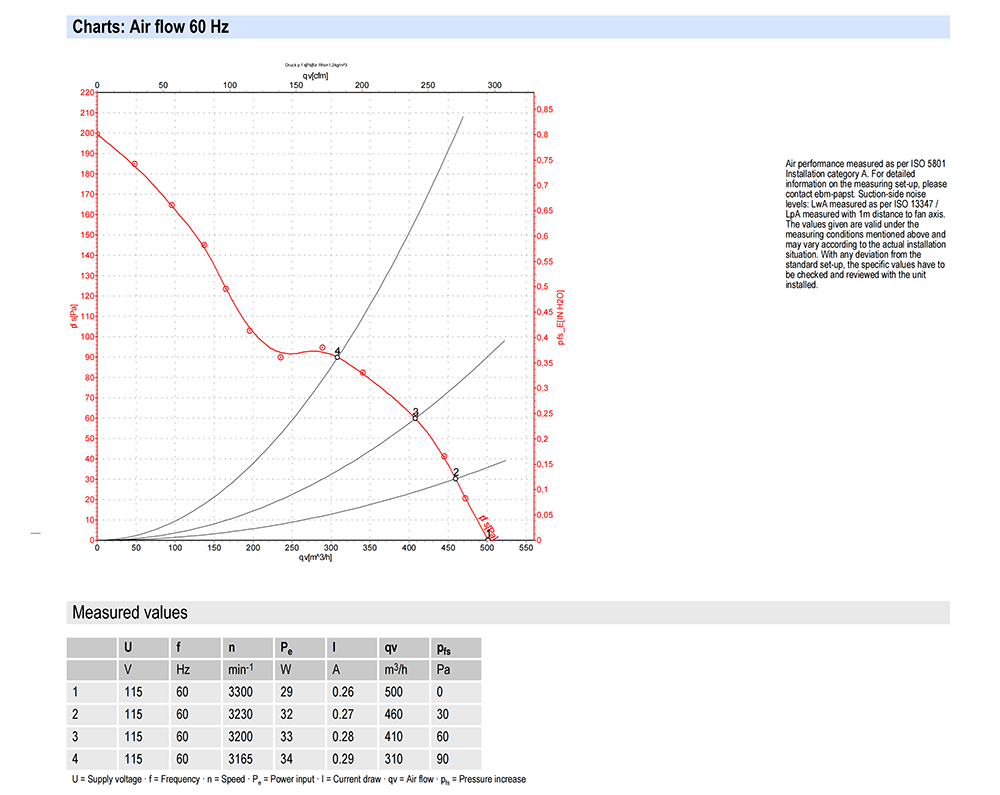

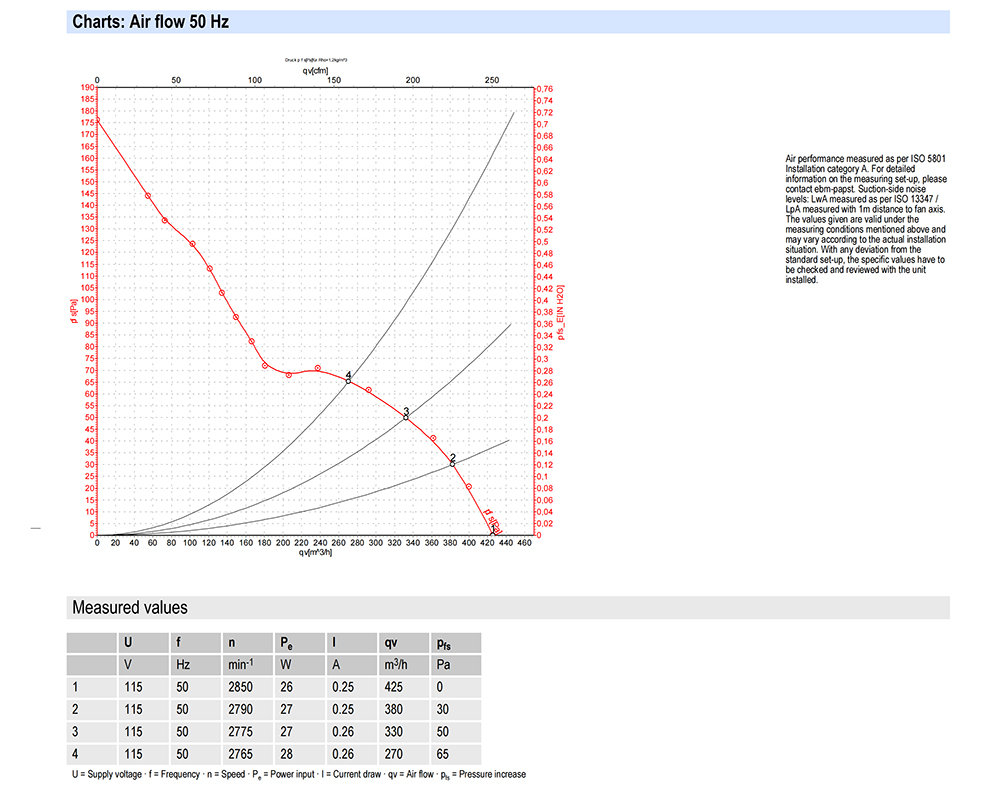

| Max.Air Flow(m³/h)： | 500 |
| Max.Pressure(Pa)： | 90 |
| Input Power(W)： | 26 |
| Speed(RPM)： | 3300 |
| Mass: | 0.95 kg |
| Surface Of Rotor: | Rotor open, coated in black |
| Material Of Blades: | Sheet steel, coated in black |
| Material Of Wall Ring: | Die-cast aluminium, coated in black |
| Number Of Blades: | 5 |
| Direction Of Air Flow: | "V" |
| Direction Of Rotation: | Counter-clockwise, seen on rotor |
| Type Of Protection: | IP 20 |
| Insulation Class: | "B" |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | None, open rotor |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Leakage Current: | < 0.75 mA |
| Electrical Leads: | With plug |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Protection Class: | I (if earth wire is connected by customer) |
| Product Conforming To Standard: | EN 60335-1; CE |
| Approval: | CCC; CSA C22.2 Nr.113; UL 507; VDE |
