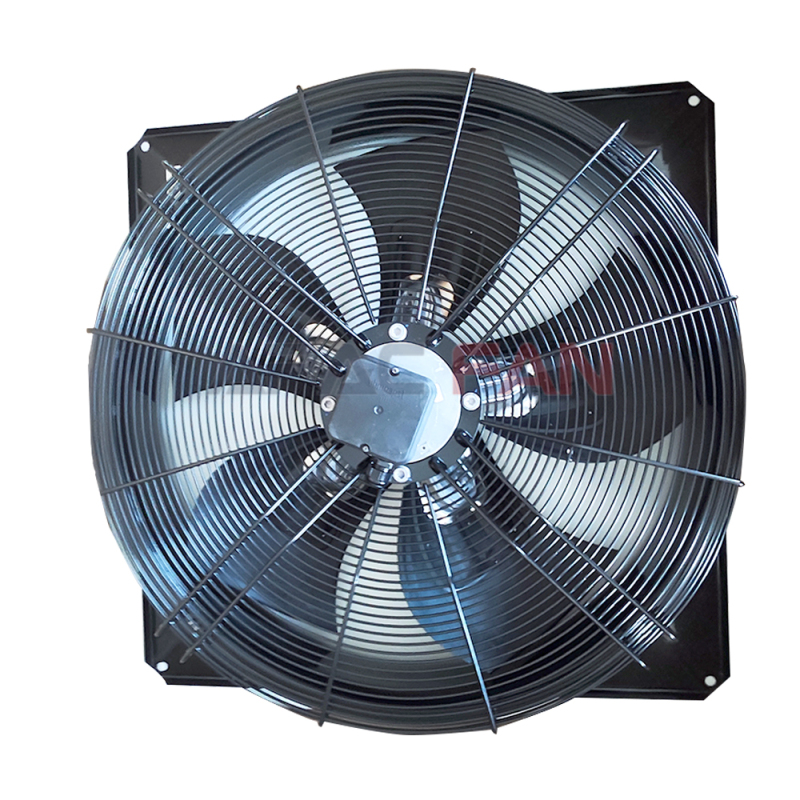

W6D710-GH01-01 ebm-papst

Q1: How does the W6D710-GH01-01’s negative blade pitch (-5°) impact its airflow and pressure performance?

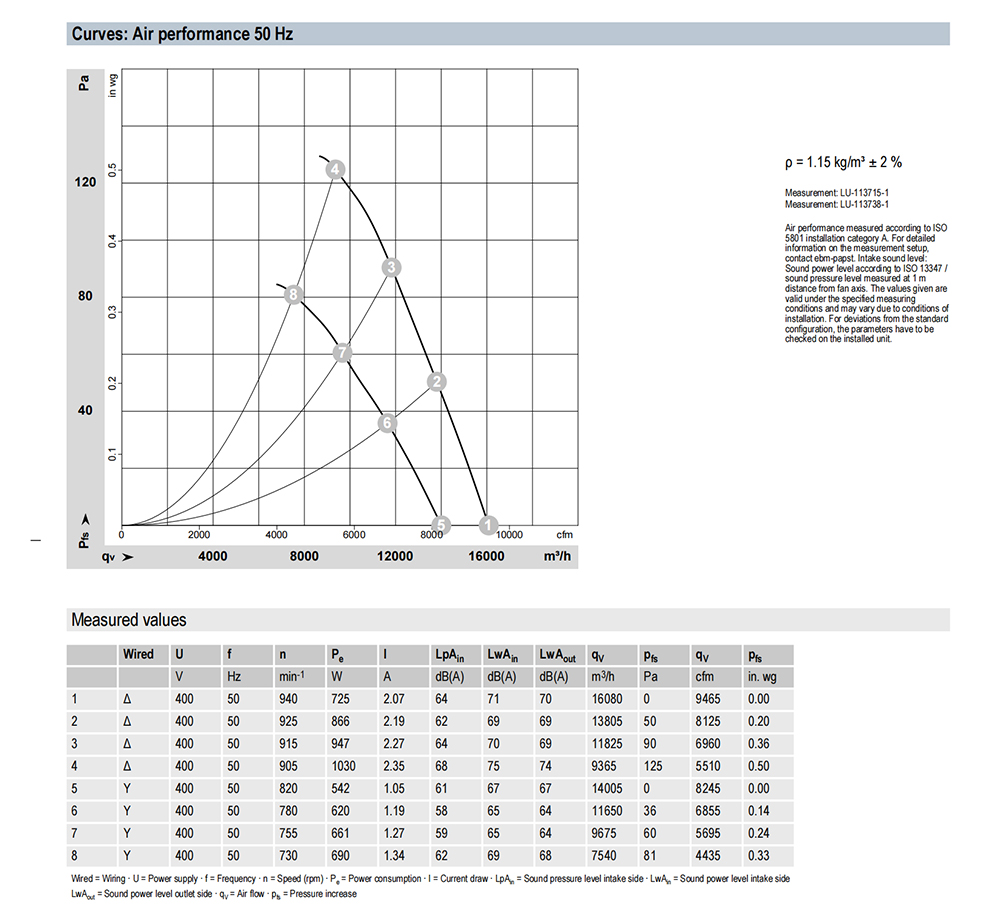

A1: The W6D710-GH01-01 features a -5° blade pitch, which optimizes airflow dynamics to generate 16,080 m³/h at 170 Pa. This negative angle enhances pressure efficiency in duct systems with resistance, making it suitable for industrial exhaust applications where consistent airflow through restrictive ducts is critical. The design balances energy consumption (1700W input) with performance for heavy-duty use.

Q2: What environmental conditions can the W6D710-GH01-01 tolerate, and what precautions are needed for cold climates?
A2: The fan withstands ambient temperatures from -40°C (occasional start-up) to +80°C, but continuous operation below -25°C requires special low-temperature bearings. Its IP54 protection and F3-1 moisture class guard against dust, water splashes, and moderate humidity, while condensate drainage holes on both rotor/stator sides prevent water accumulation in harsh environments like cold storage or outdoor installations.

Q3: What safety certifications and design features make the W6D710-GH01-01 suitable for industrial use?
A3: Certified to EN 60034-1, EN 61800-5-1, VDE, and EAC standards, the fan includes Class I protection (requiring protective earth connection) and touch current ≤3.5 mA. The thermal overload protector (TOP) with basic insulation prevents motor overheating, while the galvanized steel housing (RAL 9005 coating) and steel guard grille enhance durability in manufacturing or warehouse settings.

Q4: How do the material specifications of the W6D710-GH01-01 contribute to its longevity?
A4: The fan features a cast aluminum rotor, PP-sprayed aluminum blades, and a galvanized steel housing with black plastic coating (RAL 9005). This construction resists corrosion, wear, and mechanical stress, while the PP plastic terminal box ensures electrical insulation. The 37.2 kg weight provides stability in high-pressure systems, making it ideal for continuous S1 duty operations.

Q5: What installation considerations should be followed for the W6D710-GH01-01 to maximize performance?

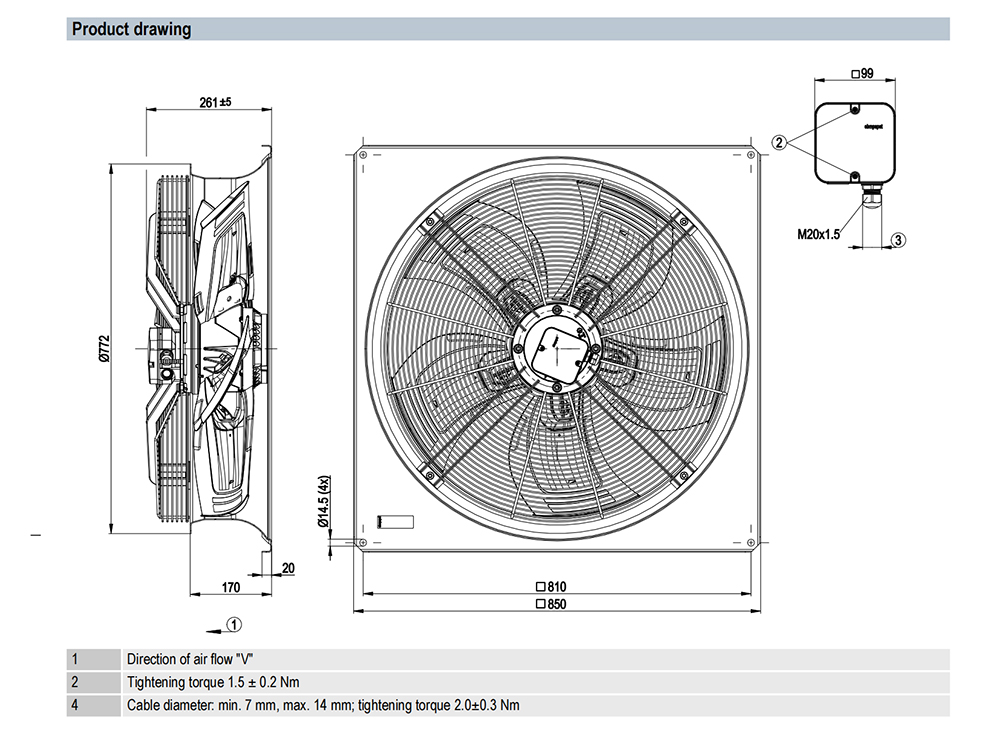

A5: While mountable in any position, ensure condensate drainage holes remain unobstructed to prevent moisture damage. The clockwise rotation (viewed toward the rotor) and "V"-direction airflow must align with system design for optimal pressure distribution. For cold environments below -25°C, specify low-temperature bearings at the time of purchase to avoid mechanical failure during continuous use.
