FAQ
Q1: What core performance features make the ebm-papst 4114N/2H6PU a high-pressure compact fan solution for industrial cooling?

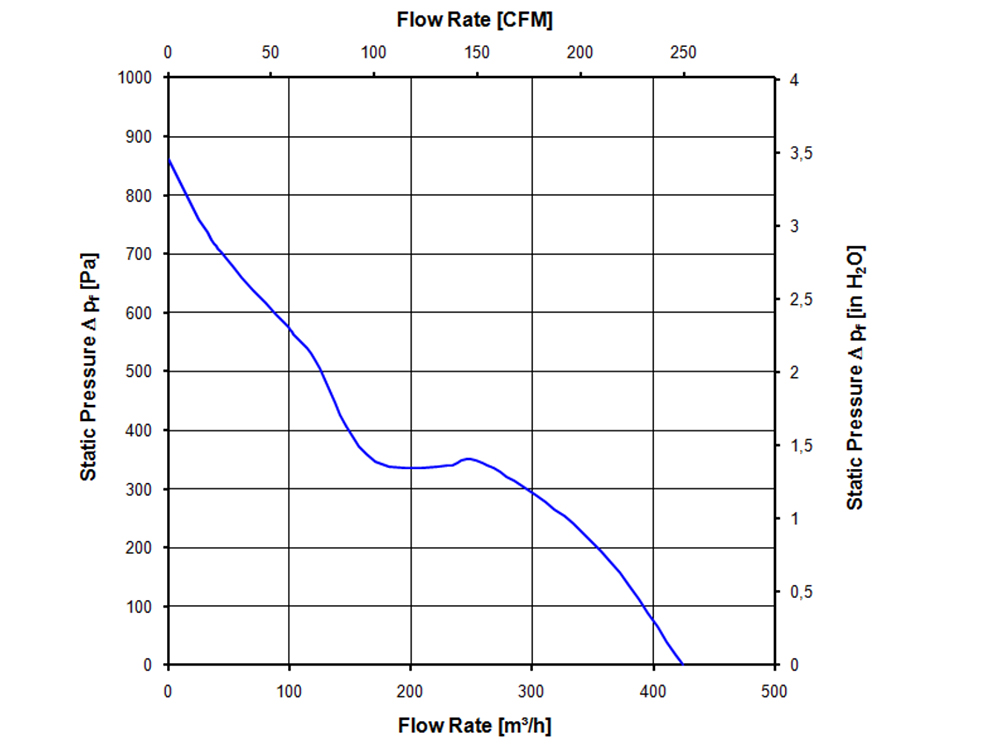

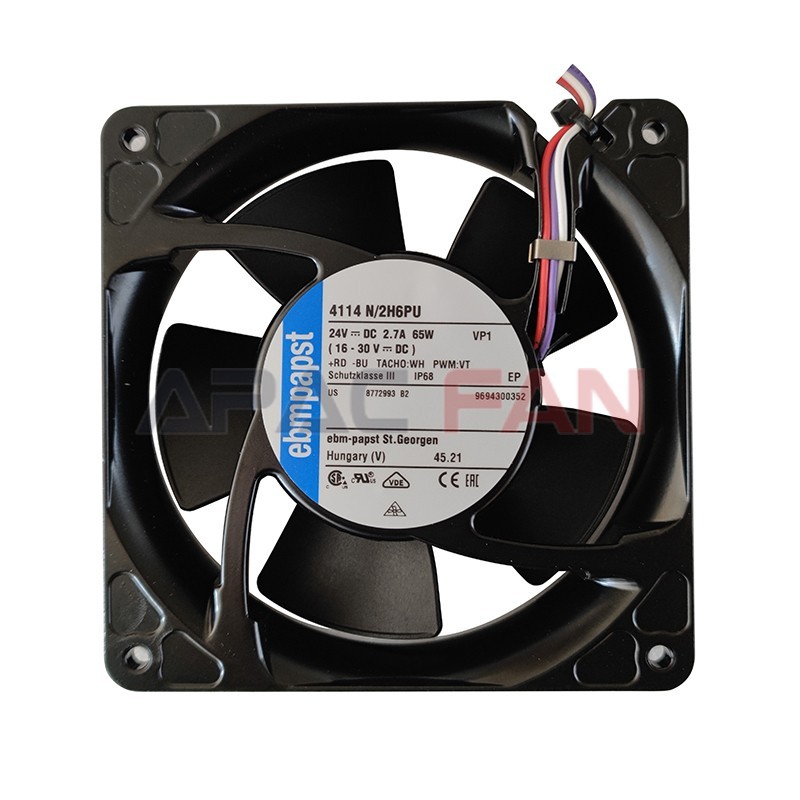

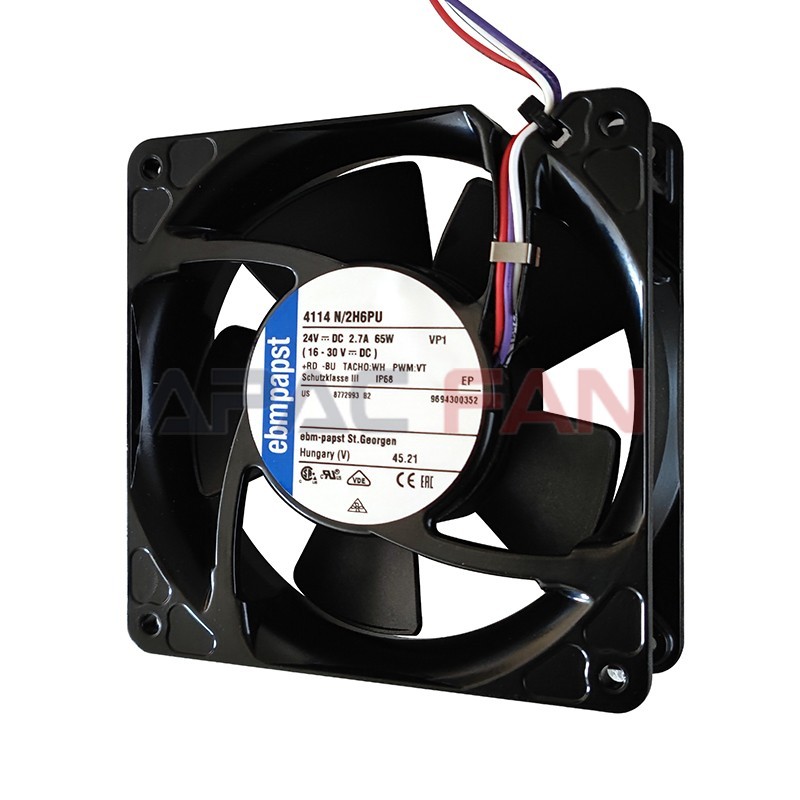

A1: The ebm-papst 4114N/2H6PU is a 120*120*38 mm compact fan rated at 24 V, with 66 W input power and an 8400 RPM high speed. It delivers a maximum airflow of 425 m³/h and an impressive 860 Pa static pressure—an outstanding high-pressure performance for its compact size, making it ideal for industrial cooling scenarios that need powerful air movement to overcome high airflow resistance in limited space.
Q2: What structural and material features define the ebm-papst 4114N/2H6PU compact fan’s durability and adaptability?

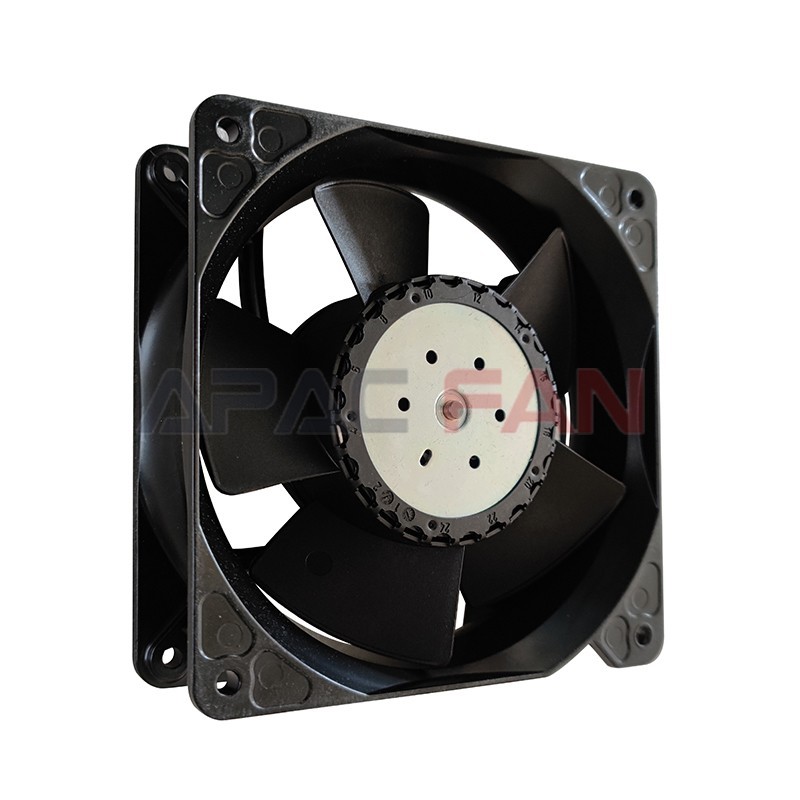

A2: The ebm-papst 4114N/2H6PU features a robust metal housing and plastic impeller for a balance of structural strength and lightweight design, paired with a stainless steel ball bearing system that boosts wear and corrosion resistance. It supports any shaft mounting position, a key advantage for flexible integration into space-constrained industrial equipment, and its high-grade bearing system ensures stable operation even at the fan’s 8400 RPM high speed.
Q3: What airflow and rotational characteristics should be noted for the ebm-papst 4114N/2H6PU in system installation?
A3: The ebm-papst 4114N/2H6PU has a clockwise rotation (viewed at rotor) and air intake over struts airflow direction—critical details for correct on-site installation to ensure optimal air movement and pressure output. Its 8400 RPM high speed is the core driver of its 860 Pa high static pressure, so aligning the fan’s airflow direction with ductwork or equipment cooling channels is essential to avoid airflow obstruction and maximize cooling efficiency.
Q4: What mounting and mechanical torque specifications apply to the ebm-papst 4114N/2H6PU compact fan?

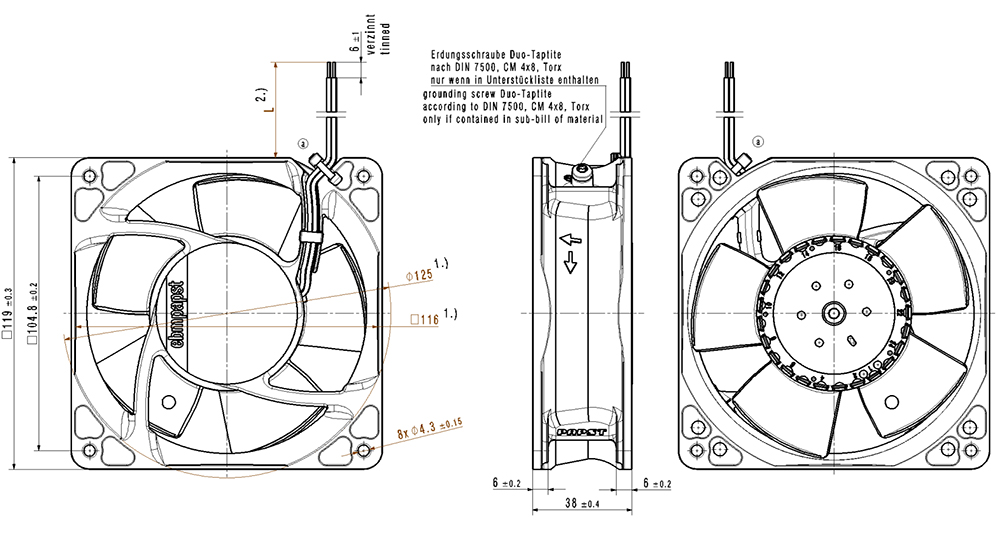

A4: The ebm-papst 4114N/2H6PU uses ISO 4762 - M4 degreased screws for mounting (no additional brace/washer needed) and has clear maximum torque limits: 420 Ncm for the wire outlet corner and 600 Ncm for all remaining corners when mounted across both flanges. Adhering to these torque specs prevents housing damage during installation, while its universal shaft mounting position allows flexible placement in industrial enclosures without performance compromise.
Q5: What power supply and wiring considerations are critical for the ebm-papst 4114N/2H6PU’s stable high-speed operation?
A5: For the ebm-papst 4114N/2H6PU, a stable 24 V DC power supply with sufficient load capacity to support its 66 W input power is mandatory to maintain its 8400 RPM high speed and consistent 860 Pa pressure output. The fan features 4 Wire Leads for termination—proper wiring connection is essential to avoid electrical faults, and ensuring the power supply has low voltage ripple is key to preventing speed fluctuations that could reduce performance or shorten the stainless steel bearing system’s service life.
