ebm-papst 4600N-466: The Compact Cooling Solution for High-Performance Control Cabinets

In the realm of industrial automation and electrical engineering, control cabinets serve as the nerve centers of countless operations, housing critical components such as programmable logic controllers (PLCs), variable frequency drives (VFDs), relays, and circuit breakers. These components generate significant heat during operation, and maintaining optimal temperature levels within the cabinet is paramount to ensuring reliability, extending component lifespan, and preventing costly downtime. Enter the ebm-papst 4600N-466 compact fan—a purpose-built cooling solution that combines robust performance, space-efficient design, and industrial-grade durability to meet the demanding cooling needs of modern control cabinets.

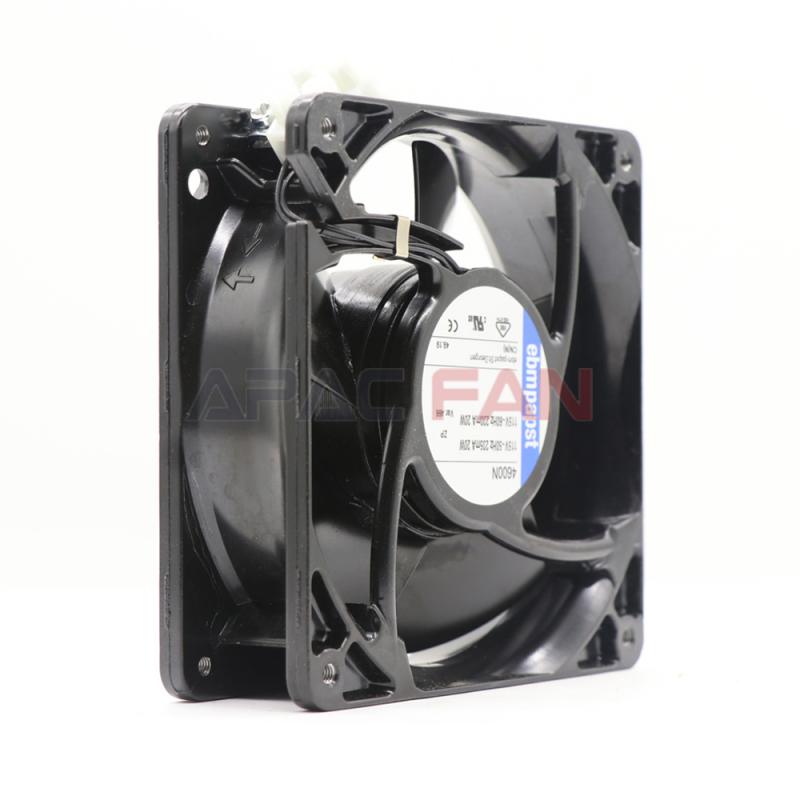

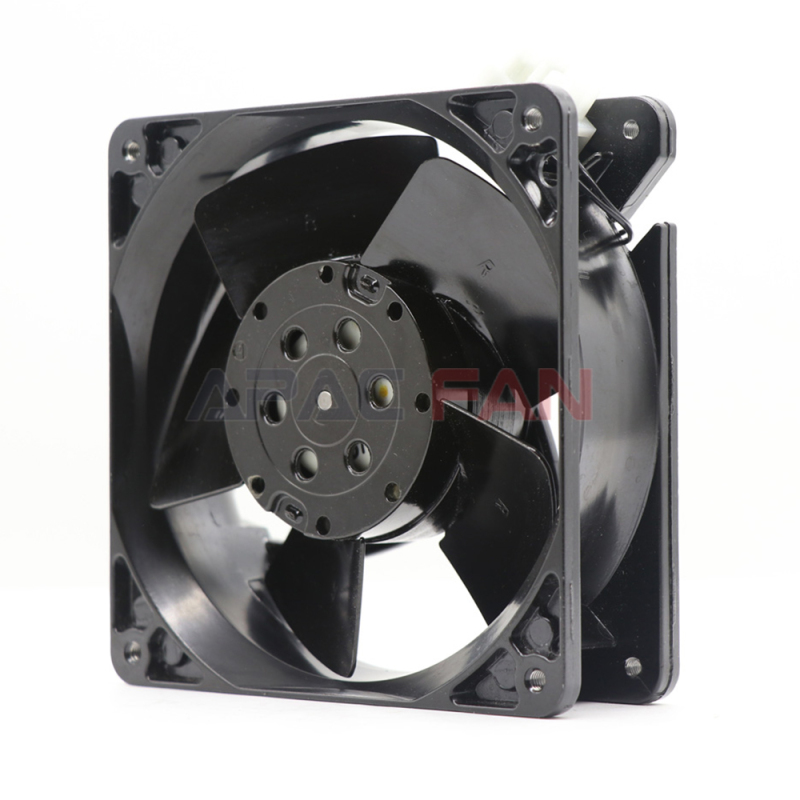

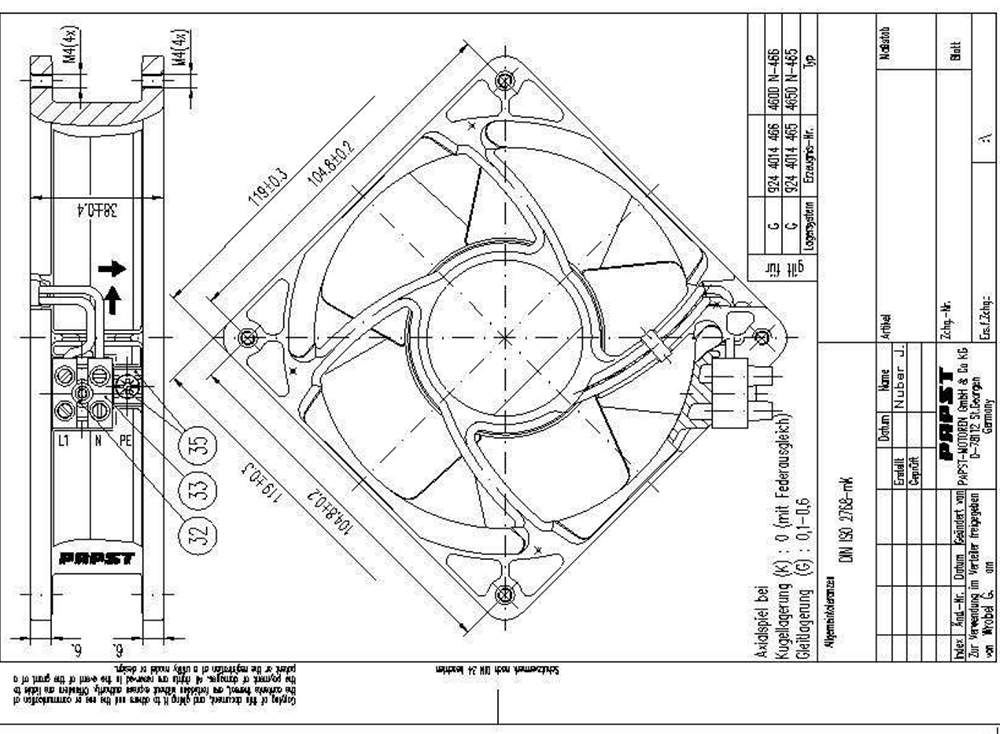

At first glance, the 4600N-466 stands out for its compact form factor, measuring just 119mm x 119mm x 38mm. This slim profile is a game-changer for control cabinet designers and engineers, who often face constraints when it comes to allocating space for cooling systems. Unlike bulkier fans that may require extensive modifications to cabinet layouts, the 4600N-466 fits seamlessly into standard cabinet enclosures, making it an ideal choice for both new installations and retrofitting existing setups. Weighing a mere 0.550 kg, it also minimizes structural load on cabinet panels, ensuring long-term stability without compromising on cooling capability.

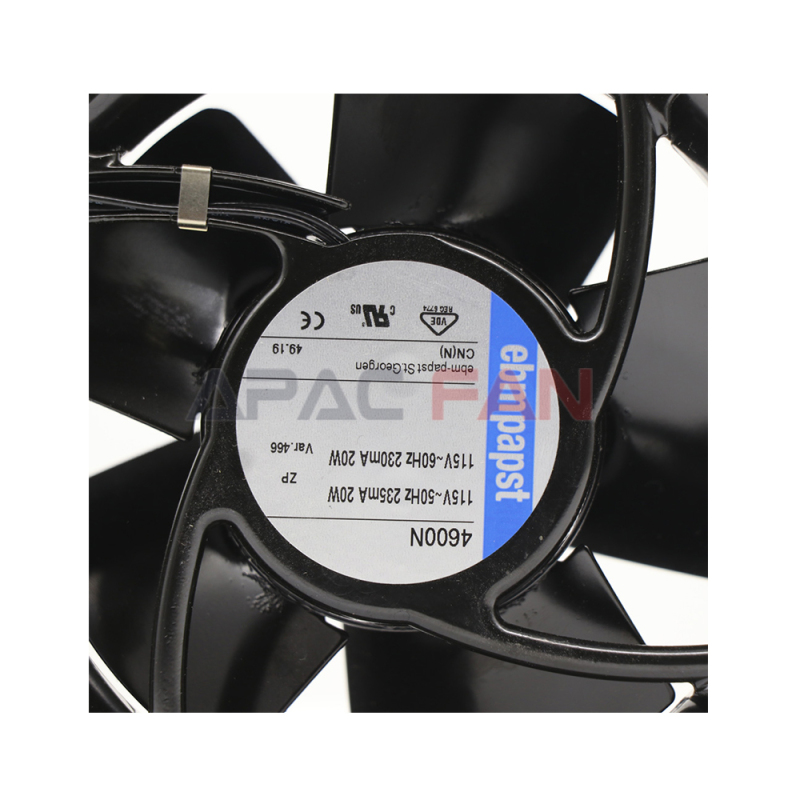

Beneath its compact exterior lies a powerful motor that delivers impressive airflow and speed performance. Rated for a nominal voltage of 115V (compatible with both 50Hz and 60Hz frequencies), the fan operates at 2,680 rpm when connected to 50Hz power and ramps up to 3,060 rpm at 60Hz. This dual-frequency compatibility enhances its versatility, allowing it to be deployed in global industrial environments without the need for voltage converters. The result is a maximum free-air flow of 157.7 m³/h at 50Hz and 179.3 m³/h at 60Hz—figures that belay its small size. For control cabinets, this level of airflow is critical: it ensures that heat generated by components is quickly dissipated, preventing hotspots that can lead to component failure or performance degradation.

Efficiency is another key strength of the 4600N-466. Despite its powerful performance, the fan maintains low power consumption, using just 18.0W at 50Hz and 17.0W at 60Hz, with corresponding current draws of 220mA and 204mA. This energy efficiency not only reduces operational costs for industrial facilities but also aligns with the growing emphasis on sustainable manufacturing practices. By minimizing power usage, the fan contributes to lower carbon footprints without sacrificing the cooling performance that control cabinets depend on.

The fan’s design is tailored to the unique requirements of control cabinet cooling, starting with its airflow direction: air intake over struts. This configuration is particularly effective in cabinet environments, as it allows the fan to draw cool air from the exterior of the cabinet (or from a dedicated cooling plenum) and direct it over the heat-generating components. The strut design ensures that airflow is distributed evenly, avoiding dead zones where heat could accumulate.

Complementing this is the rotational direction—clockwise when viewed toward the rotor—which is optimized to work with standard cabinet venting layouts, maximizing the efficiency of the entire cooling system.

Durability is non-negotiable in industrial settings, and the 4600N-466 is built to withstand the rigors of harsh operating conditions. Equipped with ball bearings, the fan offers superior longevity compared to sleeve-bearing alternatives. Ball bearings reduce friction, minimize wear and tear, and ensure consistent performance even in high-temperature environments, extending the fan’s operational lifespan and reducing the need for frequent maintenance. This is a critical advantage for control cabinets, which are often located in areas where access for repairs is limited or where downtime would have significant operational impacts.

Safety is also a top priority in the design of the 4600N-466. It features a Protection Class I rating, meaning it is equipped with a protective earth connection to prevent electric shock in the event of insulation failure. Additionally, the leakage current is limited to ≤0.75mA in accordance with IEC 60990 standards, ensuring compliance with strict industrial safety regulations. These safety features provide peace of mind to engineers and facility managers, knowing that the fan meets the highest safety standards for use in control cabinets housing sensitive electrical equipment.

In practical applications, the 4600N-466 proves its worth across a wide range of industries. In manufacturing plants, for example, control cabinets regulating assembly lines and robotic systems generate constant heat from PLCs and VFDs. The fan’s high airflow ensures that these components operate within their optimal temperature ranges, preventing unexpected shutdowns that could disrupt production schedules. In data centers, where control cabinets manage server racks and network equipment, the fan’s compact size and energy efficiency make it an ideal choice for high-density installations where space and power are at a premium.

Another notable application is in renewable energy systems, such as solar power inverters and wind turbine control cabinets. These cabinets are often located in outdoor or semi-outdoor environments, exposing them to fluctuating temperatures and environmental stressors. The 4600N-466’s durable construction and ball bearings enable it to perform reliably in these challenging conditions, ensuring that renewable energy systems continue to operate efficiently even in harsh weather.

When compared to other cooling solutions for control cabinets, such as axial fans or blowers, the 4600N-466 offers a unique balance of size, performance, and efficiency. Axial fans may provide high airflow but often require more space, while smaller blowers may lack the airflow capacity needed for larger cabinets. The 4600N-466 bridges this gap, delivering the airflow of a larger fan in a compact package that fits into tight spaces. Its low noise level of 50dB is an added benefit, making it suitable for use in environments where noise pollution is a concern, such as indoor manufacturing facilities or office-adjacent control rooms.

Compliance with international standards further reinforces the 4600N-466’s credibility as a reliable cooling solution. It conforms to EN 60335-1, the European standard for safety of household and similar electrical appliances, and carries the CE mark, indicating compliance with European Union directives. This ensures that the fan can be used in global markets without the need for extensive reconfiguration or testing, simplifying the supply chain for multinational industrial companies.

In conclusion, the ebm-papst 4600N-466 compact fan is a standout solution for control cabinet cooling. Its combination of compact design, high airflow, energy efficiency, durability, and safety features makes it an indispensable component in modern industrial environments. Whether deployed in manufacturing, data centers, renewable energy, or any other industry relying on control cabinets, the 4600N-466 delivers consistent, reliable cooling that protects critical equipment, reduces downtime, and lowers operational costs. For engineers and facility managers seeking a cooling solution that balances performance and practicality, the ebm-papst 4600N-466 is a choice that never compromises on quality.
